Quantum ATL M1500 User manual
Quantum ATL M1500 Unpacking Instructions
Document 6421002-06 A01
July 2003
2 6207947-04fN 5
Quantum ATL M1500 Unpacking Instructions
Document 6421002-06 A01
July 2003
Introduction 3
Introduction 0
This document explains how to unpack a Quantum ATL M1500. The
unpacking procedure consists of the following major steps:
• Removing the library from the shipping carton
• Removing the remaining packing materials
• Checking the contents
Removing the Library from the Shipping Carton 0
To unpack the library:
1The following tools are required for this operation:
•Scissors
•No.2POZIDRIV
®screwdriver, long (10 in. or 250 mm
minimum)
• Antistatic wrist strap
2Place the shipping carton and pallet as close to the installation site
as possible.
3Using the scissors, carefully cut the two plastic straps securing the
shipping carton to the pallet (see figure 1).
4Lift the lid off of the shipping carton.
Note: Be careful not to damage the packaging materials while
unpacking the library. Save all packaging materials for
possible future use.
Warning: The shipping carton is secured to the pallet by two
plastic straps. The straps are under tension and snap
away when cut.
Quantum ATL M1500 Unpacking Instructions
Document 6421002-06 A01
July 2003
4 Removing the Library from the Shipping Carton

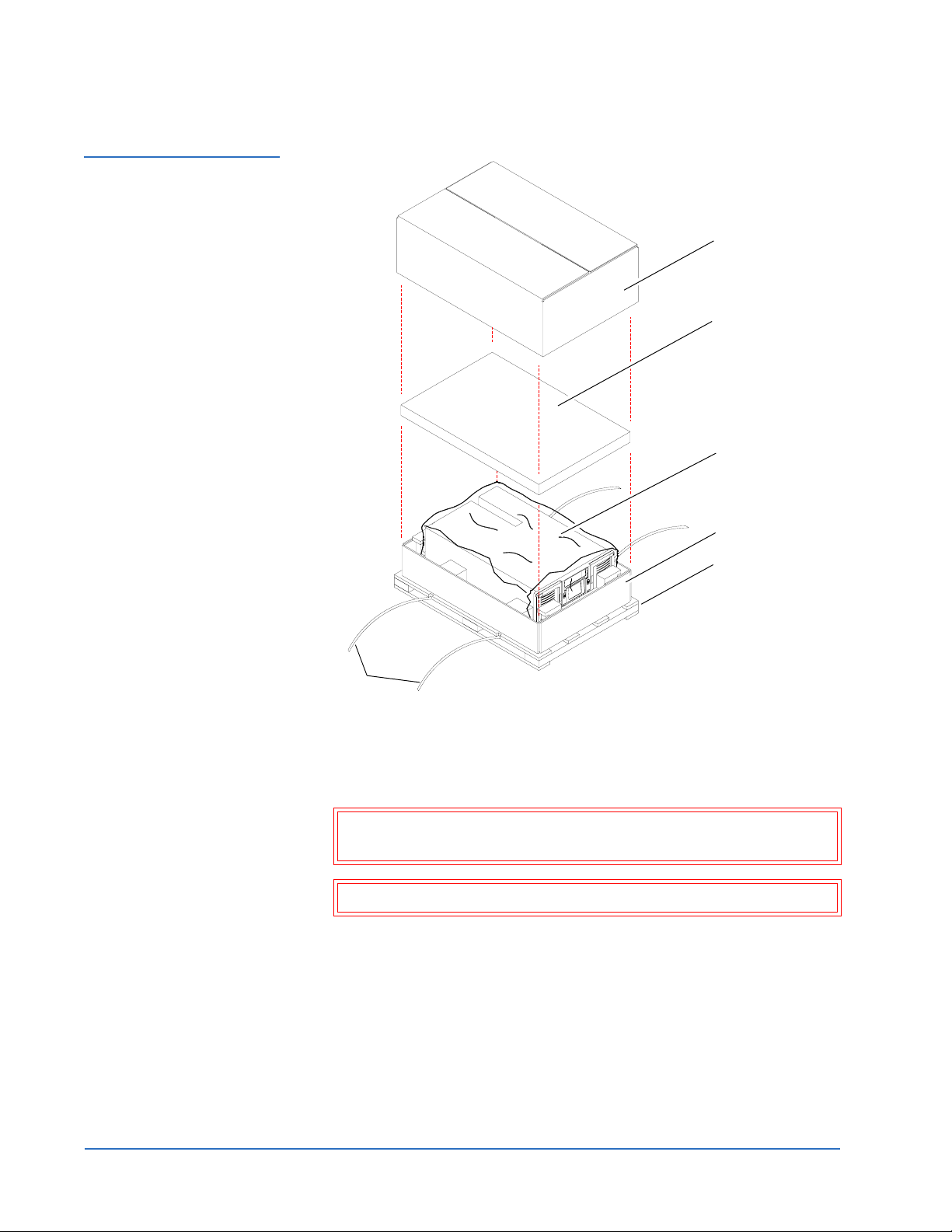

Figure 1 Removing the
Library from the Shipping
Carton
5Remove the accessories kit and set it aside.
6With the help of a second person, lift the library up and out of the
shipping carton.
7Place the wrapped library on a table or desk.
Warning: The library weighs 54 lbs (24.5 kg). At least two
people are required to move the library.
Caution: Lift the library by its sides, not by the front bezel.
Lid
Accessories kit
Library
Shipping carton
Pallet
Plastic straps
Quantum ATL M1500 Unpacking Instructions
Document 6421002-06 A01
July 2003
Removing the Remaining Packing Materials 5
Removing the Remaining Packing Materials 0
Now that you have removed the library from its shipping carton,
remove the remaining packing materials from the library:
1Remove the antistatic sheet from the library as follows:
aCut the tape strips securing the sheet.
bFold the sheet down.
cWith the help of a second person, lift the library up off of the
antistatic sheet.
dPlace the library on the table or desk next to the antistatic sheet.
Save the antistatic sheet for possible future use.
2At the back of the library, remove the handle protection pad.
3If the library will be installed in a rack with a StackLink
mechanism, remove the StackLink cover plate from the back of the
library using a no. 2 POZIDRIV screwdriver (10 in. or 250 mm
long) (see figure 2).

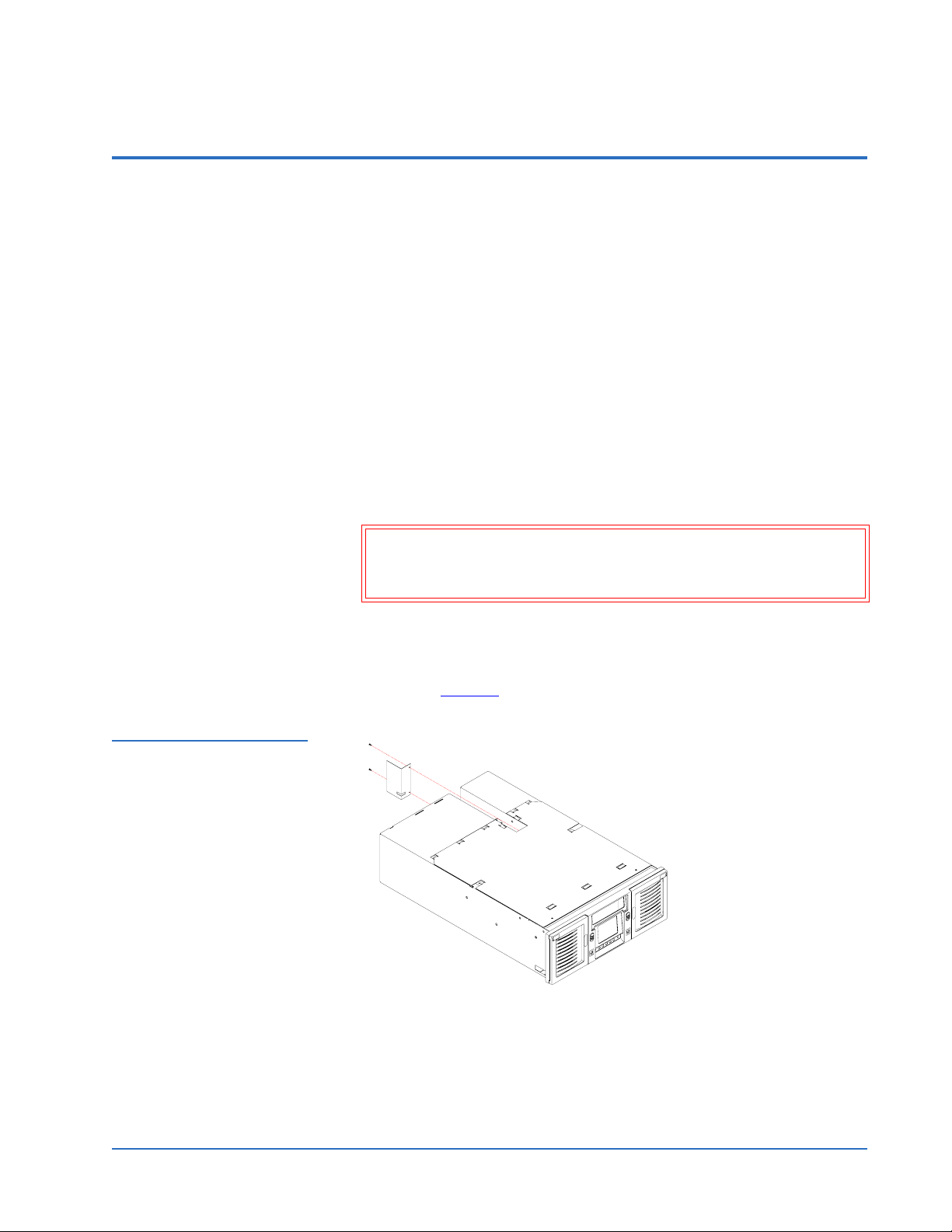

Figure 2 Removing the
Cover Plate
4Put on an antistatic wrist strap and clip it to the antistatic stud on
the back of the library (near the power supply).
Caution: The library is equipped with a StackLink cover plate.
Do not remove the StackLink cover plate if the
library is a stand-alone unit.
Quantum ATL M1500 Unpacking Instructions
Document 6421002-06 A01
July 2003
6 Removing the Remaining Packing Materials

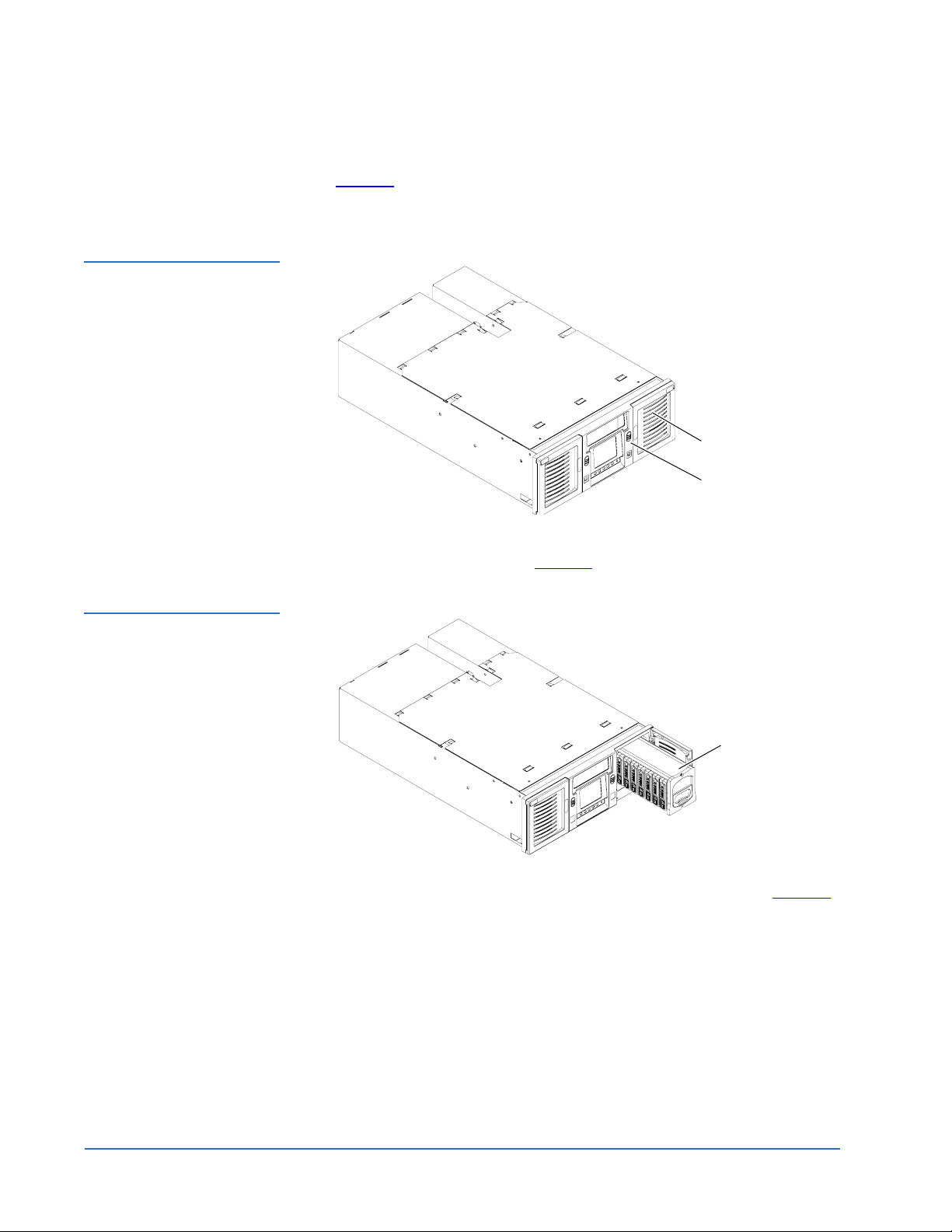

5Push the button next to the right magazine access door (see
figure 3).
The right magazine access door opens.
Figure 3 Opening the
Right Magazine Access
Door
6Grasping the handle at the front of the magazine, slide it forward
and out of the library (see figure 4).
Figure 4 Removing the
Magazine
7Push the button next to the left magazine access door (see figure 5).
The left magazine access door opens.
Right magazine
access door
Button
Magazine
Quantum ATL M1500 Unpacking Instructions
Document 6421002-06 A01
July 2003
Removing the Remaining Packing Materials 7

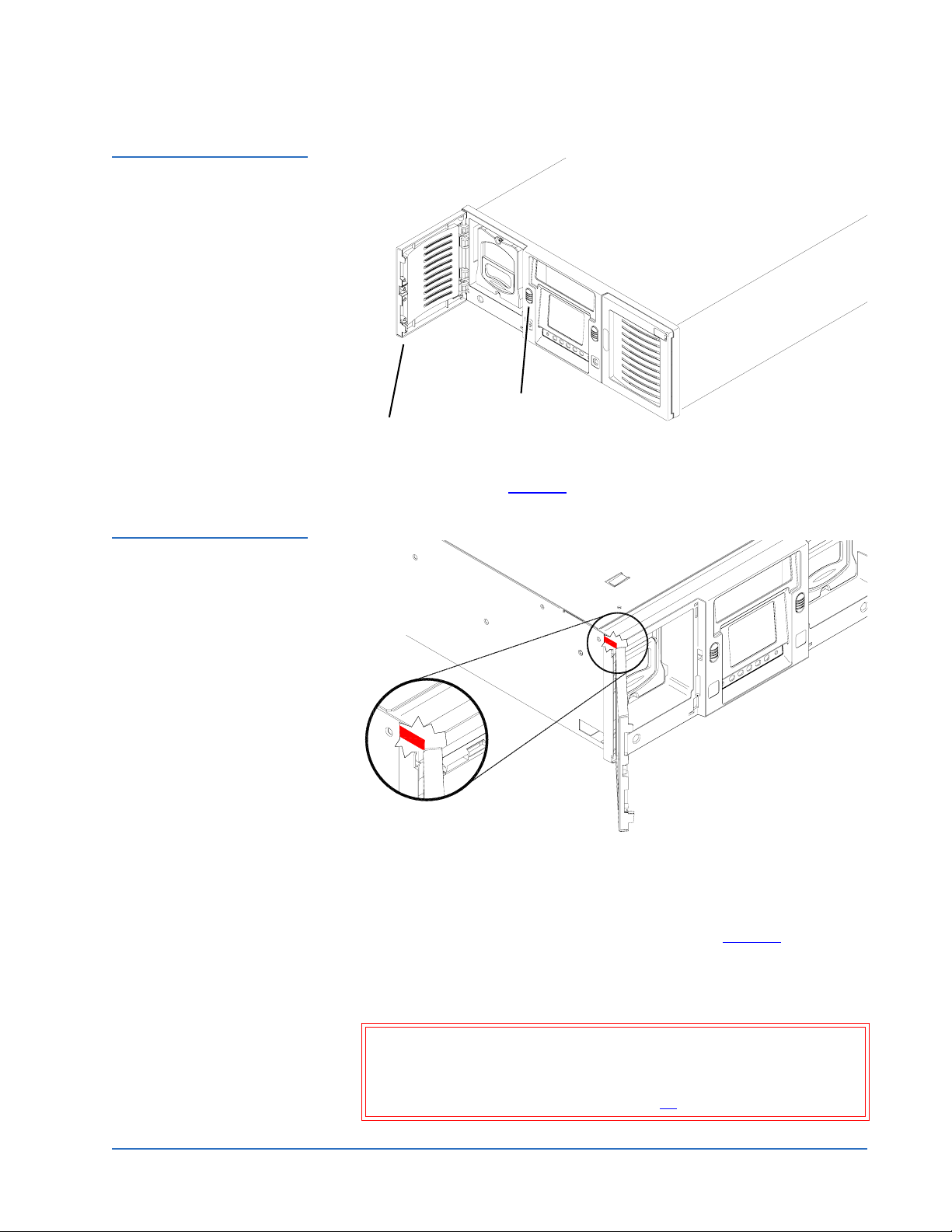

Figure 5 Opening the Left
Magazine Access Door
8Using a slender object such as a pen, press and hold the magazine
release button (see figure 6).
Figure 6 Magazine
Release Button, Left Side
Only
9Grasping the handle at the front of the left magazine, slide it
forward and out of the library.
10 Use the following steps to remove the two foam pads that stabilize
and support the X-Y tray inside the library (see figure 7):
aGrasp the tape that secures each foam pad.
bLift the tape and foam pad up and pull towards the door.
Caution: Avoid touching the printed circuit board and its
ribbon cable connector. Do not move or remove the
foam pad on the robotic hand until instructed to do
so (this occurs during step 13).
Button
Left magazine access door
Quantum ATL M1500 Unpacking Instructions
Document 6421002-06 A01
July 2003
8 Removing the Remaining Packing Materials

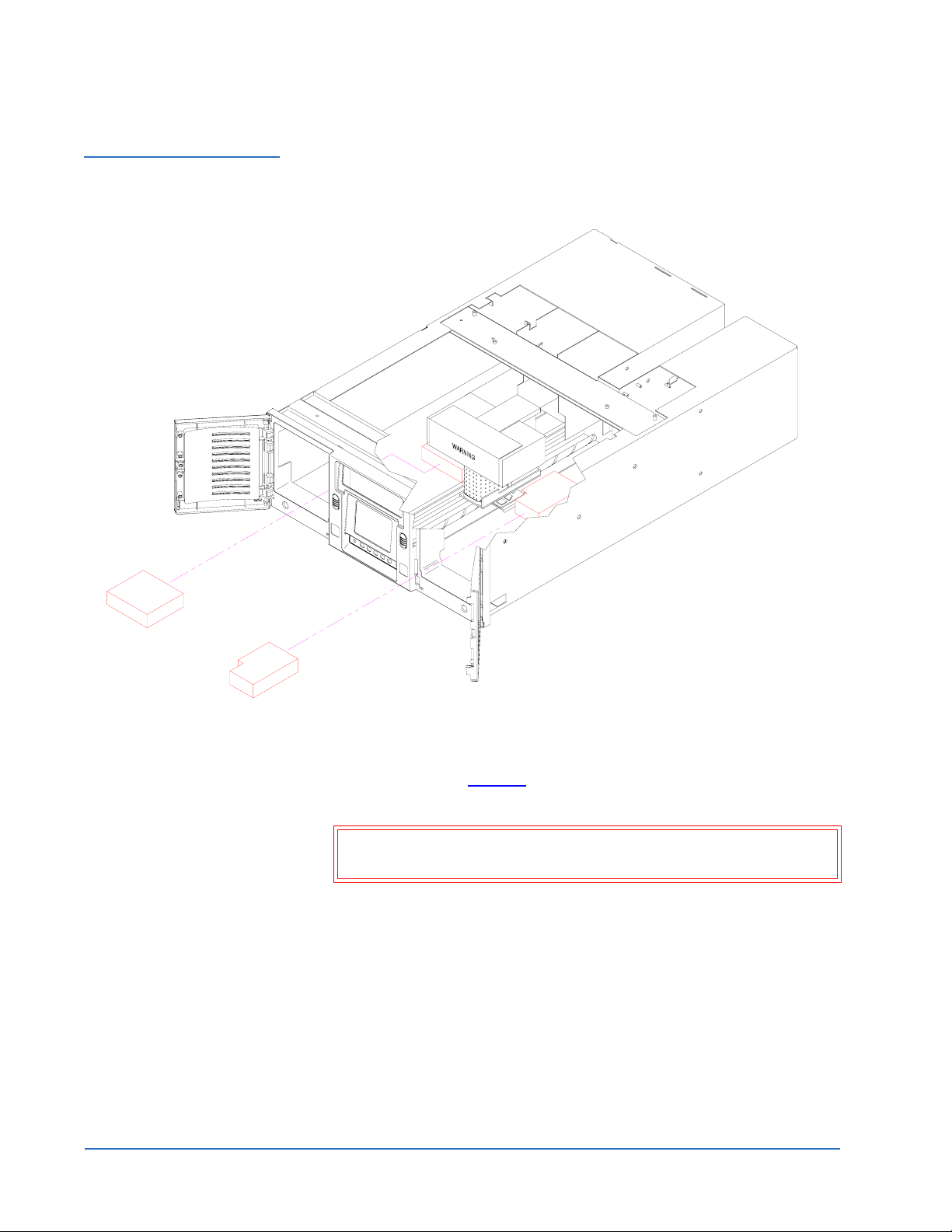

Figure 7 Removing the
Foam Pads that Support
the X-Y Tray
11 Move the robotic hand to the back of the library by reaching
through the right magazine access door. Grip the steel flange on
the “Y” slide (see figure 8) and push the robotic hand to the back of
the library.
Caution: Avoid touching the printed circuit board and its
ribbon cable connector.
Right foam pad
Left foam pad
Quantum ATL M1500 Unpacking Instructions
Document 6421002-06 A01
July 2003
Removing the Remaining Packing Materials 9

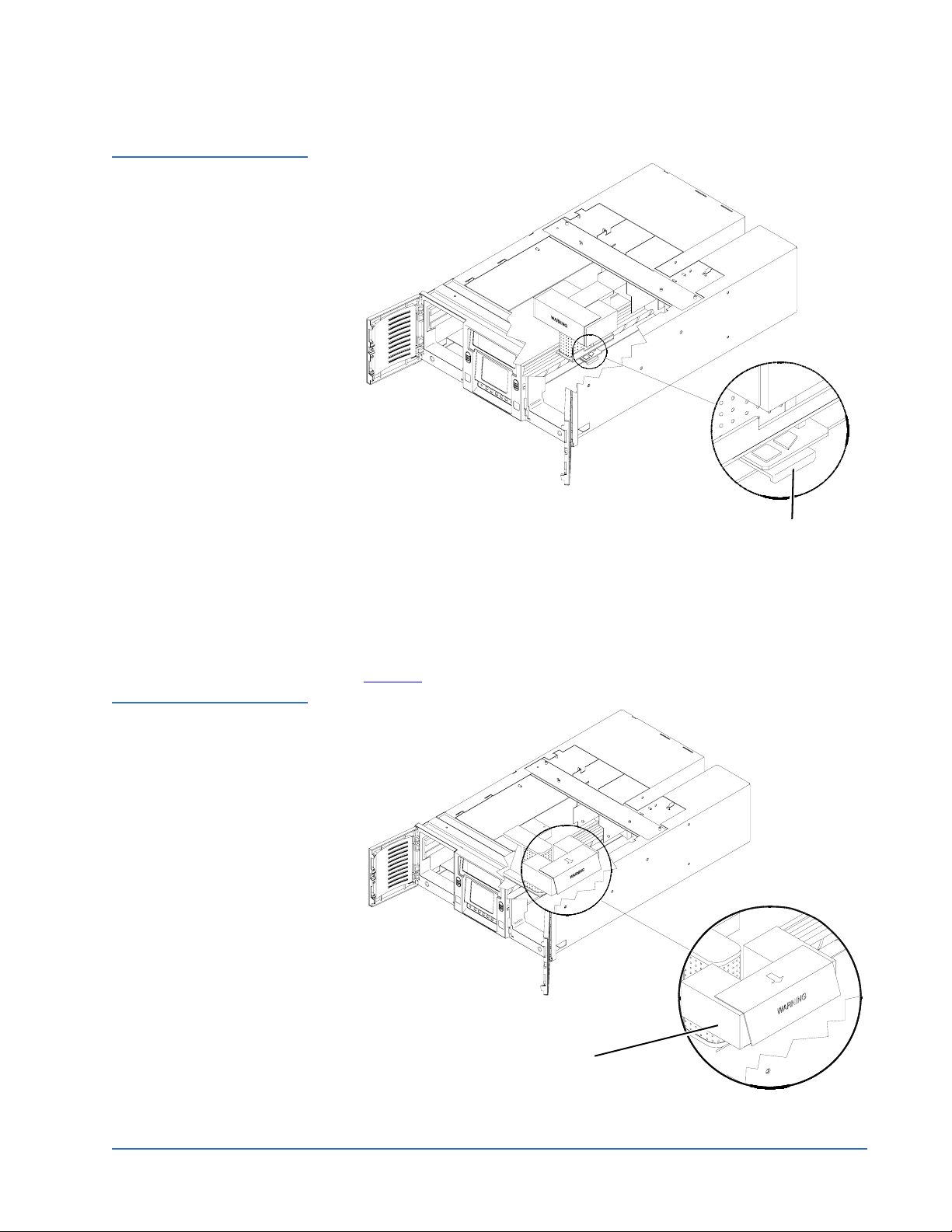

Figure 8 Pushing the
Robotic Hand toward the
Back of the Library
12 Being careful to touch only the foam pad on the robotic hand,
gently rotate the robotic hand 90° counterclockwise until it reaches
its limit.
13 Gripping the lower edge of the foam pad, pull to the right and
remove it off the robotic hand and out from the library (see
figure 9).
Figure 9 Removing the
Foam Pad from the
Robotic Hand
Steel flange
Pull right and out of the library
Quantum ATL M1500 Unpacking Instructions
Document 6421002-06 A01
July 2003
10 Checking the Contents
14 Replace the left and right magazines.
15 Close the magazine access doors.
The library is now unpacked and ready to be installed in its final
location. Refer to the Quantum ATL M-Series Installation Guide
(6423001) for installation instructions.
Checking the Contents 0
Compare the contents of the shipping carton and the accessories kit
with the items listed on the label on the outside of the shipping carton.
If any items are missing or damaged, contact your authorized reseller.
Note: The tape drives and media are sent separately from the
library.
