K456

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 4 x 8 x 4

x 4

Revision No: 9I 1

Fitting Kit K456

MAX kgs (lbs)

W/P WHD

Great Wall

Steed Double Cab, 4dr Ute 09-16 ZA 50 kgs (110 lbs) 50 kgs (110 lbs)

Steed Double Cab, 4dr Ute 10-+ EU 50 kgs (110 lbs) 50 kgs (110 lbs)

Steed Single Cab, 2dr Ute 10-+ EU 30 kgs (66 lbs) 30 kgs (66 lbs)

Steed Single Cab, 2dr Ute 10-+ ZA 30 kgs (66 lbs) 30 kgs (66 lbs)

Steed Single Cab, 2dr Ute 10-+ CN 30 kgs (66 lbs) 30 kgs (66 lbs)

V200 Double Cab, 4dr Ute Jul 11-16 AU 50 kgs (110 lbs) 50 kgs (110 lbs)

V200 Double Cab, 4dr Ute Jul 11-16 NZ 50 kgs (110 lbs) 50 kgs (110 lbs)

V200 Single Cab, 2dr Ute 10-+ AU 30 kgs (66 lbs) 30 kgs (66 lbs)

V200 Single Cab, 2dr Ute 10-+ NZ 30 kgs (66 lbs) 30 kgs (66 lbs)

V240 Double Cab, 4dr Ute Jul 09-+ NZ 50 kgs (110 lbs) 50 kgs (110 lbs)

V240 Double Cab, 4dr Ute Jul 09-+ AU 50 kgs (110 lbs) 50 kgs (110 lbs)

V240 Single Cab, 2dr Ute 10-+ AU 30 kgs (66 lbs) 30 kgs (66 lbs)

V240 Single Cab, 2dr Ute 10-+ NZ 30 kgs (66 lbs) 30 kgs (66 lbs)

2

Fitting Kit K456

X

A B C 1 2 3

Steed Double Cab, 4dr Ute 09-16 (ZA) -270mm 470mm - 835mm 815mm -

-10 -5/8ths" 18 1/2ths" - 32 7/8ths" 32 1/16ths" -

Steed Double Cab, 4dr Ute 10-+ (EU) -270mm 470mm - 835mm 815mm -

-10 -5/8ths" 18 1/2ths" - 32 7/8ths" 32 1/16ths" -

Steed Single Cab, 2dr Ute 10-+ (EU) -160mm - - 850mm - -

-6 -5/16ths" - - 33 7/16ths" - -

Steed Single Cab, 2dr Ute 10-+ (ZA) -160mm - - 850mm - -

-6 -5/16ths" - - 33 7/16ths" - -

Steed Single Cab, 2dr Ute 10-+ (CN) -160mm - - 850mm - -

-6 -5/16ths" - - 33 7/16ths" - -

V200 Double Cab, 4dr Ute Jul 11-16 (AU) -270mm 470mm - 835mm 815mm -

-10 -5/8ths" 18 1/2ths" - 32 7/8ths" 32 1/16ths" -

V200 Double Cab, 4dr Ute Jul 11-16 (NZ) -270mm 470mm - 835mm 815mm -

-10 -5/8ths" 18 1/2ths" - 32 7/8ths" 32 1/16ths" -

V200 Single Cab, 2dr Ute 10-+ (AU) -160mm - - 850mm - -

-6 -5/16ths" - - 33 7/16ths" - -

V200 Single Cab, 2dr Ute 10-+ (NZ) -160mm - - 850mm - -

-6 -5/16ths" - - 33 7/16ths" - -

V240 Double Cab, 4dr Ute Jul 09-+ (NZ) -270mm 470mm - 835mm 815mm -

-10 -5/8ths" 18 1/2ths" - 32 7/8ths" 32 1/16ths" -

V240 Double Cab, 4dr Ute Jul 09-+ (AU) -270mm 470mm - 835mm 815mm -

-10 -5/8ths" 18 1/2ths" - 32 7/8ths" 32 1/16ths" -

V240 Single Cab, 2dr Ute 10-+ (AU) -160mm - - 850mm - -

-6 -5/16ths" - - 33 7/16ths" - -

V240 Single Cab, 2dr Ute 10-+ (NZ) -160mm - - 850mm - -

-6 -5/16ths" - - 33 7/16ths" - -

3

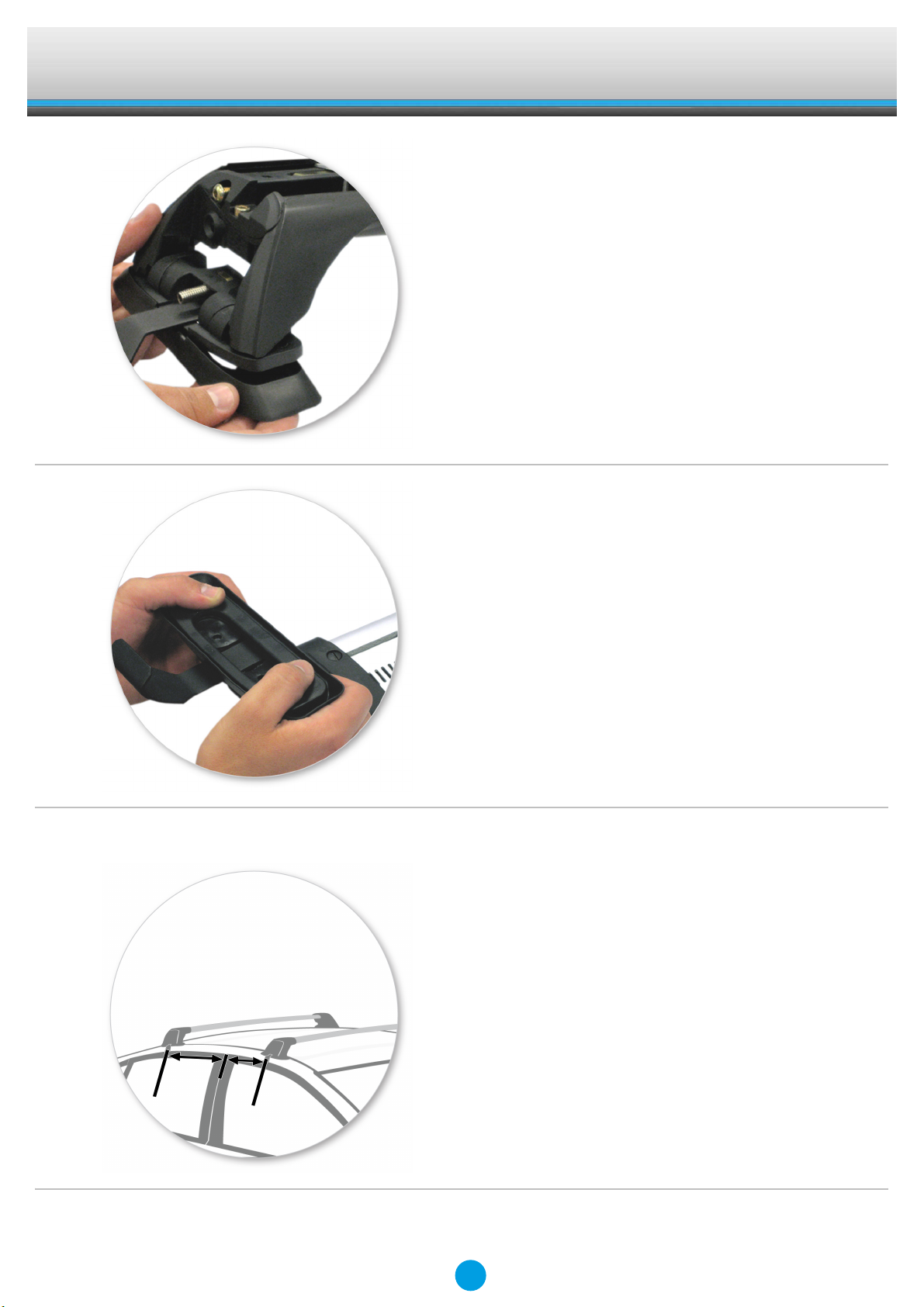

Fitting Kit EN

K456

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

4

Fitting Kit EN

K456

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

5

Fitting Kit EN

K456

●Remove locking screw.

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

6

Fitting Kit EN

K456

●Fit rubber pads (supplied with fitting kit) to

foot.

●Make sure the pad fits into the holes

underneath the foot.

Fitment

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Please check the front of this manual for

information relating specifically to your

vehicle.

7

Fitting Kit EN

K456

●Pull down rubber and slide body clip up

and over the interior trim. Refit the rubber

over the clip.

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

●Clamp locates onto the body clip as shown.

8

Fitting Kit EN

K456

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Tighten locking screw on both legs evenly.

●Check crossbar is securely attached to the

vehicle.

9

Fitting Kit EN

K456

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
