Prorack K820 User manual

K820

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 2 x 2 x 4

x 4 x 1 x 4

Revision No: 1A 1

Fitting Kit K820

MAX kgs (lbs)

W/P WHD

Renault

Clio , 5dr Hatch 05-12 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Clio , 5dr Hatch 05-12 CN 75 kgs (165 lbs) 75 kgs (165 lbs)

Clio , 5dr Hatch 07-10 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Clio , 5dr Hatch 07-14 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

2

Fitting Kit EN

K820

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

3

Fitting Kit EN

K820

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

4

Fitting Kit EN

K820

●NOTE: FRONT CROSSBAR ONLY

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

5

Fitting Kit EN

K820

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Refer to the underside of the pad for the

part number.

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 11-04-267

B = 11-04-268

6

Fitting Kit EN

K820

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

Fitment

●Place crossbar on vehicle.

7

Fitting Kit EN

K820

●Clamps onto anchor points under rubber

door frame mouldings

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar.

●Set bars to length (revert to rear of these

instructions).

●Please check the rear of this manual for

information relating specifically to your

vehicle.

●Pull back rubber seal to expose fixed points

on vehicle body.

8

Fitting Kit EN

K820

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Place clamp over the mounting hole

●Fit a fibre washer on each capscrew and

attach clamps to the vehicle body using the

capscrews.

●Use fixed-point rear mounting hole.

●Tighten locking screw on both legs evenly.

9

Fitting Kit EN

K820

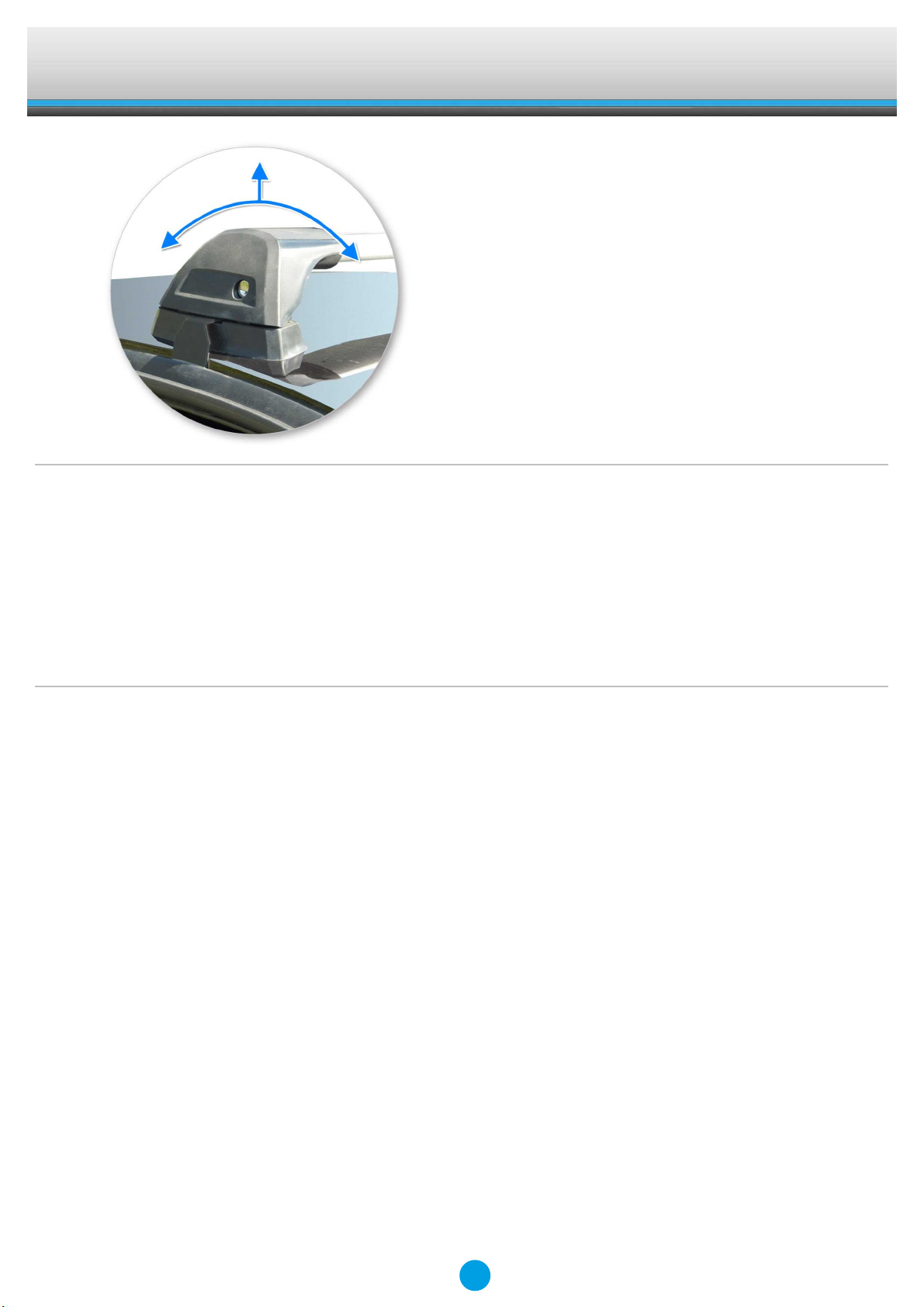

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.

10
