Prorack K330 User manual
K330
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 2 x 2 x 4 x 4
Revision No: 4D 1
Fitting Kit K330
MAX kgs (lbs)
W/P WHD
Ford
Falcon FG X, 4dr Sedan Dec 14-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Falcon FG X, 4dr Sedan Dec 14-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Falcon FG, 4dr Sedan 08-14 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
Falcon FG, 4dr Sedan May 08-14 AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Falcon FG, 4dr Sedan May 08-14 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
2

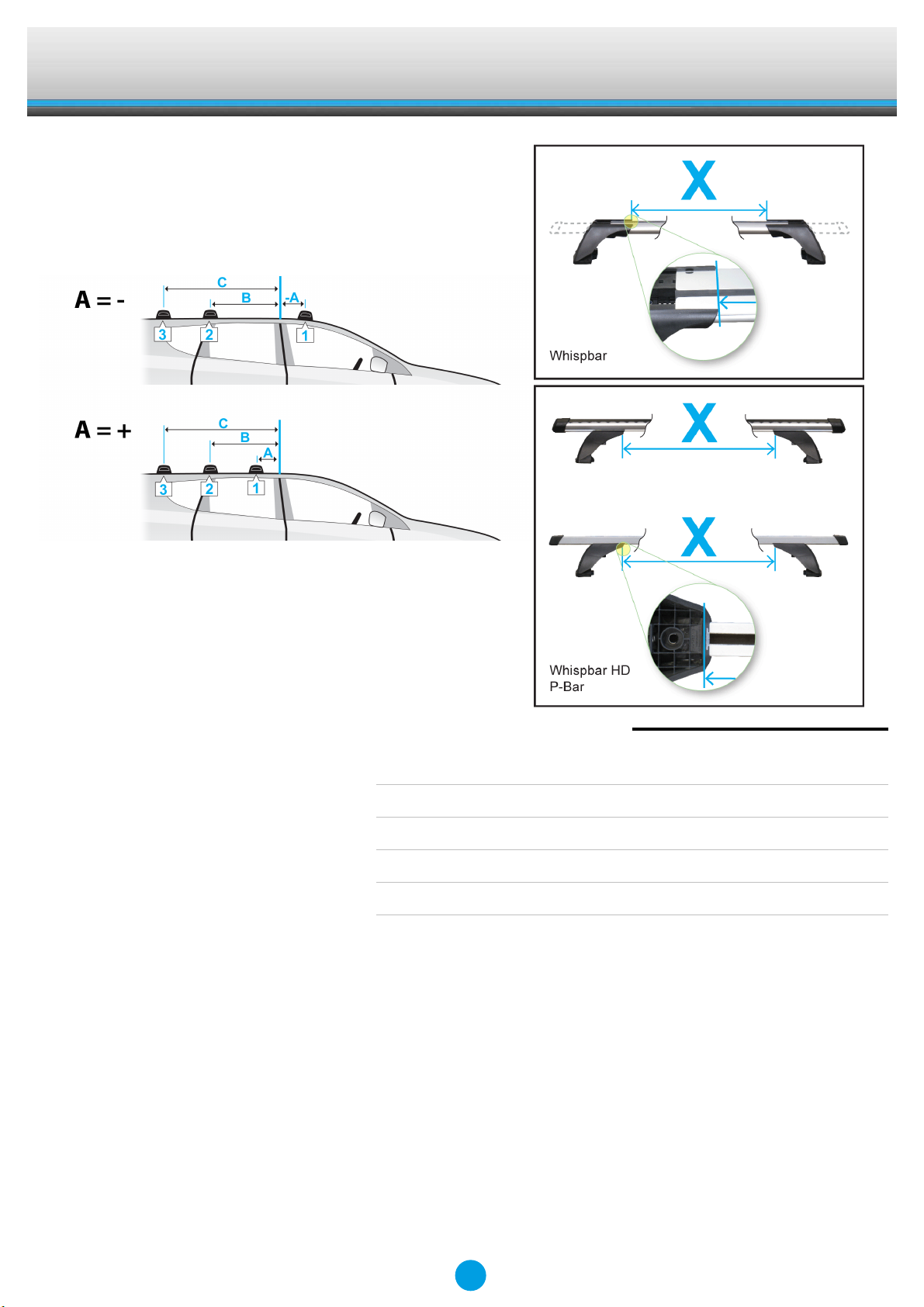

Fitting Kit K330
X
A B C 1 2 3
Falcon FG X, 4dr Sedan Dec 14-+ (NZ) -210mm 510mm - 950mm 964mm -
-8 -1/4ths" 20 1/16ths" - 37 3/8ths" 37 15/16ths" -
Falcon FG X, 4dr Sedan Dec 14-+ (AU) -210mm 510mm - 950mm 964mm -
-8 -1/4ths" 20 1/16ths" - 37 3/8ths" 37 15/16ths" -
Falcon FG, 4dr Sedan 08-14 (ZA) -210mm 510mm - 964mm 945mm -
-8 -1/4ths" 20 1/16ths" - 37 15/16ths" 37 3/16ths" -
Falcon FG, 4dr Sedan May 08-14 (AU) -210mm 510mm - 964mm 945mm -
-8 -1/4ths" 20 1/16ths" - 37 15/16ths" 37 3/16ths" -
Falcon FG, 4dr Sedan May 08-14 (NZ) -210mm 510mm - 964mm 945mm -
-8 -1/4ths" 20 1/16ths" - 37 15/16ths" 37 3/16ths" -
3
Fitting Kit EN
K330
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit
4
Fitting Kit EN
K330
●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
5
Fitting Kit EN
K330
●Remove locking screw.
●Apply protective strip as shown.
Trim if required.
●It is important to put the clamps in the
correct position on the vehicle.
●Letters refer to the part numbers stamped
on clamps.
●Clamp Part Number:
A = 459B
B = 460A
6
Fitting Kit EN
K330

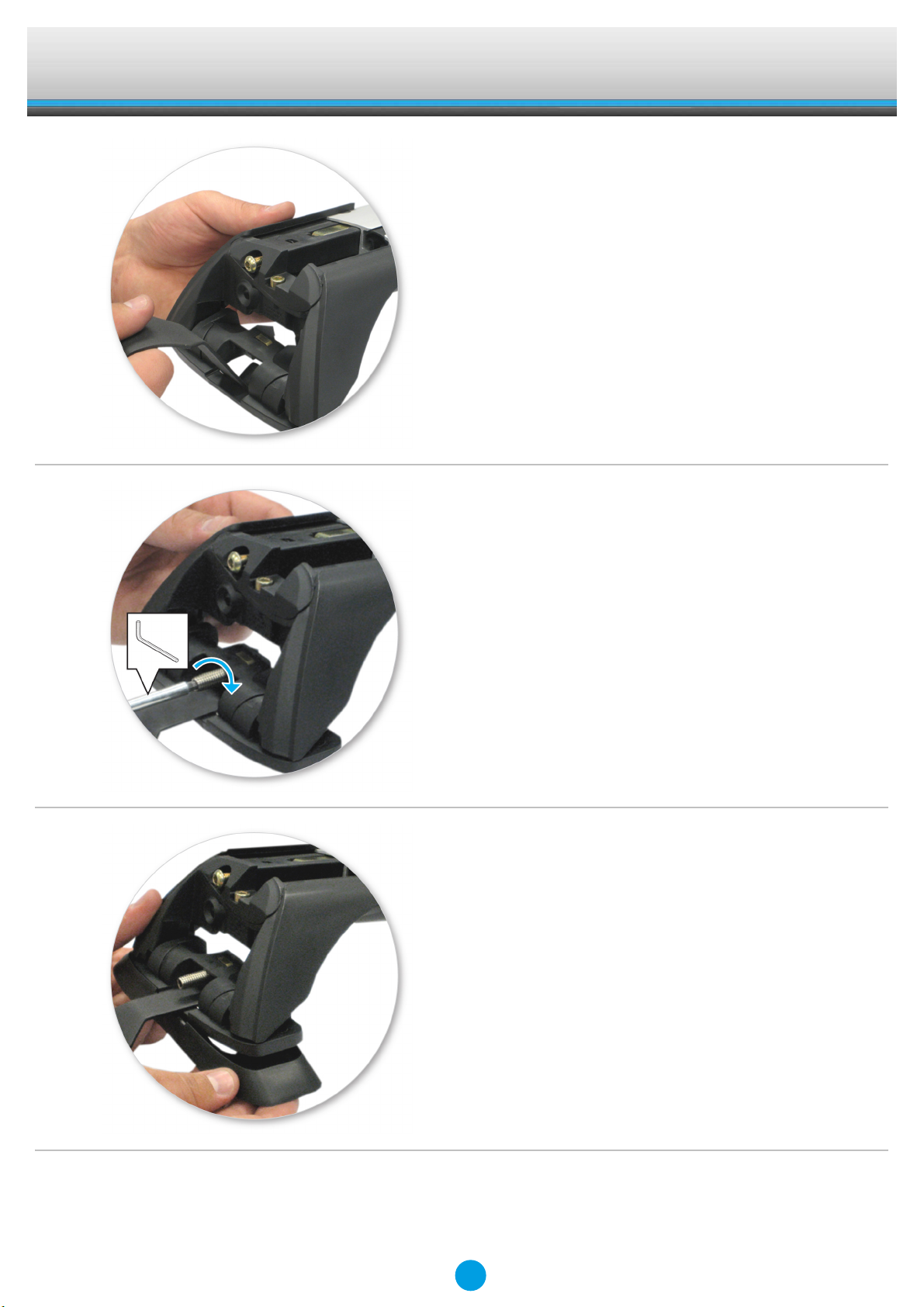

●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
●Fit rubber pads (supplied with fitting kit) to
foot.
7
Fitting Kit EN
K330

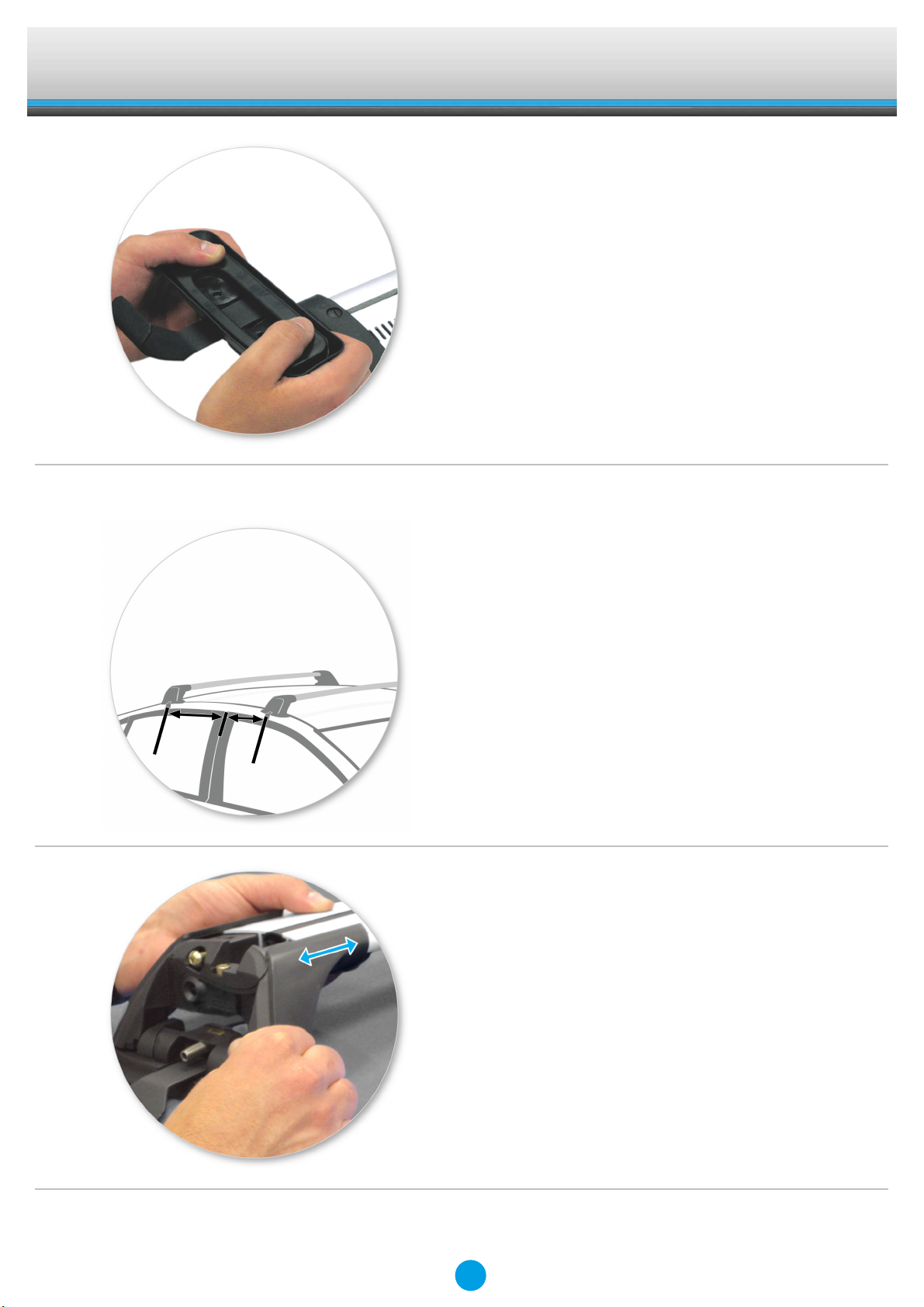

●Make sure the pad fits into the holes
underneath the foot.
Fitment
●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).
●Clamps directly to edge of roof under the
doors
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
8
Fitting Kit EN
K330

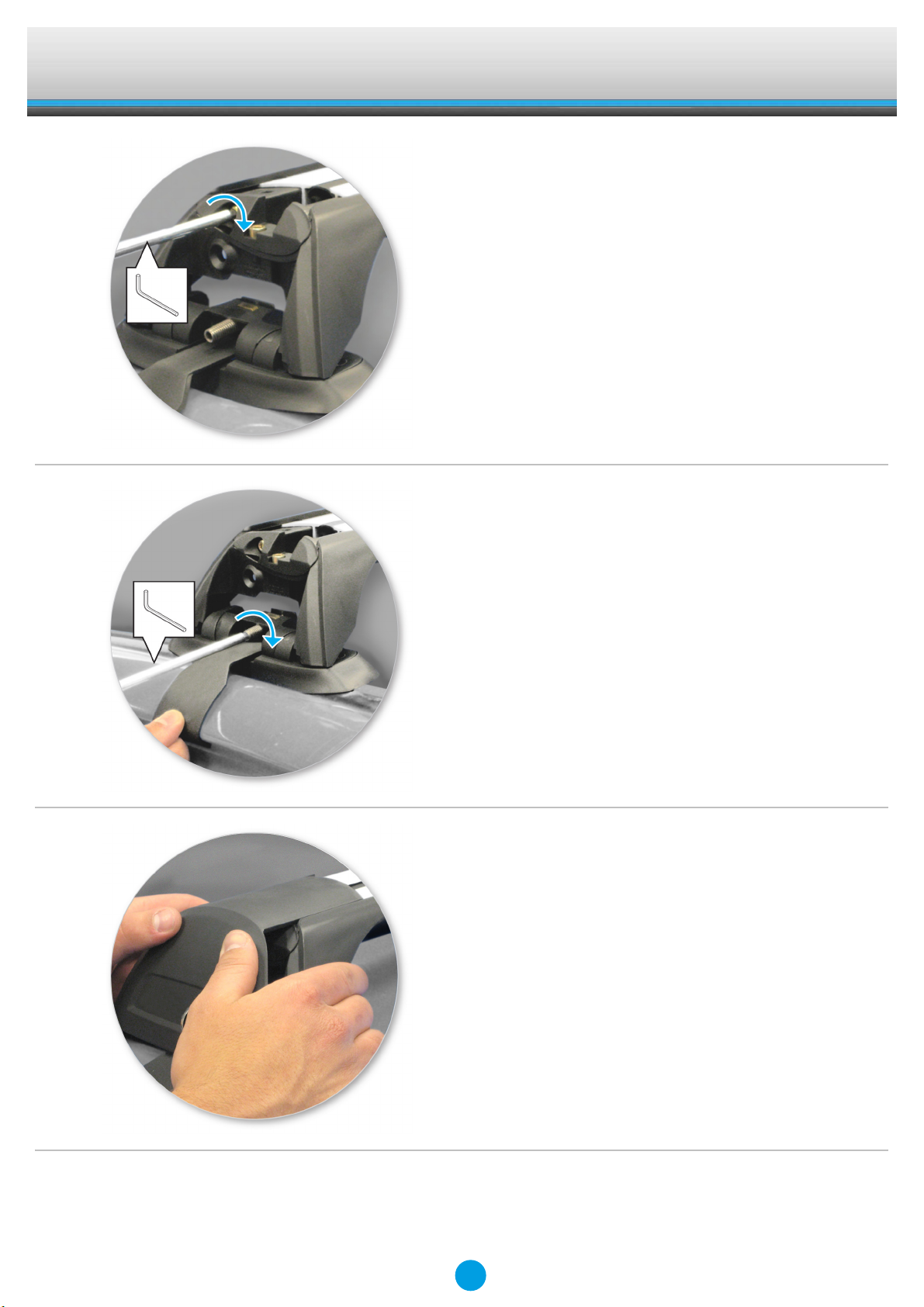

●Tighten adjusting screw to 5 Nm (3.7 ft lb)
hand tight.
●Tighten locking screw on both legs evenly.
●Use keys to fit and lock covers
9
Fitting Kit EN
K330

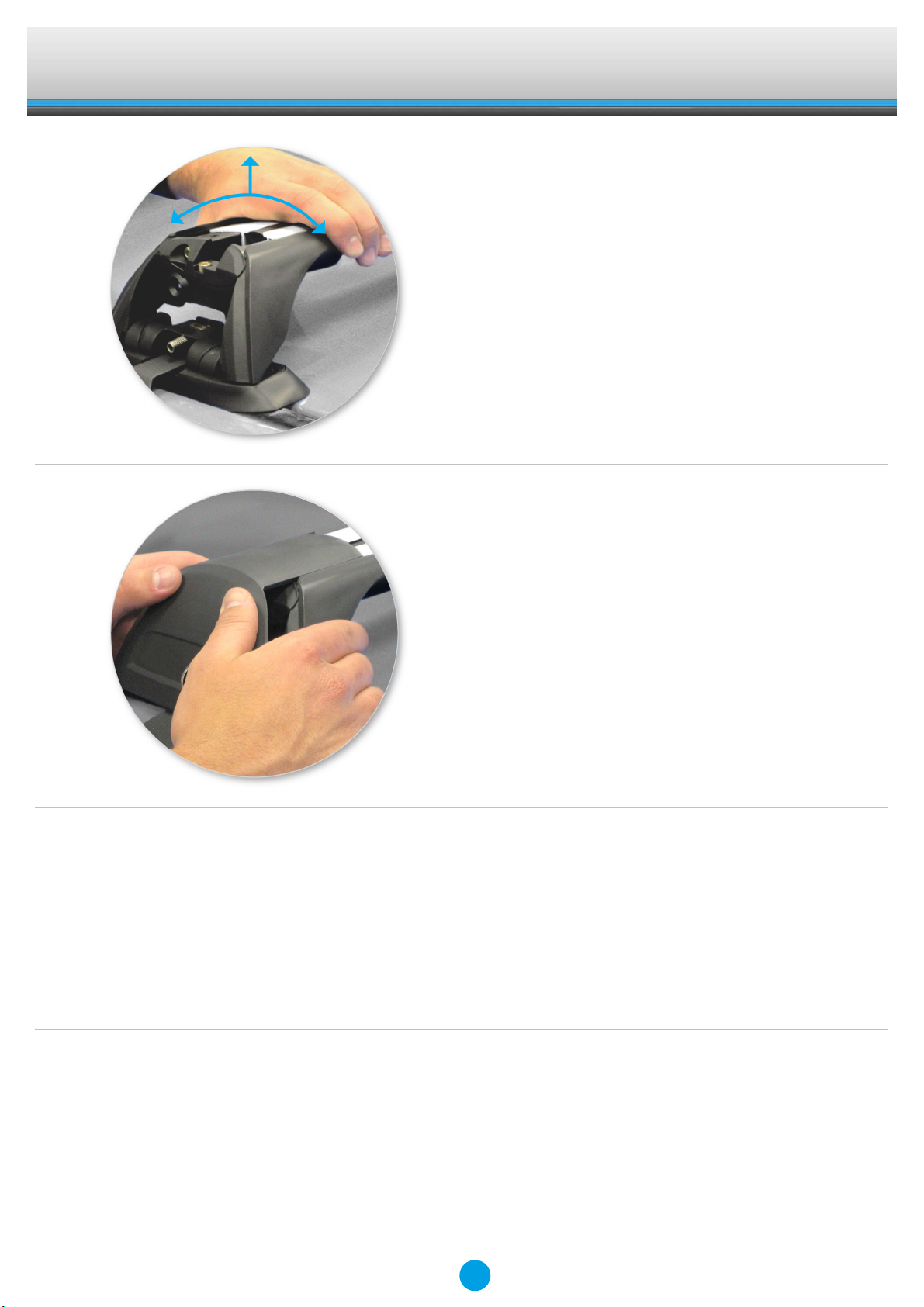

●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
CAUTION: Recheck all fasteners immediately after
a load is applied to the crossbars.
Regularly check screws are tight.
10
