Prorack K319 User manual
K319
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 2 x 2 x 4 x 4
Revision No: 7G 1
Fitting Kit K319
MAX kgs (lbs)
W/P WHD
Toyota
Corolla, 4dr Sedan 07-13 ZA 40 kgs (88 lbs) 40 kgs (88 lbs)
Corolla, 4dr Sedan 07-13 EU 40 kgs (88 lbs) 40 kgs (88 lbs)
Corolla, 4dr Sedan 07-13 CN 40 kgs (88 lbs) 40 kgs (88 lbs)
Corolla, 4dr Sedan 09-13 US 40 kgs (88 lbs) 40 kgs (88 lbs)
Corolla, 4dr Sedan May 07-13 AU 40 kgs (88 lbs) 40 kgs (88 lbs)
Corolla, 4dr Sedan May 07-13 NZ 40 kgs (88 lbs) 40 kgs (88 lbs)
2
Fitting Kit K319

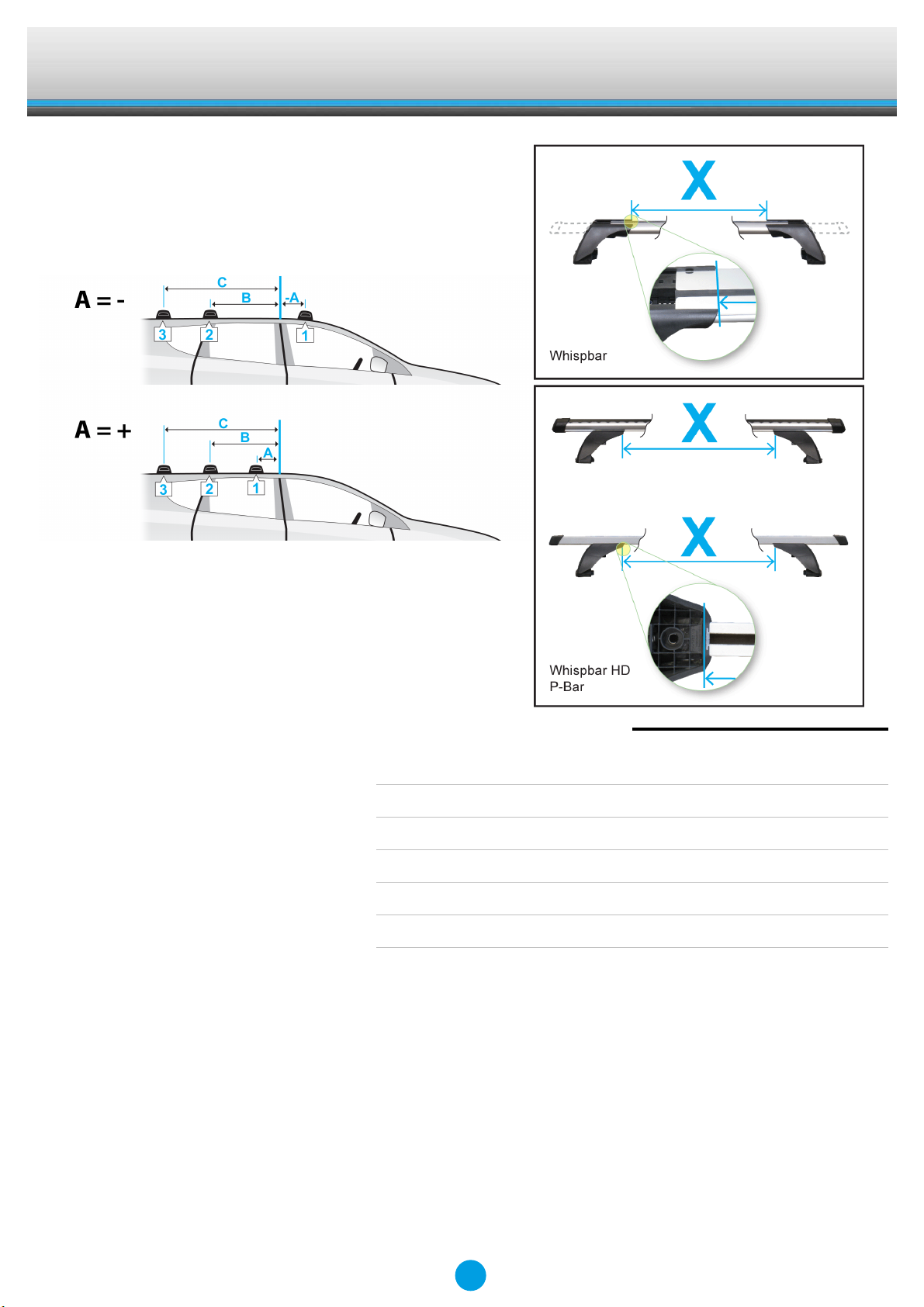

X
A B C 1 2 3
Corolla, 4dr Sedan 07-13 (ZA) -250mm 450mm - 886mm 880mm -
-9 -13/16ths" 17 3/4ths" - 34 7/8ths" 34 5/8ths" -
Corolla, 4dr Sedan 07-13 (EU) -250mm 450mm - 886mm 880mm -
-9 -13/16ths" 17 3/4ths" - 34 7/8ths" 34 5/8ths" -
Corolla, 4dr Sedan 07-13 (CN) -250mm 450mm - 886mm 880mm -
-9 -13/16ths" 17 3/4ths" - 34 7/8ths" 34 5/8ths" -
Corolla, 4dr Sedan 09-13 (US) -250mm 450mm - 886mm 880mm -
-9 -13/16ths" 17 3/4ths" - 34 7/8ths" 34 5/8ths" -
Corolla, 4dr Sedan May 07-13 (AU) -250mm 450mm - 886mm 880mm -
-9 -13/16ths" 17 3/4ths" - 34 7/8ths" 34 5/8ths" -
Corolla, 4dr Sedan May 07-13 (NZ) -250mm 450mm - 886mm 880mm -
-9 -13/16ths" 17 3/4ths" - 34 7/8ths" 34 5/8ths" -
3
Fitting Kit EN
K319
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit
4
Fitting Kit EN
K319
●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
5
Fitting Kit EN
K319
●Remove locking screw.
●Apply protective strip as shown.
Trim if required.
●Letters refer to the part numbers stamped
on clamps.
●Clamp Part Number:
A = 218B
B = 414A
6
Fitting Kit EN
K319
●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
●Fit rubber pads (supplied with fitting kit) to
foot.
7
Fitting Kit EN
K319
●Make sure the pad fits into the holes
underneath the foot.
Fitment
●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).
●Clamps directly to edge of roof under the
doors
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
8
Fitting Kit EN
K319
●Tighten adjusting screw to 3 Nm (2.2 ft lb)
hand tight.
●Tighten locking screw on both legs evenly.
●Check crossbar is securely attached to the
vehicle.
9
Fitting Kit EN
K319

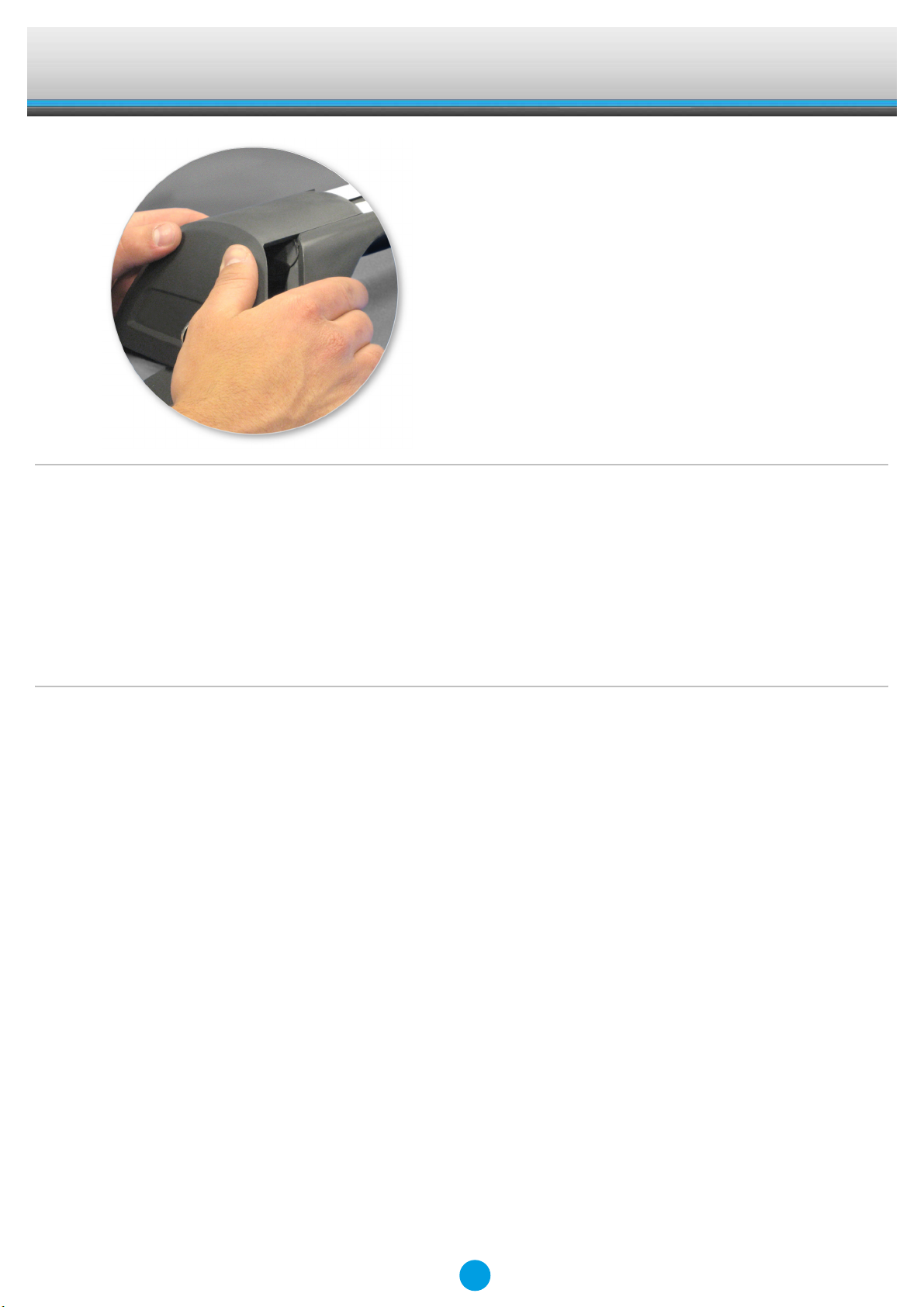

●Use keys to fit and lock covers
CAUTION: Recheck all fasteners immediately after
a load is applied to the crossbars.
Regularly check screws are tight.
10
