PROAIM P-WV-2PP User manual

7' Wave-2 Jib with CST-100 Stand, Portable

Dolly & Jr. Pan Tilt Head

(P-WV-2PP )

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any

means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permied

by the applicable copyright statutes or in wring by the publisher.

I N S TR UC T I O N M A N UA L

For demonstration purpose only

Proaim 7' Wave-2 Jib with CST-100 Stand, Portable Dolly & Jr. Pan Tilt Head 2

INTRODUCTION

PROAIM welcomes you to the new and modernized era with its Proaim 7' Wave-2 Jib with

CST-100 Stand, D-77 Dolly & Jr. Pan Tilt Head, a portable lming soluon to increase your

producon value. The Robust jib crane is specically designed travel crane for indoor & outdoor

video producons. Its telescopic arm feature adds exibility to frame perfect shots in indoor and

outdoor spaces. This video producon package includes a rugged camera dolly for smooth,

dynamic moving shots, rock solid aluminum tripod stand for immense support, a rugged panlt

for creave angle shots. Now you can create the visual eects and produce incredibly smooth

oang camera crane shots that add value to your lming producons and bring a quick return

on your investment.

IN THE BOX

Please inspect the contents of your shipped package to ensure you have received all that is

pictured and listed below. The padded shipping /storage container has been especially designed

to protect your purchase while in transit and is a good place to keep your PROAIM 7' Wave -2 Jib

with CST-100 Stand, D-77 Dolly & Jr. Pan Tilt Head are use.

STORAGE BAGS

Wave-2 video crane jib

Plate for mounng

Pan Tilt Head

Weight shank

CST-100mm Bowl tripod stand

Portable Dolly

Allen key

Red Spreader

12V Joysck Controller

Jr Pan-Tilt Head

Zoom Controller

Telescopic knob

Proaim 7' Wave-2 Jib with CST-100 Stand, Portable Dolly & Jr. Pan Tilt Head 3

 Posion the height of the tripod by loosening all three adjustment knobs, slide the tripod

up to the desired height and re-ghten the knobs securely.

 Now, place the tripod foot on the dolly

and e it down with the help of elasc

clips as shown in the picture.

 Take out the bolt from the center of dolly and spread it on oor. Then put the bolt back

through the center of dolly again.

ASSEMBLING YOUR PROAIM 7' WAVE -2 JIB WITH CST-100 STAND, PORTABLE

DOLLY & JR. PAN TILT HEAD

Proaim 7' Wave-2 Jib with CST-100 Stand, Portable Dolly & Jr. Pan Tilt Head 4

 Now, place the Tripod foot on the

spreader and e down it with the help of

elasc clip downs as shown in the

picture.

 Take out the spreader and posion it’s legs as shown in the image.

IN CASE OF SPREADER, FOLLOW THESE STEPS

 Unscrew the locking lever from the Central Post of the jib. Place the Central Post in the bowl

of Tripod Stand and re-ghten the locking mechanism for a secure t. (as shown in the

picture.)

MOUNTING THE JIB

Proaim 7' Wave-2 Jib with CST-100 Stand, Portable Dolly & Jr. Pan Tilt Head 5

 Provided are the jib panning control

knobs (as shown in the picture). Loosen

the knobs for the smooth pan

movement of the jib and ghten these

knobs to lock the pan movement of the

jib.

NOTE: Inbuilt bubble leveler is also

provided to check accurate set-up of jib

on uneven surface areas.

NOTE: It is important to make sure that the Central Fork is seated in the bowl properly. That

means perpendicular to the tripod bowl. O axis installaon may hamper movement of the jib.

Also you may need the assistance of a grip stand to hold the camera end of the arm during

installaon prevenng it from falling as it will be front heavy at this point. You may also need

the grip stand or assistance at the rear of the jib when mounng the camera.

 Now to extend the rear secon of the jib, loosen the Allen bolts with the provided Allen key

and then, loosen the knob as shown in the picture.

 Then, loosen the knob provided at the

lower telescopic secon of the jib arm as

shown in the picture to extend the front

secon of the telescopic jib accordingly

to the rear secon.

Proaim 7' Wave-2 Jib with CST-100 Stand, Portable Dolly & Jr. Pan Tilt Head 6

 Aach the weight shanks at the rear end

of the jib secon by screwing it in and

then add weights to it.

NOTE: Make sure the opposite end of the jib

arm is secured so that the addion of the

weights does not cause the arm to rise

violently.

 Camera head mount is provided with a

knob to control 90 degree lt movement

of the camera.

 Loosen the knob for the free lt move-

ment of the camera and ghten it to lock

the movement.

 Mount your uid head onto the bowl plate in order to aach the camera. And then nally,

secure your camera properly on the uid Head.

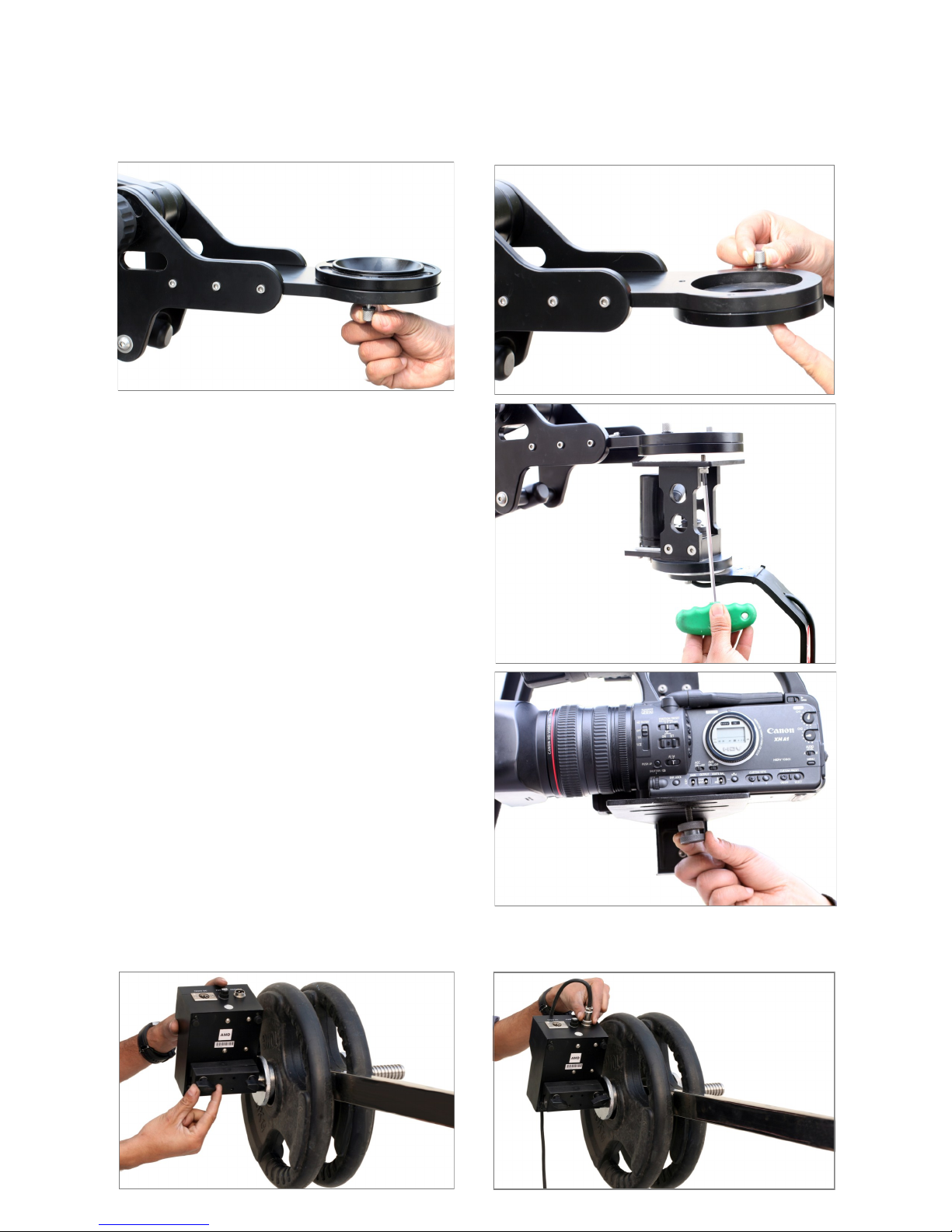

Proaim 7' Wave-2 Jib with CST-100 Stand, Portable Dolly & Jr. Pan Tilt Head 7

 Remove the uid head mounng bowl by loosening the bolts as shown and then aach the

pan lt head mounng plate and secure by ghtening the bolts.

 Aach the Pan Tilt Head and secure by

ghtening the bolts.

To mount Jr. Pan Tilt Head, follow these steps:

 Now mount your camera with camera

mounng screw on Pan Tilt Head.

 Mount the Joysck on weight rod & ghten the knob to secure.

Proaim 7' Wave-2 Jib with CST-100 Stand, Portable Dolly & Jr. Pan Tilt Head 8

LCD Mounng

 Aach the LCD Mounng Arm to Jib Fork and ghten it properly to secure.

 Now screw in the LCD to arm and ghten it knob aer posioning the angle of LCD Arm.

PROAIM 7' WAVE-2 JIB WITH CST-100 STAND , PORTABLE DOLLY & JR. PAN TILT

HEAD ALL SET AND READY TO USE

NOTE: Add weights to the rear of jib corresponding to the weight of camera aached to balance

the jib arm.

(SHOWN WITH OTPIONAL

ACCESSORIES)

 Now aach the one end of XLR Cable & AC Adapter with Joysck. And second end of XLR

cable with Pan Tilt Head.

Proaim 7' Wave-2 Jib with CST-100 Stand, Portable Dolly & Jr. Pan Tilt Head 9

WARRANTY

We oer a one year warranty for our products from the date of purchase.

We will repair or replace your product, free of charge, in the event of a defect in materials or

crasmanship obtained during normal use or handling based on the user manual. Please note

that we will not cover any shipping costs for returning the product to us. If any VAT or import

dues are applied to the return, we will also charge these costs to the customer.

The warranty does not include, by the way of example, damage caused by products that we do

not supply or from mishandling in transit, accident, misuse, neglect, lack of care of the product ,

or service by anyone other than our company.

We are not liable for incidental or consequenal damages resulng from the use of the unit or

occurring due to any breach of this warranty.

Replacement parts of the product will be provided at nominal cost (covering the cost price of the

replacement parts only) to the customers aer the Warranty Period has expired. We will cover

the complete cost of sending replacement parts within the warranty period. Aer that, Nominal

cost of the product & Actual shipping cost will be charged.

Do not send the unit to us without rst geng a response and geng the approval to send back

the item.

In case of any kind of dissasfacon, we urge you to Contact us immediately and we shall do our

Best to help you out. For any other assistance you can reach us via email.

For any other assistance you can reach us via email.
