PROAIM ATLS-HAP User manual
1
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Height Adjustable Telescopic Poles for Atlas
carts (ATLS-HAP)
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright
statutes or in wring by the Publisher.
What’s In The Box
4 x Height Adjustable Telescopic Poles
Assembly Manual
2
Now, remove the top shelf by liing it
upwards.
NOTE: Two people are required to detach the
top shelf from the foldable rods.
Aer removing the top shelf, loosen and
remove the bolts of the rod from the
boom shelf using 3mm Allen key.
Now, loosen the bolts of the lock using
4mm Allen key, as shown in the image.
Remove the lock from the cart.
Telescopic Poles Setup
Open the lock at all corners of the top shelf
of the Atlas cart (Not Included).
Similarly, remove the remaining three locks.
Thus, repeat the same process for other
corners as well.
3

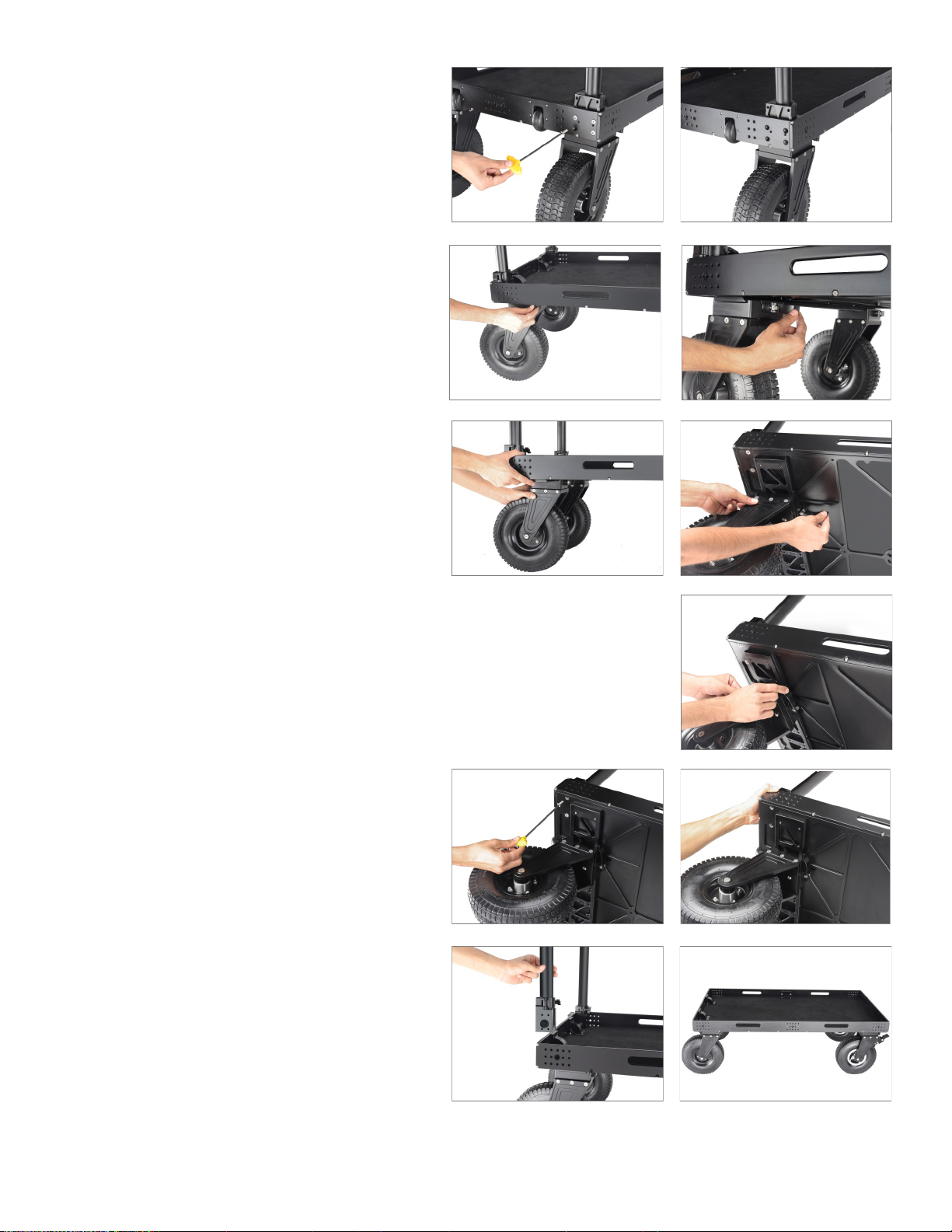

Slide the wheel to backward.
Then, turn the cart to one side.
Now, open the lock near the wheel, under
the shelf.
Similarly, follow the same steps to remove
the rods from all corners.
Loosen and remove the bolts on the boom
shelf using 4mm Allen key.
Now, loosen and remove the bolts from the
shelf.
Follow the same steps to remove the
remaining bolts at other corners as well.
Fix the wheel by locking it.
4
Remove the sank from the Adaptor.
Push the sank from the Adaptor using any
Allen key .
Now, remove the rod from the Rod Adaptor.
Loosen the knob of the Adaptor and open its
lock.
Loosen bolts using 5mm Allen key from the
Rod Adaptor.
Removal of Rod from Adaptor
Now remove the bolts from the Rod
Adaptor.
5
Insert the other washer on the right side of
the pole.
Insert the sank from the same side of the
washer.
Tighten the bolt using 5mm Allen key.
Push the sank to the inner side of the
Adaptor and insert the bolt on the other
side.
Insert Rod Telescopic Pole to the Rod
Adaptor.
Insert one washer on the le side of the
pole.
Telescopic Pole Assembly
6
Aer inserng the bolt, ghten it using the
3mm Allen key.
Aach the Adjustable Telescopic Pole to the
boom shelf of the Atlas cart.
Aer aaching the Pole, insert the bolt, as
shown in the image.
Now, insert the bolt of the lock, ghten it
using the 4mm Allen key.
Insert all 4 bolts on the back side of the
shelf, ghten it using the 4mm Allen key.
Close the lock and the knob to secure the
pole in the Adaptor.
Repeat the process for other poles as well.
7
Aer turning the cart again to the previous
posion, remove the knob xed in the
adjustable pole by loosening it.
Insert the bolt on the boom of the shelf,
ghten it using the 4mm Allen key.
Slide the wheel to backward.
Then, turn the cart to one side.
Now, open the lock near the wheel, under
the shelf.
Aer that, adjust the height of the
telescopic pole according to the
requirement.
Insert the knob in the provided hole at the
desired height, as shown in the image.
Tighten the knob to secure the aachment.
Fix the wheel using lock.
8
Now, lock the shelf at all corners to secure
the aachment.
Your cart is fully assembled with adjustable
telescopic poles.
Mount the top shelf of the Atlas cart on the
rod.
Similarly, follow the same steps to aach
the remaining poles.
Features: The height of the top shelf can be
adjusted from 2.46 feet / 29.5" to 1.67 feet /
20"
Height Range- 2.46 / 29.5” To 1.67 / 20”
9
YOUR PROAIM HEIGHT ADJUSTABLE TELESCOPIC POLES FOR ATLAS CARTS
ALL DRESSED UP AND READY TO GO!
(SHOWN WITH OPTIONAL ACCESSORIES)
Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,
we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it
cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon and
evaluaon by us.
Liability: We are not liable for damage caused by products that we do not supply or from mishandling in
transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.
Contact Us: In case of any kind of dissasfacon, please Contact us immediately and we promise our
utmost support and care unl you use our product.
