PROAIM CINEMA Series User manual

What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

Assembly Manua l

Ronin Controller

Bracket

Monitor Arm

Weight Rod Hub Locking Knob

17 Powermac Scissor Jib with

Gimbal Fluid Head

3 x Guide Rods

2 x Weight

Closers

Jib Controller

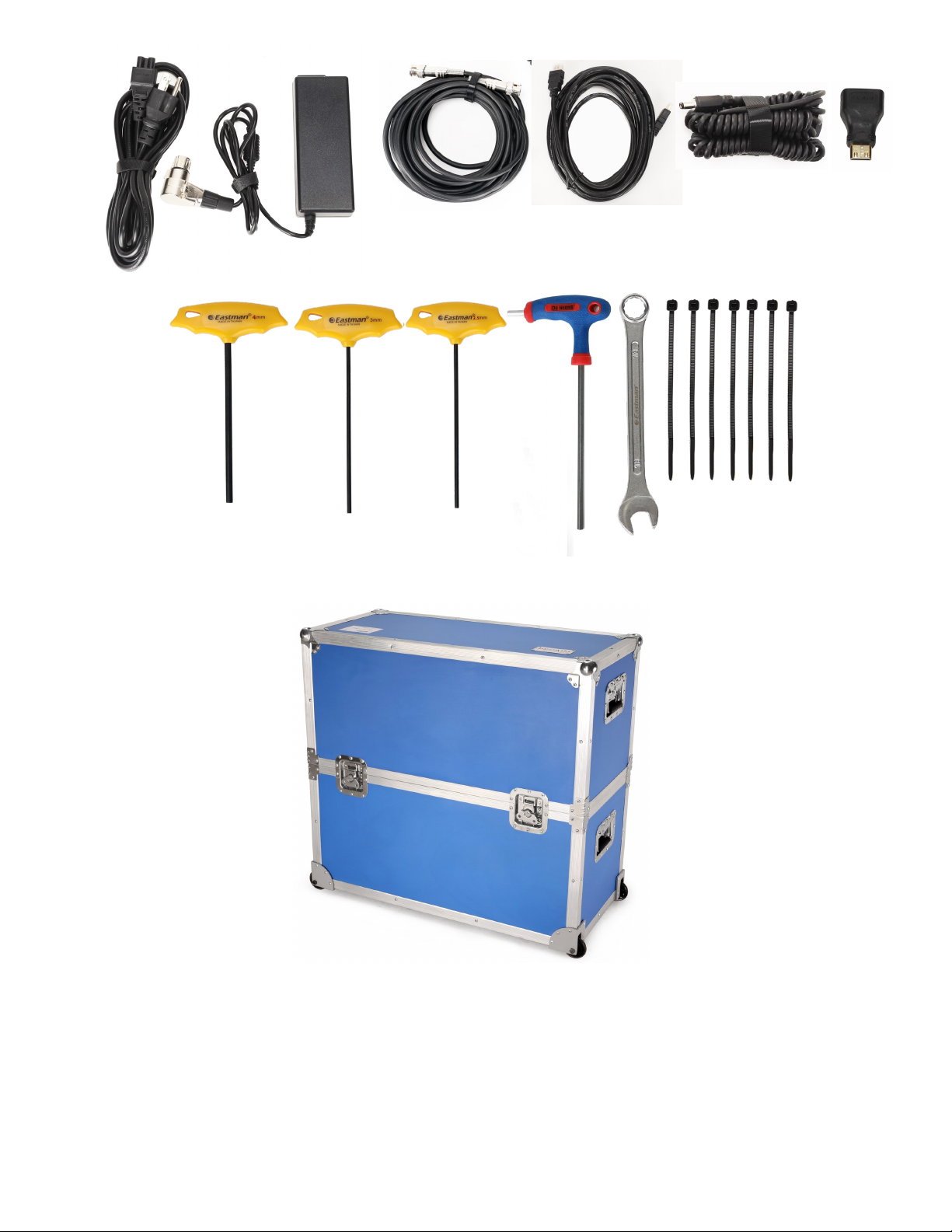

Powermatic Scissor 17ft Telescopic Camera Jib Crane Package (JB-SCSR-01)

BNC Wire

15V AC Adapter

4mm Allen Key 3mm Allen Key 2.5mm Allen 3/16 Wrench

Allen Key

Cable Tie

Flight Case

HDMI Male to

Male Wire

Female to

Female

Connector

Female to Female

Connector

Safety Hints

ATTENTION: PLEASE READ THIS BEFORE USING TO PREVENT DAMAGE TO CRANE!

BE HIGHLY VIGILANT WHILE ASSEMBLING

Lack of aenon while aaching Dolly, Tripod & Crane together can cause substanal damage to equip-

ment.

BE WATCHFUL OF THE HANDS

Cauously operate to avoid pinching your hand/ngers between the arms.

INSPECT THE SURROUNDINGS PRIOR TO OPERATION

The operang area of the crane and its accessories must be kept clear.

ALWAYS ESTABLISH THE CORRECT BALANCE

Adjust the weight balance before telescoping the length.

CAREFULLY ATTACH HDMI CABLE

To prevent its interference with gimbal, leave appropriate space while connecng to the camera.

KEEP CHECK ON BATTERY LEVELS

If you work at low baery, it may aect the telescopic funconality.

FOLD THE CRANE WHILE TRANSFERING

When you want to move the crane for longer distance, fold it completely then move.

FIX THE LEGS WITH LOCKING PINS

When you assemble the stand & adjust its height, insert the locking pins for addional safety.

FOLLOWING THESE GUIDELINES WILL PROVIDE BETTER SHOTS AND TROUBLE FREE OPERATION.

SHOULD YOU NEED ADDITIONAL INFORMATION, TECHNICAL ASSISTANCE IS AVAILABLE ‘ONLINE’ BY

CONTACTING YOUR SALES REPRESENTATIVE.

 Loosen the knobs from the center of the

anchor dolly and spread it on the oor.

 Then ghten the knobs of the dolly again to

secure it properly.

NOTE: Lock down the wheels using provided

brakes to keep the dolly in a stac posion.

Anchor Dolly Setup

 Take out the Allen bolts from the dolly &

remove the studio wheels. Repeat this pro-

cess for all the studio wheels.

 Insert the track wheel onto the dolly, then

ghten the Allen bolts as shown in the image.

 Your Dolly with Track wheels will look as

shown in the image

NOTE: Dolly gives you the exibility to move the

crane as & when required.

Euro Mount

 Universal standard Euro/Elemac mount

threads are available on the dolly. You can

mount any Euro base accessories like

bazooka risers and mount the camera setups.

Assembling the Anchor Dolly

For Aaching Track Wheels (Not Included)

 Aer locking it with the locking pin, ghten

the locking knob back and then take out its

rubber foot.

 Loosen knob at the boom of jib stand.

Stretch its legs on the oor and set the height

of the Stand as per the requirement. Then

ghten the knob back to secure it.

 Now take out the gravity robust tripod stand

from its case, and stretch its legs on the oor

as per the requirement.

NOTE: The Stand is telescopic, and you can

adjust the height according to shoong

requirements. Also, it has a micro-adjustment

feature on the legs for easy balancing.

Gravity Jib Stand Setup

NOTE: We have provided double locking safety

features on the Jib stand; The rst & primary is

a knob, and for secondary locking, there is

another locking pin, so at rst, lock the knob

and avoid slipping o the Stand. Locking Pin

Locking Knob

 Insert the plasc stopper into the Gravity

Robust Tripod Stand through matching Allen

bolts to the thread.

NOTE: We provide a plasc stopper for 17

scissor Crane and use it when there is no tripod

Holder in the dolly just like in Proaim Anchor

Tripod Dolly.

 Insert the plasc stopper into the gravity

robust tripod stand and secure it properly

with a screwdriver. Then insert back the

rubber feet as shown in the image.

Scissor Telescopic Camera Jib Crane Setup

 Insert the bolt into the hub mounng hole of

the Scissor Jib crane and properly secure it

with the help of a wrench.

 Place Scissor Jib with Hub Mounng on top

of the jib stand. Insert the Hub Locking Knob,

as shown in the image.

 Aer aaching the hub locking knob, secure

it properly.

 Now mount the stand on dolly, as shown in

the image.

NOTE: This excellent combinaon of Proaim

Gravity Tripod Stand and Anchor Dolly is sturdy

enough to support the Crane when it's fully

loaded and weighed.

 Insert the strap between the dolly & stand,

press the strap buon, pull out the strap,

and insert the strap-end into the strap rest.

NOTE: To protect your equipment, safety

straps must be used for addional security.

 Then insert another guide rod into the boom

lock bracket and lock it in place to secure it

correctly.

 Aer inserng two guide rods ghten with

the help of bolts

 Loosen the gimbal bracket bolts then insert

the two guide rods on either side.

NOTE: Pan Lock enables locking the jib’s pan

movement for achieving high/low angle shots.

Tilt Lock allows you to x the jib’s lt angle to get

linear tracking shots.

NOTE: Check the Scissor Jib level with the help

of a Bubble Leveler. You can adjust the height

of jib stand to keep your jib levelled.

NOTE: While using the jib at extremely high

posion, the rear part of Gimbal will touch

Gimbal Bracket. Therefore, adjust the angle of

Gimbal Bracket by loosening the bolt of Guide

Rod Mount.

Boomlock

Bracket

Guide Rod

 Both the ends are secure with closers.

 Insert the weight into the weight rod.

NOTE: Weight will be added according to the

setup required to balance the camera properly.

 Insert Weight Rod and secure properly with

a knob.

 Install Jib Controller on Weight Rod, then

secure with a provided knob.

NOTE: Telescope / Retract the length of

Scissor Jib using Jib Controller. Precise

Controller conveniently pushes out / pulls

in the jib length and controls the

 Connect the Jib Controller cable to the right

and Motor Driver Cable to the le of the

Baery Plate.

 Now mount your V-Mount Baery

(Not Included) onto the Baery Plate.

NOTE: The system is integrated with a

V-Mount Baery Plate, which adapts a 14.8V V

-Mount baery to power the drive system.

Weight Rod Setup

Aer aaching the v-mount baery, you can

operate the scissor jib in 2 alternate ways. If

you press the buon to the baery side, it

will be operated by the scissor jib baery, and

if you press it from the power side, it will run

on the power.

You can rotate your scissor crane 360° by

loosening the knob, as shown in the image.

Connect the Monitor Arm and ghten it with

the help of provided screws.

NOTE: LCD Mounng Arm helps in aaching

an LCD monitor for beer viewing of shots; the

arm can be mounted le/right as per your

requirement.

•

Fix LCD Monitor (Not Included) on Monitor

Arm directly and lock it with the help of

provided screw.

To power your LCD, insert its wire’s rst port

to power plug in the motor and the second

port to the back side of the LCD.

LCD is assembled properly with wire, as

shown in the image.

LCD Monitor Arm Setup

•

Aach Gimbal Fluid Head and lock it with the

help of provided knob.

NOTE: Gimbal Fluid Head comes aached with

jib plate. If in case it gets detached, you can

easily mount it. Steady Fluid Head ensures

perfect alignment of your 3-Axis Gimbal on

Scissor Crane.

Mount any Gimbal of your choice

(Not Included) and adjust the tension of Fluid

Head as per the requirement.

NOTE: Without camera setup this jib gets

balanced at 24kg weight. If the camera weight is

1kg, the jib is balanced with 24+3.5 = 27.5kg.

For more details we provided balancing ps on

Page-no: 11

Install Ronin controller bracket on the weight

rod. Then aach the Ronin controller with the

bracket and lock it.

Aer compleng Scissor Jib installaon, retract

the jib arm. Then aach cable es to the hole

of each frame.

Gimbal Fluid Head Setup

From the back , put the cables into the holes in

the same direcon, then ghten the cables e

to the marked posion. Make sure that the

cables can not move from each frame.

NOTE: Maximize the length of scissor jib arm to

check the cable so that it should remain spiral like

in the image .

Aaching the Cable Tie
