PROAIM P-G-PM User manual
1
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Power Sucon Mount Camera Gripper (P-G-PM)
Assembly Manual
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright
statutes or in wring by the Publisher.
What’s In The Box
2 x Sucon Cups
2 x Ropes
2 x Ropes Hooks
Camera Mounng
Plaorm
3 x Bowl Head
100mm Bowl
Adapter
3 x Sucon Cups with Cap
9 x Aluminum Rods
(Size: 30cm,15cm,7.5cm)
2 x Camera Mounng Bolts
(Size: 2 x 1/4” & 3/8”)
1 x L-Type
Allen Key (Size:4mm)
2
Camera Mount Gripper Setup
Remove the cap from the Sucon Cup, and
you will see 1/4” thread located in the center,
as shown in the image.
Remove the dust cover and posion the
sucon cup wherever required.
Screw in the Ball Tilt Head on suction cups.
Adjustable Ball Tilt Heads allow for an
extensive range of lockable positions for
Aluminum Rods.
Pull and then remove the cap of the
aluminum rod (30cm).
Similarly, mount all the Ball Tilt heads onto
the suction cups.
Press down the sucon cup and keep pushing
the pump to rmly x it on the surface.
Repeat this process for all the sucon cups.
Cauon: Recheck the Pump every 90 minutes.
If the red line is visible, Re-pump the cup
without losing the remaining vacuum ll the
Red Line disappears.
3 x Dierent Aluminum Rods Assembly
3
Screw the other end of the aluminum rod
(30cm) onto the Ball Tilt head, and then
tighten it.
First loosen the knob, then set the posion of
the Aluminum rods and nally secure them by
ghtening the knobs.
Screw the rods into the camera mounng
plaorm and ghten them.
Firstly, remove the dust cover and place your
sucon cup on the selected place and press
down to x the pump rmly on the surface.
Remove the cap of the aluminum rod (15cm),
then screw and tighten it properly onto the
Ball Tilt head. Repeat the same process for
attaching the other aluminum rods.
NOTE: Three rods are provided for each length
(30cm,15cm,7.5cm). These rods can be linked
together in any combinaon you need to create
the perfect setup.
4

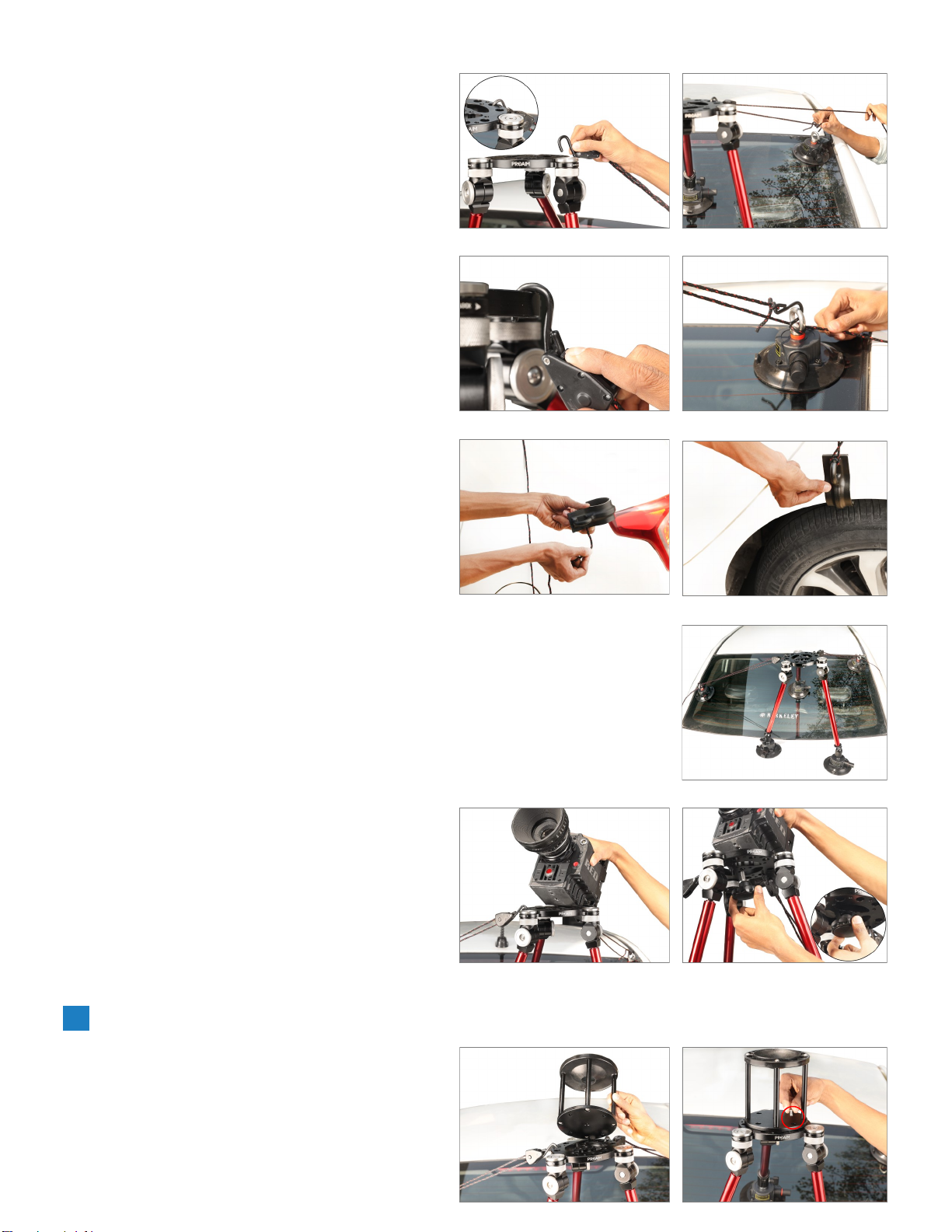

Aach one end of Rope with metal Hooks to
camera mounng plaorm and another end
to Metal loop of Sucon cup. Tighten the
Rope properly.
Adjust the rope with the help of the push-pin
button of the hook, as shown in the image.
Aach Rope Hooks to your vehicle, then
aach metal hooks to Rope Hooks and
ghten rope properly to secure your gripper.
Mount the camera (Not Included) onto the
top mounting part of the setup, and then
properly tighten the knob at the bottom.
Bowl Adapter Setup
Mount the Bowl Adapter onto the camera
platform, and then insert the bolt by aligning
the threads, as shown in the image.
Rope hooks have been properly aached to
the sucon cups with metal hooks.
5
Secure all the bolts using the Allen key.
Remove the knob of the Bowl Fluid Head
(Not Included) and mount it on the Bowl
Adapter .
Then, properly ghten and secure the knob of
the Fluid Head (Not Included) from the
boom.
Aach the camera plate to the boom of the
camera (Not Included), then secure it with
the help of a screwdriver, as shown in the
image.
Pull the knob of the uid head (Not Included),
then slide and mount the camera
(Not Included), as shown in the image.
Loosen the uid head (Not Included) knob
and then remove the plate.
6
The Camera mounng plaorm of Power Mount Gripper has three leg aachment points that are each ed
with two posive locking ratchet joints, one for lt and one for swivel. Each locking ratchet joint has a quick
turn knurled lock ring for easy adjustment. You can unlock and lock each joint with a slight twist.
To adjust lt or swivel of each leg, rst make sure lock ring on the appropriate joint is in the UNLOCK
posion, then adjust posion of the leg as per need. And then turn lock ring back in the LOCK direcon so
that the camera won’t shake from joint movement while the vehicle is in moon.
Swivel Adjustments
Tilt Adjustments
Features of Camera Mounng Plaorm
7
YOUR PROAIM POWER SUCTION MOUNT CAMERA GRIPPER
ALL DRESSED UP AND READY TO GO!
(SHOWN WITH OPTIONAL ACCESSORIES)
Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,
we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it
cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon and
evaluaon by us.
Liability: We are not liable for damage caused by products that we do not supply or from mishandling in
transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.
Contact Us: In case of any kind of dissasfacon, please Contact us immediately and we promise our
utmost support and care unl you use our product.
