PROAIM CH-FS7-TBK User manual

SHOULDER KIT

(CH-FS7-TBK)

CAMTREE HUNT

INSTRUCTION MANUAL

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any

means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permied by

the applicable copyright statutes or in wring by the Publisher.

Camtree Hunt Shoulder Kit 2

INTRODUCTION

The Camtree Hunt Shoulder Kit with Top plate & Base plate is specically designed for Sony

PXW-FS7 camera. This CNC made aluminum constructed comfortable kit delivers a thorough

support to the camera as well as to its operator. It contains your very own MB-20 mae

box and superbly precise HS-1000 Follow Focus. It also has 19mm/15mm Rosee handles for

providing comfortable grip making it stress-free to carry around for long-hour shoongs. The Top

plate comes with numerous threads for mounng addional accessories and the sturdy Base

plate gives a secure plaorm to your camera.

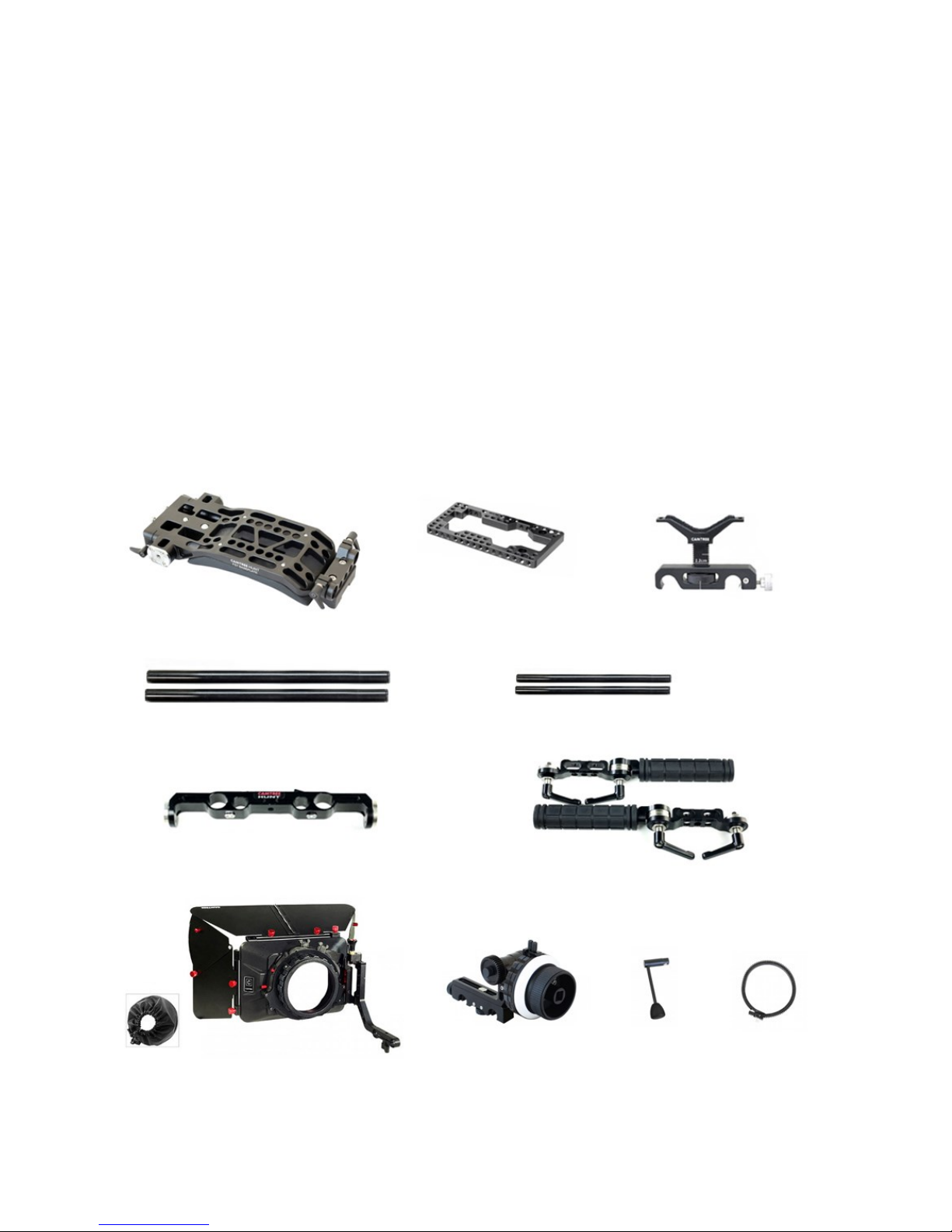

IN THE BOX

Please inspect the contents of your shipped package to ensure you have received all that is

pictured and listed below.

MB-20 Mae Box with knicker

Base plate Top Plates

HS-1000 Follow Focus Gear Belt

Speed Crank

Rosee Handles Set

2 x 300mm female rods 2x 150mm female rods

Lens Support

19/15mm handle bracket

Camtree Hunt Shoulder Kit 3

 You can also aach it with your tripod

mounng plate with mounng holes.

 Aach the base plate with your VCT-U14 plate (NOT INCLUDED) and mount it on tripod.

Tighten well to secure it.

ASSEMBLING YOUR SHOULDER KIT

NOTE: The base plate is compable with

VCT-U14 plate or 1/4”-20 & 3/8”-16 .

ATTACHING WITH VCT-U14 PLATE

ATTACHING DIRECT WITH 1/4”-20 &

3/8”-16 TRIPOD MOUNTING HOLES.

Camtree Hunt Shoulder Kit 4

 Insert 300mm female rods into the front of base plate and ghten the knob.

 Insert 150mm female rods into back of base plate, then insert the lens support into the front

of rods and ghten the knob to secure it.

Knob

 Insert the follow focus on 300mm rods and ghten the side knobs to secure properly.

Camtree Hunt Shoulder Kit 5

NOTE : You can use speed crank for precision

controlled manual focus racking.

 Aach the mae box to align the knicker with the lens barrel and ghten the knob.

ATTACHING MATTE BOX

 Aach your Rosee Handles with

19mm/15mm Bracket & ghten the

knob to secure it properly.

ASSEMBLING YOUR ROSETTE HANDLE SET

Camtree Hunt Shoulder Kit 6

YOUR CAMTREE HUNT SHOULDER KIT

ALL DRESSED UP AND GOOD TO GO

 Now insert handle set to rods and secure it with provided lock system.

WARRANTY

We oer a one year warranty for our products from the date of purchase.

We will repair or replace your product, free of charge, in the event of a defect in materials or

crasmanship obtained during normal use or handling based on the user manual. Please note

that we will not cover any shipping costs for returning the product to us. If any VAT or import

dues are applied to the return, we will also charge these costs to the customer.

The warranty does not include, by the way of example, damage caused by products that we do

not supply or from mishandling in transit, accident, misuse, neglect, lack of care of the product ,

or service by anyone other than our company.

Camtree Hunt Shoulder Kit 7

We are not liable for incidental or consequenal damages resulng from the use of the unit or

occurring due to any breach of this warranty.

Replacement parts of the product will be provided at nominal cost (covering the cost price of the

replacement parts only) to the customers aer the Warranty Period has expired. We will cover

the complete cost of sending replacement parts within the warranty period. Aer that, nominal

cost of the product & Actual shipping cost will be charged.

Do not send the unit to us without rst geng a response and geng the approval to send back

the item.

In case of any kind of dissasfacon, we urge you to Contact us immediately and we shall do our

best to help you out.

For any other assistance you can reach us via email.
