PROAIM VH-OBTR-01 User manual

What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

Assembly Manual

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

Flight Case

Proaim Orbiter Video Tripod Head

Orbiter Pan & Tilt Video Tripod Head (VH-OBTR-01)

• The Orbiter can be tilted to a 25° position by

loosening its knob.

NOTE: The Orbit head oers a 360° panning and

25° lt range with the privilege of precise

marking points for perfect lng.

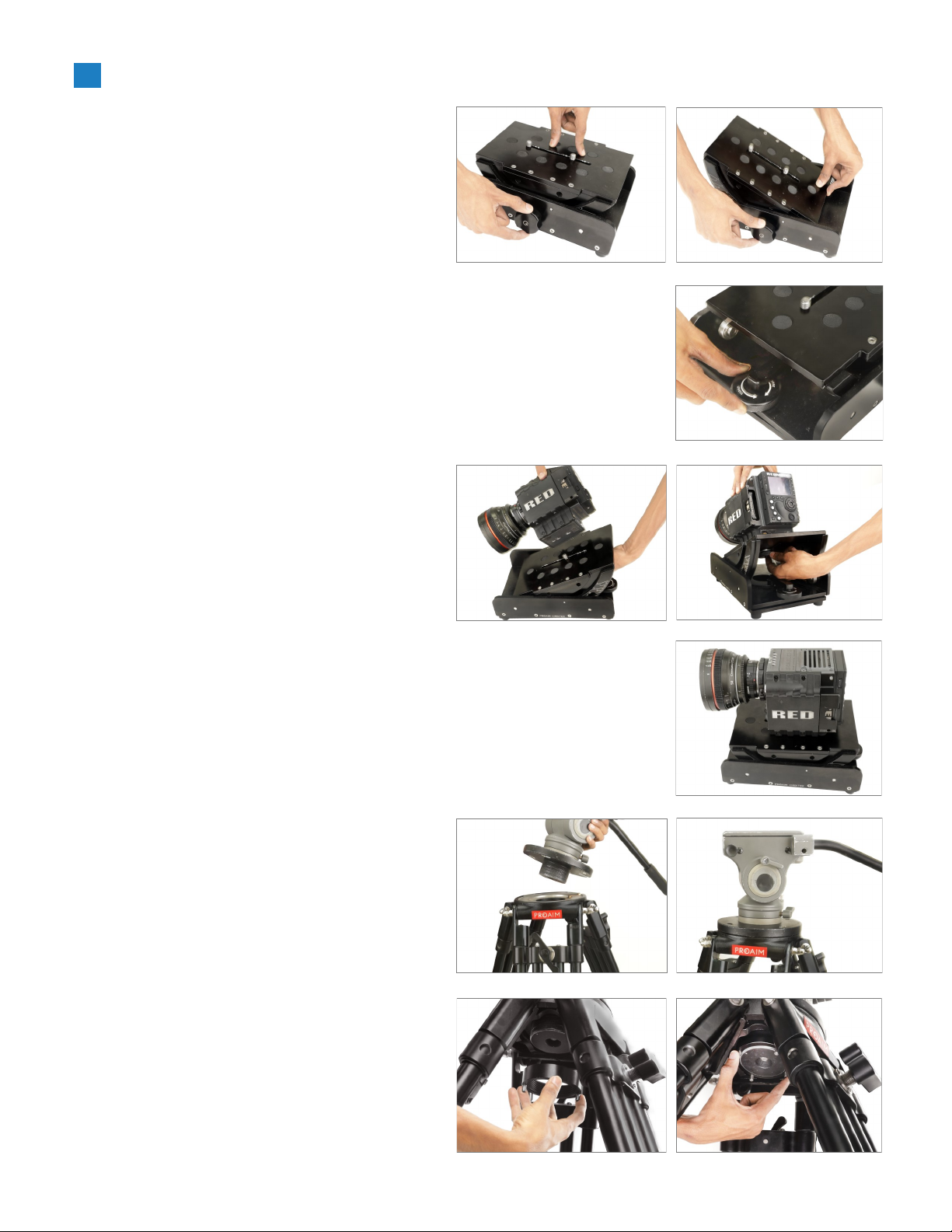

Orbiter Pan & Tilt Setup

NOTE: Pan and lt axis have brakes for lock-o

shots and camera safety. This High-grade CNC

Aluminum body features roller bearings for

extreme precision.

• Attach the camera (Not Included) using the

Orbiter Camera Bolt and then tighten it

properly, as shown in the image.

• Mount the Fluid head (Not Included) to the

top mounting part of the tripod

(Not Included) .

• Match the bottom part of the tripod with the

Castle Ring and then tighten it properly.

NOTE: It securely mounts to any large or

medium camera plate or any large or medium

format camera equipped with 3/8"-16 mounng

holes.

• After attaching the Fluid head plate to the

Orbiter, attach the Fluid head by sliding it

onto the plate, as shown in the image.

• Push the knob of the Fluid head

(Not Included) and remove the plate.

• Attach the Fluid head (Not Included) by

matching it to the thread of the Orbiter at

the base and then properly tighten it using

the screw driver.

Marking Points for Perfect Tilt

Lock o shorts & Camera safety

360° Tilng

25° Penning

High-End Roller Bearings

Four Non sck Rubber feet

Mulple Feature of Orbiter Pan & Tilt Video Tripod Head

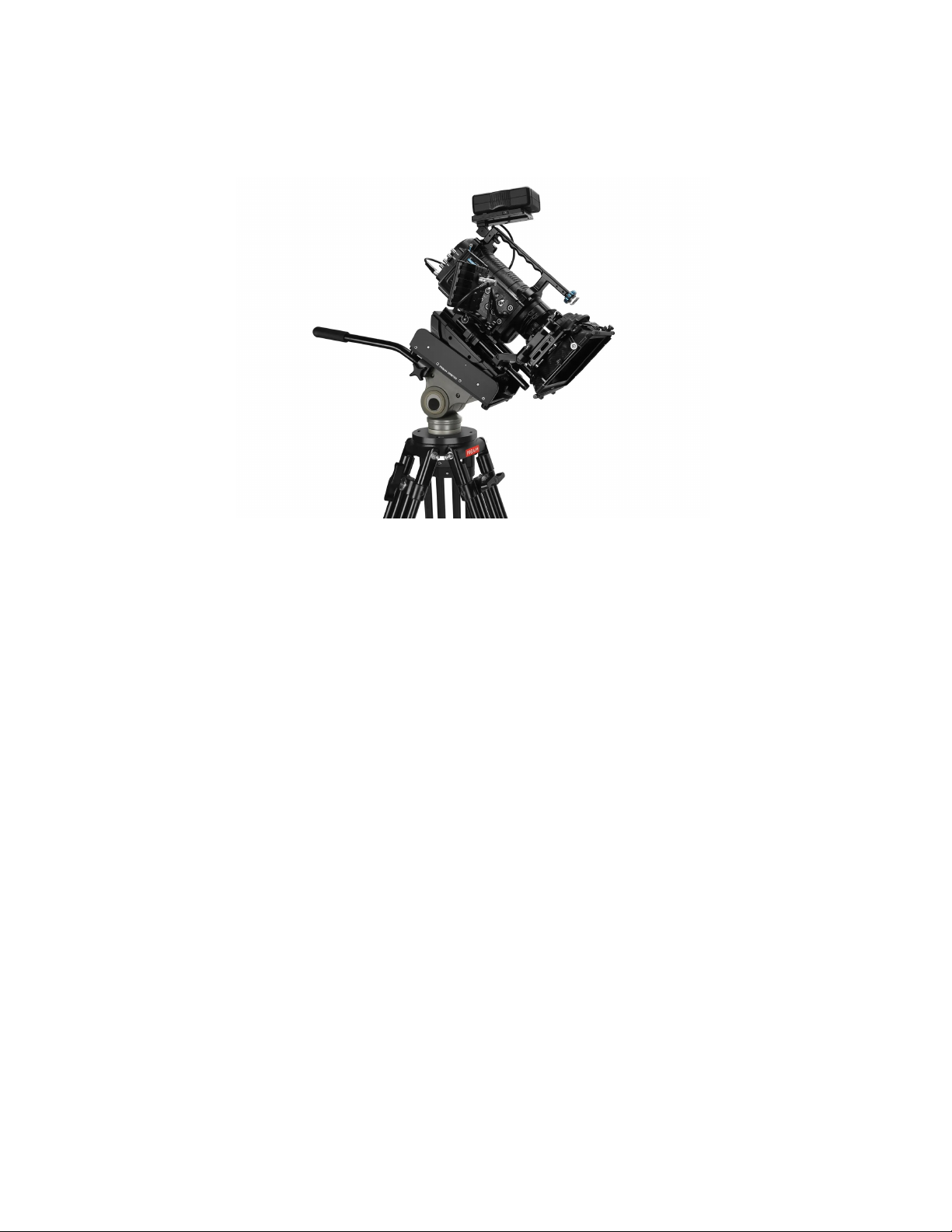

YOUR PROAIM ORBITER PAN & TILT VIDEO TRIPOD HEAD

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon

and evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

support and care unl you use our product.
