Pro-Form 500 Le Elliptical User manual

Serial

Number

Decal

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. eep this manual

for future reference.

Model No. PFEL04910.0

Serial No.

Write the serial number in the

space above for reference.

QUESTIONS?

If you have questions, or if parts are

damaged or missing, DO NOT

CONTACT THE STORE; please

contact Customer Care.

IMPORTANT: Please register this

product (see the limited warranty

on the back cover of this manual)

before contacting Customer Care.

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

ON THE WEB:

www.proformservice.com

USERʼS MANUAL

www.proform.com

TABLE OF CONTENTS

WARNINGDECALPLACEMENT ..............................................................2

IMPORTANTPRECAUTIONS ................................................................3

BEFOREYOUBEGIN ......................................................................4

ASSEMBLY ...............................................................................5

HOWTOUSETHEELLIPTICAL .............................................................14

MAINTENANCEANDTROUBLESHOOTING ...................................................21

EXERCISEGUIDELINES ...................................................................22

PARTLIST ..............................................................................24

EXPLODEDDRAWING ....................................................................26

ORDERINGREPLACEMENTPARTS ..................................................BackCover

LIMITEDWARRANTY ..............................................................BackCover

WARNING DECAL PLACEMENT

PROFORM is a registered trademark of ICON IP, Inc.

This drawing shows the location(s) of the warning

decal(s). If a decal is missing or illegible, see

the front cover of this manual and request a

free replacement decal. Apply the decal in the

location shown. Note: The decal(s) may not be

shown at actual size.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical before using your elliptical. ICON

assumes no responsibility for personal injury or property damage sustained by or through the use of

this product.

IMPORTANT PRECAUTIONS

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or

persons with pre-existing health problems.

2. Use the elliptical only as described in this

manual.

3. It is the responsibility of the owner to ensure

that all users of the elliptical are adequately

informed of all precautions.

4. The elliptical is intended for home use only.

Do not use the elliptical in a commercial,

rental, or institutional setting.

5. eep the elliptical indoors, away from

moisture and dust. Do not put the elliptical in

a garage or covered patio, or near water.

6. Place the elliptical on a level surface, with at

least 3 ft. (0.9 m) of clearance in the front

and rear of the elliptical and 2 ft. (0.6 m) on

each side. To protect the floor or carpet from

damage, place a mat under the elliptical.

7. Inspect and properly tighten all parts

regularly. Replace any worn parts

immediately.

8. eep children under age 12 and pets away

from the elliptical at all times.

9. The elliptical should not be used by persons

weighing more than 250 lbs. (113 kg).

10. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the elliptical. Always wear athletic

shoes for foot protection while exercising.

11. Hold the handlebars or the upper body arms

when mounting, dismounting, or using the

elliptical.

12. The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is

intended only as an exercise aid in

determining heart rate trends in general.

13. The elliptical does not have a freewheel; the

pedals will continue to move until the

flywheel stops. Reduce your pedaling speed

in a controlled way.

14. eep your back straight while using the

elliptical; do not arch your back.

15. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

Handgrip Pulse Sensor

Upper Body Arm

Crank Arm

Wheel

Pedal

Console

Water Bottle Holder*

Leveling Foot

Handle

Storage Latch

Storage Magnet

Fan

Pedal Arm Latch

*Water bottle is not included

BEFORE YOU BEGIN

Thank you for purchasing the PROFORM®500 LE

elliptical. The 500 LE elliptical provides an array of

features designed to make your workouts at home

more effective and enjoyable.

For your benefit, read this manual carefully before

you use the elliptical. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

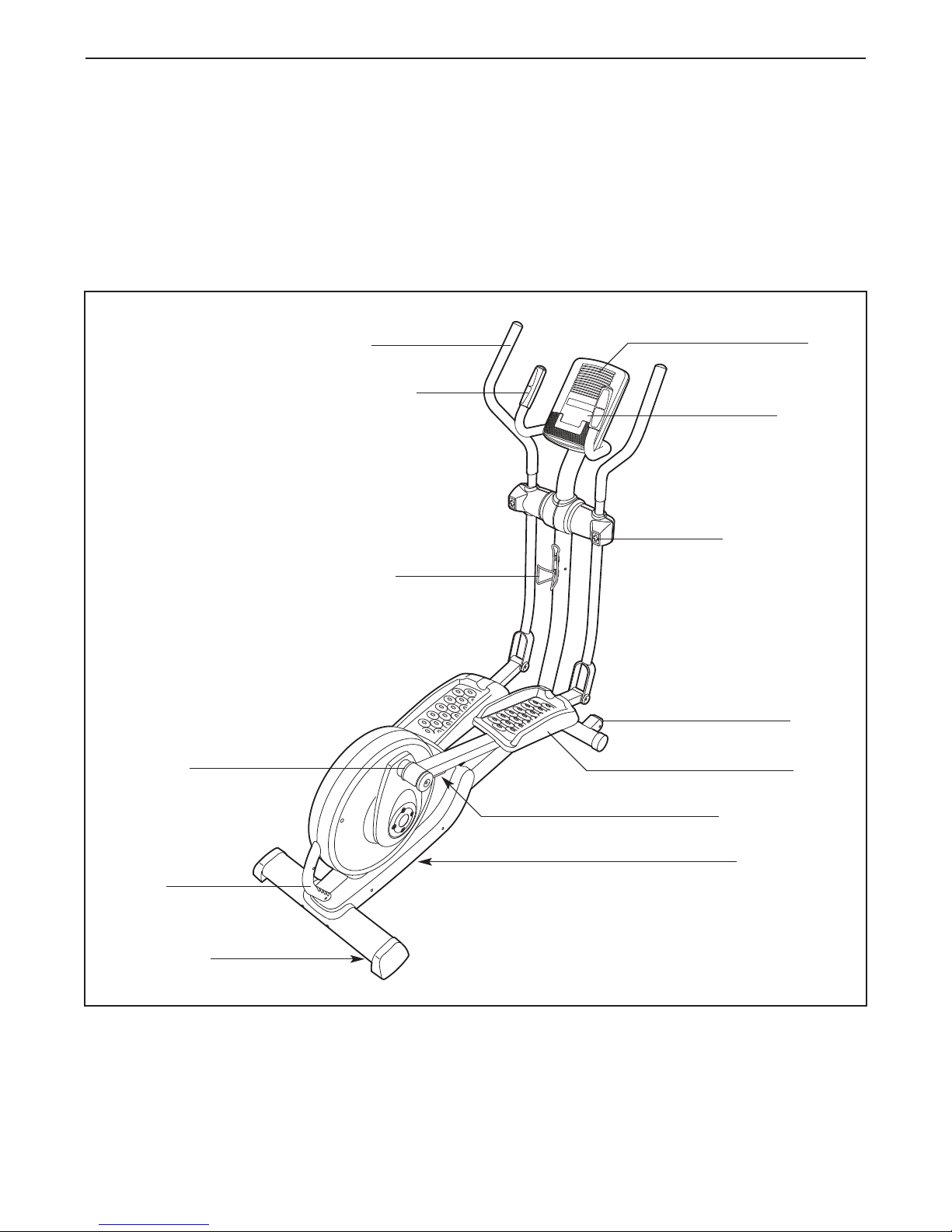

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

M10 Locknut

(81)–2

M8 Jam Nut

(79)–7

M8 Washer

(88)–6

Wave Washer

(111)–2

M8 Split

Washer

(90)–3

M4 x 16mm

Round Head

Screw (101)–10

M4 x 32mm

Round Head

Screw (105)–6

M8 x 69mm Button Bolt (80)–1

M4 Split

Washer

(112)–8

Washer

(102)–8

M4 x 16mm

Blunt Screw

(104)–8

M10 x 80mm Carriage Bolt (82)–2

Hub Patch

Screw (87)–8

M8 x 23mm Shoulder

Patch Screw (115)–4

M8 x 23mm Button

Patch Screw (84)–4

M8 x 41mm Button

Bolt (78)–4

M8 x 80mm Patch Bolt (116)–2

M10 x 127mm Patch Screw (83)–2

M4 x 50mm Screw

(108)–2

ASSEMBLY

To hire an authorized service technician to assemble the elliptical, call 1-800-445-2480.

Assembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing

materials. Do not dispose of the packing materials until assembly is completed.

In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable

wrench , and a rubber mallet .

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST near the end of this manual. The number following

the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if

it has been preassembled. To avoid damaging parts, do not use power tools for assembly.

While a second person lifts the Base (1),

attach the Front Stabilizer (6) to the Base

with two M10 x 80mm Carriage Bolts (82)

and two M10 Locknuts (81).

2. Remove the indicated screw and the ship-

ping bracket from the Base (1). Discard the

screw and the shipping bracket.

Next, tighten the Base Foot (26) into the

Base (1).

Shipping

Bracket

Screw

To make assembly easier, read the

information on page 5 before you

begin.

3. Attach the Rear Stabilizer (7) to the Frame

(2) with two M10 x 127mm Patch Screws

(83).

Next, hold the handle on the Frame (2),

press the Latch Button (68), and lower the

Frame until the Rear Stabilizer (7) rests on

the floor.

383

Handle

4. Hold a Hub Cover (75) and a Crank Arm

(36) against the Crank (45).

Align the holes in the Hub Cover (75) and

the Crank Arm (36) with the unused holes in

the left side of the Crank (45).

Insert four Hub Patch Screws (87) into the

Hub Cover (75) and the Crank Arm (36),

and finger tighten the Hub Patch Screws

into the Crank (45). Tighten one Hub

Patch Screw, and then tighten the Hub

Patch Screw across from the first Hub

Patch Screw. Then, tighten the remaining

two Hub Patch Screws.

Repeat this step on the right side of the

elliptical.

Make sure that the Crank Arms (36) are

oriented with the Crank Bushing Sleeves

(43) in the positions shown. Note: There

are no Pulley Screws (98) on the right side.

6. Identify the Left Upright Cover (17), which is

marked with a “Left” sticker, and hold it

against the left side of the Upright (3).

Attach the Left Upright Cover (17) with two

M4 x 16mm Round Head Screws (101).

Attach the Right Upright Cover (39) in

the same way.

5. While a second person holds the Upright (3)

near the Base (1), connect the Upper Wire

Harness (48) to the Lower Wire Harness

(49).

Tip: Avoid pinching the wires. Insert the

Upright (3) into the Base (1).

Attach the Upright (3) with an M8 x 69mm

Button Bolt (80), an M8 Split Washer (90),

and an M8 Jam Nut (79). Do not tighten

the Button Bolt yet; make sure that the

Jam Nut is in the hexagonal hole in the

Base.

Next, finger tighten two M8 x 23mm Patch

Screws (84) and two M8 Split Washers (90)

into the Base (1). Do not tighten the

Button Screws yet.

Attach the Water Bottle Holder (22) to the

Base (1) with two M4 x 16mm Blunt Screws

(104).

101

90 104

Avoid pinching

the wires

7. Identify the Left and Right Handlebars (119,

120), which are marked with “Left” and

“Right” stickers, and orient them as shown.

Tip: Avoid pinching the Pulse Wires

(118). Attach the Left and Right Handlebars

(119, 120) to the Upright (3) with two M8 x

80mm Patch Bolts (116) and two M8 Jam

Nuts (79).

118

120

119

116

Avoid pinching

the wires

8. Insert the Pulse Wires (118) upward through

the Upright (3) as shown. 8

118

9. While a second person holds the Console

(5) near the Upright (3), connect the wires

on the Console to the Upper Wire Harness

(48) and to the Pulse Wires (118).

Insert the excess wire into the Upright (3) or

into the Console (5).

Tip: Avoid pinching the wires. Attach the

Console (5) to the Upright (3) with four M4 x

16mm Round Head Screws (101).

118

101

Avoid pinching

the wires

10. Attach the Upright Cap (4) to the Console

(5) with two M4 x 16mm Round Head

Screws (101).

Hexagonal

Holes

11. Identify the Left Upper Body Arm (8) and

the Left Upper Body Leg (11), which are

marked with “Left” stickers, and orient them

as shown.

Insert the Left Upper Body Arm (8) into the

Left Upper Body Leg (11).

Attach the Left Upper Body Arm (8) with two

M8 x 41mm Button Bolts (78) and two M8

Jam Nuts (79). Make sure that the Jam

Nuts are in the hexagonal holes in the

Left Upper Body Leg (11).

Attach the Right Upper Body Arm (9) to

the Right Upper Body Leg (12) in the

same way.

101

Other manuals for 500 Le Elliptical

This manual suits for next models

Table of contents

Other Pro-Form Elliptical Trainer manuals

Pro-Form

Pro-Form 14.0 Ce Elliptical User manual

Pro-Form

Pro-Form XP THINLINE 480 User manual

Pro-Form

Pro-Form 700 CardioCrossTrainer User manual

Pro-Form

Pro-Form XP 110 User manual

Pro-Form

Pro-Form 831.23935.0 User manual

Pro-Form

Pro-Form 505 Zle Elliptical Operating and maintenance manual

Pro-Form

Pro-Form fusion 2.1t User manual

Pro-Form

Pro-Form Trainer 7.0 User manual

Pro-Form

Pro-Form 500 Ekg Elliptical User manual

Pro-Form

Pro-Form 831.23844.0 User manual

Pro-Form

Pro-Form 1150 Rxw Operating and maintenance manual

Pro-Form

Pro-Form 485E PFEL87075 User manual

Pro-Form

Pro-Form 19.0 RE PFEL09812.0 User manual

Pro-Form

Pro-Form 696 Elliptical User manual

Pro-Form

Pro-Form 764hr Bike System manual

Pro-Form

Pro-Form 545EKG PFEVEL29831 User manual

Pro-Form

Pro-Form 820 Elliptical User manual

Pro-Form

Pro-Form PFEVEL2486.0 User manual

Pro-Form

Pro-Form 225 CSE User manual

Pro-Form

Pro-Form 660 Xt Operating and maintenance manual

Pro-Form

Pro-Form 764hr Bike Quick start guide

Pro-Form

Pro-Form 470 Hr Elliptical User guide

Pro-Form

Pro-Form STRIDE SELECT PFEL3926.0 User manual

Pro-Form

Pro-Form 690 Hr Elliptical Reference guide

Popular Elliptical Trainer manuals by other brands

Weslo

Weslo Momentum 4.0 Elliptical Manuale d'istruzioni

Progear Fitness

Progear Fitness Air elliptical pro 1307 owner's manual

Torque Fitness

Torque Fitness XPLLP owner's manual

Octane Fitness

Octane Fitness PRO3700C Operation manual

Xterra

Xterra FS5.8e owner's manual

Bodyguard

Bodyguard E-40 user manual

Bonn Germany

Bonn Germany Concept 2.2 user manual

Precor

Precor Resolute RSL 620 Assembly guide

NordicTrack

NordicTrack E 9.2 Elliptical HASZNALATI UTASITAS

Vision Fitness

Vision Fitness X6600iNetTV Assembly guide

Matrix

Matrix MX-A5x owner's manual

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 owner's manual

Sears

Sears FREE SPIRIT C249 30737 0 owner's manual

True

True FS-64 Assembly manual

Sport-thieme

Sport-thieme ST 310 manual

VIRTUFIT

VIRTUFIT CTR 1.1 user manual

Kettler

Kettler GIRO C 1 manual

CIRCLE FITNESS

CIRCLE FITNESS E7 owner's manual
