Premier Mounts MVWC-2X2 User manual

www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 | Europe +44 (0) 24 7664 4105

1321 S. State College Blvd., Fullerton, CA 92831 USA

Warranty, Garantie, Garantía, Garanzia, Garantie, Waarborg: http://www.mounts.com/warranty 9531-010-001-00

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

mvwc-2x2

Warranty: http://www.mounts.com/warranty

Garantie, Garantía, Garanzia, Garantie, Waarborg

www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 | Europe +44 (0) 24 7664 4105

9531-010-001-00

5mm 5mm

x4 x4

1 2

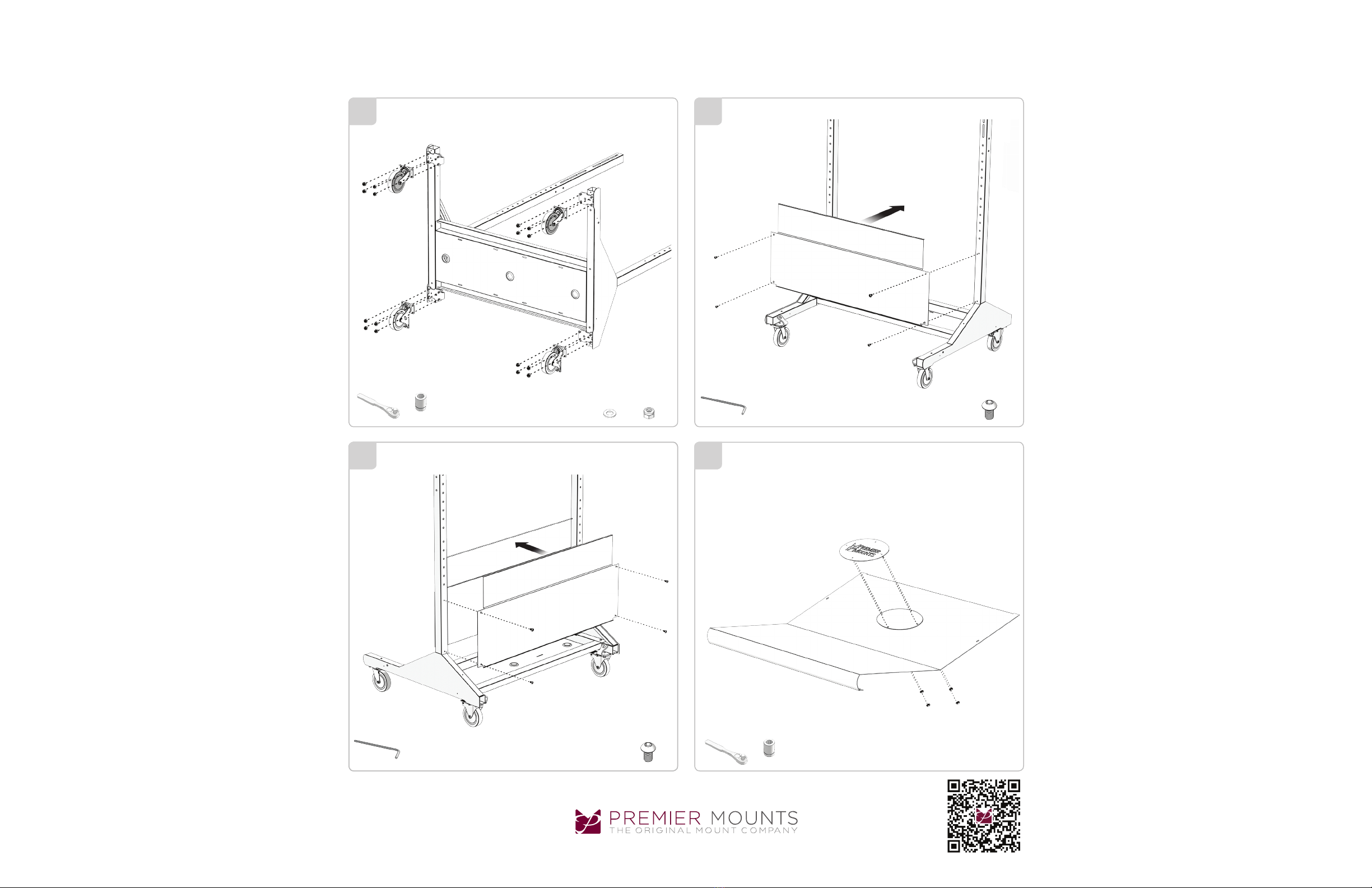

Install the upper cross brace between the inside frame rails

with the four each M8 x 60mm button head Allen screws and

flat washers supplied. Tighten all eight M8 x 60mm button

head Allen screws to create a firm frame structure at this

time.

If this is a “one man” installation find a “friendly” clear flat

wall to place one leg assembly along side. Place the bottom-

panel on top of the legs channel between the two uprights.

Next place the second leg over the bottom panel so all four

through holes line up and loosely secure the bottom panel to

the legs with the four M8 x 1.25 x 60mm button head Allen

head screws and M8 flat washers supplied.

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

MVWC-2x2

x1 x1

x48

x24

x24 x24 x24 x24 x24

x24 x24

3/16”

5mm

M4 x 12mm

M8 x 25mm

M8 x 16mmM8 x 12mm

M4 x 16mm M4 x 25mm M5 x 12mm M5 x 16mm M5 x 25mm

M6 x 25mm

M6 x 16mm

M6 x 12mm

5mm

M8 x 60mm M8 M6 x 10mm M4 M4 M8

x4 x20 x20 x4 x4 x4

Required for installation

13mm5/16”4mm

Warranty: http://www.mounts.com/warranty

Garantie, Garantía, Garanzia, Garantie, Waarborg

www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 | Europe +44 (0) 24 7664 4105

9531-010-001-00

x16 x16

13mm

3 4

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

MVWC-2x2

4mm

5/16”

Loosely install the front upper cover to the front of the cart

with the four M6 x 1.0 x 10mm”button head” Allen screws

supplied.

Install the front “logo” plate to the lower panel cover with the

four each 10/32 x 1/2” “kep” nuts and flat washers supplied.

Lay the leg assembly as shown . Securely install the four

casters on the front and rear of the leg assemblies using the

M8 flat washers and M8 self locking nuts supplied. Then se-

curely install the four casters. We recommend the two rear

caster be the “locking pair”

Repeat the same procedure with the upper rear panel to the

leg assembly with the four each “button head” Allen screws

supplied.

Now secure firmly the four lower pan “button head” screws

to the leg assembly and tighten firmly. Repeat the same

process with the front and rear upper cover panels but don’t

over-tighten these.

Warranty: http://www.mounts.com/warranty

Garantie, Garantía, Garanzia, Garantie, Waarborg

www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 | Europe +44 (0) 24 7664 4105

9531-010-001-00

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

MVWC-2x2

4mm 4mm

4mm

Install the lower front panel cover to the frame front and

secure to the frame assembly with the four each M6 x 1.0 x

10mm “button head” Allen head screws supplied.

The rear oval panel cover can be installed before or after

final assembly of the cart with the four each M6 x 10mm

“button head” Allen head screws supplied.

With the rear of the lower pan exposed now would be the

time to place and wire any powered support products feed-

ing the display with the power and signal cable being fed

between the front and rear upper cover panels. Power and

signal cable can also be run up through the three rubber

grommet hole in the base on the pan as well.

Once housed the rear cover panel may now be installed with

the four M6 x 10mm “button head” Allen screws supplied.

Access to the inner pan is still available through the rear

oval access cover.

Warranty: http://www.mounts.com/warranty

Garantie, Garantía, Garanzia, Garantie, Waarborg

www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 | Europe +44 (0) 24 7664 4105

9531-010-001-00

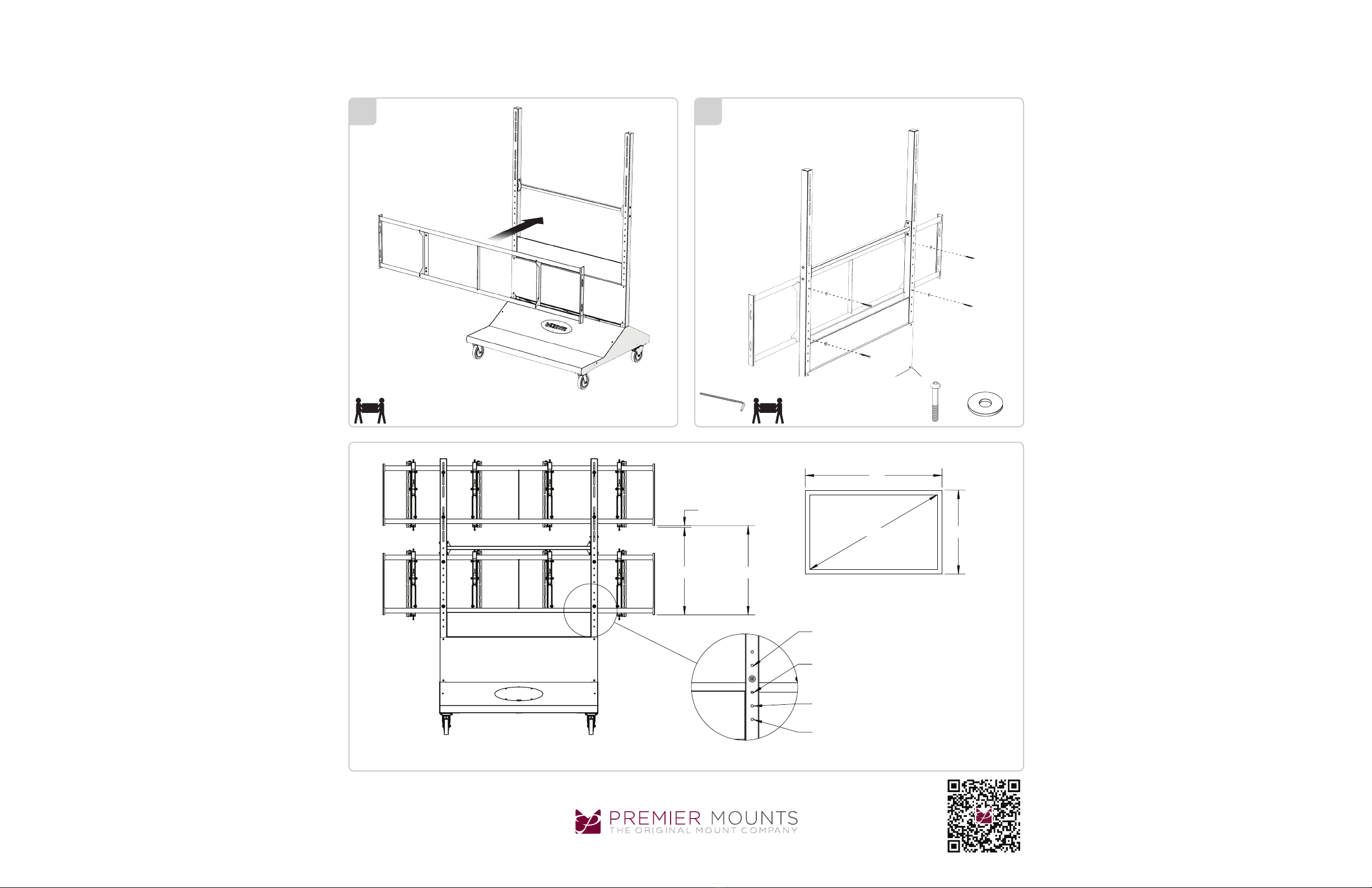

Y+ 1/16"(1.3MM)

1/16"(1.3MM)

Z = 60"(152CM)

Z = 55"(140CM)

Z = 50"(127CM) - 52"(132CM)

Z = 46"(117CM)

15 16

5mm

x4 x4

1110

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

MVWC-2x2

From this point on it is recommended that minimum two

people to properly install the cross bar assemblies to the

frame rails.

Warranty: http://www.mounts.com/warranty

Garantie, Garantía, Garanzia, Garantie, Waarborg

www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 | Europe +44 (0) 24 7664 4105

9531-010-001-00

5mm

x4 x4

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

MVWC-2x2

Place the left and right mounting bracket (kickstand facing

in on both brackets) and confirm the center of the bracket

“notch” is exactly center between the top and bottom edge of

the display and secure with the four each appropriate pitch

and length screws supplied for your display. Note: accessory

plastic spacer are supplied in case separation between the

bracket and the display is require for clearance purposes.

Place the first flat panel display face down on a smooth flat

surface and confirm the mounting depth and thread pitch or

your display using the depth gauge supplied.

Refer to the diagram on the previous page to find the proper

spacing for the cross bars. Once you have the proper clear-

ance height for placement of the second cross bar install,

level and secure the second cross bar to the main frame

with the four each M8 x 60mm button head Allen screws and

flat washers supplied.

Warranty: http://www.mounts.com/warranty

Garantie, Garantía, Garanzia, Garantie, Waarborg

www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 | Europe +44 (0) 24 7664 4105

9531-010-001-00

1918

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

MVWC-2x2

Starting with the lower level cross bar, confirm the lower

bracket security screws are wide open and install the first

display on the lower left side. Confirm it is level both in the

horizontal and vertical plane with a spirit level. Repeat the

same procedure for the second on the lower level. Create

a 1/16” clearance between the side bezel edges of the dis-

plays and secure the display to the cross bar with the lower

security screws on each bracket.

Once center and level of the brackets are confirmed secure

the bracket firmly to the display. Repeat this procedure for

all nine displays being installed. Confirm the upper adjust-

ment screws are center together by confirming all three

notches are aligned.

Warranty: http://www.mounts.com/warranty

Garantie, Garantía, Garanzia, Garantie, Waarborg

www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 | Europe +44 (0) 24 7664 4105

9531-010-001-00

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

MVWC-2x2

Once your mobile video wall is installed, make sure displays

are aligned with 1 /16” heat expansion clearance. The dual

purpose kickstand and safety lock is secured by pulling the

lower swing down lock over the lower round tube and secure

into the bracket with the M6 x 10mm Allen head screws sup-

plied.

Warranty: http://www.mounts.com/warranty

Garantie, Garantía, Garanzia, Garantie, Waarborg

www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 | Europe +44 (0) 24 7664 4105

9531-010-001-00

3/16” 3/16”

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

MVWC-2x2

Upper three stage precision alignment screws. Each bracket

has its own three part Allen head screw adjusters that can

be aligned independently to maximize the overall alignment

to flat in both the vertical and horizontal mode as well as in

and out.

Warranty: http://www.mounts.com/warranty

Garantie, Garantía, Garanzia, Garantie, Waarborg

www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 | Europe +44 (0) 24 7664 4105

9531-010-001-00

8 3

147

18 6

1213

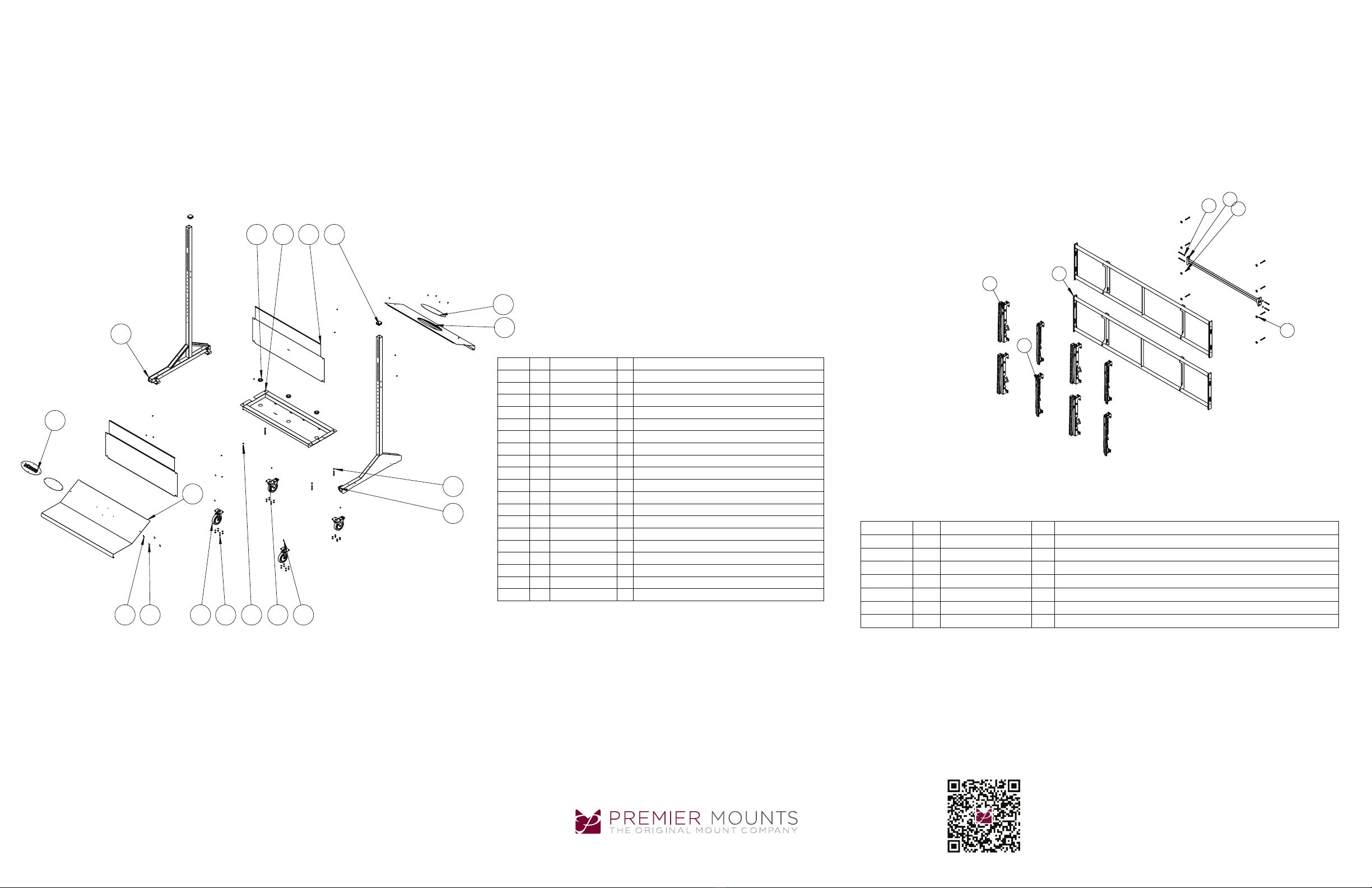

ITEM NO.

QTY.

PART NO.

REV

DESCRIPTION

1 1

3201-000-010-XX

VERTICAL LEFT LEG ASSEMBLY 2X2

2 1

3201-000-020-XX

VERTICAL RIGHT LEG ASSEMBLY 2X2

3 2

0725-DCG-W02-13

PLUG PUSH-IN RIBBED SQUARE CAP 2 X 2"

4 4

0411-079-320-6X

SCREW BUTTON HEX (M8 x 1.25 x 60)

5 20

198X-507-600-50

WASHER M8 ( .335 ID ) X ( .621 OD ) X ( .063 THK )

6 21

0398-061-091-6X

SCREW BUTTON HEX (M6 x 1.0 x 10)

7 1

3201-000-001-XX

LOWER TRAY

8 3

1558-BUD-P00-86

GROMMET BUNA-N RUBBER (1.50I.D) X (2.13 OD) X (.5"THK)

9 1

3201-000-005-XX

ACCESS PANEL

10 1

3201-000-060-XX

REAR PANNEL WELDED ASSY

11 1

3201-000-006-XX

02 SIGN PANEL

12 4

198X-265-100-35

WASHER M4 ( .172 ID ) X ( .347 OD ) X ( .031 THK )

13 4

1200-034-007-5X

NUT KEP (6/32"X .109)

14 2

3201-000-015-XX

UPPER COVER

15 1

3201-000-003-XX

FRONT COVER

16 16

1070-079-015-0X

NYLON INSERT HEX LOCK NUT (M8X1.25 X .315) DIN 985

17 2

3300-280-000-XX

DURABLE SUPERIOR CASTERS (SWIVEL)

18 2

3300-280-001-XX

DURABLE SUPERIOR CASTER (LOCKING)

19 1

3201-000-008-XX

SIGN PANEL BACKING PLATE

513

ITEM NO.

QTY.

PART NO.

REV

DESCRIPTION

1 1

3201-000-030-XX

1" HORIZONTAL TUBE BRACE ASSEMBLY

2 2

3201-000-040-XX

HORIZONTAL MOUNT ASSEMBLY

3 12

0411-079-320-6X

SCREW BUTTON HEX (M8 x 1.25 x 60)

4 8

201X-50A-B00-55

WASHER LG O.D M8 (.335 ID) X (.934 O.D) X (.079)

5 4

198X-507-600-50

WASHER M8 ( .335 ID ) X ( .621 OD ) X ( .063 THK )

6 4

4100-070-020-XX

LEFT MOUNTING BRACKET ASSY

7 4

4100-070-030-XX

RIGHT MOUNTING BRACKET ASSY

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

MVWC-2x2

Table of contents

Other Premier Mounts Rack & Stand manuals

Premier Mounts

Premier Mounts PP-5 User manual

Premier Mounts

Premier Mounts PSD-TL User manual

Premier Mounts

Premier Mounts Cathedral Ceiling Adapter PP-TL User manual

Premier Mounts

Premier Mounts AST-2446 User manual

Premier Mounts

Premier Mounts MVW463 User manual

Premier Mounts

Premier Mounts Convergent Series User manual

Premier Mounts

Premier Mounts ECM-3763D User manual

Premier Mounts

Premier Mounts FPS-200 User manual

Premier Mounts

Premier Mounts AM175 User manual

Premier Mounts

Premier Mounts PBC-1.5 Series User manual

Premier Mounts

Premier Mounts Polaris MAG-EXT User manual

Premier Mounts

Premier Mounts PTDM2 User manual

Premier Mounts

Premier Mounts LPSA3747 User manual

Premier Mounts

Premier Mounts PTM-B User manual

Premier Mounts

Premier Mounts RTM-L User manual

Premier Mounts

Premier Mounts AM50 User manual

Premier Mounts

Premier Mounts LMVSP User manual

Premier Mounts

Premier Mounts INW-UNIFM User manual

Premier Mounts

Premier Mounts MM-CP15 User manual

Premier Mounts

Premier Mounts Universal Projector Mount PBL-UMS User manual

Premier Mounts

Premier Mounts ECM-3763S User manual

Premier Mounts

Premier Mounts PTM User manual

Premier Mounts

Premier Mounts LMV User manual

Premier Mounts

Premier Mounts Rotary RTM-S User manual

Popular Rack & Stand manuals by other brands

Salamander

Salamander Acadia AC/W/L400/WH Assembly instructions

Fohhn

Fohhn VAT-09 Mounting instruction

ricoo

ricoo FS0522 quick start guide

AMSOIL

AMSOIL BMK-22 Installation and service instructions

Kargo Master

Kargo Master 48220 installation guide

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 installation instructions

ricoo

ricoo S1222 installation instructions

Ready-Set-Mount

Ready-Set-Mount RSMCM602 instruction manual

VidaBox

VidaBox VB MNT FFS2 installation guide

Welch Allyn

Welch Allyn 48960 Assembly instructions

Arkon

Arkon CM035-ST-2 installation instructions

PROEL

PROEL PLWIN60C user manual

Agilent Technologies

Agilent Technologies E2609B installation guide

Mustang

Mustang MV-ARM4 installation guide

Mounting Solutions

Mounting Solutions WRM-320 manual

Pyle

Pyle PMKSPAD1 manual

ShelterIt

ShelterIt 21208 installation instructions

SPL

SPL RackPack?4 1040 manual
