Premier Mounts PTDM2 User manual

www.mounts.com | North America 800.368.9700 | International +1-714-632-7100

1321 S. State College Blvd., Fullerton, CA 92831 USA

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

PTDM2

www.mounts.com | North America 800.368.9700 | International +1-714-632-7100

Included components

Required for installation

PTDM2

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

Maximum Flat Panel Weight:

100 lb. / 45.35 kg.

M4 x 12mm

screw

M4 x 16mm

screw

M4 x 25mm

screw

M6 x 12mm

screw

M6 x 16mm

screw

M6 x 25mm

screw

M8 x 16mm

screw

M8 x 25mm

screw

5/16” x 3”

Lag Bolts

Washers

Universal 3

HoleWasher

Universal

Spacer

Depth Measuring

Straw x1

Page 2

Pencil Level

1/4” Drill Bit for

Wood Stud

Electronic Stud Finder

Socket Wrench Phillips Tip Screwdriver Tape Measure

Hand Held Drill

Protective Eyewear

1/2” Socket

Wall Plate

Mounting Brackets

Lock-it Barrel

PTDM2

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

Page 3

Introduction

Directional Mounting Arrow

The Directional Mounting Arrow stamped

into the top of the PTDM2 wall mount

indicates which edge is the top.

Mounting Safety

Two people are recommended for the

installation of this mount.

www.mounts.com | North America 800.368.9700 | International +1-714-632-7100

You must secure the wall plate to two (2)

wall studs with a minimum of four (4) lag

bolts (2 lag bolts for each stud found).

 Use a stud nder to determine the exact

center of wall studs in the vicinity of the wall

plate.

 Use a pencil to mark the exact center of each

of the wall studs.

PTDM2

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

www.mounts.com | North America 800.368.9700 | International +1-714-632-7100

Page 4

2Two people are recommended for this step; one

person to level the wall plate and another person

to mark the wall stud location.

 Place the wall plate against the wall in the desired

viewing location.

 Adjust the wall plate to align the mount slots in the

wall plate with the center of the wall studs.

 Level the wall plate.

 Use a pencil to mark the upper right mounting

location along the center of the wall stud.

Drill a “pilot hole” in the center of the upper right mark

using a 1/4” drill bit and power drill.

Only use a 1/4” drill bit when drilling the pilot

holes.

4 Place the wall plate against the wall and align it with

the pilot hole.

 Insert one (1) 5/16” x 3″ lag bolt and one (1) 5/16”

washer into the upper right mounting hole and

tighten using a socket wrench and 1/2” socket.

Do not overtighten the lag bolt.

www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 Page 5

 Level the wall plate.

 Use a pencil to mark the remaining three (3)

mounting locations along the center of each wall

stud.

PTDM2

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

PTDM2

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

www.mounts.com | North America 800.368.9700 | International +1-714-632-7100

Page 6

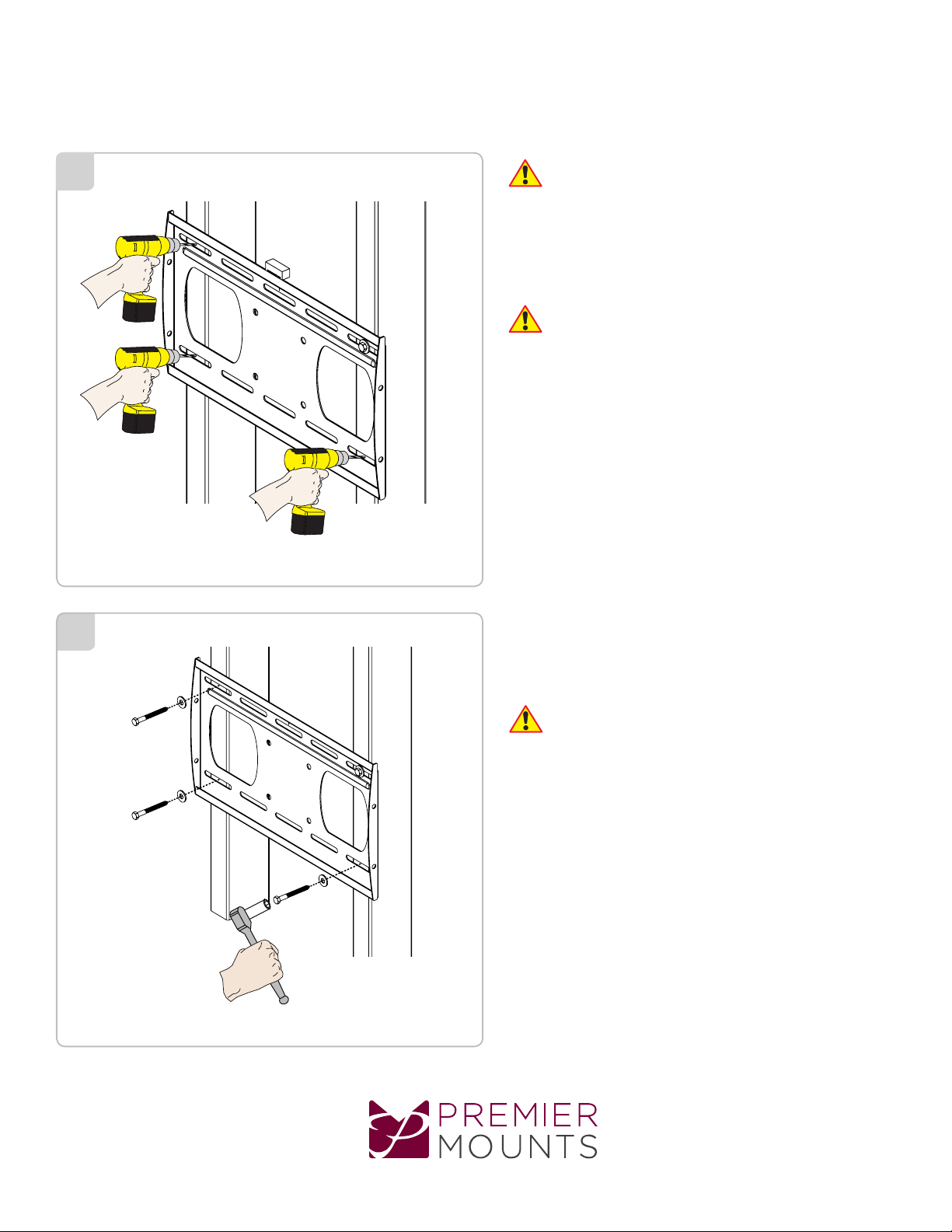

6Two people are recommended for this step; one

person to level the wall plate and another person

to drill the pilot holes.

Drill a “pilot hole” in the center of each of the marks with

a power drill and a 1/4” drill bit.

Only use 1/4” drill bit when drilling the pilot holes.

 Insert one (1) 5/16” x 3” lag bolt and one (1) 5/16”

washer into each pilot hole.

 Tighten all lag bolts using a socket wrench and 1/2”

socket.

Do not overtighten the lag bolts when attaching

the mount to the wall. Improper installation may

result in personal injury or property damage.

Proceed to the “Installing the Mounting Bracket”

section.

www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 Page 7

Installing the Mounting Bracket

Small Straw or Toothpick

Small Straw

or Toothpick

Small Straw

or Toothpick

Marking the 1/8”

Allowance

Depth Plus 1/8” Allowance

Mark

Depth Plus 1/8” Allowance

Mark

 Insert a small straw or toothpick into the threaded

inserts found on the back of the at panel.

 Use a pencil to mark the depth of the threaded

insert on the small straw or toothpick.

 Mark the straw or toothpick 1/8” above the depth of

the threaded insert, as shown in Figure 1.

 Insert the small straw or toothpick into the remaining

threaded inserts to compare and verify their depth

using the straw or toothpick’s 1/8” allowance mark.

 Locate the correct diameter screw for the threaded

insert.

If the screw you selected is longer than the 1/8”

allowance mark on the small straw or toothpick,

as shown in Figure 2 and Figure 3, do not use

this screw. The screw length must not bypass the

mark.

 Test each size of the screws provided.

The correct screws should thread easily into the

mounting point and not pull out when tension is

applied.

Proceed to the “Universal Washer Installation”

section.

Selecting the Mounting Hardware

PTDM2

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

PTDM2

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

www.mounts.com | North America 800.368.9700 | International +1-714-632-7100

Page 8

Premier Mounts’ Universal Washers are designed to

accommodate the various M4, M5, M6 and M8 hole

sizes required by at panels.

Do not place excessive pressure on the back of

the at panel, as this may damage your at panel.

The Universal Washer must be installed between

the head of the mounting screw and the mounting

bracket as shown.

Does your at panel have:

●Recessed mount points?

●Uneven mount points?

●A curved back?

●Any obstruction near the mount point?

If Yes, you must install Universal Spacers. Remove the

mounting brackets, Universal Washers, and mounting

screws from the back of the at panel. Proceed to the

“Universal Spacer Installation” section.

If No, skip to the “Attaching the Mounting Bracket

to the Flat Panel” section.

Premier Mounts’ Universal Spacers allow you to

attach the mounting bracket to at panels which have

recessed or uneven mount points. Each Universal

Spacer adds ¼˝ to the distance between the mounting

bracket and your at panel.

The Universal Spacers must be stacked and

oriented as shown.

The Universal Spacers must only be installed

between the mounting bracket and your at panel.

The Universal Spacers will t M4, M5, M6 and M8

screw sizes.

Proceed to the “Attaching the Mounting Bracket to

the Flat Panel” section.

Flat Panel

Universal Washer

Universal Spacer

Mounting Bracket

Mount Point

Mounting Screw

M5, M6

1˝ ¼˝

Universal Washer Installation

Universal Spacer Installation

www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 Page 9

PTDM2

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

Attaching the Mounting Bracket to the Flat Panel

This section presumes that you have read and

understood these sections:

●Selecting the Proper Mounting Hardware

●Universal Washer Installation

●Universal Spacer Installation

 Place your at panel screen-side down on a soft, at

surface.

 Identify the number and location of the thread

inserts on the back of your at panel.

 Align the holes on each mounting bracket with the

thread inserts on the back of your at panel.

 Secure each mounting bracket to your at panel by

inserting a minimum of two (2) screws per bracket.

Do not overtighten the mounting hardware.

Proceed to the “Lock-It™ Security Barrel

Installation (Optional)” section.

Lock-It™ Security

Barrel

Locking Screw

Lock-it™ Security Barrel Installatin (Optional)

Optional security congurations include:

- PCB-CSL1 (sold separately)

- Padlock (Combination or Keyed; commercially

available)

Please read the following directions to install the

security barrel:

 Remove the locking screw from the mounting

bracket.

 Place the locking screw into and through the

security barrel (see illustration below).

 Re-insert the locking screw and security barrel into

the mounting bracket.

 Tighten the locking screw and security barrel until

seated in the mounting tab.

Do not thread the locking screw any further once

it is even with the mounting tab (see illustration to

the right). Threading the locking screw any further

will prevent you from safely attaching the at

panel to the wall plate.

Do not overtighten the locking screw.

Proceed to the “Attaching the Mounting Bracket to

the Flat Panel” section.

Mounting Tab

PTDM2

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

www.mounts.com | North America 800.368.9700 | International +1-714-632-7100

Page 10

Attaching the Flat Panel to the Wall Plate

This section requires two people.

Do not release your at panel until you are

certain that top and bottom hooks of both

mounting brackets are securely seated on

the upper and lower mounting rails of the

wall panel.

 Raise the at panel past the top and bottom

mounting rails on the wall panel.

 Slide the at panel down slowly, keeping it

close to the wall.

 Engage the top and bottom mounting

brackets to the rails of the wall plate.

Proceed to the “Mounting Bracket

Adjustments” section.

Mounting Bracket Adjustments

M6 x 35mm

Locking Screw

(1 per Bracket)

M6 x 30mm

Leveling Screw

(1 per Bracket)

If your at panel is tilted too far to one side, the leveling

screws will allow you to compensate for this tilt by

simply adjusting the screws with a screwdriver.

 Loosen both locking screws.

 Adjust the tilt of your at panel.

 Tighten both locking screws.

Caution!

It is possible to dislodge your at panel while you

level your at panel. Use extreme caution until

you tighten the locking screws.

After you have nished leveling your at panel, be sure

to tighten the two (2) M6 x 35mm locking screws.

Do not overtighten the locking screws.

Leveling Screw Adjustment

Locking Screw Adjustment

Other manuals for PTDM2

Table of contents

Other Premier Mounts Rack & Stand manuals

Premier Mounts

Premier Mounts Convergent UNI-UPS-A CLD User manual

Premier Mounts

Premier Mounts BW-BASE User manual

Premier Mounts

Premier Mounts Universal Tabletop Stand PSD-TTS/C User manual

Premier Mounts

Premier Mounts PSD-TL User manual

Premier Mounts

Premier Mounts AST-2446 User manual

Premier Mounts

Premier Mounts UNI-PDS User manual

Premier Mounts

Premier Mounts AM500 User manual

Premier Mounts

Premier Mounts GB-PIPE1 User manual

Premier Mounts

Premier Mounts PDS-PLUS User manual

Premier Mounts

Premier Mounts Universal Projector Mount PBC-UMS User manual

Premier Mounts

Premier Mounts PSD-TS User manual

Premier Mounts

Premier Mounts PFC-OMND User manual

Premier Mounts

Premier Mounts Rotary RTM-S User manual

Premier Mounts

Premier Mounts MVWC-2X2 User manual

Premier Mounts

Premier Mounts SHLF-VC User manual

Premier Mounts

Premier Mounts CTM-MS1 User manual

Premier Mounts

Premier Mounts PSPK User manual

Premier Mounts

Premier Mounts SpiroLock SPI-PRO User manual

Premier Mounts

Premier Mounts MM-CP15 User manual

Premier Mounts

Premier Mounts PBC- UMW User manual

Premier Mounts

Premier Mounts PBL-200 User manual

Premier Mounts

Premier Mounts CTM-MS1 User manual

Premier Mounts

Premier Mounts RTM-L User manual

Premier Mounts

Premier Mounts PRF User manual

Popular Rack & Stand manuals by other brands

Salamander

Salamander Acadia AC/W/L400/WH Assembly instructions

Fohhn

Fohhn VAT-09 Mounting instruction

ricoo

ricoo FS0522 quick start guide

AMSOIL

AMSOIL BMK-22 Installation and service instructions

Kargo Master

Kargo Master 48220 installation guide

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 installation instructions

ricoo

ricoo S1222 installation instructions

Ready-Set-Mount

Ready-Set-Mount RSMCM602 instruction manual

VidaBox

VidaBox VB MNT FFS2 installation guide

Welch Allyn

Welch Allyn 48960 Assembly instructions

Arkon

Arkon CM035-ST-2 installation instructions

PROEL

PROEL PLWIN60C user manual

Agilent Technologies

Agilent Technologies E2609B installation guide

Mustang

Mustang MV-ARM4 installation guide

Mounting Solutions

Mounting Solutions WRM-320 manual

Pyle

Pyle PMKSPAD1 manual

ShelterIt

ShelterIt 21208 installation instructions

SPL

SPL RackPack?4 1040 manual
