INSTALLATION INSTRUCTIONS

LPSA3747

Universal Low Profile Swingout Arm for 37” to 47” Flat Panels

NORTH AMERICA

3130 East Miraloma Avenue

Anaheim, CA 92806 USA

USA and Canada –

Phone: 800-368-9700

Fax: 800-832-4888

EUROPE

Swallow House,

Shilton Industrial Estate,

Shilton, Coventry, England CV79JY

Phone: +44 (0) 2476 614700

Fax: +44 (0) 2476 614710

Other Locations – Phone: (001)-714-632-7100; Fax: (001)-714-632-1044

©Premier Mounts 2009

9531-211-001-04

Page 2 Installation Instructions

Table of Contents

Warning Statements

Warning Statements 2

Parts List 3

Installation Tools 3

Wood Stud Installation 5

Concrete Surface Installation 6

Determining the Mounting Hardware 8

Universal Spacer Installation 8

Attaching the Flat Panel (75mm/100mm Mounting Points) 9

LPSA3747 Installation 10

Tilt/Pivot Adjustment 10

Assembling the Adapter Plate 11

Universal Washer Installation 12

Attaching the Adapter Plate to the Flat Panel 12

Attaching the Flat Panel with the Adapter Plate 13

LPSA3747 Installation with the Adapter Plate 14

Tension Adjustment 15

Cable Management 15

Technical Specifications 16

Warranty 17

LPSA3747

PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS SHOULD BE READ AND

COMPLETELY UNDERSTOOD. THE INSTALLATION INSTRUCTIONS MUST BE READ TO PREVENT PERSONAL INJURY AND

PROPERTY DAMAGE. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE

REFERENCE.

PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS

PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED

ATTACHMENTS OR MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS, DEMANDS, SUITS,

ACTIONS OR CAUSES OF ACTION OF WHATEVER KIND RESULTING FROM, ARISING OUT OF OR IN ANY MANNER

RELATING TO ANY SUCH USE, ATTACHMENTS OR MODIFICATIONS.

THE SURFACE MUST BE CAPABLE OF SUPPORTING AT LEAST FIVE TIMES THE WEIGHT OF THE FLAT PANEL. IF NOT, THE

STRUCTURE MUST BE REINFORCED. THE MAXIMUM WEIGHT THAT CAN BE USED WITH THIS PRODUCT IS 80LBS. PROPER

INSTALLATION PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN, AS OUTLINED IN THE INSTALLATION INSTRUC-

TIONS, MUST BE ADHERED TO. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL INJURY, OR EVEN DEATH.

SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE ASSEMBLY OF THIS PRODUCT. USE PROPER SAFETY

GEAR AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY.

At least two qualified people should perform the assembly procedure. Injury and/or damage can result from dropping or mishandling the flat

panel.

If mounting to studs, make sure that the mounting screws are anchored into the center of the studs. Use of an edge-to-edge stud finder is

recommended.

Be aware of the mounting environment. If drilling and/or cutting into the mounting surface, always make sure that there are no electrical

wires in wall. Cutting/drilling into an electrical line may cause serious injury.

Make sure there are no water lines inside the wall where the mount is to be located. Cutting/drilling into a water line may cause severe water

damage to the mounting surface.

This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal injury.

Do not install near sources of high heat. Do not install on a structure that is prone to vibration, movement or chance of impact

Contact Premier Mounts with any questions

(800) 368-9700

[email protected]

Installation Instructions Page 3

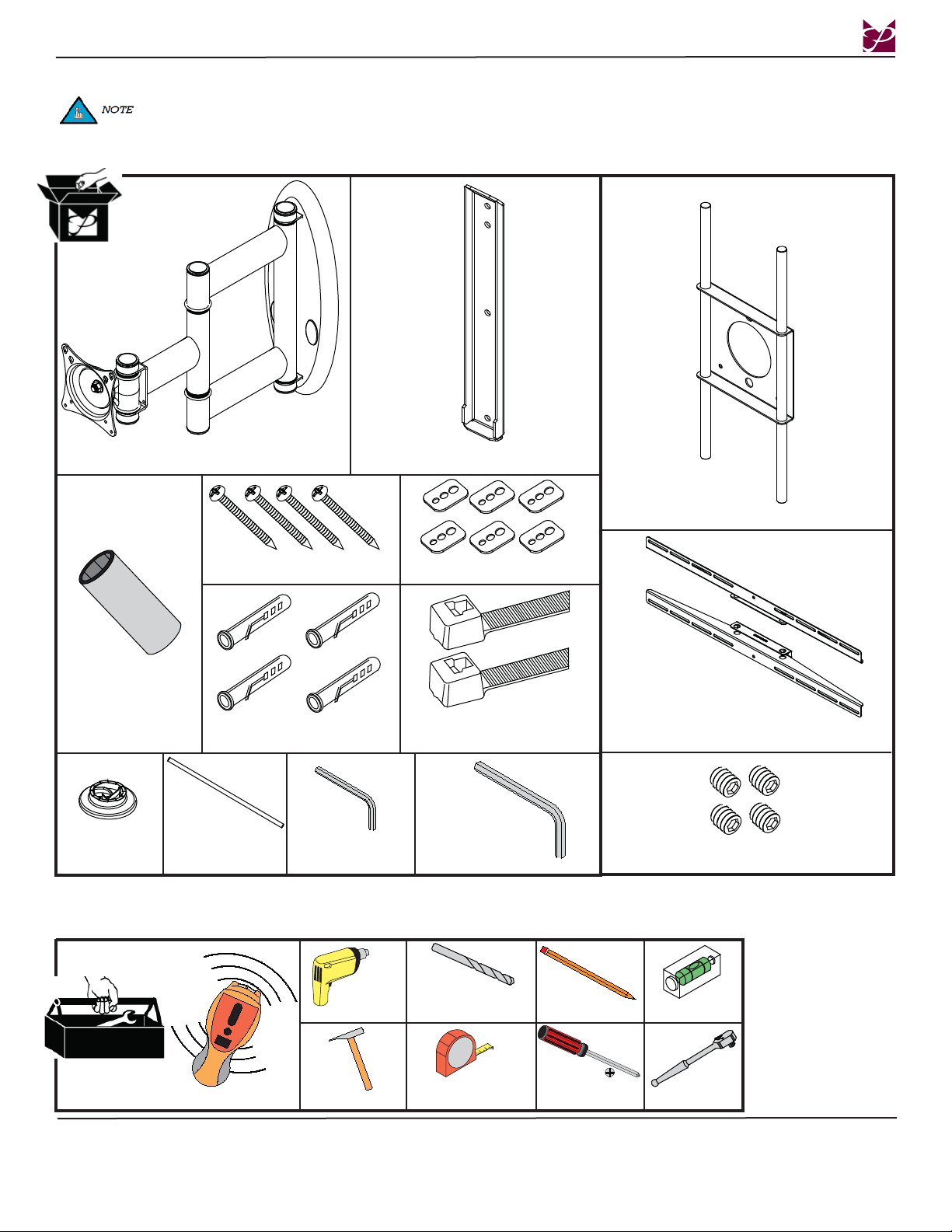

Parts List

Installation Tools (not supplied)

Cover Plate (Qty 1)

Universal Adapter Plate Hardware

Adapter Arms (Qty 2)

Adapter Plate (Qty 1)

Plastic Wall Anchors

(Qty 4)

#14 x 2” Wood Screws (Qty 4)

4” Cable Ties (Qty 2)

Universal

Spacers (Qty 30)

Pencil

5/32” Allen

Wrench (Supplied)

M3 Allen

Wrench (Supplied)

Thread Depth

Indicator (Supplied)

Level

1/8” Drill Bit

(pilot holes)

Electronic Studfinder Socket Wrench

Phillips Tip

Screwdriver

Tape Measure

Hand Held Drill

Wall Plate (Qty 1)

Hammer

LPSA3747

M6 Set Screw (Qty 4)

LPSA3747 Hardware

Congratulations on the purchase of your new Premier Mounts LPSA3747 flat panel mount. This

mount is shipped with all proper installation hardware and components. Make sure that none of these parts are

missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the

installation and contact Premier Mounts (800) 368-9700.

14mm Socket

Universal Washers (Qty 6)

Page 4 Installation Instructions

LPSA3747

M4 x 8mm (Qty 4)

M4 x 10mm (Qty 6)

M4 x 16mm (Qty 6)

M4 x 25mm (Qty 6)

M4 x 30mm (Qty 6)

M6 x 30mm (Qty 6)

M6 x 25mm (Qty 6)

M6 x 16mm (Qty 6)

M5 x 30mm (Qty 6)

M5 x 25mm (Qty 6)

M5 x 16mm (Qty 6)

M8 x 30mm (Qty 6)

M8 x 25mm (Qty 6)

M8 x 16mm (Qty 6)

If your unit requires alternative mounting hardware, use commercially available hardware or contact Premier Mounts (800) 368-9700.

M4 x 45mm (Qty 6)

M6 x 45mm (Qty 6)

M5 x 45mm (Qty 6)

M8 x 45mm (Qty 6)

Installation Instructions Page 5

LPSA3747

Wood Stud Installation

Step 3. Once the center of the stud has been

located and the wall plate is level, use a

pencil and mark the mounting hole

locations.

Before proceeding, remove the wall plate from the cover plate.

The end of the wall plate with the two

closely spaced holes should be pointing

up when mounting the wall plate. The flat

side of the wall plate will mount flush to

the wall.

Step 1. Determine the mount’s location on the

wall.

Step 2. Use a stud finder to locate the nearest

wall stud closest to your desired

location.

Stud

Electronic

Studfinder

Center Line Wall Plate

Positioning the Wall Plate

Front

View

Side

View

Mounting

Holes Wall

Side

Level

Step 4. Using a 1/8” drill bit and drill, pre-drill the

pilot holes where the first mark was made.

1/8” Drill Bit

Pilot Hole

Page 6 Installation Instructions

LPSA3747

Level

#14 x 2” Screws

Screwdriver

Step 5. Insert one (1) #14 X 2” screw into

the pre-drilled mounting hole.

Step 6. Tighten the top screw.

Step 7. Re-level the mount and make any

adjustments at this time. Step 8. Pre-drill the remaining three mounting

holes.

Step 9. Insert and tighten the remaining three

(3) #14 x 2” screws. Do not over-tighten

the screws.

Concrete Surface Installation

Concrete Bit

Level

Step 1. After leveling the wall plate mark all

four (4) mounting hole locations.

Step 2. Drill four (4) pilot holes using a

drill and a (commercially available)

concrete drill bit.

Level the wall plate before

proceeding.

Installation Instructions Page 7

LPSA3747

Step 5. Place the wall plate over the

wall anchors once the

wall anchors have been

correctly inserted into the

mounting surface.

Step 6. Using a screwdriver, insert

and tighten four (4) #14 x

2” screws.

Do not over-tighten the

wall anchors.

Screwdriver

Wall Anchor

Step 3. Once the holes have been

drilled, place the wall

anchors into the hole. Using

a hammer, gently tap into

place.

Make sure the mounting

surface area is smooth and

that the wall anchors are not

protruding from the wall.

Hammer

#14 x 2” Screws

Page 8 Installation Instructions

LPSA3747

Figure 1

Figure 2 Figure 3

Inverted Flat

Panel Display

Marking the

Depth

Thread Insert

Thread Depth

Indicator

Thread Depth

Indicator

Marking

Screw

Marking

Screw

Thread Depth

Indicator

Determining the Mounting Hardware

Step 1. Insert the thread depth indicator (supplied) through the thread inserts found on the back of the flat panel.

Step 2. Using a pencil, mark the depth of the thread insert on the thread depth indicator (Figure 2).

Step 3. Compare and verify the depth of the remaining thread inserts.

Step 4. Locate the correct diameter screw for the thread insert.

Step 5. Compare your thread depth indicator marking to the screw length.

When using the universal spacers in

the installation, make sure to account

for the appropriate spacing depth

when measuring with the thread depth

indicator. Using the universal spacers

will change the overall length of the

hardware used.

If your selected screw is longer than

the marking on the thread depth

indicator, do not use this screw. The

screw length must not bypass the

marking. If so, select another screw

size (Figure 2 and 3) until you find the

screw the comes closest to your mark

without going past the marking.

Universal Spacers Installation (optional)

The universal spacer may be stacked five (5) high, for a total stacking height of 1-1/4”. The universal spacers must be stacked in the

direction shown above. The universal spacers must be placed between the mounting bracket and the flat panel.

The universal spacer will fit M4, M5, M6 and M8 screws sizes.

Use the universal spacers to compensate for any indentations or recessed mounting points, if needed.

Installation Instructions Page 9

LPSA3747

Attaching the Flat Panel (75mm/100mm Mounting Points)

LPSA3747

Mounting Hardware

Universal Spacers (see NOTE)

Flat Panel

Mounting Hardware

Use the universal spacers to

compensate for any indentations

or recessed mounting points, if

needed.

Step 1. Fasten, to 1/2 the depth of the screws,

two (2) M4 x 10mm screws to the top

two mounting points on the flat panel.

Do not completely tighten these screws

at this time.

Step 2. Insert the head of the screws through

the keyhole slots on the cover plate.

Step 3. Insert and tighten the bottom two (2)

M4 x 10 Phillip screws to secure the

flat panel to the mount.

Step 4. Use a Phillips tip screwdriver to

tighten all mounting hardware.

Do not over-tighten the mounting

screws.

It is recommended that the flat

panel rest on a soft and flat

surface while the mount is

attached.

These installation steps should

be performed by two qualified

individuals.

If your flat panel comes with

75/100 mounting points on the

back (see illustration to the

right), the adapter plate will not

be used.

75/100 Mounting Points

Page 10 Installation Instructions

LPSA3747

LPSA3747 Installation

Step 1. The cover plate of the LPSA3747 must be

mounted to the wall plate that is attached to the

wall.

Step 2. The wall plate receptacle must be placed over

the top of the wall plate, so that the entire mount

“hangs” on the wall plate.

Step 3. Use the M3 Allen wrench (supplied) to tighten

the locking screw that is located on the bottom of

the mount base.

This locking screw will prevent the mount and flat panel

from being lifted off of the wall plate.

Failure to fully tighten the locking screw may

result in possible damage to your flat panel.

Locking Screw

M3 Allen

Wrench

Set Screw

Allen Wrench

Step 1. Once the viewing angle has been determined, use the 5/32” Allen

wrench to adjust the tilt/pivot adjustment screw.

The tilt/pivot adjustment screw comes pre-installed. The tilt/pivot

adjustment screw allows you to lock in the tilt/pivot viewing angle.

The final viewing angle will be determined once the flat panel has been

mounted on the wall.

Tilt/Pivot Adjustment

Rear Facing View

Table of contents

Other Premier Mounts Rack & Stand manuals

Premier Mounts

Premier Mounts PRC User manual

Premier Mounts

Premier Mounts Convergent Series User manual

Premier Mounts

Premier Mounts SHLF-EQ User manual

Premier Mounts

Premier Mounts PP-6 User manual

Premier Mounts

Premier Mounts SHLF-VC User manual

Premier Mounts

Premier Mounts FPS-200 User manual

Premier Mounts

Premier Mounts PCM-MS2 User manual

Premier Mounts

Premier Mounts LMV User manual

Premier Mounts

Premier Mounts PP-FCTA User manual

Premier Mounts

Premier Mounts AM225 User manual

Premier Mounts

Premier Mounts MM-HP15 User manual

Premier Mounts

Premier Mounts Rotary RTM-S User manual

Premier Mounts

Premier Mounts PSM-442T User manual

Premier Mounts

Premier Mounts Nesting Cart Series User manual

Premier Mounts

Premier Mounts PP-FCTA-QL User manual

Premier Mounts

Premier Mounts PTM-B User manual

Premier Mounts

Premier Mounts MVWC-3X3 User manual

Premier Mounts

Premier Mounts AM100 User manual

Premier Mounts

Premier Mounts CTM-MS1 User manual

Premier Mounts

Premier Mounts Convergent Series User manual

Premier Mounts

Premier Mounts Swingout Arm AM3 User manual

Premier Mounts

Premier Mounts PFM-32C1 User manual

Premier Mounts

Premier Mounts GB-AVSTOR4 User manual

Premier Mounts

Premier Mounts GB-INWAVP User manual

Popular Rack & Stand manuals by other brands

Salamander

Salamander Acadia AC/W/L400/WH Assembly instructions

Fohhn

Fohhn VAT-09 Mounting instruction

ricoo

ricoo FS0522 quick start guide

AMSOIL

AMSOIL BMK-22 Installation and service instructions

Kargo Master

Kargo Master 48220 installation guide

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 installation instructions

ricoo

ricoo S1222 installation instructions

Ready-Set-Mount

Ready-Set-Mount RSMCM602 instruction manual

VidaBox

VidaBox VB MNT FFS2 installation guide

Welch Allyn

Welch Allyn 48960 Assembly instructions

Arkon

Arkon CM035-ST-2 installation instructions

PROEL

PROEL PLWIN60C user manual

Agilent Technologies

Agilent Technologies E2609B installation guide

Mustang

Mustang MV-ARM4 installation guide

Mounting Solutions

Mounting Solutions WRM-320 manual

Pyle

Pyle PMKSPAD1 manual

ShelterIt

ShelterIt 21208 installation instructions

SPL

SPL RackPack?4 1040 manual
