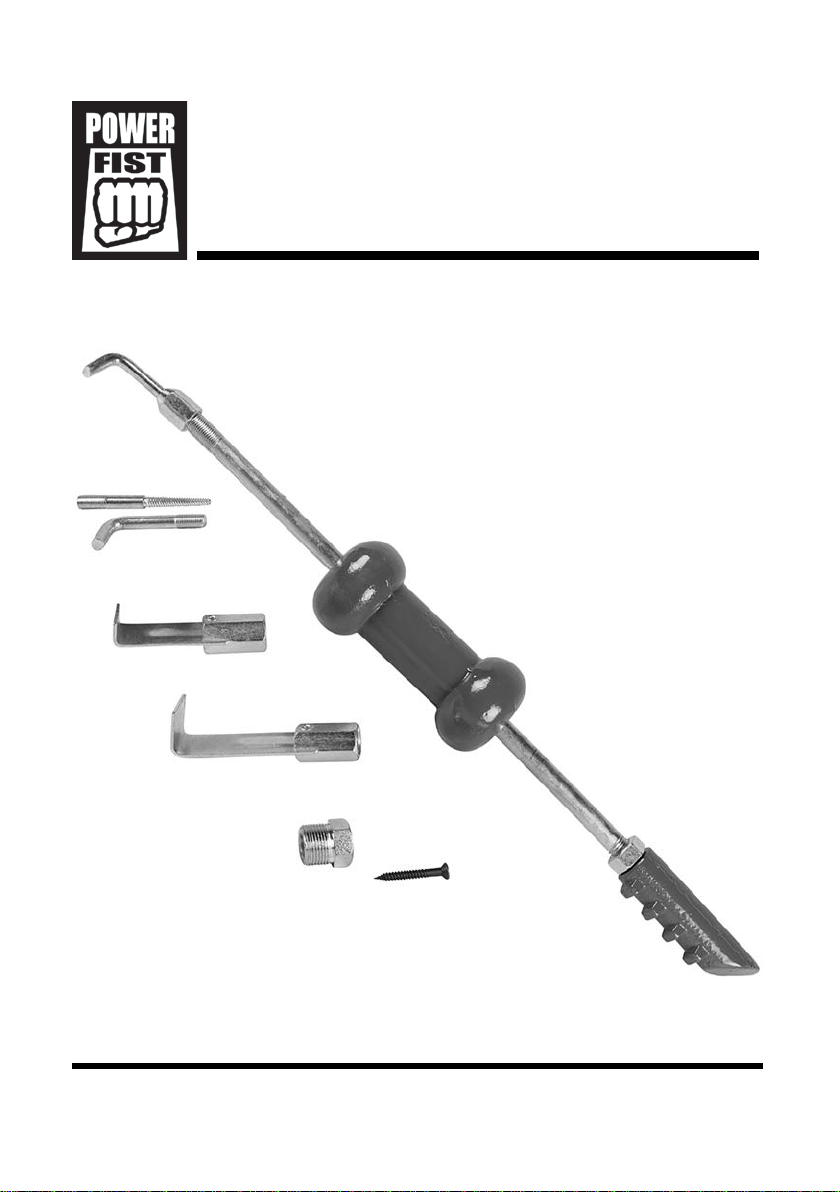

Power Fist 8814436 User manual

V4.0 8814436

Please read and understand all instructions before use. Retain this manual for

future reference.

User Manual

9pcSlideHammer

DentPullerKit

8814436 9 pc Slide Hammer Dent Puller Kit V4.0

2 For technical questions call 1-800-665-8685

SPECIFICATIONS

Slide Hammer Weight 5 lb (2.26 kg)

Length 21-1/4 in. (540 mm)

INTRODUCTION

The 9 pc Slide Hammer Dent Puller Kit contains a 5 lb slide hammer assembly

and eight accessories to repair damage to a vehicle’s body panels or chassis.

SAFETY

WARNING! Read and understand all instructions before using this tool. The

operator must follow basic precautions to reduce the risk of personal injury

and/or damage to the equipment.

Keep this manual for safety warnings, precautions, operating or inspection and

maintenance instructions.

HAZARD DEFINITIONS

Please familiarize yourself with the hazard notices found in this manual. A notice

is an alert that there is a possibility of property damage, injury or death if certain

instructions are not followed.

DANGER! This notice indicates an immediate and specific hazard that will

result in severe personal injury or death if the proper precautions

are not taken.

WARNING! This notice indicates a specific hazard or unsafe practice that

could result in severe personal injury or death if the proper

precautions are not taken.

CAUTION! This notice indicates a potentially hazardous situation that may result

in minor or moderate injury if proper practices are not taken.

9pcSlideHammer

DentPullerKit

V4.0 9 pc Slide Hammer Dent Puller Kit 8814436

Visit www.princessauto.com for more information 3

NOTICE! This notice indicates that a specific hazard or unsafe practice will

result in equipment or property damage, but not personal injury.

WORK AREA

1. Operate in a safe work environment. Keep your work area clean, well-lit

and free of distractions. Place lights so you are not working in a shadow.

2. Keep anyone not wearing the appropriate safety equipment away from the

work area.

3. Store unused tools properly in a safe and dry location to prevent rust or

damage. Lock tools away and keep out of the reach of children.

4. Do not install or use in the presence of flammable gases, dust or liquids.

PERSONAL SAFETY

WARNING! Wear personal protective equipment approved by the Canadian

Standards Association (CSA) or American National Standards Institute (ANSI).

PERSONAL PROTECTIVE EQUIPMENT

1. Always wear impact safety goggles that provide front and side protection

for the eyes. Eye protection equipment should comply with CSA Z94.3-07

or ANSI Z87.1 standards based on the type of work performed.

2. Wear gloves that provide protection based on the work materials or to

reduce the effects of tool vibration.

3. Wear protective clothing designed for the work environment and tool.

4. Non-skid footwear is recommended to maintain footing and balance in the

work environment.

5. Wear steel toe footwear or steel toe caps to prevent a foot injury from

falling objects.

PERSONAL PRECAUTIONS

Control the tool, personal movement and the work environment to avoid

personal injury or damage to the tool.

1. Do not operate any tool when tired or under the influence of drugs, alcohol

or medications.

8814436 9 pc Slide Hammer Dent Puller Kit V4.0

4 For technical questions call 1-800-665-8685

2. Avoid wearing clothes or jewelry that can become entangled with the

moving parts of a tool. Keep long hair covered or bound.

3. Do not overreach when operating a tool. Proper footing and balance

enables better control in unexpected situations.

a. Position yourself to avoid falling over if the tool pulls the panel or

structural part off the chassis.

4. Securely hold this tool using both hands. Using a tool with only one hand

can result in loss of control.

SPECIFIC SAFETY PRECAUTIONS

WARNING! DO NOT let comfort or familiarity with product (gained from

repeated use) replace strict adherence to the tool safety rules. If you use

this tool unsafely or incorrectly, you can suffer serious personal injury.

1. Use the correct tool for the job. This tool was designed for a specific function.

Do not modify or alter this tool or use it for an unintended purpose.

2. Do not use the tool if any parts are damage broken or misplaced. Repair or

replace the parts.

3. Make sure a vehicle is properly supported before removing dents or

straightening a panel or chassis with the slide hammer. An unstable vehicle

may shift from the impact.

UNPACKING

WARNING! Do not operate the tool if any part is missing. Replace the

missing part before operating. Failure to do so could result in a malfunction

and personal injury.

Remove the parts and accessories from the packaging and inspect for damage.

Make sure that all items in the Identification Key are included.

V4.0 9 pc Slide Hammer Dent Puller Kit 8814436

Visit www.princessauto.com for more information 5

IDENTIFICATION KEY

A Puller Hook

B Steel Nose Cone

C Slide Hammer Shaft

D Slide Hammer Weight

E Handle Guard

F Handle

G Pierce Punch

H Puller Hook

I Angle Puller

J Plate Edge Puller

K 5/8 to 1 in. Adapter

L Tapping Screw

ASSEMBLY & INSTALLATION

Letter references in parenthesis (A) refer to the included Identification Key.

1. Remove the slide hammer’s weight (D) from the shaft (C) and set aside.

2. Screw the handle guard (E) onto the shaft to the end of the threads. Screw

the handle (F) onto the shaft until it touches the handle guard. Tighten the

handle guard against the handle to lock the latter in place.

3. Slide the weight onto the shaft until it is against the handle guard.

4. Place the tool on a workbench or other surface and screw one of the

attachments onto the shaft.

a. Attach a hook (A and H) or the pierce punch (G) by screwing it into the

steel nose cone (B).

b. Insert the tapping screw (L) into the steel nose cone (B).

c. Screw the angle puller (I) or plate edge puller (J) directly onto the shaft.

d. Screw the 5/8 to 1 in. adapter (K) onto the shaft when using a larger

attachment.

Fig. 1

8814436 9 pc Slide Hammer Dent Puller Kit V4.0

6 For technical questions call 1-800-665-8685

5. Screw the nose cone onto the shaft until tight.

a. You may wish to perform this step with the tapping screw after it is

seated firmly in the panel.

6. Disassemble and return to the case when work is complete.

OPERATION

1. Set up the slide hammer as instructed in Assembly & Installation.

2. Place the attachment against the body panel or chassis.

3. Hold the hammer horizontally. Slide the hammer until it is opposite the

handle guard.

4. Grip the hammer firmly and ram it into the handle guard in one quick motion.

Repeat until the dent or damaged section is in acceptable condition.

a. Only apply enough force to remove the dent or damage. Several light

taps may provide better results than one solid impact.

HOOK

The curved hooks (A and H) are suitable for working around raised edges or

structure to apply the end against the dent. They can also be used as a hook to

apply pressure against a round structure.

PULLER

The pullers (H and I) fit behind the body panel’s edge and provides a wide

surface to straighten the damage. The plate edge puller (J) is narrower and has

a shorter angled blade. This blade is suitable for panel edges close to structure

or the access opening is narrow.

TAPPING SCREW

The tapping screw (L) pulls out panel dents that cannot be reached by other

methods. The screw may be pulled from the body panel during operation. This

method will leave a hole or small tear that will require additional body work.

Replace the screw when dull or damaged (see Care & Maintenance).

V4.0 9 pc Slide Hammer Dent Puller Kit 8814436

Visit www.princessauto.com for more information 7

TAPPING SCREW OPERATION

1. Drill a hole into the dent that is smaller than the screw diameter.

a. You may need to pull a large dent out in sections. Pull out one part of

the dent before drilling the next hole.

2. Screw the tapping screw into the hole.

3. Screw the shaft into the nose cone until the tight.

4. Follow Operation steps 3 and 4 to remove the dent.

CARE & MAINTENANCE

1. Maintain the tool with care. A tool in good condition is efficient, easier to

control and will have fewer problems.

2. Inspect the tool components periodically. Repair or replace damaged or

worn components. Only use identical replacement parts when servicing.

a. replace the tapping screw with a new screw if damaged or blunted.

3. Follow instructions for lubricating and changing accessories.

4. Only use accessories intended for use with this tool.

5. Keep the tool handles clean, dry and free from oil/grease at all times.

6. Maintain the tool’s labels and name plates. These carry important information.

If unreadable or missing, contact Princess Auto Ltd. for replacements.

WARNING! Only qualified service personnel should repair the tool. An

improperly repaired tool may present a hazard to the user and/or others.

DISPOSAL

Recycle a tool damaged beyond repair at the appropriate facility.

TROUBLESHOOTING

Visit a Princess Auto Ltd. location for a solution if the tool does not function

properly or parts are missing. If unable to do so, have a qualified technician

service the tool.

8814436 9 pc Slide Hammer Dent Puller Kit V4.0

8 For technical questions call 1-800-665-8685

V 4,0 8814436

Vous devez lire et comprendre toutes les instructions avant d'utiliser l'appareil.

Conservez ce manuel afin de pouvoir le consulter plus tard.

Manuel d'utilisateur

Troussedemarteauàinertie

ettire-bosse,9pièces

8814436 Trousse de marteau à inertie et tire-bosse, 9 pièces V 4,0

2 En cas de questions techniques, appelez le 1-800-665-8685

SPÉCIFICATIONS

Marteau à inertie Poids 2,26 kg (5 lb)

Longueur 21 1/4 po (540 mm)

INTRODUCTION

Trousse de 9 pièces de marteau à inertie et tire-bosses de 5 lb et 8 accessoires

servant à la réparation de dommages sur des panneaux de carrosserie ou le

châssis d’un véhicule.

SÉCURITÉ

AVERTISSEMENT ! Veuillez lire et comprendre toutes les instructions avant

d'utiliser cet outil. L'utilisateur doit respecter les précautions de base

lorsqu'il utilise cet outil afin de réduire le risque de blessure ou de

dommage à l'équipement.

Conservez ce manuel qui contient les avertissements de sécurité, les

précautions, les instructions de fonctionnement ou d'inspection et d'entretien.

DÉFINITIONS DE DANGER

Veuillez-vous familiariser avec les avis de danger qui sont présentés dans ce

manuel. Un avis est une alerte indiquant qu'il existe un risque de dommage à la

propriété, de blessure ou de décès si on ne respecte pas certaines instructions.

DANGER ! Cet avis indique un risque immédiat et particulier qui

entraînera des blessures corporelles graves ou même la

mort si on omet de prendre les précautions nécessaires.

AVERTISSEMENT ! Cet avis indique un risque particulier ou une pratique non

sécuritaire qui pourrait entraîner des blessures

corporelles graves ou même la mort si on omet de

prendre les précautions nécessaires.

Troussedemarteauàinertie

ettire-bosse,9pièces

Table of contents

Languages:

Other Power Fist Tools manuals

Power Fist

Power Fist 8438806 User manual

Power Fist

Power Fist 8662330 User manual

Power Fist

Power Fist 8774465 User manual

Power Fist

Power Fist Air Hammer User manual

Power Fist

Power Fist 8074668 User manual

Power Fist

Power Fist 8843773 User manual

Power Fist

Power Fist 8663783 User manual

Power Fist

Power Fist Air Line Delivery Kit User manual

Power Fist

Power Fist Metal Punch Kit User manual

Power Fist

Power Fist 8308231 User manual

Power Fist

Power Fist 8502494 User manual

Power Fist

Power Fist 8885642 User manual

Power Fist

Power Fist 8505547 User manual

Power Fist

Power Fist 8536609 User manual

Power Fist

Power Fist 9081415 User manual

Power Fist

Power Fist 1/2 in. Air Ratchet and Socket Set User manual

Power Fist

Power Fist 8843799 User manual

Power Fist

Power Fist 8873358 User manual

Power Fist

Power Fist 8012660 User manual

Power Fist

Power Fist 8536773 User manual

Power Fist

Power Fist 8823494 User manual

Power Fist

Power Fist 8843617 User manual

Power Fist

Power Fist 8957425 User manual

Power Fist

Power Fist 8603094 User manual

Popular Tools manuals by other brands

Martor

Martor SECUNORM 175 quick start guide

ERKCO

ERKCO 1000 user manual

jbc

jbc N4473 instruction manual

FEINMETALL

FEINMETALL FZWZ-SET-001 quick start guide

Worx Professional

Worx Professional Sonicrafter WU676 Original instructions

Gage Bilt

Gage Bilt GB713SH Original instructions

Hilti

Hilti DX 9-ENP Original operating instructions

norbar

norbar NORTRONIC 34399 Operator's manual

BGS technic

BGS technic 8578 manual

Makita

Makita DHR241 instruction manual

Motor Guard

Motor Guard JMB-1250 instructions

Power Adhesives

Power Adhesives 805-12 operating instructions

Clemco

Clemco 24189 quick start guide

VVG

VVG VNG 903 Series instruction manual

Hilti

Hilti FX 3-A operating instructions

Grizzly

Grizzly H6472 Manual insert

axing

axing BWZ 5-02 Operation instructions

Dh-Robotics

Dh-Robotics RGI-100 Short manual
