Set Up the Polycom® RealPresence®
EduCartTM 500 Second Display Option
Flat Screen Display
Note that your display may
look different than the display
shown in this document.
Base with
Locking Wheels
“Grab”
Handles
Basket
H Frame
Poles
Back
Cover
Set Up the Polycom® RealPresence® EduCartTM 500 Second Display Option 2
3
2

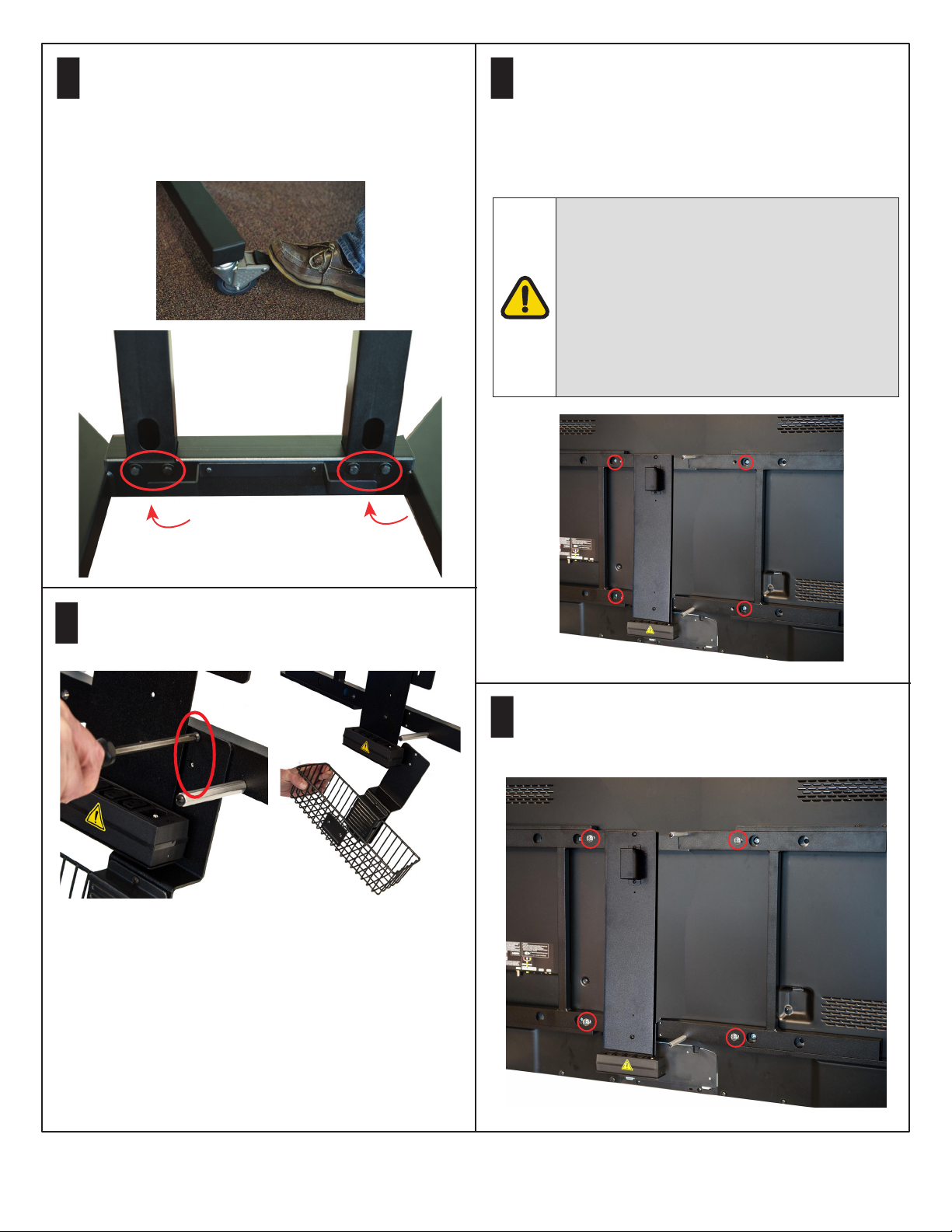

1Place the base on the floor and lock the wheels.
Insert each pole into the base with the threaded
inserts lined up with the holes at the rear of the
base. Loosely insert two 3/8” bolts with flat washers
on the back side and one in the bottom of each pole.
Tighten with a 9/16” wrench.
Remove the basket and basket bracket from the
H frame by removing the two screws circled in
red.
Remove the display from packaging. If possible,
leave the display on the bottom portion of the
packaging. Using four long M8 x 25 screws and
spacers between the H frame and the dislay, attach
the H frame to the rear of the display using the
holes indicated below. If the packaging interferes,
either cut the foam or lift the display out.
4Insert four M8 x 16 screws on the back of the frame
and hand tighten to about half way. The screws
must be loose to fit onto the cart.
If this system is not used with a Polycom-
supplied display, the display used must have
VESA 400 mm x 400 mm or 400 mm x 600 mm
mounting and must not exceed any of the
following parameters:
Diagonal size: 55” (1400 mm)
Depth: 2.6” (65 mm)
Weight: 66.1 lbs (30 kg)
Note that some displays require M6 screws
that are not supplied.
Set Up the Polycom® RealPresence® EduCartTM 500 Second Display Option 3
Adjust the handles by loosening the two screws
on each bar (four screws per side). Extend the
handle at or beyond the display by 1-2”. Replace
the screws and tighten. Use the same hole in the
series of holes on both sides. These handles will be
used to move the cart.
5
6
Ensure that the cart casters are locked. With a
person on each side, lift the display, by the handles,
onto the cart at the desired height. Ensure that
all four M8 screws installed in step 6 are hooked
into the keyhole slots in the cart poles. Tighten the
four M8 screws through the holes.
8Attach the storage basket to the bottom of the H
bracket under the power bar using the two screws
removed in step 2.
Attach the vanity plate on the front of
the cart between the speakers.
7
Set Up the Polycom® RealPresence® EduCartTM 500 Second Display Option 4
9
Install the magnetic back cover over the codec and
cables and fasten with the two supplied screws.
Attach and route the cables. Run the power cord
from the power bar, down the adjacent pole, and
exit the cord end at the hole at the bottom of the
pole. Run the supplied HDMI extension cable the
same way. Store excess cable with the cable wrap
bracket at the bottom of the cart base.Refer to the
wiring diagram at the end of this document for
details.
Only EduCart 500 components should be
plugged into the power outlet block. Do not
power any other electrical equipment from this
power outlet.
10
Set Up the Polycom® RealPresence® EduCartTM 500 Second Display Option 5
Child Safety Warnings:
Death or serious injury may occur when children climb on
audio and/or video equipment furniture. A remote control or
toys placed on the furnishing may encourage a child to climb
on the furnishing and as a result the furnishing may tip over
onto the child.
Relocating audio and/or video equipment to furniture not
specifically designed to support audio and/or video
equipment may result in death or serious injury due to
furniture collapsing or overturning onto a child.
Mains Input Rating:
Voltage: 100-240 VAC, 50/60Hz
Current: 3.4A (max)
Weight:
Assembled System: 122 lbs (55 Kgs)
Sampo 55” LED Display (Model PME55MA):
66.1 lbs (30 Kgs)
Note that weights are subject to change.
Regulatory Notices and General Warnings:
This equipment is intended for indoor use only.
This equipment is intended to be suitable for institutional use.
Do not use a power cord that is damaged. This could cause
fire or electric shock. Contact the manufacturer for a
replacement cord, if necessary.
Only use a power cord which is appropriately rated and
approved relevant to the country of use.
This equipment should be used only on even surfaces.
This equipment has lockable wheels which should be
applied while the cart is stationary.
When connecting to the mains supply, connect only to an
earthed supply outlet which is installed near the equipment
and is easily accessible.
Keep ventilation openings free from any obstructions.
The ambient operating temperature rating of this equipment
is 0 - 40ºC and should not be exceeded.
Do not immerse the system in any liquid or place any liquids
on it.
Do not spray liquids directly onto the system when cleaning.
Always apply the liquid first to a static-free cloth.
For further information concerning the individual components
of this equipment, please refer to the respective product
literature.
For support or service, please contact your Polycom®
distributor or go to Polycom Support at
www.polycom.com/support.
Set Up the Polycom® RealPresence® EduCartTM 500 Second Display Option 6
EduCart 500 Wiring Diagram
