Plantronics ML Series User manual

GET STARTED

ML Series Bluetooth® Headset

TAKE A GOOD LOOK

Be safe! Please read the

safety guide before

using your new headset.

MICRO USB CHARGING PORT

• Use with the AC wall charger:

1 hour before ﬁrst use

2 hours (100% charge)

• Do not use headset while charging

VOLUME BUTTONS

• Volume: up/down (tap + or – buttons per

level change)

LED

• Charging (solid red)

• Low battery (3 red ﬂashes at powering on)

• On a call (blue ﬂash every 2 seconds)

• Missed call (purple ﬂashes. Repeats

for 5 minutes or until cancelled).

• Pairing mode (repeating red/blue ﬂashes)

CALL BUTTON

• Take a call or end it (1 tap)

• Redial (2 taps)

• Initiate phone’s voice-dialing

(2 second press until tone is heard)

• Reconnect lost Bluetooth connection

(1 tap if the headset doesn’t automatically

reconnect)

• Activate pairing mode after initial set up

(press until red/blue LED ﬂashes)

• Cancel missed call LED (1 tap)

POWER SWITCH

• On (slide to reveal black)

• Off (slide to reveal red)

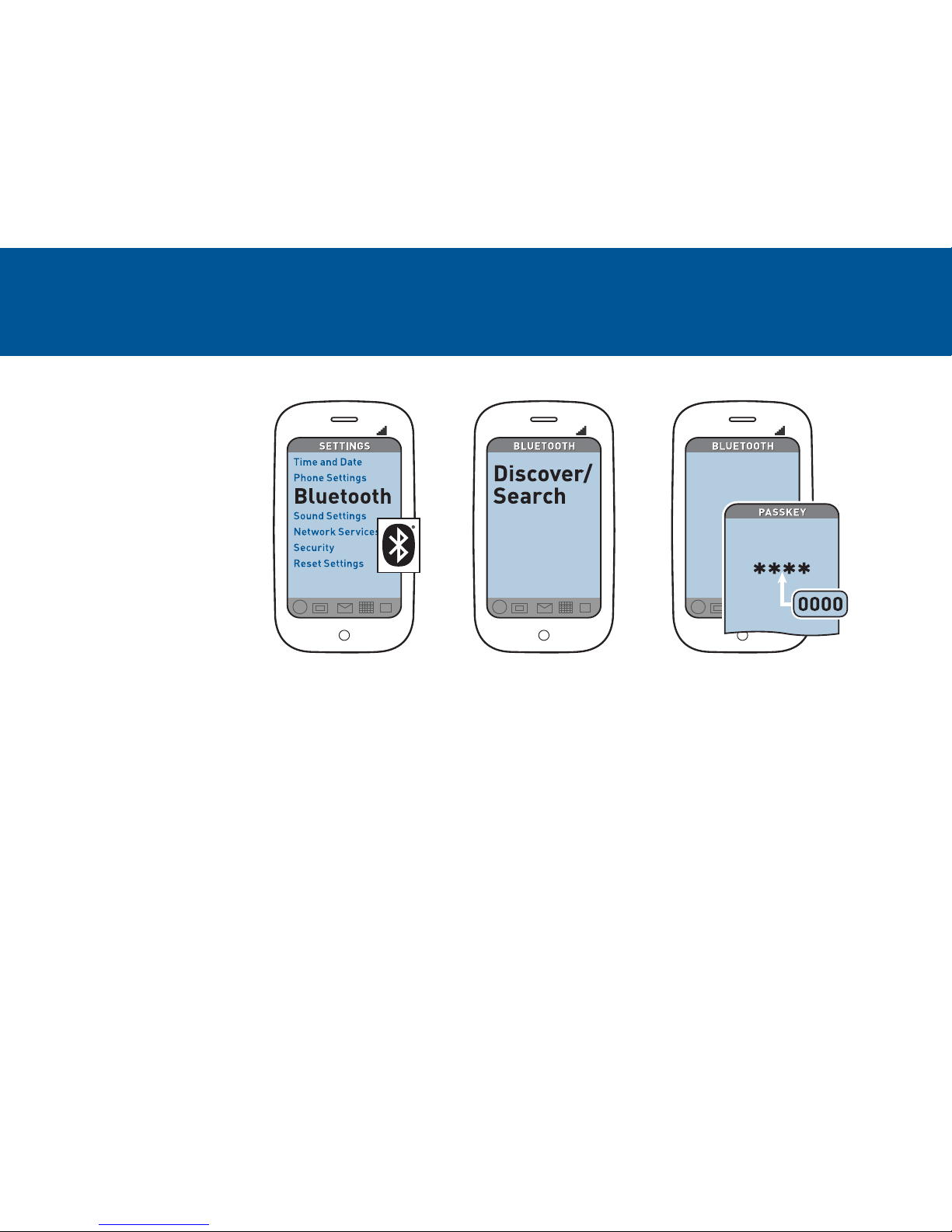

CONNECT TO YOUR PHONE

“Pairing” is the set-up process of

introducing your headset to your

phone.

Before using your headset for the

ﬁrst time, you must pair it with

your Bluetooth-enabled phone.

Pairing is a one-time process

unless your phone loses the

connection or you want to pair a

new phone.

P LT_ M L X X

1. READY

Activate the Bluetooth feature on

your phone, then get phone to add

/ search / discover new Bluetooth

devices.

Phones Have Different Menus to

Select From:

iPhone: Settings > General >

Bluetooth > On (starts the search

for devices)

BlackBerry® smartphone:

Settings/options > Bluetooth: On >

Search for devices

VIDEO TUTORIAL FOR USA:

www.plantronics.com/pairing

2. SET

First Time, Right out of the Box:

With headset turned off, activate

Bluetooth pairing mode by sliding

Power switch on. The LED ﬂashes

red/blue to indicate pairing mode.

Pairing New

Phone/Reconnecting Original:

With headset turned off, slide

Power switch on. Press and hold

the Call button until the LED

ﬂashes red/blue.

3. CONNECT

Select “PLT_MLXX” from the list

of Bluetooth devices shown on

your phone.

If phone asks for a passcode,

enter four zeros (0000). You may

see **** on screen. Some phones

also ask to conﬁrm headset

connection after pairing.

Headset LED will stop ﬂashing

red/blue once successfully

paired/connected.

You can now make a call using

your phone’s keypad or

voice-dialing feature.

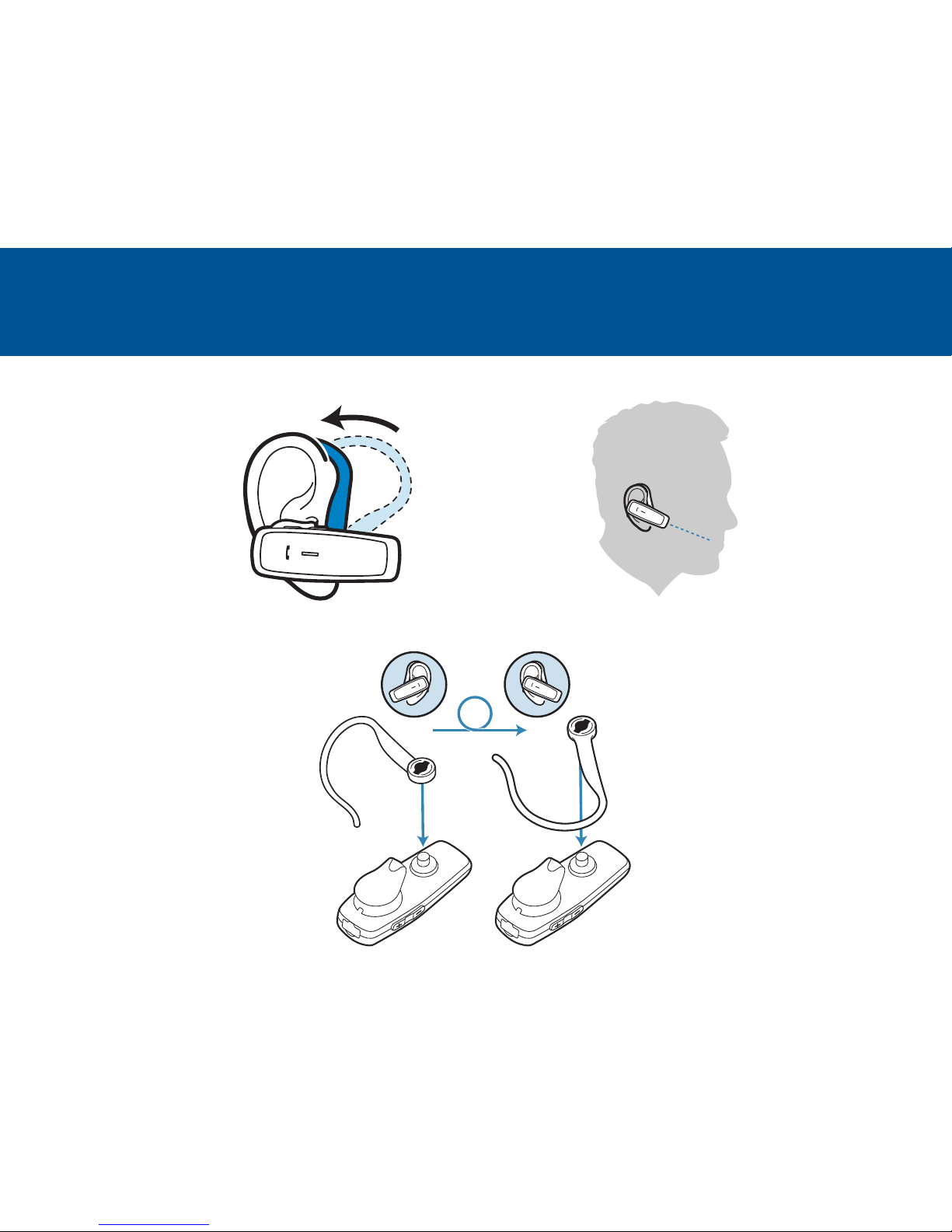

FIT EITHER EAR

Left ear Right ear

TIPS

Understand the Tones You Hear:

This headset beeps different tones to advise you on what it is

doing.

Usually, a high tone requires you to act (e.g. you lost the

Bluetooth connection or need to recharge battery) but a low

tone is just a reaction to you pressing a button (e.g. volume

changes, call start/end).

Stay Near Your Phone:

Bluetooth has a working “range” of up to 30 feet between the

phone and headset before audio degrades and the connec-

tion is lost.

Know How to Reconnect:

Your headset tries to reconnect a lost connection. If it can’t,

then tap the Call button once or manually reconnect via the

phone’s Bluetooth device menu.

SPECIFICATIONS

Talk Time Up to 7 hours

Standby Time Up to 8 days

Operating Distance (Range) Up to 33 feet (10 meters), Class II

Headset Weight 11.5 grams

Charge Connector Micro USB charging

Battery Type Rechargeable non-replaceable lithium ion polymer

Charge Time (Maximum) 90 minutes for full

Power Requirements 5V DC – 180mA

Bluetooth Version Bluetooth v2.0

Bluetooth Proﬁles Hands-Free (HFP) Proﬁle 1.5 and Headset (HSP) Proﬁle 1.1

Operating Temperature 32°F - 104°F (0 - 40°C)

Storage Temperature 32°F - 104°F (0 - 40°C)

Charging Temperature 32°F - 104°F (0 - 40°C)

NEED MORE HELP?

Don’t return to the store - call our friendly customer support

team at 1-866-363-2583 (USA) or visit plantronics.com/support

for local numbers outside the US.

Bluetooth SIG, Inc. and any use by Plantronics is under license. All other trademarks

are the property of their respective owners.

U.S. Patents Pending. 85663-01 EN-US

Z109

N10687
