Philips MCM166 User manual

MCM166

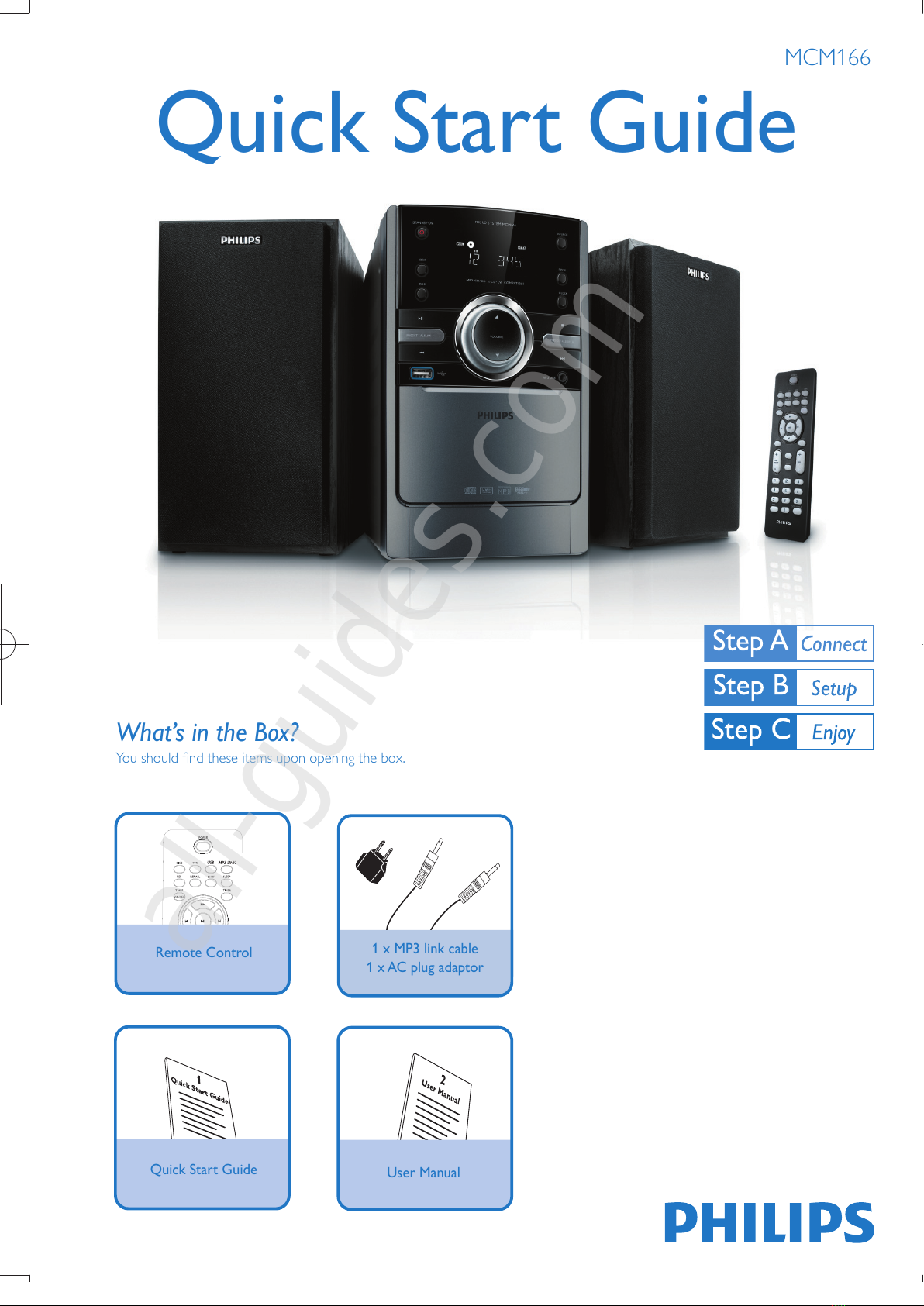

What’s in the Box?

You should ﬁnd these items upon opening the box.

Quick Start Guide

Remote Control

Quick Start Guide User Manual

1 x MP3 link cable

1 x AC plug adaptor

MCM166_55_QSG_Eng.indd 1MCM166_55_QSG_Eng.indd 1 2/11/2009 3:27:02 PM2/11/2009 3:27:02 PM

All manuals and user guides at all-guides.com

all-guides.com

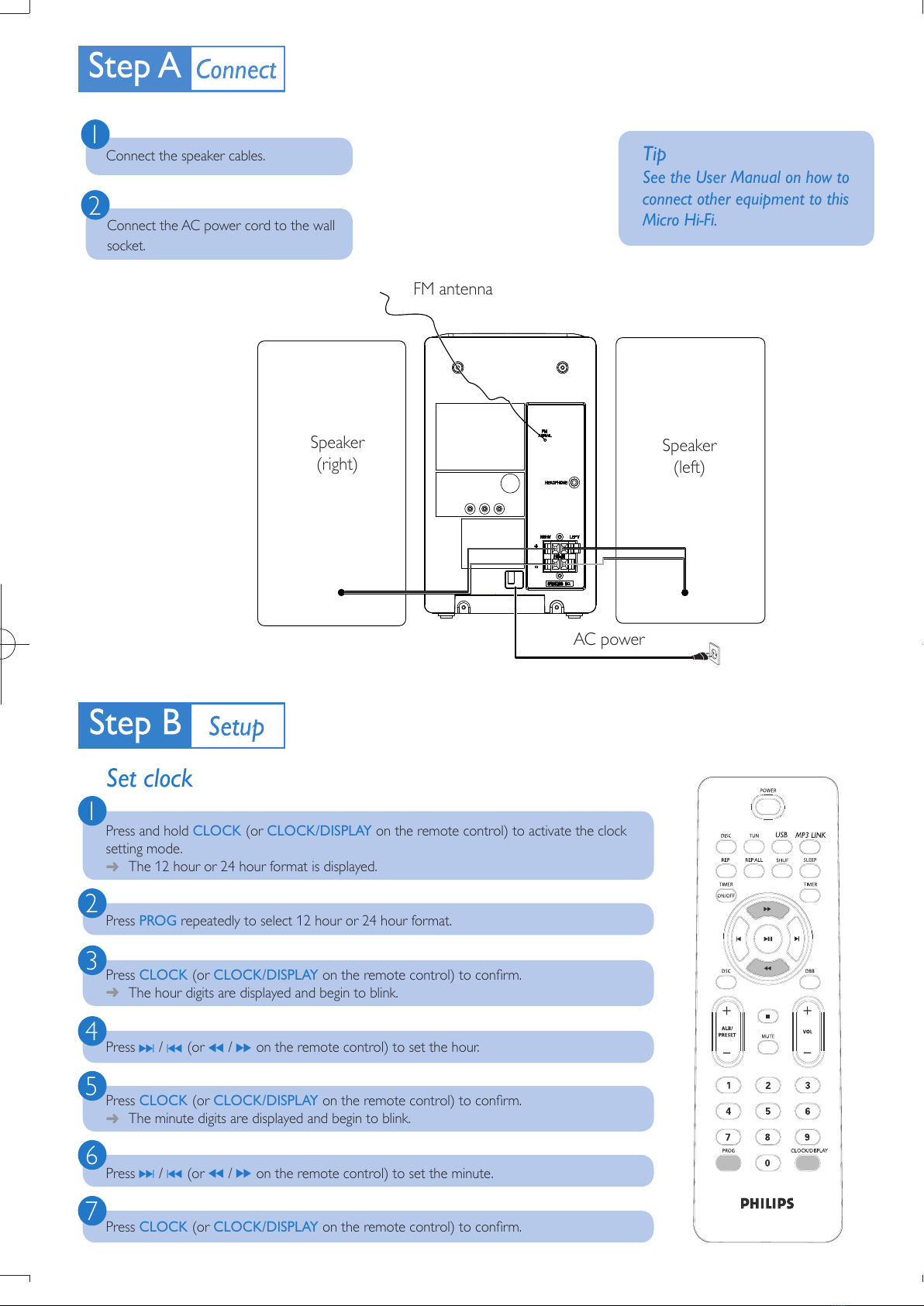

Connect the speaker cables.

Speaker

(right)

Speaker

(left)

FM antenna

AC power

Tip

See the User Manual on how to

connect other equipment to this

Micro Hi-Fi.

Set clock

Press and hold CLOCK (or CLOCK/DISPLAY on the remote control) to activate the clock

setting mode.

The 12 hour or 24 hour format is displayed.

Press PROG repeatedly to select 12 hour or 24 hour format.

Press CLOCK (or CLOCK/DISPLAY on the remote control) to conﬁrm.

The hour digits are displayed and begin to blink.

Press §/ ∞(or 5/ 6on the remote control) to set the hour.

Press CLOCK (or CLOCK/DISPLAY on the remote control) to conﬁrm.

The minute digits are displayed and begin to blink.

Press §/ ∞(or 5/ 6on the remote control) to set the minute.

Press CLOCK (or CLOCK/DISPLAY on the remote control) to conﬁrm.

Connect the AC power cord to the wall

socket.

MCM166_55_QSG_Eng.indd 2MCM166_55_QSG_Eng.indd 2 2/11/2009 3:27:11 PM2/11/2009 3:27:11 PM

All manuals and user guides at all-guides.com

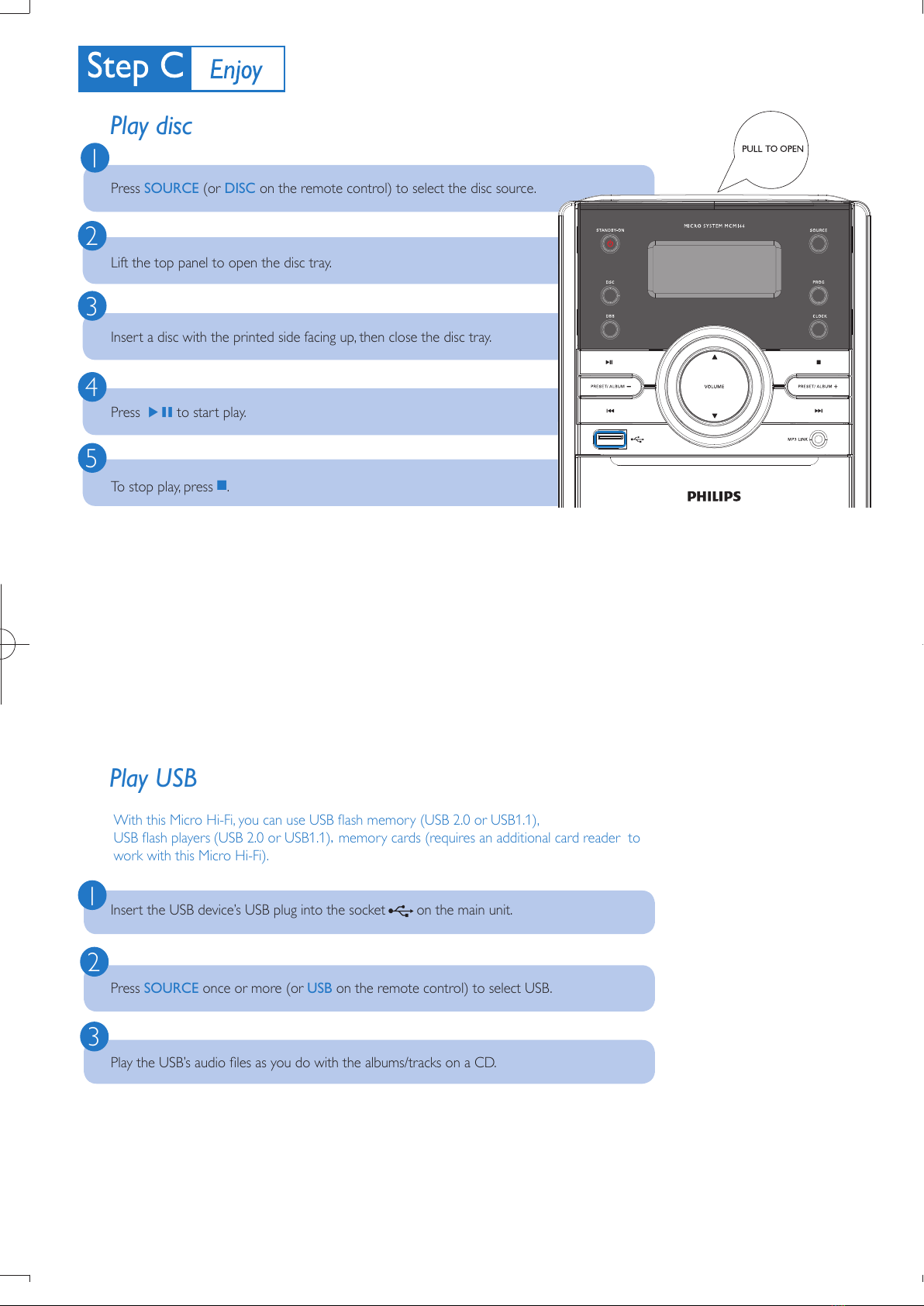

Play disc

Press SOURCE (or DISC on the remote control) to select the disc source.

Lift the top panel to open the disc tray.

Insert a disc with the printed side facing up, then close the disc tray.

Press ÉÅ to start play.

To stop play, press

Insert the USB device’s USB plug into the socket on the main unit.

Press SOURCE once or more (or USB on the remote control) to select USB.

Play the USB’s audio ﬁles as you do with the albums/tracks on a CD.

Play USB

With this Micro Hi-Fi, you can use USB ﬂash memory (USB 2.0 or USB1.1),

USB ﬂash players (USB 2.0 or USB1.1), memory cards (requires an additional card reader to

work with this Micro Hi-Fi).

MCM166_55_QSG_Eng.indd 3MCM166_55_QSG_Eng.indd 3 2/11/2009 3:27:12 PM2/11/2009 3:27:12 PM

All manuals and user guides at all-guides.com

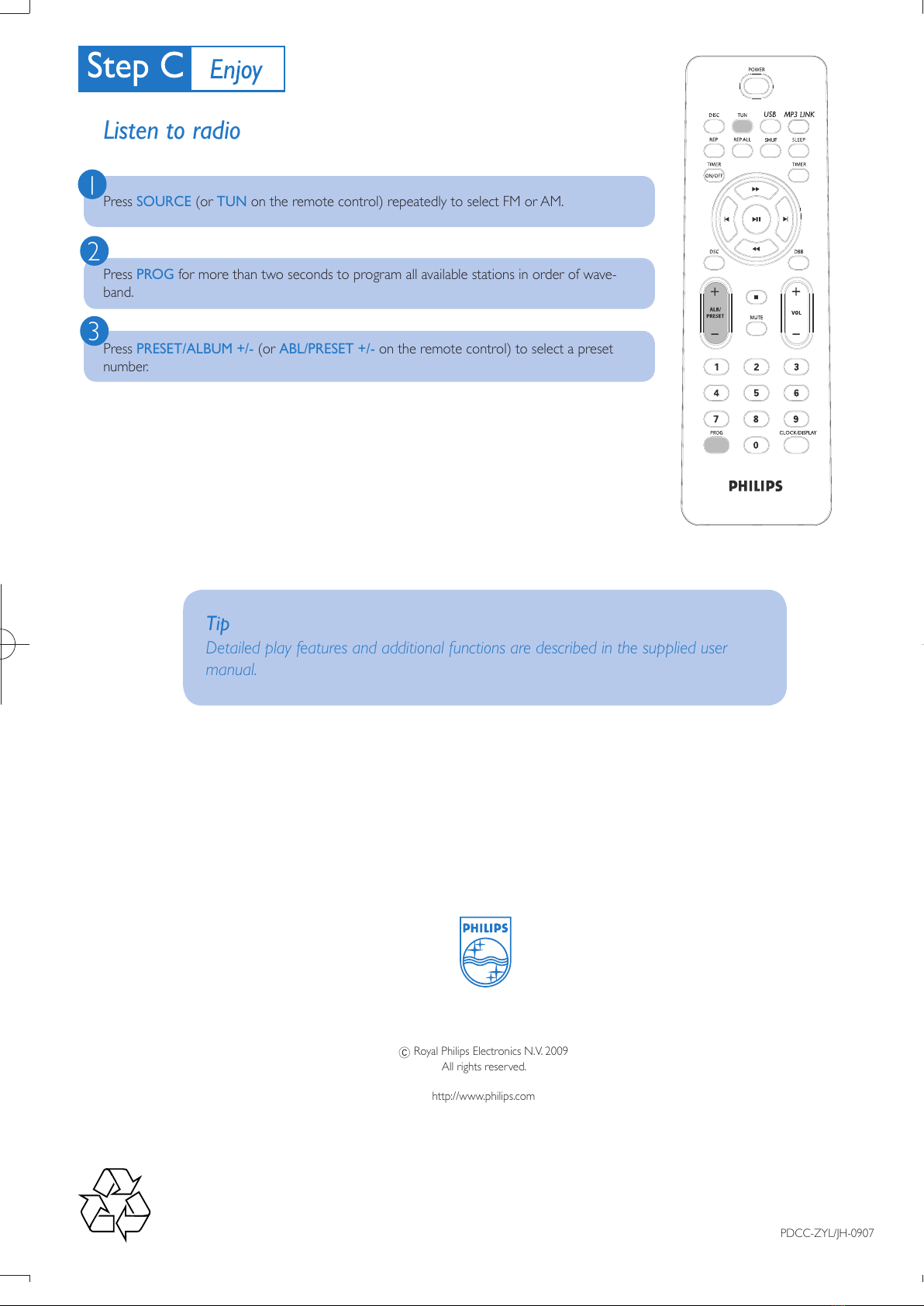

Press SOURCE (or TUN on the remote control) repeatedly to select FM or AM.

Press PROG for more than two seconds to program all available stations in order of wave-

band.

Press

PRESET/ALBUM +/- (or ABL/PRESET +/- on the remote control) to select a preset

number.

Listen to radio

PDCC-ZYL/JH-0907

Tip

Detailed play features and additional functions are described in the supplied user

manual.

CRoyal Philips Electronics N.V. 2009

http://www.philips.com

MCM166_55_QSG_Eng.indd 4MCM166_55_QSG_Eng.indd 4 2/11/2009 3:27:13 PM2/11/2009 3:27:13 PM
