Philips MCD196 User manual

CLOCK

MCD196

Quick Start Guide

What’s in the Box?

You should find these items upon opening the box.

Quick Start Guide

Composite Video Cable Remote control with

battery

MW antenna FM antenna

User Manual

Remove the plastic

protective sheet

MCD196_98 QUG_Eng 13/2/07, 14:411

All manuals and user guides at all-guides.com

all-guides.com

RIGHT LEFT

R LINE OUT L

–

SPEAKER 4Ω

RSP-134V

VIDEO OUT

VIDEO

SUB WOOFER

OUT

DIGITAL

OUT

S-VIDEO

AERIAL

Tip

See the User Manual for other TV

connection options.

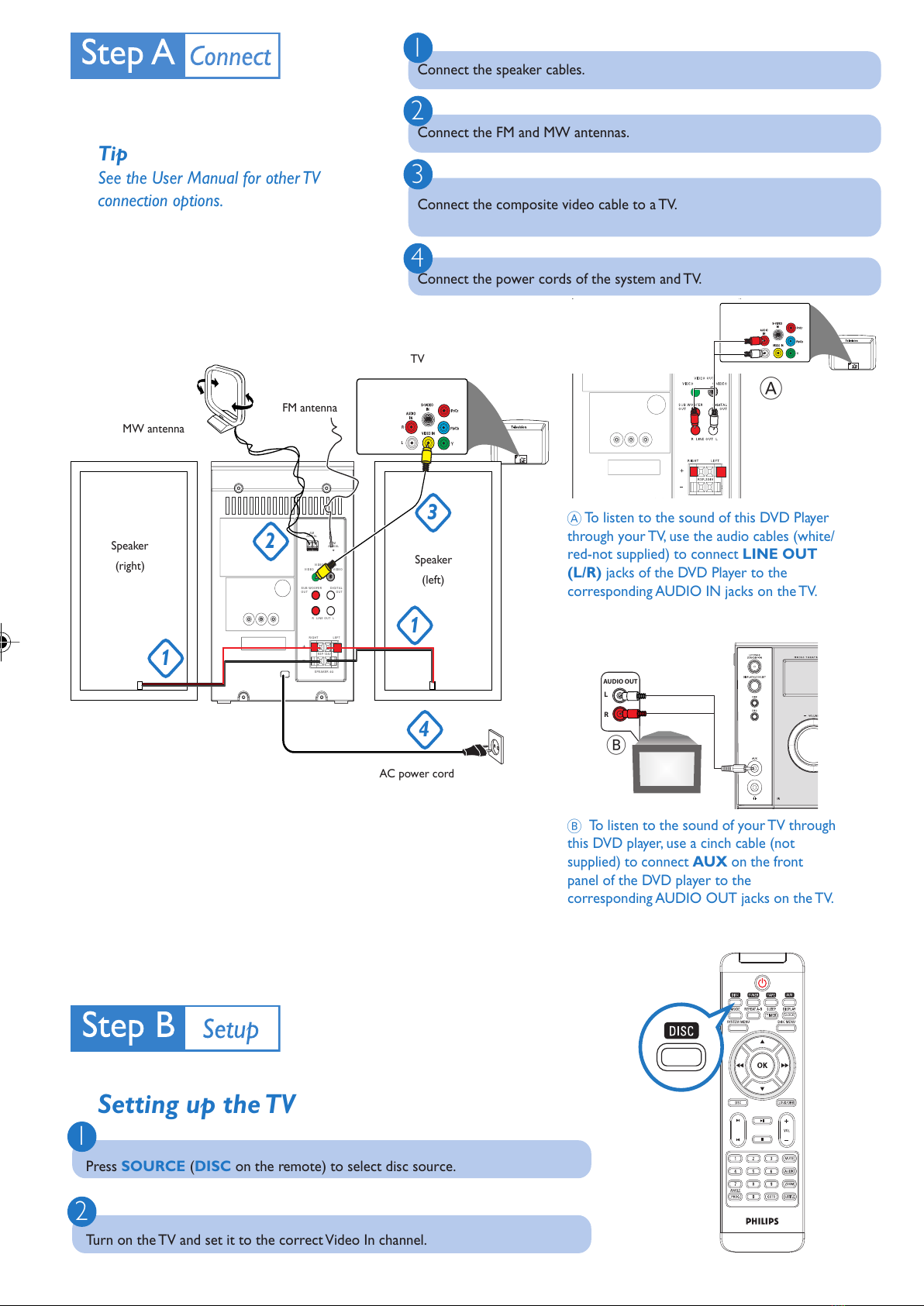

Setting up the TV

Connect the speaker cables.

Connect the FM and MW antennas.

Connect the composite video cable to a TV.

Connect the power cords of the system and TV.

Press SOURCE (DISC on the remote) to select disc source.

Turn on the TV and set it to the correct Video In channel.

CLOCK

AUDIO OUT

ATo listen to the sound of this DVD Player

through your TV, use the audio cables (white/

red-not supplied) to connect LINE OUT

(L/R) jacks of the DVD Player to the

corresponding AUDIO IN jacks on the TV.

B To listen to the sound of your TV through

this DVD player, use a cinch cable (not

supplied) to connect AUX on the front

panel of the DVD player to the

corresponding AUDIO OUT jacks on the TV.

Speaker

(right) Speaker

(left)

MW antenna

FM antenna

AC power cord

MCD196_98 QUG_Eng 13/2/07, 14:412

All manuals and user guides at all-guides.com

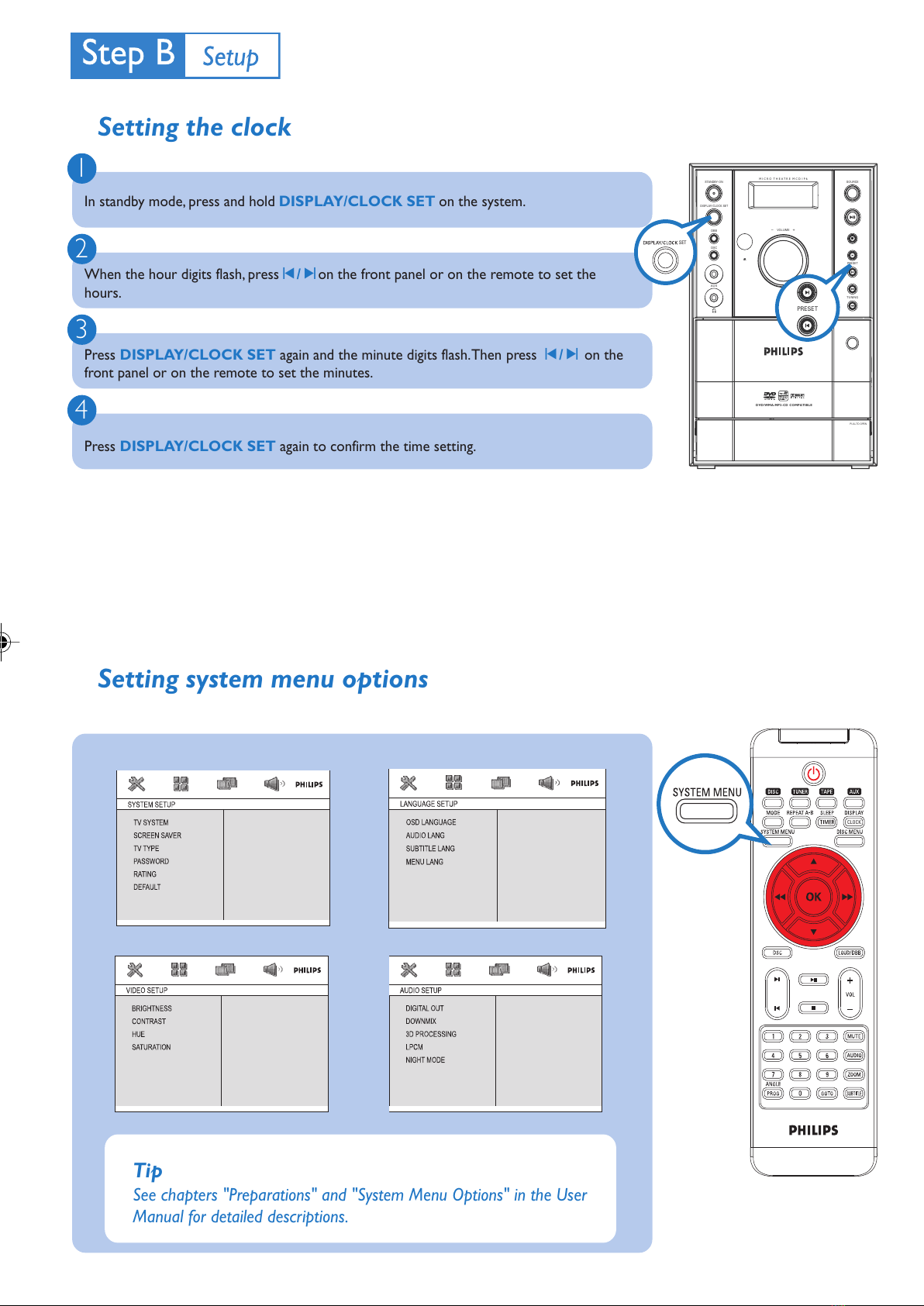

Setting the clock

In standby mode, press and hold DISPLAY/CLOCK SET on the system.

When the hour digits flash, pressí/ëon the front panel or on the remote to set the

hours.

Press DISPLAY/CLOCK SET again and the minute digits flash.Then press í/ëon the

front panel or on the remote to set the minutes.

Press DISPLAY/CLOCK SET again to confirm the time setting.

Setting system menu options

Tip

See chapters "Preparations" and "System Menu Options" in the User

Manual for detailed descriptions.

CLOCK

VOLUME

STANDBY-ON

PULLTO OPEN

MICRO THEATRE MCD196

DVD/WMA-MP3-CD COMPATIBLE

PRESET

SOURCE

TUNING

DBB

DSC

AUX

DISPLAY/CLOCK SET

SET

PRESET

MCD196_98 QUG_Eng 13/2/07, 14:413

All manuals and user guides at all-guides.com

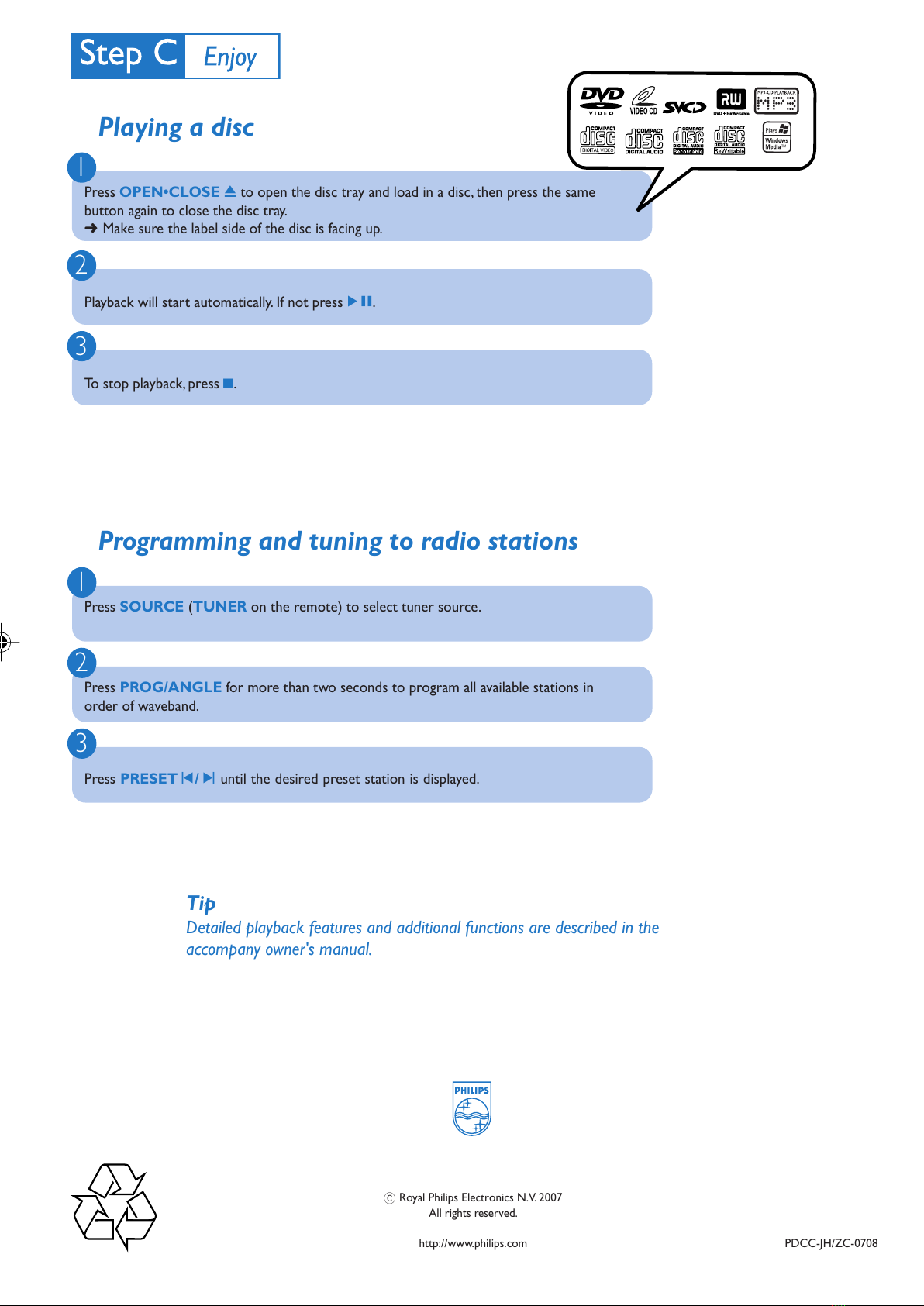

Playing a disc

Programming and tuning to radio stations

Press SOURCE (TUNER on the remote) to select tuner source.

Press PROG/ANGLE for more than two seconds to program all available stations in

order of waveband.

Press PRESETí/ëuntil the desired preset station is displayed.

Tip

Detailed playback features and additional functions are described in the

accompany owner's manual.

PDCC-JH/ZC-0708

CRoyal Philips Electronics N.V. 2007

http://www.philips.com

Press OPEN•CLOSE 0to open the disc tray and load in a disc, then press the same

button again to close the disc tray.

➜Make sure the label side of the disc is facing up.

Playback will start automatically. If not pressÉÅ.

To stop playback, press 9.

MCD196_98 QUG_Eng 13/2/07, 14:414

All manuals and user guides at all-guides.com
