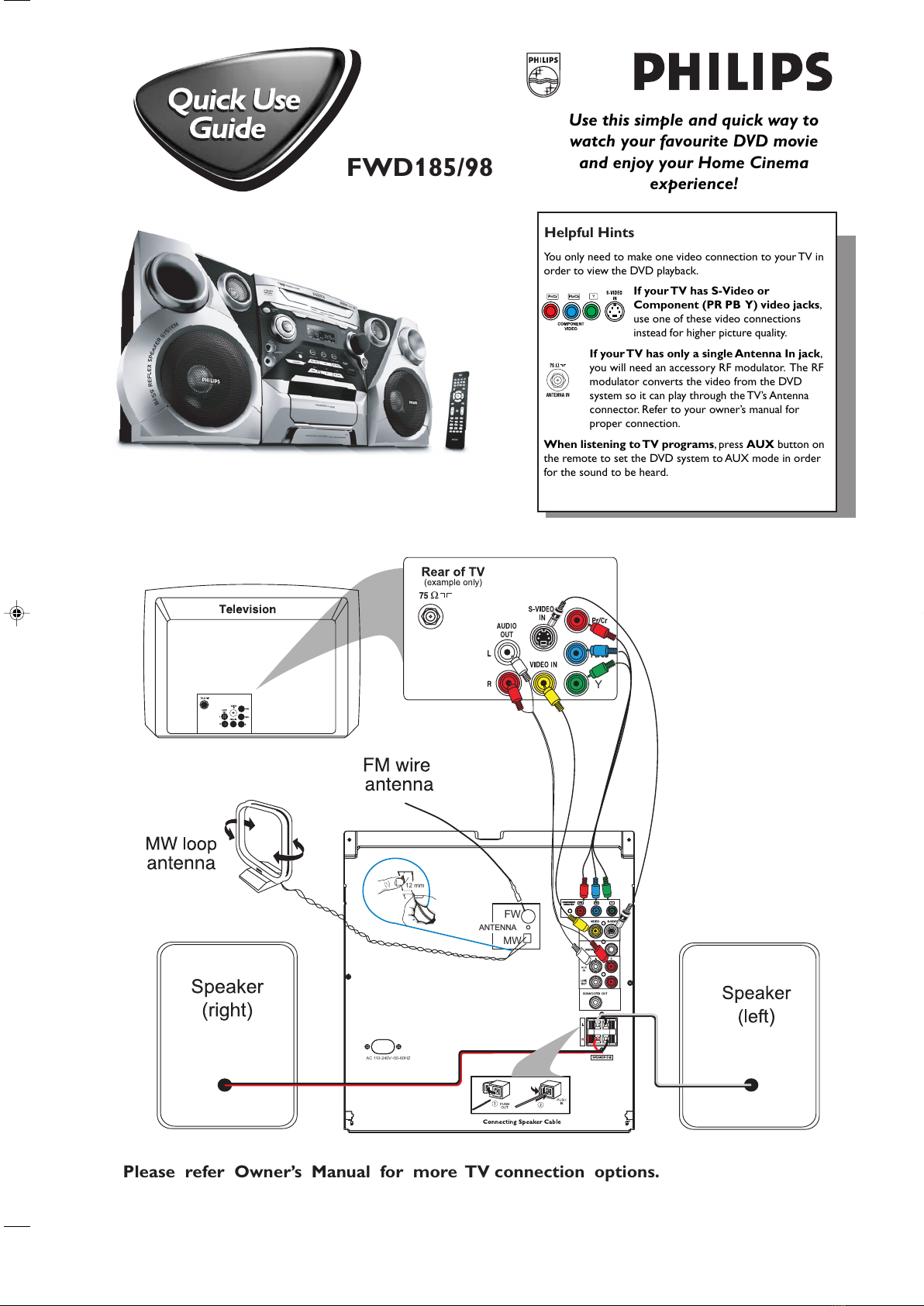

Philips FWD185/98 Operating manual

Use this simple and quick way to

watch your favourite DVD movie

and enjoy your Home Cinema

experience!

Helpful Hints

You only need to make one video connection to your TV in

order to view the DVD playback.

If yourTV has S-Video or

Component (PR PB Y) video jacks,

use one of these video connections

instead for higher picture quality.

If yourTV has only a single Antenna In jack,

you will need an accessory RF modulator. The RF

modulator converts the video from the DVD

system so it can play through the TV’s Antenna

connector. Refer to your owner’s manual for

proper connection.

When listening to TV programs, press AUX button on

the remote to set the DVD system to AUX mode in order

for the sound to be heard.

FWD185/98

Please refer Owner’s Manual for more TV connection options.

AC 110-240V~50-60HZ

ANTENNAANTENNA

12 mm

FWD185 QSG_Eng without DEMO 1/1/32, 3:55 AM1

Audio cable

( white , red )

MW loop

antenna

FM antenna

( T type)

( pig tail )

Remote control and

AAA sise batteries

AC power cable Composite vide

cable ( yellow )

Component vide cable

( red , blue , green )

Detailed playback features and additional functions are described in the

accompanying owner’s manual

Make sure your DVD system and TV are connected and turned on!

Plug & Play

1 Turn on the system.

“AUTO INSTALL PRESS PLAY” will be displayed.

2Press PLAY 2; on the system to start installation.

Playing a disc

3Press DISC on the remote control to select disc mode.

4Turn on the TV and select the correct Video In mode.

You should see the blue Philips DVD background screen on the TV (If no disc in the DVD

system).

5 Press OPEN0CLOSE on the front of the DVD system and load a disc, then

press the corresponding OPEN0CLOSE again to close the disc tray.

Make sure the disc label is facing up. For double-sided discs, load the side you want to play

face up.

6Playback will start automatically.

If a disc menu appears, use 1 /2 /5 /4 buttons on the remote to make the necessary

selection, then press OK to confirm. Or, use the Numeric Keypad on the remote to select

features. Follow the instructions given in the disc menu.

7To stop playback, press STOP 9.

Region Codes

DVDs must be labeled for ALL regions or Region 3,

in order to play on this DVD system.

You should find the below accessories in the packaging box.

ALLALL

AV IN

FWD185 QSG_Eng without DEMO 1/1/32, 3:55 AM2
