Philips DSR 2111 User manual
CONTENTS 1
1 Safety instructions _______________3
2 Product description ______________4
2.1 Front view _____________________4
2.2 Rear view ______________________5
2.3 The remote control ______________6
3 Connecting up the receiver _______8
3.1 Connecting to your HiFi/Audio
receiver equipement
(Analogue/Digital) _______________9
4 Menu structure _________________10
5 Installing the satellite receiver ___11
5.1 Installation ____________________11
5.2 Technical information ____________13
5.3 Storing the channels _____________14
6 The menu ______________________15
6.1 Code and parental lock __________15
6.2 Choosing your favourite channels __16
6.3 Recording programmes __________16
6.4 Information about subscription and
postbox ______________________18
7 Informations bars (Info) _________19
7.1 The bottom bar ________________19
7.2 The top bar ___________________19
8 Electronical programme guide
(EPG) _________________________20
8.1 List of the programmes __________20
8.2 Films, sports, youth, documentaries
and other kinds of programmes ___21
8.3 Selecting programmes ___________22
8.4 List of selected programmes ______22
9 When you are watching a programme
_______________________________23
9.1 When you are watching a
programme ____________________23
9.2 When you consult the EPG _______23
WELCOME
Congratulations on your choice of PHILIPS satellite receiver. This PHILIPS satellite receiver will
allow you to obtain digital satellite programmes and services.
Note:
- This product is destined for Netherlands.
- You need to take out a subscription to access the services of CANALDIGITAAL. Refer to your "Welcome
packet".
CONTENTS
English
DSR2210-2211GB.qxd 17/11/2005 10:33 Page 1
2CONTENTS
10 Radio channels _________________23
11 The channels ___________________24
11.1 List of the channels _____________24
11.2 Altering the numbering of the
channels ______________________24
11.3 Adding new channels ____________25
11.4 Removing channels ______________25
11.5 Reinstalling channels _____________25
12 Subscription programmes (not yet
available) ______________________26
13 Information for subscribers (not yet
available) ______________________26
15 Troubleshooting ________________27
16 Technical specifications _________29
17 More on your remote control ____30
17.1 TV mode (TV) _________________31
17.2 VCR and DVD mode (VCR, DVD) _32
17.3 Amplifier/Tuner mode (AMP) ______33
English
DSR2210-2211GB.qxd 17/11/2005 10:33 Page 2
SAFETY INSTRUCTIONS 3
All the safety and operating Instructions
should be read and understood before the
appliance is operated.
For best results:
- position your receiver away from
radiators or other heat sources. Leave a
space of at least 3 cm around the
receiver for ventilation making sure that
the ventilation holes are not obstructed.
- This receiver is intended for use in a
domestic environment only and should
never be operated or stored in
excessively hot, humid or damp
conditions.
- Make sure no objects or fluids enter the
housing through the ventilation slots.
Should this happen, disconnect your
receiver from the mains and consult your
retailer.
- For cleaning, use a damp chamois leather.
Never use any abrasive cloth, sponge or
cleaner.
- When connecting or disconnecting cables
to the receiver always ensure the
receiver is disconnected from the mains.
Do not disassemble the equipment. There
are no user serviceable parts.
Mains connection
Before connecting the receiver to the
mains, check that the mains supply voltage
corresponds to the voltage printed on the
rear of the receiver. If the mains voltage is
different, consult your dealer.
Plastic bags can be dangerous. To avoid
suffocation keep the bag away from babies
and children.
The Symbol on the packaging
means that material is recyclable.
If the receiver will not be used for a long
time, unplug the mains cord from the wall
socket.
1 Safety instructions
English
DSR2210-2211GB.qxd 17/11/2005 10:33 Page 3
2 Product description
2.1 Front view
2.1.1 Type 1 Front
1Stand-by button: Switch receiver On or Standby.
Reset the receiver, in case of hanging up, after a 5 second keypress.
2"W": Move down in the screens or select the previous program.
3"V": Move up in the screens or select the next program
4Smart card reader.
5OK button: Confirm your selection
6Display: Display the program number whenever the receiver is operating (*)
Display time whenever the receiver is in Stand-by mode (*)
(*) The text "auto-update" is running on the display when a free over-the-air upgrade of your receiver is
taking place. Do not interrupt this operation, which may last several minutes. Wait until the word "Stor" is
displayed on the display.
2.1.2 Type 2 Font
1Stand-by button: Switch receiver On or Standby.
Reset the receiver, in case of hanging up, after a 5 second keypress.
2OK button: Button to confirm your selection.
3Smart card reader.
English
4PRODUCT DESCRIPTION
123
456
3456
12
DSR2210-2211GB.qxd 17/11/2005 10:33 Page 4
PRODUCT DESCRIPTION 5
4"W" button: Channel down.
5Red LED indicator: Is lit whenever the receiver is operating.
Is lit with lower intensity whenever the receiver is in Stand-by mode (*).
6“V” button: Channel up.
(*): Note: if the LED is slowly blinking, it indicates that a free over the air upgrade of your receiver is taking
place. Do not interrupt this operation which may last several minutes. Wait until the LED stops blinking.
The LED blinks rapidly when receiving remote control signal.
2.2 Rear view
1TV (*): SCART (1) socket to connect to your TV set.
2Digital audio output (*): Coaxial Digital audio output to connect your HIFI / Audio receiver
system.
3Serial (*): RJ 9 socket for serial data transfer during servicing.
4230V~50Hz 25W max (**): Socket to connect the Mains cord.
5Label showing the type and serial number of the receiver.
6VCR (*): SCART (1) socket to connect your video recorder.
7L/R Audio out (*): Left/Right audio-cinch outputs to connect your HIFI / Audio receiver
system.
8SAT IN (*): Socket for satellite dish.
1) SCART is also called Euroconnector or Peritel.
(*): SELV: Safety Extra Low Voltage.
(**): HV: Hazardous Voltage.
English
45 6 78
123
DSR2210-2211GB.qxd 17/11/2005 10:33 Page 5
6PRODUCT DESCRIPTION
English
2.3 The remote control
SATELLITE MODE (SAT)
MENU
To reach the main menu.
+
Detailed information about a
programme or selection of
language and/or subtitling.
INFO
To display on screen an
information bar with
information about the
programme.
TV/SAT
Switch between watching from
digital receiver or directly from
the TV cable.
OK
Button to confirm your
selection.
CBVW
Buttons to select the menus,
programmes or to adjust the
volume.
+ -
Adjusts the TV volume.
c
Mute/demute the sound.
Standby B
On/Off button.
A, B, C, D, E:
Function buttons.
PREF
To switch your favourite
channels on and off.
SERV
Information about your
subscription.
EPG
ELECTRONICAL
PROGRAMME GUIDE with
information about the
programmes.
EXIT
To return to a TV programme.
DSR2210-2211GB.qxd 17/11/2005 10:33 Page 6
PRODUCT DESCRIPTION 7
English
Your 5 in 1 Remote Control enables you to
control most of your Audio/Video
Equipment through various modes:
satellite receiver, TV, VCR, DVD and
Amplifier Tuner.
Pressing the MODE button once will remind
you of the MODE you are in through
blinking lights: left for SAT, middle for TV,
right for VCR, left/middle for DVD,
middle/right for Amp/Turner.
To set the MODE, press the MODE button
several times until the desired mode is
reached. The sequence is: SAT->TV-
>VCR->DVD->Amp/Tuner.
At every keypress, lights blink to indicate in
which MODE you are in.
Note:
some keys are shortcut keys to other MODES. In
this case, the lights do not indicate the current
MODE! (e.g. if you are in VCR MODE, pressing
the volume keys will light the TV/middle
indicator).
Chapter 16 gives you all the information
about the functions available in TV, VCR,
DVD and Amp/Tuner modes as well as
instructions on how to setup you remote
control for your different audio-video
appliances.

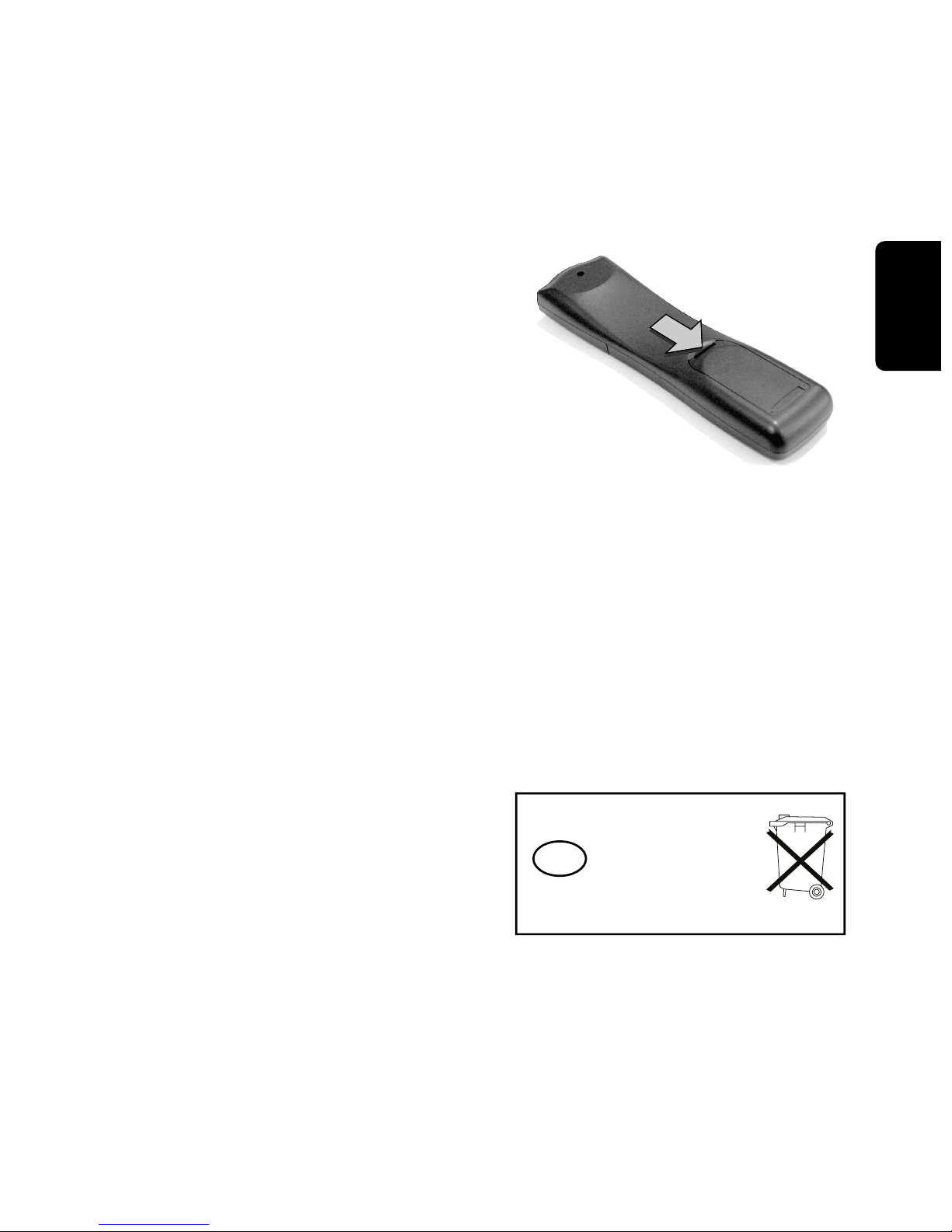

• Remove the battery cover.
• Insert the two batteries (type LR6/AA -
1.5 V) supplied.
• Position them as shown in the diagram, in
the battery compartment.
• Replace the cover.
The Philips batteries supplied with your
receiver's remote control do not contain
any heavy metals such as Mercury or Nickel
Cadmium. Nevertheless, in many countries,
used batteries may not be disposed of with
your household waste.
Please inquire about the local regulations
regarding the disposal of used batteries.
NL
Do not dispose of
them with
your household
waste.
DSR2210-2211GB.qxd 17/11/2005 10:33 Page 7
8CONNECTING UP THE RECEIVER
3 Connecting up the receiver
In this chapter, you will learn how to connect up the Philips digital satellite receiver to your
existing equipment, such as a TV or VCR.
Note:
- To watch a video cassette.
We advise you, when you want to watch a video cassette, to put your receiver on stand by.
- Digital cordless telephone.
If you have a digital cordless telephone (DECT), it may sometimes block the signal of your receiver / TV.
We advise you not to keep both appliances close to one other.
- Smart card.
Please leave your smart card in the receiver so that your subscription can be extended every month.
- Further guarantees.
If the satellite receiver breaks down within the period of guarantee, Philips Nederland will exchange it. In
this case, the customer agrees to return the original appliance purchased.
TV
TV
EXT1
EXT1
EXT2
EXT2
EXT1
EXT1
Satellite dish
Scart socket
Satellite receiver
Mains plug
TV
Scart socket
Video recorder
English
DSR2210-2211GB.qxd 17/11/2005 10:33 Page 8
CONNECTING UP THE RECEIVER 9
3.1 Connecting to your HiFi/Audio receiver equipement
(Analogue/Digital)
Depending on your HiFi / Audio receiver equipment, you might have several options to connect
your digital receiver.
ANALOGUE CONNECTION
Connect the L/R audio output sockets to the relevant L/R audio input sockets of your audio
equipment using a double CINCH cable (not supplied). Consult the user manual of your
HiFi/Audio receiver equipment to choose the proper analogue audio inputs.
Note: With this connection set up you can control the audio volume up/down and mute using your digital
receiver or Hi-fi remote control.
DIGITAL CONNECTION
Connect the audio "DIGITAL" output socket to the relevant digital audio input socket of your
audio equipment using a single CINCH cable (not supplied). Consult the user manual of your
HiFi/Audio receiver equipment to choose the proper digital audio input.
Note: With this connection set up you can only control the audio volume up/down and mute with your HiFi /
Audio Receiver remote control, refer to the relevant user manual.
Satellite receiver
HiFi
English
DSR2210-2211GB.qxd 17/11/2005 10:33 Page 9
10 MENU STRUCTURE
4 Menu structure
English
MENU
1
2
3
4
5
6
7
MENU TERUG NAAR TV
PROGRAMMA'S OPNEMEN
VOORKEURKANALEN KIEZEN
CODE EN KINDERSLOT
INSTELLINGEN
KANALEN INSTALLEREN
INFORMATIE ABONNEMENT EN BRIEVENBUS
TECHNISCHE INFORMATIE
Setting the time and the channel to tape a video.
Setting your favourite channels.
Entering and altering of the code and entering of a
parental lock.
Installation of the receiver, TV, VCR and modem.
To enter, add and remove channels, to alter the
sequence of the channels and the summary of the
channel list.
To consult the period of validity of the subscription
and read the CanalDigitaal messages.
Checking the reception signal strength, installation
of the aerial and consulting the decoder and
software version.
INSTELLINGEN
1
A TERUG NAAR MENU
INSTELLEN DECODER
4
2INSTELLEN TV/VIDEORECORDER
TECHNISCHE INFORMATIE
1
A TERUG NAAR MENU
SIGNAALSTERKTE
7
2DECODERVERSIE
Altering the TV and VCR standard settings.
Altering the volume, subtitling, spoken language,
length of time the information bar remains on the
screen, the reminder and the time.
Checking the LNB installations and setting the
aerial.
Consulting the decoder and software version.
DSR2210-2211GB.qxd 17/11/2005 10:33 Page 10
This manual suits for next models
1
Table of contents
Other Philips Receiver manuals
Philips
Philips HTS3400 User manual
Philips
Philips STU 1330 User manual
Philips
Philips AE3650 User manual
Philips
Philips DCR 5012 User manual
Philips
Philips HTS6500 - DivX Ultra Home Theater System User manual
Philips
Philips SLV3220 User manual
Philips
Philips LX710 User manual
Philips
Philips FR 731 User manual
Philips
Philips FR 752 Quick start guide
Philips
Philips MCB279 User manual
Philips
Philips MRD100/78 User manual
Philips
Philips DSR5600/00 User manual
Philips
Philips AW2000 User manual
Philips
Philips STU130A User manual
Philips
Philips MRD210/37 User manual
Philips
Philips SLA5520NS User manual
Philips
Philips DTR2610 User manual
Philips
Philips HTS5000W/51 User manual
Philips
Philips DSR300 User manual
Philips
Philips STU 909 User manual
