PEERLESS JMWS 30 Guide

ISSUED: 7-8-98 SHEET #: 128-9017-4 08-19-04

Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.

1 of 5

BLACK SILVER

PART # PART# QTY. DESCRIPTION

A095-1021 095-4021 1 support tray (model JMWS 30)

095-1022 095-4022 1 support tray (model JMWS 35)

B046-1002 046-4002 1 back clamp

C128-1092 128-4092 2 wall arm

D124-1533 124-4533 1 cross plate

E590-1021 590-4014 2 end cap

F046-1001 046-4001 1 base ring

G505-9010 500-2001 6 M5 x .8 x 10 mm penta-pin screw

H5S1-015-C03 5S1-015-C04 6 #14 x 2.5" (6 mm x 65 mm) screw

I510-9110 510-9164 6 1/4-20 x 1" phillips screw

J590-1037 590-2037 12 glide

K590-1036 590-2036 12 spacer

L520-1048 520-2048 4 M6 x 1 x 20 mm phillips screw

M520-9249 520-9249 1 penta-pin driver

N2245-081 2245-081S 4 uni-clip

O520-9258 520-9281 4 #10 x 3/4" penta-pin screw

P540-9400 540-9442 4 flat washer

IMPORTANT! Read entire instruction sheet before

you start installation and assembly.

Before you start make sure all parts shown below

are included with your product.

Installation and Assembly - Jumbo Shelf Models: JMWS 30, JMWS 30S,

JMWS 35, JMWS 35S

Parts List

Note: Some parts may appear slightly different than illustrated.

AvailableAccessories:

●Concrete Anchor Kit

model ACC 203 (two

required)

●VCR Mount models

VPM40-N,VPM40-NS,

SVPM40-N,SVPM40-NS

●Safety Belt model

ACC 666

JMWS 30, JMWS 30S

JMWS 35, JMWS 35S

This product is intended for use with UL Listed

products and must be installed by a qualified

professional installer.

Product is UL rated up to 36" TV, 250 lbs.

Product is UL rated up to 32" TV, 250 lbs.

ISSUED: 7-8-98 SHEET #: 128-9017-4 08-19-04

Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.

2 of 5

For Wood Stud Walls locate and mark two

stud centers. Studs must measure 16" (406

mm) from center to center. Drill one top left

mounting hole [5/32"(4 mm) dia.] to a minimum

depth of 2.5" (64 mm). Attach left side of double

wall arm using one #14 x 2.5" (6 mm x 65 mm)

woodscrew(H).

Whileholdingdoublewallarmlevel(usealevel),

drill one top right mounting hole [5/32" (4 mm)

dia.] to a minimum depth of 2.5" (64 mm).

Attach right side of double wall arm using one

#14 x 2.5" (6 mm x 65 mm) wood screw (H).

Drillfourremainingholesandattachusingfour

#14 x 2.5" (6 mm x 65 mm) wood screws (H).

Snap end caps (E) into ends of wall arms (C).

Attach cross plate (D) to wall arms (C) using

screws (L). Leave screws (L) slightly loose

until all four are placed, then tighten com-

pletely.

16"

(406 mm)

• Tighten wood screws so that double wall arm is firmly

attached,but donot overtighten.Overtightening can

damagethe screws, greatlyreducing theirholding

power.

• Never tighten in excess of 80 in • lb (9 N.M.).

• Make sure that mounting screws are anchored into the

center of the studs. The use of an "edge to edge" stud

finderis highlyrecommended.

WARNING

ISSUED: 7-8-98 SHEET #: 128-9017-4 08-19-04

Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.

3 of 5

#For Concrete Wall use jumbo shelf, making

sure that it is level, as a template to mark

holes. Drill 1/4" (6 mm) dia. holes to a

minimumdepth of2.5" (64mm).Concrete

must be 2000 psi density minimum. Insert

anchors in holes flush with wall as shown

(right).Placejumboshelfoveranchorsand

secure with #14 x 2.5" (6 mm x 65 mm) wood

screws.Tightenallfasteners.

concrete

wall

concrete

anchor

concrete

anchor

concrete

anchor

Tighten to 80 in • lb (9 N.M.) torque.

CUTAWAYVIEW

INCORRECT

concrete

plaster/

drywall

mounting

plate

CORRECT

concrete

plaster/

drywall

mounting

plate

WARNING

• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete

surface in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid

part of the block, generally 1" minimum from the side of the block. Cinder block must meetASTM C-90 specifica-

tions. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill

toavoid breaking outthe back ofthe hole whenentering a voidor cavity.

• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.

• Make sure that the wall will safely support four times the combined load of the equipment and all attached hard-

wareand components.

ACC 203 (sold

seperateley)

• Tightenwood screws firmly,but donot overtighten.

Overtighteningcan damagethe screws,greatly

reducingtheir holdingpower.

• Never tighten in excess of 80 in • lb (9 N.M.).

WARNING

• Concrete anchors are not intendedfor attachmentto

concretewall covered witha layer ofplaster,drywall,

orother finishing material.If mounting toconcrete wall

coveredwith plaster/drywallis unavoidable,plaster/

drywall (up to 5/8" thick) must be counterbored as

shown below. If plaster/drywall is thicker than 5/8",

custom fasteners must be supplied by installer.

WARNING

16"

(406 mm)

ISSUED: 7-8-98 SHEET #: 128-9017-4 08-19-04

Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.

4 of 5

Snaptwelve glides

(J)around edgeof

base ring (F) as

shown.

Securelytighten four screws

(L).Attach base ring (F) to

cross plate (D) using six

screws ( I ) and twelve

spacers (K).Note: Cutouts in

base ring (F) must be posi-

tioned towards the back.

CUTOUTS

ISSUED: 7-8-98 SHEET #: 128-9017-4 08-19-04

Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.

5 of 5

Using uni-clips (N) and M5 screws (G) (see instruction card in

fastenerpack), orparticle boardscrews(O)andwashers (P)

(forattachmentto mounting bossesif present), or acombina-

tion of both, attach support tray (A) to TV bottom. Attach at

four places as close to the four corners of the TV bottom as

possible.Usepenta-pintool(M) anda1/4" drivertodrive

screws.

PeerlessisaregisteredtrademarkofPeerlessIndustries,Inc.

Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.

Attach TV/support tray (A) to base ring

(F) using back clamp (B) and two M5 x

.8 x 10 mm penta-pin self tapping

screws (G). Use penta-pin tool (M) and a

1/4"driver todrive screws.

• Always use an assistant or mechanical lifting equip-

ment to safely lift and position theTV or monitor.

WARNING

This manual suits for next models

Other PEERLESS Rack & Stand manuals

PEERLESS

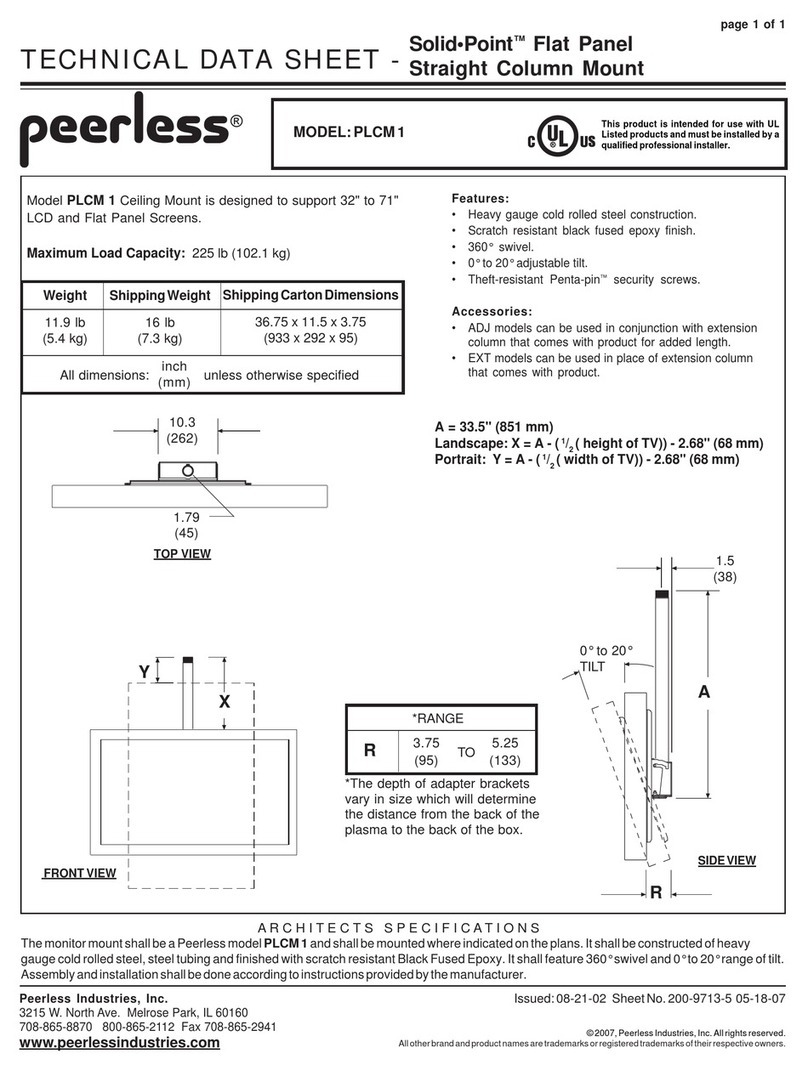

PEERLESS SOLID POINT PLCM 1 Instruction Manual
