Panasonic SAAK44 - MINI HES W/CD PLAYER User manual

ORDERNO. MD0104069C2

CD StereoSystem

SA-AK44

Colour

(S)... SilverType

Area

(E)... Europe

(EB)... Great Birtain

(EG)... Germanyand Italy

TAPE SECTION:

AR2MECHANISMSERIES

CD SECTION:

RAE0152Z-3 TRAVERSE DECK SERIES

SPECIFICATIONS

Specifications

AMPLIFIERSECTION

Poweroutput

THD 10%

80Hz, both channelsdriven

(LOW) 115 W perchannel (6)

1kHz, both channelsdriven

(High) 45 W perchannel (6)

Total Bi-Amp Power 160W perchannel

Inputsensitivity

AUX 250 mV

InputImpedance

AUX 13 k

FMTUNERSECTION

Frequencyrange 87.50 -108.00 MHz(50 kHz

steps)

Sensitivity 1.8V(IHF)

S/N26 dB 2.2V

Antennaterminal(s) 75 (unbalanced)

AMTUNERSECTION

Frequencyrange 522 -1629 kHz(9kHzsteps)

Sensitivity

S/N20 dB(at999 kHz) 560 V/m

CASSETTEDECK SECTION

Track system 4track, 2channel

Heads

Record/playback Solid permalloyhead

Erasure Doublegap ferritehead

Motor DCservo motor

Recording system ACbias 100 kHz

Erasing system ACerase 100 kHz

Tapespeed 4.8cm/s

Frequencyresponse (+3 dB, -6dBatDECK OUT)

NORMAL (TYPEI) 35 Hz-14 kHz

HIGH(TYPEII) 35 Hz-14 kHz

S/N 50 dB(Aweighted)

Wowand flutter 0.18 %(WRMS)

Fastforward and rewind time Approx. 120 secondswith

C-60 cassettetape

CDSECTION

Sampling frequency 44.1kHz

Decoding 16 bitlinear

Beam source/wavelength Semiconductorlaser/780 nm

Numberofchannels Stereo

Frequencyresponse 20 Hz-20 kHz(+1, -2dB)

Wowand flutter Belowmeasurablelimit

Digital filter 8fs

D/Aconverter MASH(1bitDAC)

GENERAL

Powersupply

ForE&EGonly AC230 V, 50Hz

ForEBonly AC230 -240 V, 50Hz

Powerconsumption 185 W

Powerconsumption in standbymode

0.4W

Dimensions(W xHxD) 250 X332 X316mm

Mass 8.5kg

SYSTEM

SC-AK44(E) MusicCenter:SA-AK44(E)

Speaker:SB-AK44(E)

SC-AK44(EB) MusicCenter:SA-AK44(EB)

Speaker:SB-AK44(E)

SC-AK44(EG) MusicCenter:SA-AK44(EG)

Speaker:SB-AK44(E)

Notes:

1. Specificationsaresubjectto changewithout notice. Mass and

dimensionsareaproximate.

2. Total harmonicdistortion ismeasuredbythedigital spectrum

analyzer.

3. Thelabel “HIGH”and “LOW”on therearof thespeakersreferto High

frequency and Lowfrequency.

1. BeforeRepairand Adjustment

DisconnectACpower, dischargePowerSupplyCapacitorsC531, C532, C533, C534 and C579

through a10 , 5Wresistor toground.

DONOTSHORT-CIRCUITDIRECTLY(withascrewdriverblade, for instance), as thismay destroy

solidstatedevices.

Afterrepairsarecompleted, restorepowergraduallyusing avariac, toavoidovercurrent.

-Currentconsumption at AC230V, 50 HzinNO SIGNALmode

shouldbe~400mA.

2. Protection Circuitry

Theprotection circuitrymay have operatedifeitherofthefollowing conditionsarenoticed:

-Nosound isheardwhenthepoweristurnedon.

-Sound stopsduring aperformance.

Thefunction ofthiscircuitryistopreventcircuitrydamageif, for example, thepositive and

negative speakerconnection wires are

“shorted”, or ifspeakersystemswithanimpedance less thantheindicatedratedimpedance of

theamplifierareused.

Ifthisoccurs, followtheprocedureoutlines below:

1. Turnoff thepower.

2. Determinethecause oftheproblemand correct it.

3. Turnon thepoweronce againafteroneminute.

Note:

Whentheprotection circuitryfunctions, theunitwill notoperateunless thepowerisfirstturned

off and thenon again.

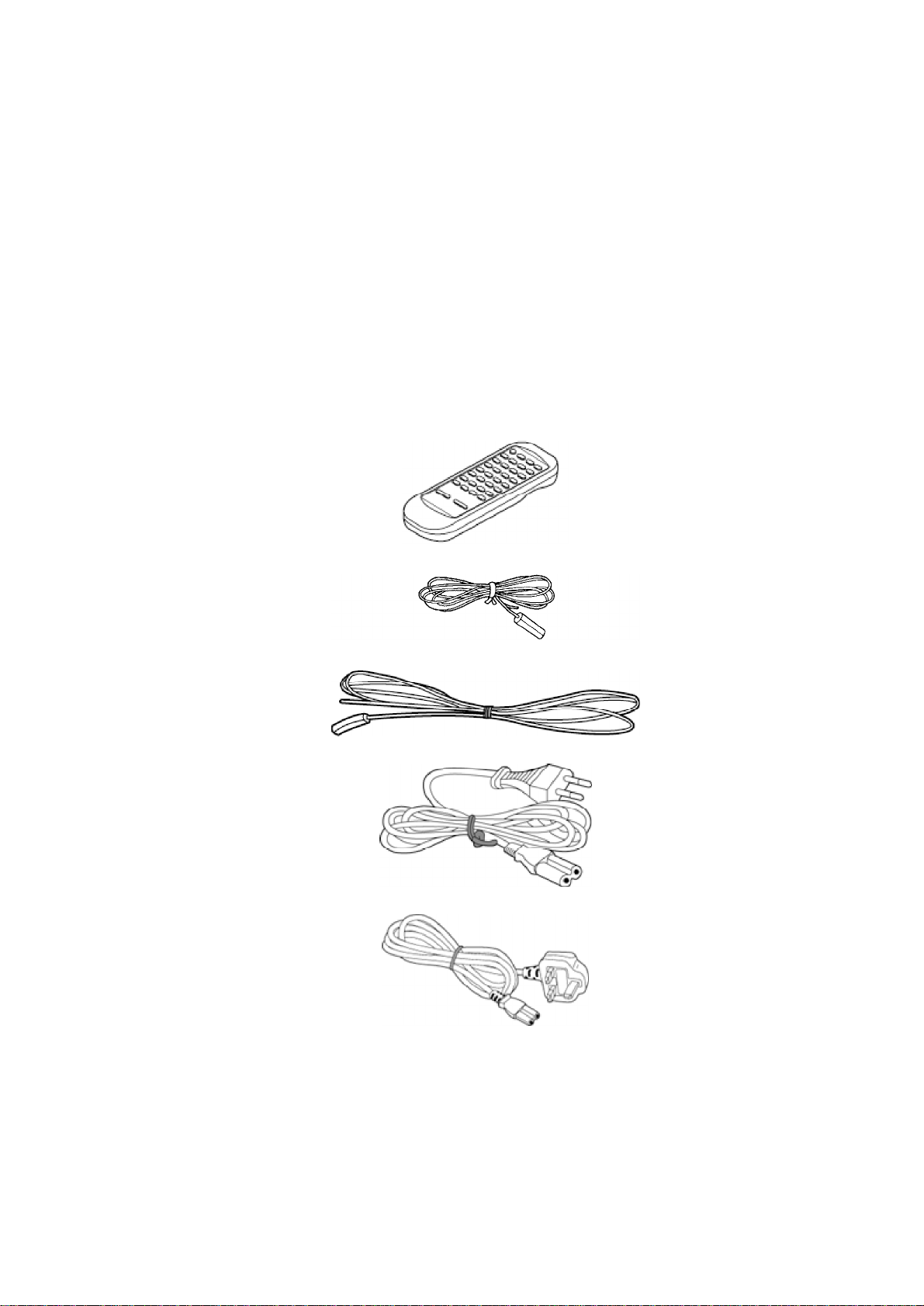

3. Accessories RemoteControl Transmitter

FMindoor antenna(EG)

FMindoor antenna(E, EB)

ACmainslead(E, EG)

ACmainslead(EB)

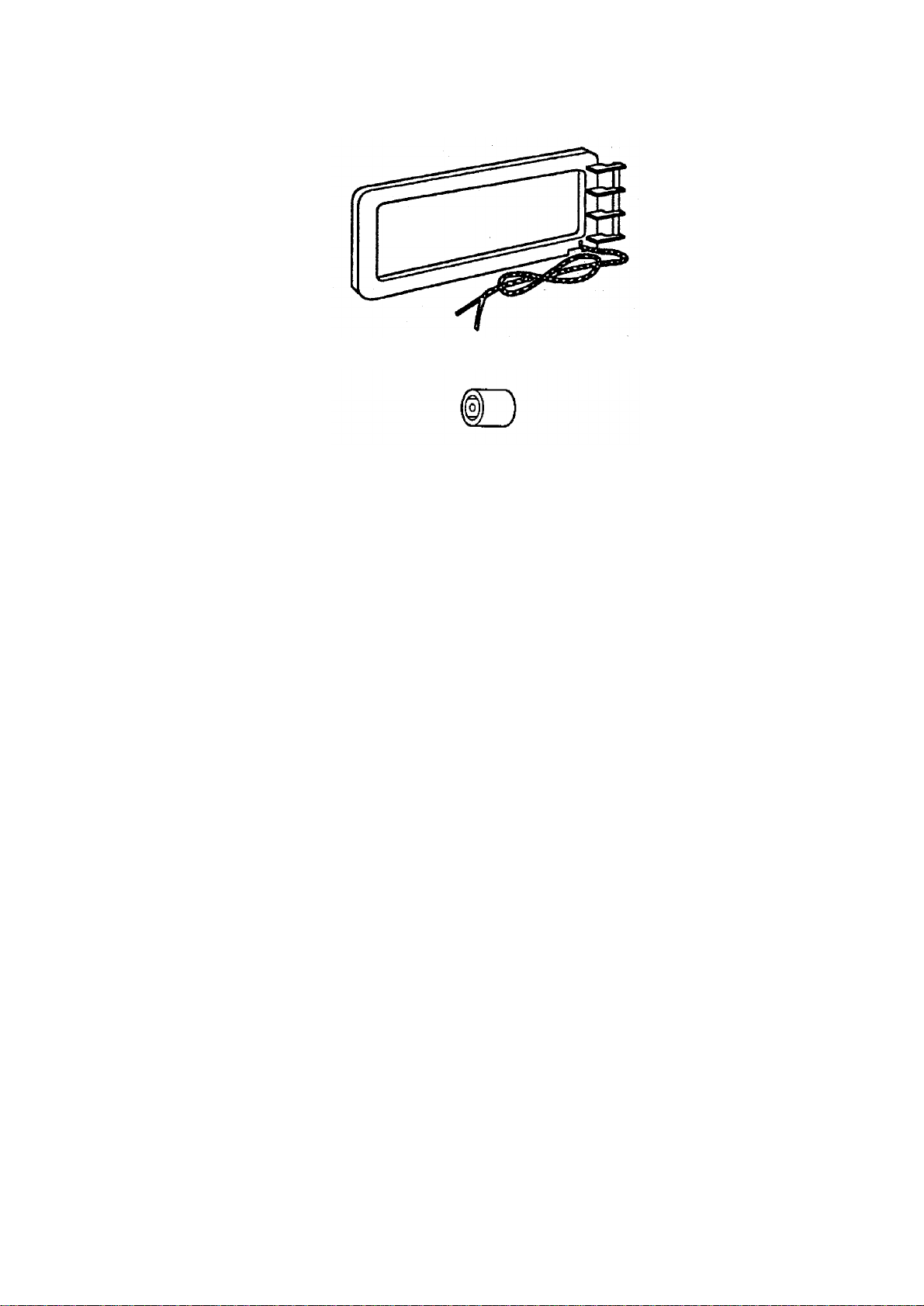

AMLoop antenna

AntennaPlug Adapror (EBonly)

4. Handling Precautions ForTraverse Deck

Thelaserdiodeinthetraverse deck (optical pickup)may break downduetopotential difference

causedbystaticelectricityofclothes or humanbody.

So, becareful ofelectrostaticbreakdownduring repairofthetraverse deck (optical pickup).

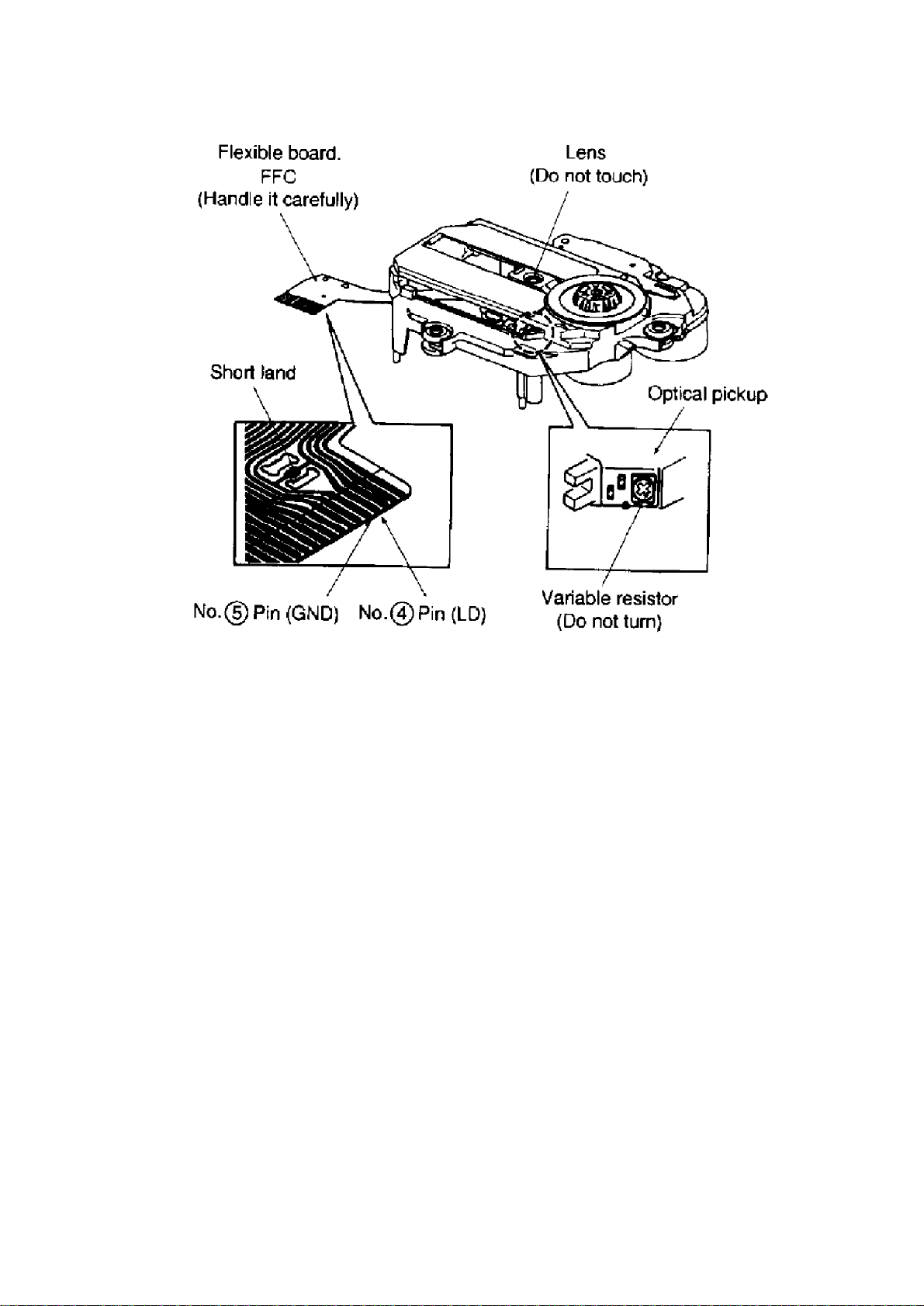

-Handling oftraverse deck (optical pickup)

1. Donotsubject thetraverse deck (optical pickup)tostatic

electricityas itisextremelysensitivetoelectrical shock.

2. Theshortland betweentheNo.4(LD)and No.5(GND)pinson the

flexibleboard(FFC)isshortedwithasolderbuild-up toprevent

damagetothelaserdiode.To connect tothePCboard, besureto

openbyremoving thesolderbuild-up, and finishtheworkquickly.

3. Take carenottoapplyexcessivestress totheflexibleboard(FFC).

4. Donotturnthevariableresistor(laserpoweradjustment). Ithas

alreadybeenadjusted.

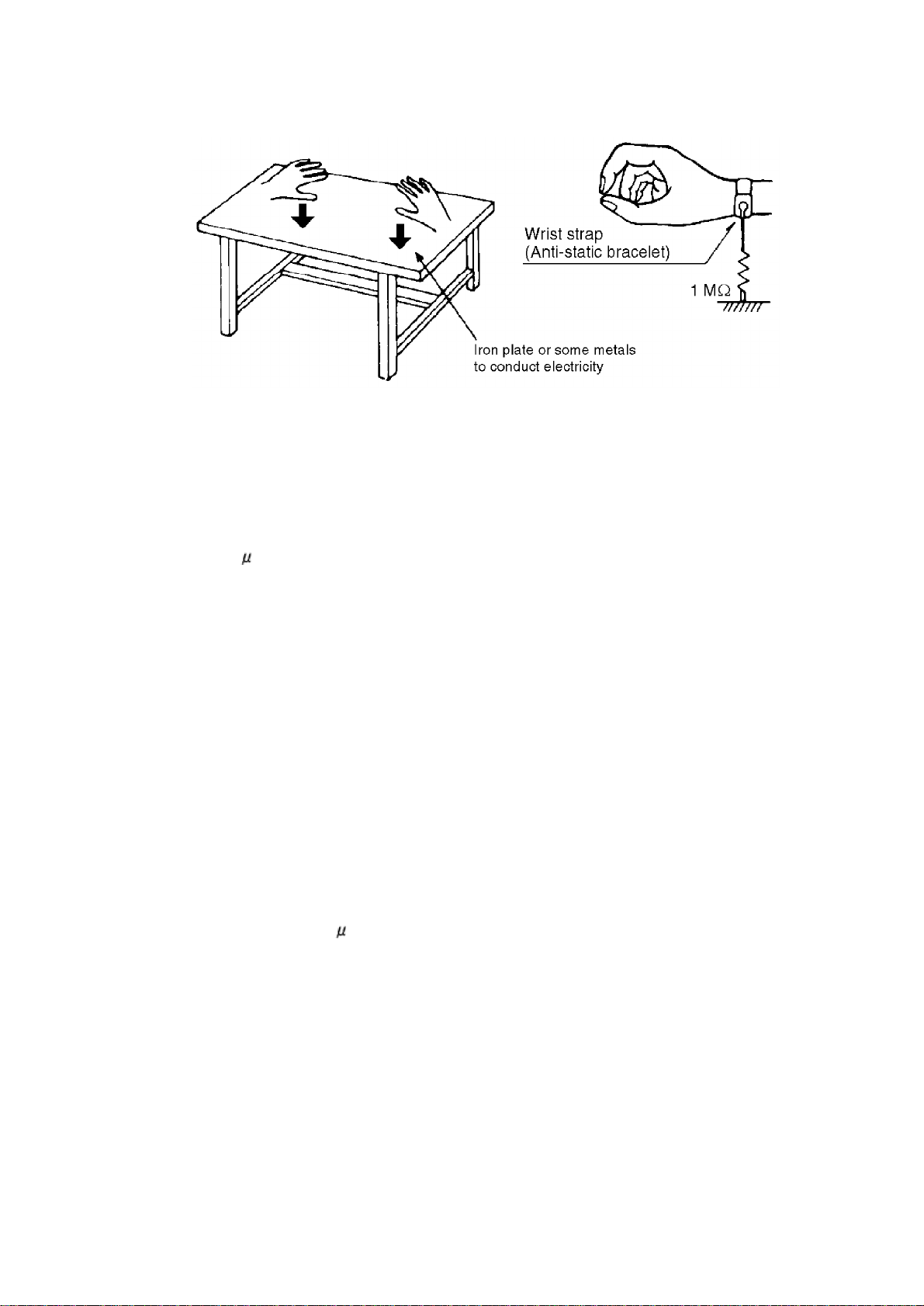

-Grounding forelectrostaticbreakdownprevention

1. Humanbodygrounding

Use theanti-staticwrist straptodischargethestaticelectricity

fromyourbody.

2. Worktablegrounding

Putaconductivematerial (sheet) orsteel sheet on thearea where

thetraverse deck (optical pickup)isplaced, and ground thesheet.

Caution :

Thestaticelectricityofyourclothes will notbegroundedthrough

thewrist strap. So, take carenottolet yourclothes touchthe

traverse deck (optical pickup).

Caution whenReplacing theTraverse Deck :

Thetraverse deck has ashortpointshortedwithsoldertoprotect

thelaerdiodeagainst electroststics breakdown. Besuretoremove

thesolderfromtheshortpointbeforemaking connections.

5. Precaution of LaserDiode

Caution :

Thisproduct utilizes alaserdiodewiththeunitturned"ON",

invisiblelaserradiation isemittedfromthepick up lens. /

Wavelength:780 nm/ Maximumoutputradiation powerfrompick

up :100 W/VDE/ Laserradiation frompick up unitissafetylevel,

butbesurethefollowings:

1. Donotdisassembletheoptical pick up unit, since radiation from

exposedlaserdiodeisdangerous.

2. Donotadjust thevariableresistoron thepick up unit. Itwas

alreadyadjusted.

3. Donotlookat thefocuslensusing optical instruments.

4. Recommend nottolookat pick up lensforalong time.

ACHTUNG:

Dieses Produkt enthälteineLaserdiode. ImeingeschaltetenZustand

wirdunsichtbareLaserstrahlung von derLasereinheitabgestrahlt. /

Wellenlänge:780nm/ MaximaleStrahlungsleistung der

Lasereinheit:100 W/VDE/ DieStrahlung anderLasereinheitist

ungefährlich, wenn folgendePunkte beachtet werden:

1. DieLasereinheitnichtzerlegen, dadieStrahlung ander

freigelegtenLaserdiodegefährlichist.

2. DenwerkseitigjustiertenEinstellreglerderLasereinhitnicht

verstellen.

3. NichtmitoptischenInstrumentenindieFokussierlinse blicken.

4. NichtüberlängereZeitindieFokussierlinse blicken.

ADVARSEL:

I dette aapparat anvendes laser.

CAUTION!

THIS PRODUCTUTILIZES ALASER.

USE OFCONTROLS ORADJUSTMENTS ORPERFORMANCE OFPROCEDURES OTHERTHAN

THOSE

SPECIFIEDHEREINMAYRESULTINHAZARDOUS RADIATIONEXPOSURE.

Use ofCaution Labels

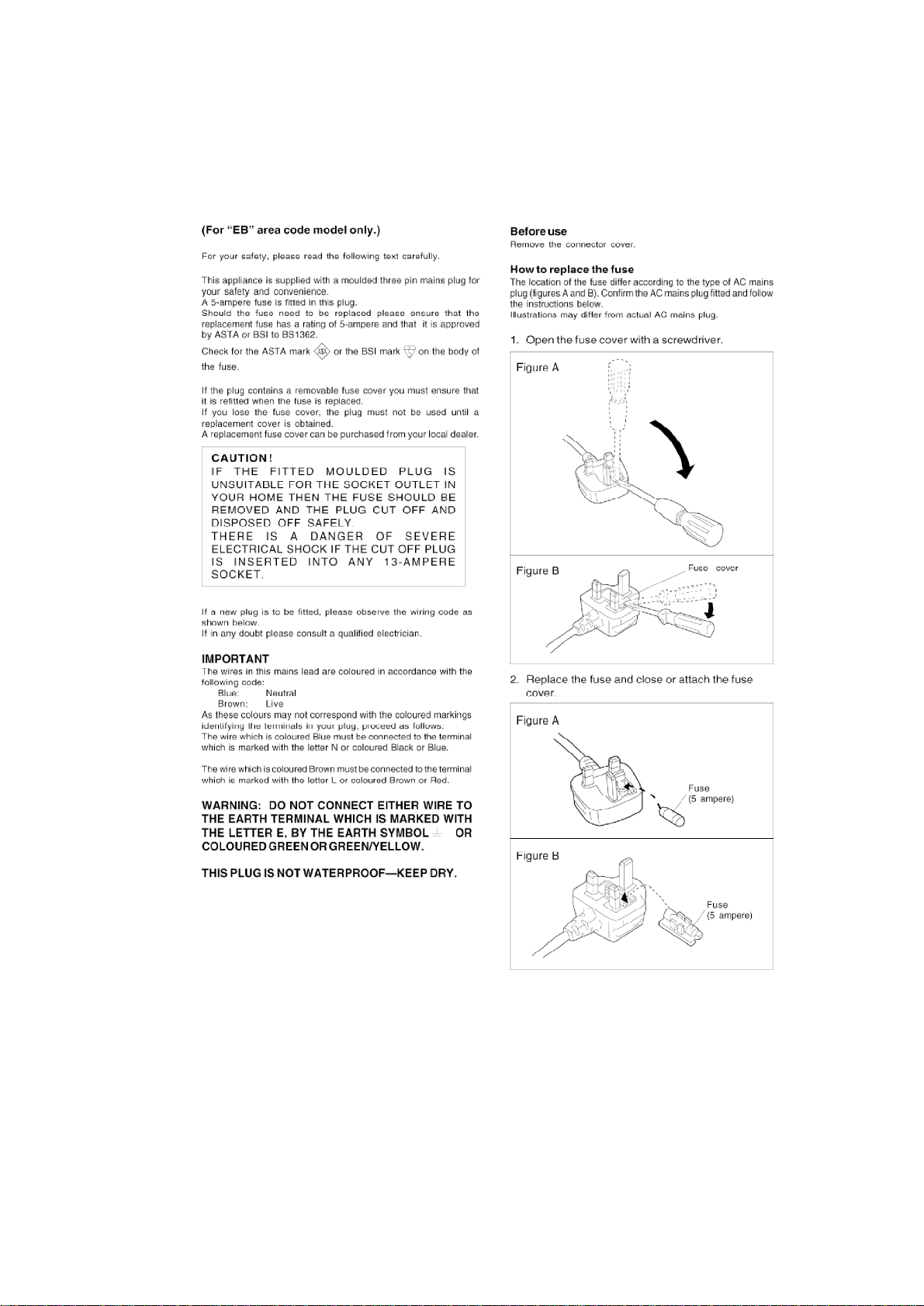

6. Caution forACMains Lead

7. Operation Procedures
