Operating Instructions

INTERCHANGEABLE LENS FOR DIGITAL CAMERA

Model No. H-NS043

Please read these instructions carefully before using this product, and save this manual for future use.

until

2014/1/29

VQT5E44_E.book 1 ページ２０１４年１月７日　火曜日　午後７時５８分

VQT5E44

Contents

Information for Your Safety..................................... 2

Precautions........................................................... 3

Supplied Accessories ............................................. 4

Names and Functions of Components ................... 5

Attaching/Detaching the Lens................................. 6

Cautions for Use..................................................... 9

Troubleshooting .................................................... 9

Specifications........................................................ 10

Limited Warranty (ONLY FOR AUSTRALIA) ............ 11

Information for Your Safety

Keep the unit as far away as possible from

electromagnetic equipment (such as microwave

ovens, TVs, video games, radio transmitters,

high-voltage lines etc.).

≥Do not use the camera near cell phones because

doing so may result in noise adversely affecting

the pictures and sound.

≥

If the camera is adversely affected by electromagnetic

equipment and stops functioning properly, turn the

camera off and remove the battery and/or the

connected AC adaptor. Then reinsert the battery and/

or reconnect the AC adaptor and turn the camera on.

The lens can be used with a digital camera

compatible with the lens mount standard for the

“Micro Four ThirdsTM System”.

≥It cannot be mounted on the Four ThirdsTM mount

specification camera.

≥The digital camera illustrations in these operating

instructions show DMC-GH3 as an example.

≥

The appearance and specifications of products described

in this manual may differ from the actual products you

have purchased due to later enhancements.

≥

Micro Four Thirds

and Micro Four Thirds Logo

marks are trademarks or registered trademarks of

Olympus Imaging Corporation, in Japan, the United

States, the European Union and other countries.

≥Four ThirdsTM and Four Thirds Logo marks are

trademarks or registered trademarks of Olympus

Imaging Corporation, in Japan, the United States,

the European Union and other countries.

≥G MICRO SYSTEM is an interchangeable lens

type digital camera system of LUMIX based on a

Micro Four Thirds System standard.

≥Leica is a registered trademark of Leica

Microsystems IR GmbH. NOCTICRON is a

registered trademark of Leica Camera AG. The

LEICA DG lenses are manufactured using

measurement instruments and quality assurance

systems that have been certified by Leica Camera

AG based on the company’s quality standards.

≥Other names of systems and products mentioned

in these instructions are usually the registered

trademarks or trademarks of the manufacturers

who developed the system or product concerned.

VQT5E44_E.book 2 ページ２０１４年１月７日　火曜日　午後７時５８分

VQT5E44

-If you see this symbol-

∫Lens Care

≥Sand and dust can damage the lens. Make

sure that no sand or dust gets inside the lens

or the terminals when using the lens on a

beach, etc.

≥The lens is neither waterproof nor splash-

proof. If drops of water get onto the lens, wipe

the lens with a dry cloth.

≥Do not press the lens with excessive force.

≥When there is dirt (water, oil, and fingerprints, etc.)

on the surface of the lens, the picture may be

affected. Lightly wipe the surface of the lens with a

soft, dry cloth before and after taking pictures.

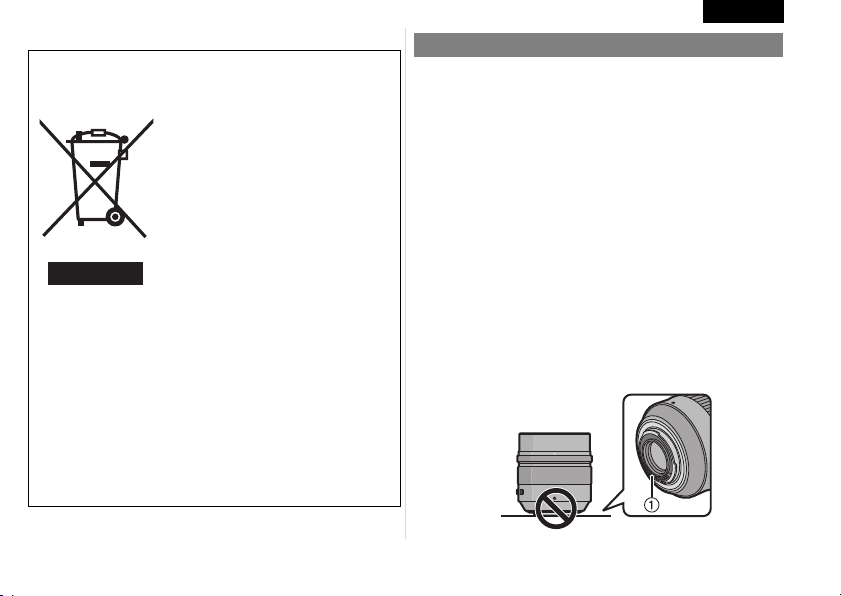

≥Do not place the lens mount facing downwards.

Do not allow the lens contact points 1to become

dirty.

Disposal of Old Equipment

Only for European Union and countries with

recycling systems

This symbol on the products,

packaging, and/or accompanying

documents means that used

electrical and electronic products

must not be mixed with general

household waste.

For proper treatment, recovery

and recycling of old products,

please take them to applicable

collection points in accordance

with your national legislation.

By disposing of them correctly,

you will help to save valuable resources and prevent

any potential negative effects on human health and

the environment.

For more information about collection and recycling,

please contact your local municipality.

Penalties may be applicable for incorrect disposal of

this waste, in accordance with national legislation.

Precautions

ENGLISH

VQT5E44_E.book 3 ページ２０１４年１月７日　火曜日　午後７時５８分

VQT5E44

∫About Condensation (Fogging of the

Lens)

≥Condensation occurs when there are differences

in temperature and humidity as described below.

Condensation can cause the lens to become dirty

and lead to mold and malfunctioning, so exercise

caution in the following situations:

– When the camera is brought indoors from outside

during cold weather

– When the camera is brought into an air-

conditioned car

– When cold air from an air conditioner is directly

blown onto the lens

– In humid places

≥Put the camera into a plastic bag to allow it to

acclimatize to the surrounding temperature in

order to prevent condensation. If condensation

occurs, turn the power off and leave it for about

two hours. Once the camera acclimatizes to the

surrounding temperature the condensation will go

away naturally.

Supplied Accessories

[Inspection to be performed when you unpack

the unit]

When removing the unit from its packing box, check

that the main unit and the supplied accessories are

there and also check their external appearance and

functions to verify that they have not sustained any

damage during distribution and transportation.

If you discover any trouble, contact your vendor

before using the product.

Product numbers correct as of January 2014. These

may be subject to change.

1Lens Storage Bag

2Lens Hood

3Lens Cap

4Lens Rear Cap

(The lens rear cap and lens cap are attached to

the interchangeable lens at the time of purchase.)

VFC4430 VYC1132 VYF3565 VFC4605

2134

VQT5E44_E.book 4 ページ２０１４年１月７日　火曜日　午後７時５８分

VQT5E44

Names and Functions of

Components

1Lens surface

2Aperture ring

Rotate this to adjust the aperture value.

≥If you set the camera to Aperture-Priority AE

Mode or Manual Exposure Mode, the aperture

value of the ring will be enabled.

≥If you set the position of the aperture ring to [A],

the aperture value of the camera will be enabled.

3Focus ring

Rotate to focus when taking pictures with manual focus

(MF).

4[AF/MF] switch

This allows you to switch between Auto Focus (AF)

and Manual Focus (MF). If you set [MF], you can

use the focus ring to adjust the focus.

≥When either the [AF/MF] switch of the lens or the

setting of the camera is set to [MF], Manual Focus

(MF) is enabled.

5[O.I.S.] switch

When the lens is attached to the camera the stabiliser

function is set to activate if the [O.I.S.] switch is set to [ON].

≥We recommend setting the [O.I.S.] switch to [OFF]

when using a tripod.

≥The stabiliser function may not be effective in the

following cases.

– When there is a lot of jitter.

– When taking pictures while following a moving subject.

– When using the digital zoom.

– When the shutter speed becomes slower to take

pictures indoors or in dark places.

6Lens fitting mark

7Contact points

Note

≥If you tilt the lens, the lenses inside may move.

This is not a malfunction.

≥If you turn off the camera, the aperture will be set

to a reduced value.

7123456

VQT5E44_E.book 5 ページ２０１４年１月７日　火曜日　午後７時５８分

VQT5E44

≥When flash recording with a close subject, the

light of the flash will be blocked by the lens and

part of the picture may be dark. Check the

distance from the subject when recording.

≥Operating sounds may be recorded when auto-

focusing during motion picture recording. If

operating sounds become bothersome, we

recommend setting to manual focus (MF) and

fixing focus before recording to avoid recording

the lens noise.

≥

If you set the [O.I.S.] to [ON] when recording a motion

picture, operating sounds may be recorded. If they

become bothersome, we recommend setting the [O.I.S.]

switch to [OFF] and mounting the camera on a tripod.

≥The aperture can be adjusted with the aperture

ring only when a Panasonic digital camera is

attached to the lens. (As of January 2014)

Attaching/Detaching the Lens

Check that the camera is

turned off.

≥Remove the lens rear cap from

the lens.

∫Attaching the Lens

Align the lens fitting

marks A on the

camera body and the

lens and then rotate

the lens in the

direction of the arrow

until it clicks.

• Do not press the lens release button B when

you attach a lens.

• Do not try to attach the lens when holding it at an

angle to the camera body as the lens mount may

get scratched.

• Check that the lens is attached correctly.

• Be sure to remove the lens cap when recording.

VQT5E44_E.book 6 ページ２０１４年１月７日　火曜日　午後７時５８分

VQT5E44

∫Detaching the Lens

While pressing on the

lens release button B,

rotate the lens toward

the arrow until it stops

and then remove.

• Attach the lens rear cap

so that the lens contact

point does not get scratched.

• Attach the body cap to the camera so no dirt or

dust will get inside the main unit.

∫

Attaching the Lens Hood (Supplied Accessory)

≥Before attaching the lens hood, loosen the lens

hood screw.

1 Insert the lens hood until it stops.

2 Rotate the lens hood screw in the

direction of the arrow to fasten the lens

hood securely.

≥When using the lens, check if the lens hood screw

has become loose.

∫Temporarily Storing the Lens Hood

1 Rotate the lens hood screw in the

direction of the arrow to loosen it, and

remove the lens hood.

VQT5E44_E.book 7 ページ２０１４年１月７日　火曜日　午後７時５８分

VQT5E44

Turn the lens hood around so that it faces the

opposite direction, and insert it until it stops.

Turn the lens hood screw in the direction of

the arrow to fasten the lens hood securely.

≥

Do not carry the lens by holding

only the lens hood. Because the

lens is heavy, doing so could

cause the lens to fall off the lens

hood even when the lens hood

screw is tightened securely.

Note

≥

When taking pictures with the flash with the lens hood

attached, the lower portion of the screen may turn dark

(vignetting effect) and the control of the flash may be

disabled because the photo flash may be obscured by

the lens hood. We recommend detaching the lens hood.

≥When using the AF assist lamp in the dark, detach

the lens hood.

∫Attaching Filters

≥Vignetting may occur if using 2 or more

MC protectors (optional: DMW-LMCH67) or

PL filters (optional: DMW-LPL67), or if using thick

protectors and/or filters.

≥The filter may become impossible to remove if

excessively tightened, so please refrain from

tightening it too strongly.

≥It is possible to attach the lens cap with the filter

already attached.

≥You cannot attach a conversion lens or adaptor to

this lens. A filter may be used, but attaching any

other element may cause damage to the lens.

VQT5E44_E.book 8 ページ２０１４年１月７日　火曜日　午後７時５８分

VQT5E44

Cautions for Use

Take care not to drop or knock the lens. Also

take care not to put a lot of pressure on the lens.

≥

Take care not to drop the bag that you inserted the

lens in as it may strongly shock the lens. The camera

may stop operating normally and pictures may no

longer be recorded. Also, the lens may be damaged.

≥

When carrying the digital camera with the lens

attached, hold both the digital camera and the lens.

When using pesticides and other volatile

substances around the camera make sure that

they do not get onto the lens.

≥

If such substances get onto the lens they can

damage the exterior case or cause the paint to peel.

Do not point the lens at the sun or other strong

light sources.

≥This could cause the lens to collect an excessive

amount of light, resulting in fire and malfunction.

≥

Under no circumstances should the unit be stored in

any of the following locations since doing so may

cause problems in operation or malfunctioning.

– In direct sunlight or on a beach in summer

– In locations with high temperatures and humidity levels or

where the changes in temperature and humidity are acute

– In locations with high concentrations of sand, dust or dirt

– Where there is fire

– Near heaters, air conditioners or humidifiers

– Where water may make the unit wet

– Where there is vibration

– Inside a vehicle

≥

Refer also to the operating instructions of the digital camera.

≥

When the unit is not going to be used for a prolonged

period, we recommend storing with a desiccant (silica

gel). Failure to do so may result in performance

failure caused by mold, etc. It is recommended that

you check the unit’s operation prior to use.

≥

Do not leave the lens in contact with rubber or plastic

products for extended periods of time.

≥

Do not touch the lens contact point. Doing so can

cause failure of the unit.

≥

Do not disassemble or alter the unit.

Do not use benzine, thinner, alcohol or other

similar cleaning agents to clean the lens glass or

exterior cabinet.

≥Using solvents can damage the lens or cause the

paint to peel.

≥

Wipe off any dust or fingerprints with a soft, dry cloth.

≥Use a dry, dust cloth to remove dirt and dust on

the focus ring and the aperture ring.

≥Do not use a household detergent or a chemically

treated cloth.

When I turn on or off the camera or when I shake the

lens, I hear a sound, for example a rattling sound.

When I take pictures of a bright subject, such as a

subject outside, or when I take pictures with a large

aperture value, the lens makes a sound.

≥This is the sound of lens or aperture movement

and is not a malfunction.

Troubleshooting

VQT5E44_E.book 9 ページ２０１４年１月７日　火曜日　午後７時５８分

VQT5E44

Specifications

Specifications are subject to change without notice.

INTERCHANGEABLE LENS FOR DIGITAL CAMERA

“LEICA DG NOCTICRON 42.5 mm/F1.2 ASPH./POWER O.I.S.”

Focal length f=42.5 mm

(35 mm film camera equivalent: 85 mm)

Aperture type 9 diaphragm blades/circular aperture diaphragm

Aperture range F1.2

Minimum aperture value F16

Lens construction 14 elements in 11 groups (2 aspherical lenses, 1 ED Lens,1 UHR

Lens)

Nano surface coating Yes

In focus distance 0.5 m to ¶ [from the focus distance reference line]

Maximum image magnification 0.1k(35 mm film camera equivalent: 0.2k)

Optical image stabiliser Available

[O.I.S.] switch Available (Switching ON/OFF)

[AF/MF] switch Available (Switching AF/MF)

Mount “Micro Four Thirds Mount”

Angle of view 29x

Filter diameter 67 mm

Max. diameter Approx. 74 mm

Overall length Approx. 76.8 mm

(from the tip of the lens to the base side of the lens mount)

Mass Approx. 425 g

VQT5E44_E.book 10 ページ２０１４年１月７日　火曜日　午後７時５８分

Other manuals for H-NS043

This manual suits for next models

Table of contents

Languages:

Other Panasonic Camera Accessories manuals

Panasonic

Panasonic AW-AD500A User manual

Panasonic

Panasonic WVQ169 - CCTV CEILING MOUNT BRACKET User manual

Panasonic

Panasonic VARICAM LT User manual

Panasonic

Panasonic WV-CS3S User manual

Panasonic

Panasonic WVLZ6115 - ZOOM LENS User manual

Panasonic

Panasonic LUMIX DMW-MCTZ3E User manual

Panasonic

Panasonic BQ-BS2E/2E User manual

Panasonic

Panasonic WV-Q175E User manual

Panasonic

Panasonic POH1000 User manual

Panasonic

Panasonic AJ-RC905EN User manual

Panasonic

Panasonic WV-CW7S User manual

Panasonic

Panasonic WVPS11B - CAMERA DRIVE UNIT User manual

Panasonic

Panasonic AS09A51 Instruction Manual

Panasonic

Panasonic BB-HCS301A - Network Camera Server User manual

Panasonic

Panasonic WV-Q157 User manual

Panasonic

Panasonic WVPH10 - CL CAMERA ACCESS User manual

Panasonic

Panasonic Lumix H-HS35100 User manual

Panasonic

Panasonic AJ-VF15BP User manual

Panasonic

Panasonic GP-US932CSXE User manual

Panasonic

Panasonic PUM8 User manual

Panasonic

Panasonic AU-VCVF10G User manual

Panasonic

Panasonic WV-CS5S User manual

Panasonic

Panasonic AK-HVF931AEA User manual

Panasonic

Panasonic H-FSQ 14045 User manual

Popular Camera Accessories manuals by other brands

Viltrox

Viltrox EF-NEX Mount instructions

Calumet

Calumet 7100 Series CK7114 operating instructions

Ropox

Ropox 4Single Series User manual and installation instructions

Cambo

Cambo Wide DS Digital Series Main operating instructions

Samsung

Samsung SHG-120 Specification sheet

Ryobi

Ryobi BPL-1820 Owner's operating manual

Aegis

Aegis ABL-36020P user manual

Pentax

Pentax Data Back Fc operating manual

Fantasea

Fantasea EyeGrabber F Series instruction manual

Honeywell

Honeywell HDZ20HD user manual

EGO

EGO BA1400T Operator's manual

Sima

Sima SRW-62 user guide

Shape

Shape A7SSMKIT Assembly manual

Slide Kamera

Slide Kamera HST-2 user manual

Power works

Power works 2902613 Original instructions

SES

SES SE-2047-2 user manual

Olympus

Olympus PT-EP05L instruction manual

Starlite

Starlite OctoDome nxt instructions
