Oce TDS100 User manual

Océ TDS100

Quick reference guide

All manuals and user guides at all-guides.com

all-guides.com

or transmitted in any form or by any means without written permission from

Océ.

Océ-Technologies B.V. makes no representation or warranties with respect to

the contents hereof and specifically disclaims any implied warranties of

merchantability or fitness for any particular purpose.

Further, Océ-Technologies B.V. reserves the right to revise this publication and

to make changes from time to time in the content hereof without obligation to

notify any person of such revision or changes.

Edition 2005-2

Océ-Technologies B.V.

This manual is a part of a documentation set. The following table

displays the complete list.

Note: Visit Océ on the internet at www.oce.com for more

information.

Document Publication

medium Contents

Safety

manual Paper book ■Instructions for safe use.

■Safety data sheets.

Quick

reference

guide

Paper book ■A short description on how to operate the

Océ TDS100.

User manual CD-ROM ■A complete description on how tooperate

and maintain the Océ TDS100.

All manuals and user guides at all-guides.com

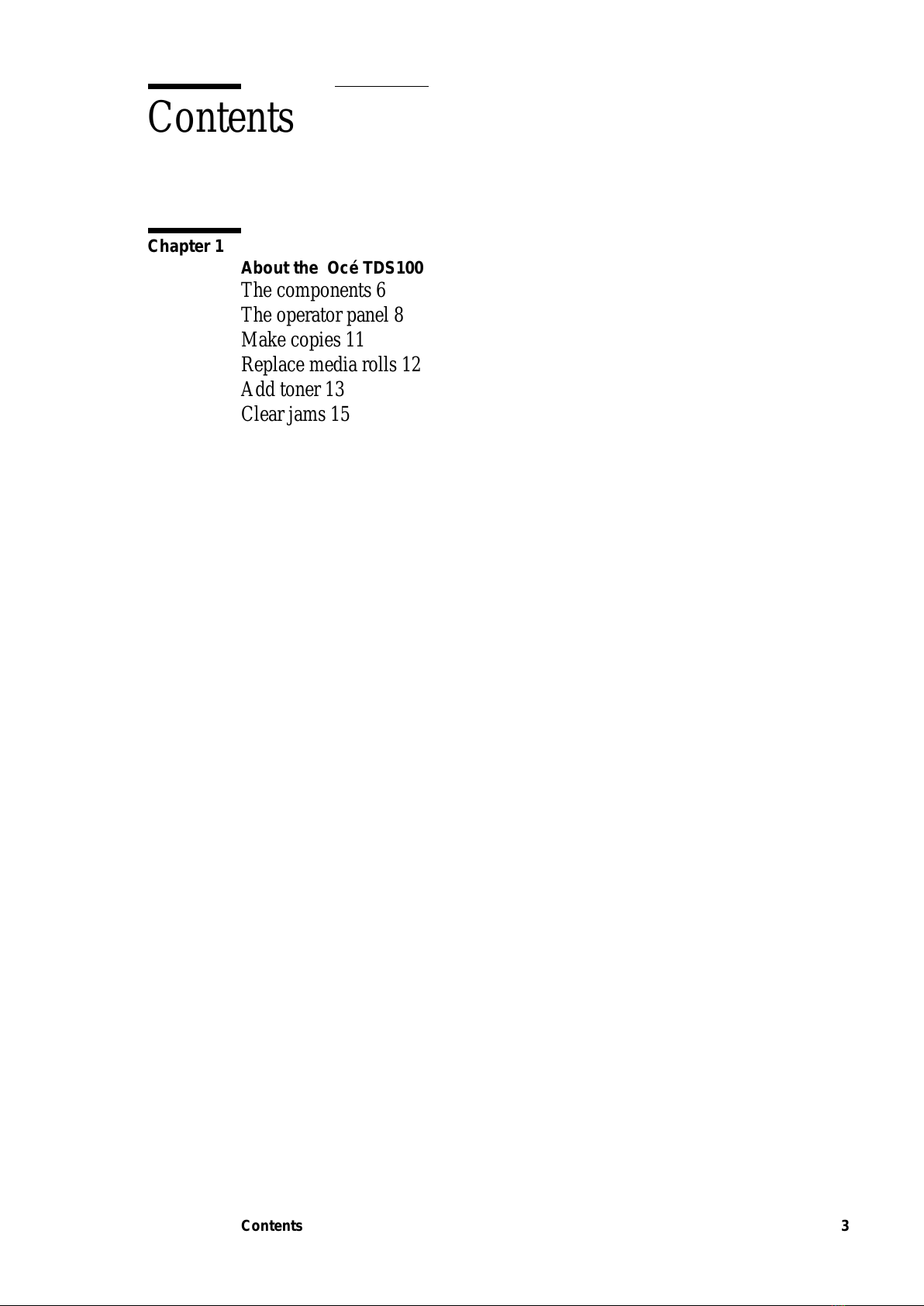

Contents 3

Contents

Chapter 1 About the Océ TDS100

The components 6

The operator panel 8

Make copies 11

Replace media rolls 12

Add toner 13

Clear jams 15

All manuals and user guides at all-guides.com

4 Quick reference guide

All manuals and user guides at all-guides.com

Océ TDS100

Quick reference guide

Chapter 1

About the Océ TDS100

All manuals and user guides at all-guides.com

6 Quick reference guide

The components

Nr. Component Function

1 On / off switch Turn on and off the Océ TDS100.

Note: The on / off switch is not visible in the

illustration.

2 Operator panel Set up, start and control the copy jobs.

3 Original feed table Feed the original.

4 Manual feed table Feed the media manually.

5 Roll 1 (drawer) Feed the media automatically from roll 1.

6 Roll 2 (door) Feed the media automatically from roll 2.

All manuals and user guides at all-guides.com

all-guides.com

About the Océ TDS100 7

Note: Some components may not be available on your Océ TDS100 due to the

differences between the configurations.

7 Integrated receiving

tray Receive the copies.

8 Top cover Give access to the transparent plate.

9 Fuser cover Give access to the fuser.

Note: The fuser is not visible in the

illustration.

10 Left cover Give access to the fill opening of the toner

reservoir, the waste toner bag and to the

handle of the fuser cover.

11 Middle cover Give access to the underside of the manual

feed table.

Nr. Component Function

All manuals and user guides at all-guides.com

8 Quick reference guide

The operator panel

-2

-4

media paper

roll 1

trailing

synchro

film

roll 2

leading

standard

feed

manual

strip

cut

toner media jam

1234 5

1413

All manuals and user guides at all-guides.com

About the Océ TDS100 9

The indicators

Nr. Indicator Function

1 'Toner' Indicate that the Océ TDS100 has run out of toner.

2 Green light Indicate that the copier is ready.

A blinking green light indicates that the copier runs a

copy job.

3 Red light Indicate that an error has occurred.

4'Media

jam'

■Indicate that the original or copy media has

jammed.

■Indicate that the media roll is empty for a 1 roll and

2 roll configuration.

■Indicate that you can remove the cut off strip

5Display■Display the media size when you change a roll.

■Display the strip length when you add or remove a

strip.

■Display a message code.

■Display the length of the original when you copy

manually on cut sheet media

All manuals and user guides at all-guides.com

10 Quick reference guide

The keys

Note: Some functions may not be available on your Océ TDS100 due to the

differences in the configurations.

Nr. Key Function

6 'Media' Select the media type.

7 'Feed' Select the media feed method.

8 Exposure Adjust the exposure.

Use the exposure setting to correct the background of

the copy.

9 'Strip' Select the edge for the strip.

■'Trailing'

Use the adjustment key to set the trailing strip length.

A positive value adds a strip, a negative value removes

a strip.

■'Leading'

Use the adjustment key to set the leading strip length.

A positive value adds a strip, a negative value removes

a strip.

10 Adjustment

key

■Adjust the strip length.

■Adjust the media size for a new roll.

■Adjust the media size for the standard cut size.

11 'Cut' Select the cut method.

■'Synchro' enables you to cut the copy to the same

size as the original.

■'Standard' enables you to cut the copy to the same

size as a standard size. Use the adjustment key to set

the standard size.

12 Copies Adjust the number of copies.

13 Stop ■When you press the stop key while the copier runs

a copy job, the copy job will stop.

■When you press the stop key once while you set up

a copy job, the number of copies returns to 1.

■When you press the stop key twice while you set up

a copy job, the default values return.

14 Start Start the copy job.
