Nauticam NA-D7000V User manual
0
1
Thank you for your purchase of a NAUTICAM digital camera housing.
At NAUTICAM, we pride ourselves on the ability to recognise the requirements of
professional as well as amateur underwater photographers and fulfill them
through the innovative designs of our products. We strive to achieve a high level
of user-friendliness by allowing stress-free installation and easy operation of all
important functions of the camera.
Each housing is individually inspected and water pressure tested to ensure
optimum quality.
Please read this manual carefully before using the housing, this will maximise its
performance as well as its lifetime.
2
1. All NAUTICAM Products are warranted against any material and manufacturing
defects for one year from the date of purchase for consumer use.
2. NAUTICAM accepts no liability for any damage to and defects in the housing
caused by improper use and/or poor maintenance; it is the responsibility of the
owner to carefully follow the instructions in this manual.
3. NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within the housing.
4. NAUTICAM accepts no liability for any loss of captured images or the inability
to capture images even if it is due to the malfunctioning or leakage of the
housing.
5. This warranty only applies to products purchased from authorised NAUTICAM
dealers and does not extend beyond the original retail purchaser.
6. Unauthorised modifications and/or repairs of the housing will automatically
invalidate this warranty.
7. To return products for service, please contact our regional distributor,
normally you would need to notify them by email first and ship them the
product by registered mail, along with your contact details and a brief
description of the defect.
3

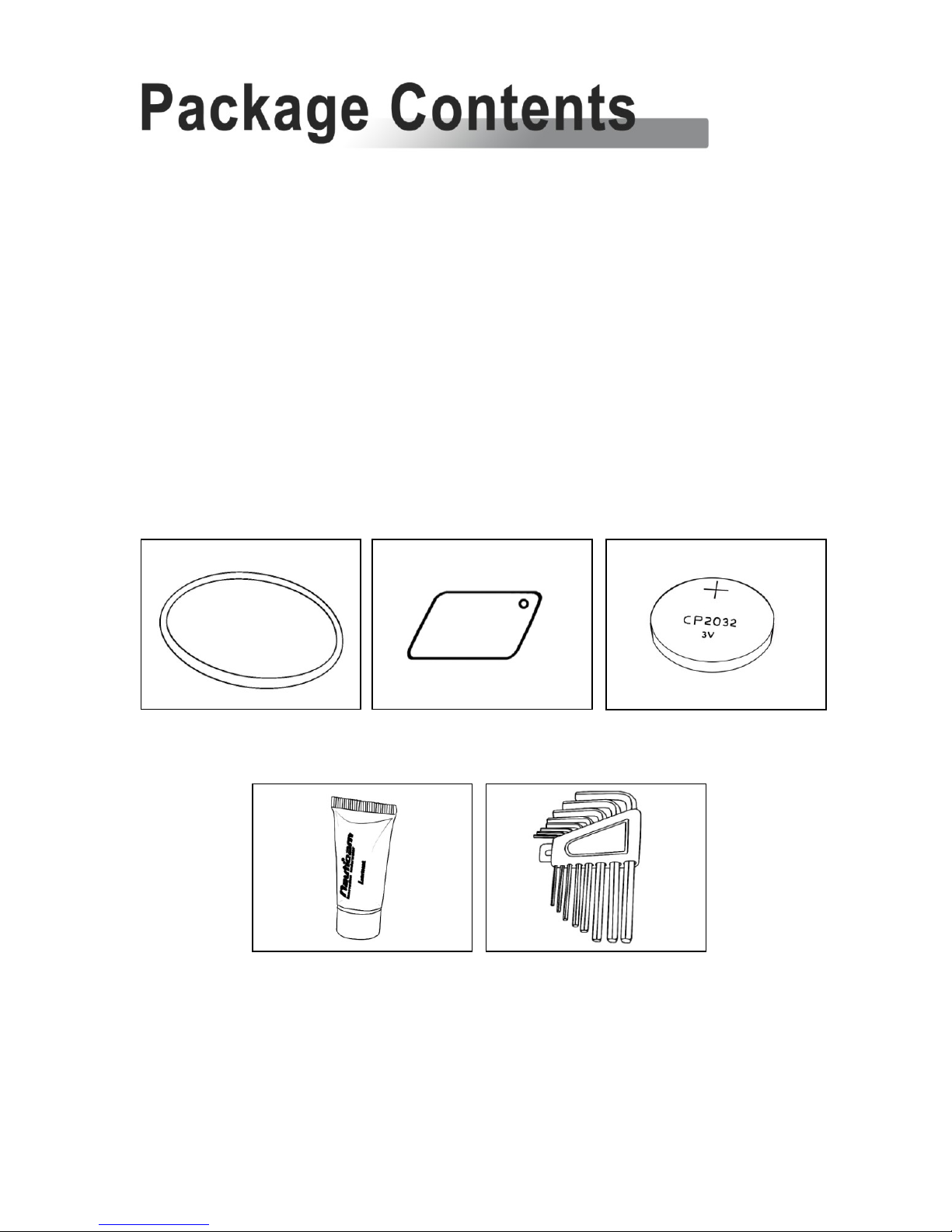

1. NA-D7000v housing
2. Instruction manual
3. Spare silicone rubber main o-ring
4. O-ring remover
5. CR2032 battery (for moisture alarm)
6. Lubricant
7. Set of Allen keys
Spare silicone rubber o-ring
Lubricant
Set of Allen keys
CR2032 battery
O-ring remover
4
1. A water-tight test without the camera inside the housing is highly
recommended when using the system for the first time and after the changing
of port and O-ring(s).
2. Do not use lubricants from other brands with the silicone rubber O-ring on this
housing, only use the lubricant provided by NAUTICAM.
3. Discontinue use immediately should you notice any leakage.
4. Store the housing in a robust, shock-proof container during transportation;
avoid transporting with any equipment, such as a camera, inside the housing.
5. When travelling by air, do not close the housing if the port is installed, as this
may lead to a pressure difference between the atmosphere and inside the
housing.
6. Care must be taken when opening the housing, as pressure may build up inside
the housing which increases the opening force.
7. Do not open the product in a wet or sandy environment. Protect the interior
from moisture and debris in order to prevent malfunction or leakage.
8. Do not store the product in an environment of high humidity.
9. Do not leave the housing and the camera in direct sunlight for prolonged
periods.
10. Keep out of reach of children, failure to do so could result in injury.
11. Defective products should be shipped to our distributors for service,
unauthorized disassembling and/or modifications could result in malfunction
or leakage.
5
Specifications
6
Identification of Parts
7
Preparation of the Housing
12
Opening and Closing the Housing
15
Installing the Camera
16
Flash Operation
19
Mounting the Port
20
Connecting the Strobe System
22
Changing the Viewfinder
26
Care and Maintenance
28
6
Construction
Housing body:
Aluminium alloy
Surface treatment:
Hard anodised
Display window:
Abrasion resistant polycarbonate
Grip handles:
Polycarbonate and rubber
Dimensions
(with handles)
Width:
326 mm
Height:
172 mm
Depth:
125 mm
Weight
2.55 kg (without camera)
Buoyancy
Slightly negative
Depth rating
100 metres
Features
Moisture alarm:
Blinking LED and audible alarm
Viewfinder:
0.66X viewfinder
TTL capability:
Single Nikonos 5-pin bulkhead (optional)
2 optical bulkheads utilising on camera
pop-up flash as commmander
Port mount:
Patented port locking lever for easy port
installation.
Exposure
compensation lever
Allows easy exposure adjustments from
the right handle.
Flash up/off lever:
Allows the camera’s built-in flash to be
disabled underwater.
Live view
lever/Movie record
button
Specially designed for the easy operation
of the movie recording.

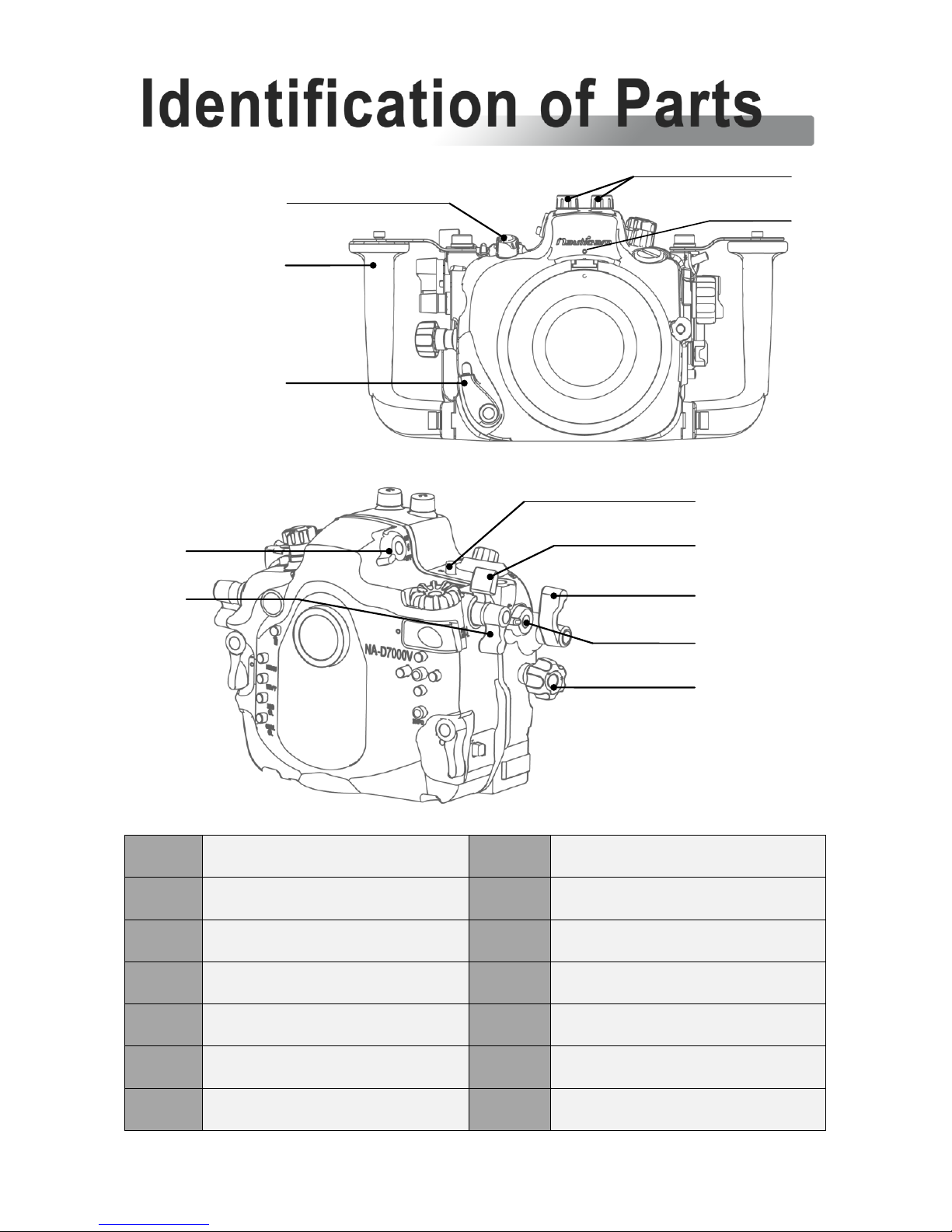

7
1
On/Off control knob
8
Metering button
2
Grip handle x 2
9
Live view lever
3
Port lock/release lever
10
Shutter release lever
4
Optical bulkhead for strobe
connections x 2
11
Exposure compensation lever
5
Port alignment index
12
Sub-command knob
6
Flash up/off lever
7
AE-L/AF-L lever
6
7
8
9
10
11
12
5
4
3
1
2

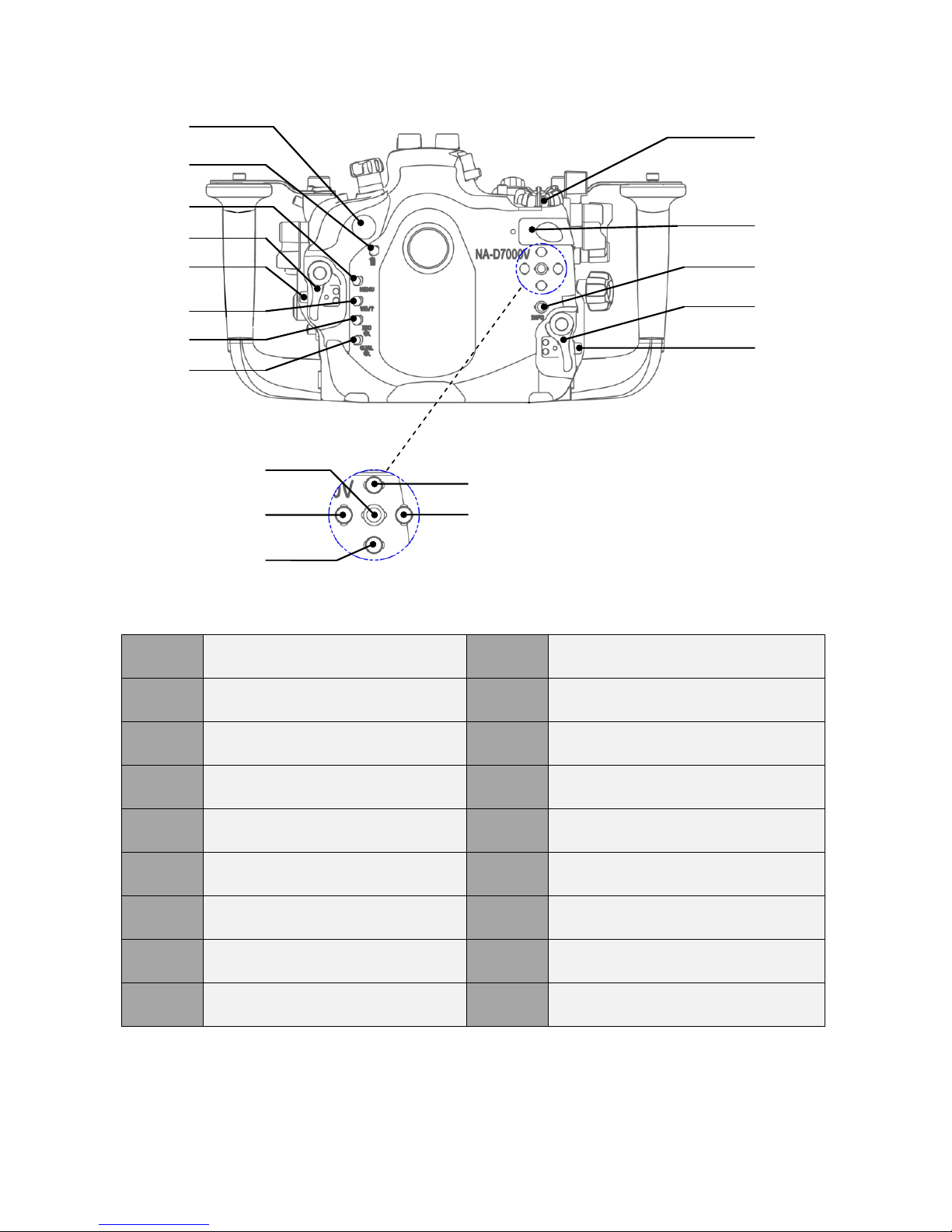

8
14
Moisture alarm window
23
Movie record button
15
Delete button
24
Info button
16
Menu button
25
Housing lock (R)
17
Housing lock (L)
26
Housing lock safety button (R)
18
Housing lock safety button (L)
27
OK button
19
Help/White balance button
28
Left selection button
20
Thumbnail/Playback zoom out
button
29
Down selection button
21
Playback zoom in/Image quality
button
30
Up selection button
22
Main command knob
31
Right selection button
30
31
27
28
29
22
23
24
25
26
14
15
16
17
18
19
20
21

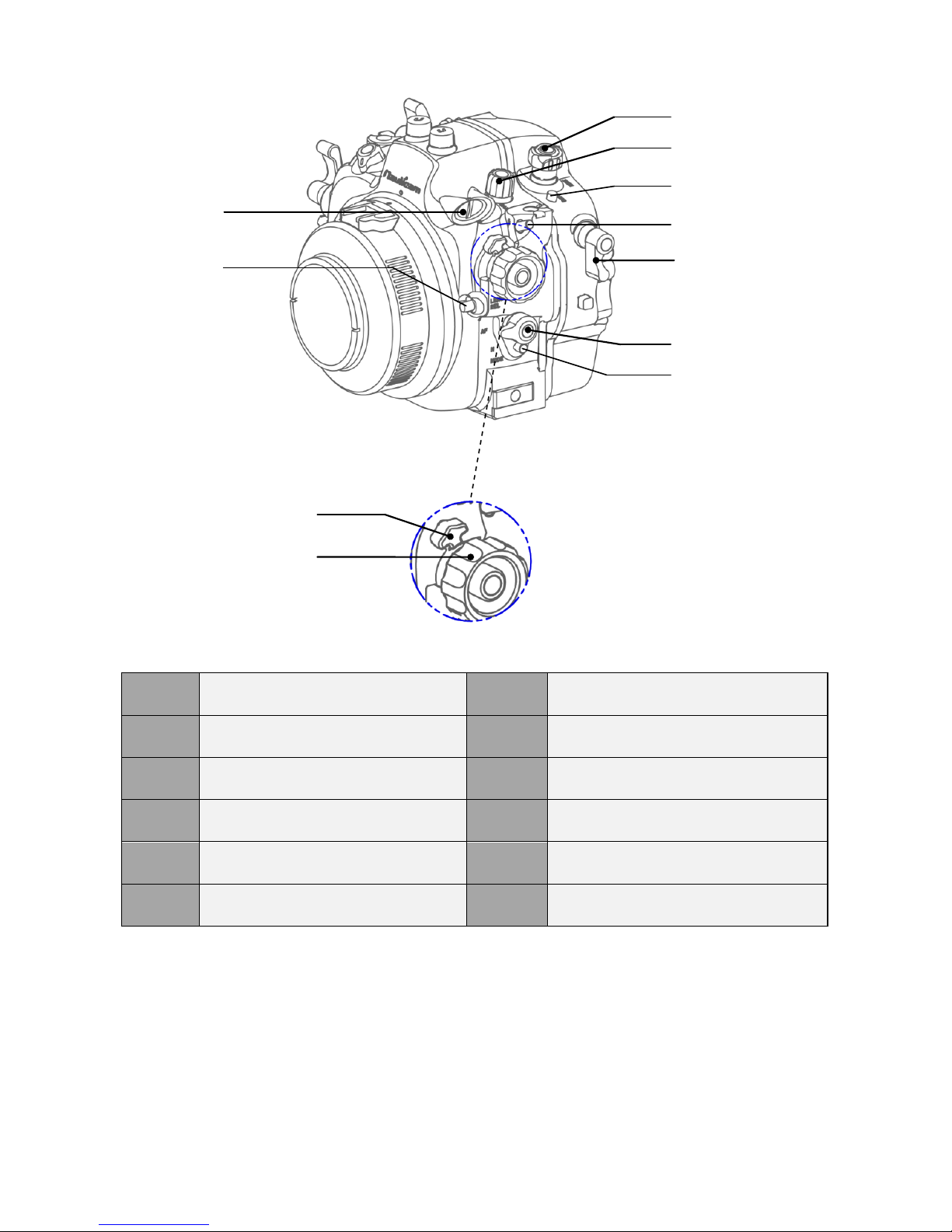

9
32
M16 optional accessory port
38
Playback lever
33
Lens release button
39
Focus mode selection knob
34
Mode knob
40
AF mode button
35
Release mode knob
41
Zoom/focus gear disengagement
lever
36
Release mode dial lock release
button
42
Zoom/focus knob
37
Flash mode/flash compensation
button
34
35
36
37
38
39
40
32
33
41
42
