Nauticam NA-60D User manual

Thank you for your purchase of a NAUTICAM digital camera housing.

At NAUTICAM, we pride ourselves on the ability to recognise the requirements of

professional as well as amateur underwater photographers and fulfill them

through the innovative designs of our products. We strive to achieve a high level

of user-friendliness by allowing stress-free installation and easy operation of all

important functions of the camera.

Each NA-60D housing is individually inspected and water pressure tested to 150

metres to ensure optimum quality.

Please read this manual carefully before using the housing, this will maximise its

performance as well as its lifetime.

1. All NAUTICAM Products are warranted against any material and manufacturing

defects for one year from the date of purchase for consumer use.

2. NAUTICAM accepts no liability for any damage to and defects in the housing

caused by improper use and/or poor maintenance; it is the responsibility of the

owner to carefully follow the instructions in this manual.

3. NAUTICAM does not hold responsibility for damage, of any nature, to any

equipment used with and/or placed within the housing.

4. NAUTICAM accepts no liability for any loss of captured images or the inability

to capture images even if it is due to the malfunctioning or leakage of the

housing.

5. This warranty only applies to products purchased from authorised NAUTICAM

dealers and does not extend beyond the original retail purchaser.

6. Unauthorised modifications and/or repairs of the housing will automatically

invalidate this warranty.

7. To return products for service, please contact our regional distributor,

normally you would need to notify them by email first and ship them the

product by registered mail, along with your contact details and a brief

description of the defect.

1. NA-60D housing

2. Instruction manual

3. Warranty card

4. Spare silicone rubber main o-ring

5. O-ring remover

6. CR2032 battery (for moisture alarm)

7. Lubricant

8. Set of Allen keys

Spare silicone rubber o-ring

Lubricant

Set of Allen keys

CR2032 battery

O-ring remover

1. A water-tight test without the camera inside the housing is highly

recommended when using the system for the first time and after the changing

of port and O-ring(s).

2. Do not use lubricants from other brands with the silicone rubber O-ring on this

housing, only use the lubricant provided by NAUTICAM.

3. Discontinue use immediately should you notice any leakage.

4. Store the housing in a robust, shock-proof container during transportation;

avoid transporting with any equipment, such as a camera, inside the housing.

5. When travelling by air, do not close the housing if the port is installed, as this

may lead to a pressure difference between the atmosphere and inside the

housing.

6. Care must be taken when opening the housing, as pressure may build up inside

the housing which increases the opening force.

7. Do not open the product in a wet or sandy environment. Protect the interior

from moisture and debris in order to prevent malfunction or leakage.

8. Do not store the product in an environment of high humidity.

9. Do not leave the housing and the camera in direct sunlight for prolonged

periods.

10. Keep out of reach of children, failure to do so could result in injury.

11. Defective products should be shipped to our distributors for service,

unauthorized disassembling and/or modifications could result in malfunction

or leakage.

Specifications

Identification of Parts

Preparation of the Housing

Opening and Closing the Housing

Installing the Camera

Mounting the Port

Changing the Viewfinder

Care and Maintenance

Optional Accessories

Construction

Housing body:

Aluminium alloy

Surface treatment:

Hard anodised

Display window:

Abrasion resistant polycarbonate

Grip handles:

Polycarbonate and rubber

Dimensions

(with handles)

Width:

334 mm

Height:

165 mm

Depth:

125 mm

Weight

2.62 kg (without camera)

Buoyancy

Slightly negative

Depth rating

100 metres

Features

Moisture alarm:

Blinking LED and audible alarm

Viewfinder:

0.66X viewfinder

TTL capability:

Optional 6-pin bulkhead

2 optical bulkheads utilising camera’s pop-

up flash as commmander

Port mount:

Patented port locking lever for easy port

installation.

ISO speed setting

lever

Allows effortless ISO speed adjustments

from the right handle.

AF-ON lever

Easily accessed from the right handle.

Live view

shooting/Movie

shooting lever

M14 optional accessory

bulkhead

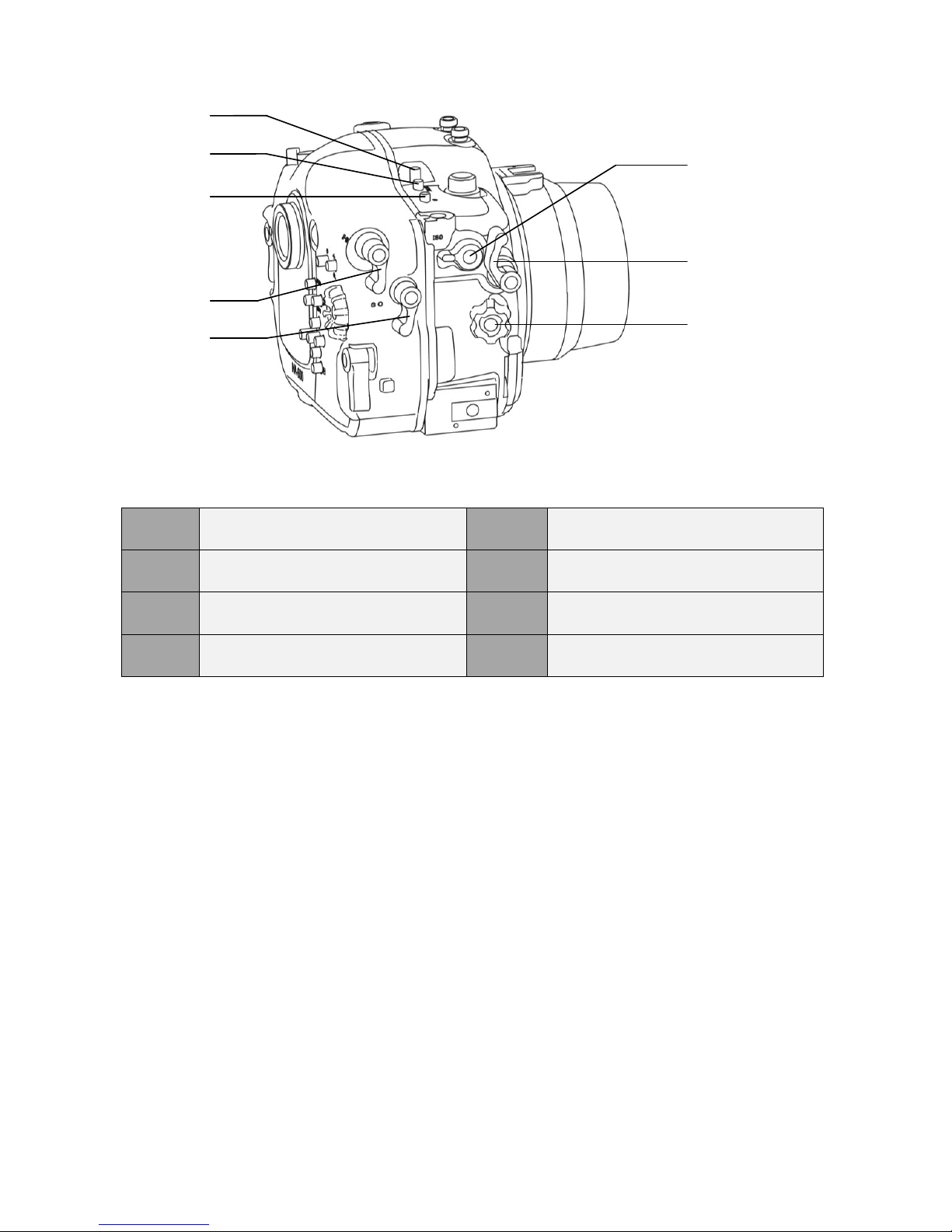

Grip handle x 2

Port lock/release lever

Mode knob

Optical bulkhead for strobe

connections x 2

Zoom/focus knob

M10 strobe mounting base x 2

Lens release button

ON/OFF lever

Quick control button

Delete button

Info button

Housing lock safety button x 2

Playback button

Housing lock x 2

Up selection button

Moisture alarm window

Right selection button

AE lock/FE lock button

Index/Reduce button

Set button

AF point selection/Magnify

button

Left selection button

Quick control dial

Down selection button

Menu button

AF mode selection button

Live view shooting/Movie

shooting lever

Drive mode selection button

ISO speed setting lever

Metering mode selection button

Shutter release lever

AF-ON lever

Main dial
