National Instruments SbRIO-9608 User manual

Quick Reference Guide

sbRIO-9608

Kit Contents

Screwdriver

Serial/CAN

Cable

Standoffs

and Screws

Documentation Driver Media USB Cable

Power Supply

sbRIO-9608

RMC Breakout

Board

Information is subject to change without notice. Refer to the NI Trademarks and Logo Guidelines at ni.com/trademarks for more information on NI trademarks.

Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering NI products/

technology, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your media, or the National Instruments Patents Notice at

ni.com/patents. You can find information about end-user license agreements (EULAs) and third-party legal notices in the readme file for your NI product. Refer

to the Export Compliance Information at ni.com/legal/export-compliance for the NI global trade compliance policy and how to obtain relevant HTS codes,

ECCNs, and other import/export data. NI MAKES NO EXPRESS OR IMPLIED WARRANTIES AS TO THE ACCURACY OF THE INFORMATION CONTAINED HEREIN

AND SHALL NOT BE LIABLE FOR ANY ERRORS. U.S. Government Customers: The data contained in this manual was developed at private expense and is subject

to the applicable limited rights and restricted data rights as set forth in FAR 52.227-14, DFAR 252.227-7014, and DFAR 252.227-7015.

For a complete list of resources go to the following URL: n i.c o m /r/s b r io

Connect to the Host Computer via Ethernet

1. Power on the host computer.

2. Connect the sbRIO-9608 to the host computer using a standard Category 5

(CAT-5) or better shielded, twisted-pair Ethernet cable.

Connect to Power

1. Ensure that your power supply is powered off.

2. Insert the power connector plug into the power connector receptacle of

the sbRIO-9608 until the connector latches into place.

3. Turn on the power supply.

Connect to the Host Computer via USB

1. Power on the host computer.

2. Connect the USB Type-C 2.0 device port of the sbRIO-9608 to the

host computer using a Type-C to Type-A USB cable.

377895A-03 Aug19

sbRIO-9608

Intel Atom E3805

Dual-Core

1.33 GHz Processor

UARTRS-232

NI-DAQmx

Technology

Real-Time

Clock

Temperature

Sensors

Watchdog

4 GB

eMMC Disk

1 GB

DDR3L

RS-232

Console Out

RJ-45TSN Gigabit

Ethernet Port

RJ-45TSN Gigabit

Ethernet Port

USB 2.0 Device

Type-C Connector

XCVR

PHY

CAN Port

5 V

3.3 V_AUX

SATA 2.0

PCIe x1 Gen 2

USB 2.0

VBAT

USB 3.1 Host

Type-C Connector

Battery Holder

(BR1632)

High-Speed CAN

Xilinx Artix-7 75T

RMC Connector

(240-pin 60x4 Searay)

2.5 V/3.3 V

Power Selector

2.5 V/3.3 V

Power Selector

FPGA_VIO [0-47]

Digital I/O [0-47], SE/LVDS

Digital I/O [48-95], SE/LVDS

FPGA_VIO [48-95]

CAN Port CAN

Controller

9-30 VDC

Input

Power

Selection and

Protection

On-board

Power

Supplies

Configurable per Module

NI-DAQmx

Technology

Xilinx Artix-7 200T

Optional System

Power 9-30 VDC

2x C Series

Module Interface

Power

Connector

LabVIEW FPGA API Data Path

Processor Data Path

NI-DAQmx API Data Path

Power Path

External Connector/Port

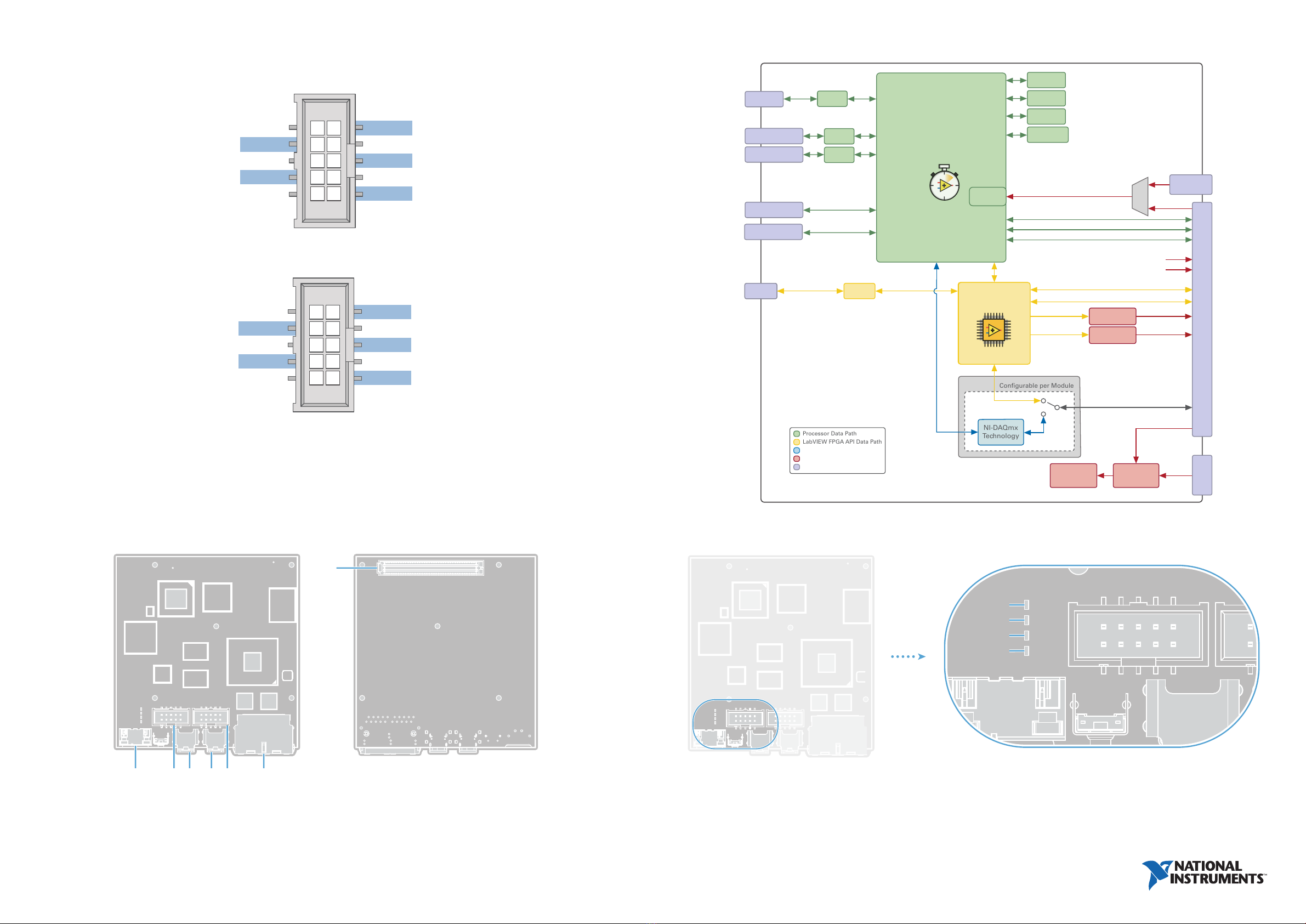

sbRIO-9608 Block Diagram

V– (GND)

Shield

CAN_H

CAN_L

V– (GND)

Shield

CAN Pinout

DCD

TXD

GND

RTS

RXD

DTR

DSR

CTS

Shield

RS-232 (ASRL1) Pinout

1 32 4 5 6

1. Power LED

2. Status LED

3. User1 LED

4. User FPGA1 LED

1. Power terminal 5. RS-232 serial port with Console Out

2. CAN port 6. RJ-45 Gigabit Ethernet ports

3. USB Type-C 2.0 device port 7. RMC connector

4. USB Type-C 3.1 host port

sbRIO-9608 LEDs

sbRIO-9608 Parts Locator Diagram
