National Instruments CFP-22 Series User manual

FIELDPOINT OPERATING INSTRUCTIONS AND SPECIFICATIONS

cFP-2200/2210/2220/2220A

Intelligent Real-Time Controllers for Compact FieldPoint

Figure 1. cFP-22xx, Front and Bottom Views

1 RS-232 Serial Port

2 RJ-45 Ethernet Port 1

3 Removable Compact Flash (cFP-2220 and

cFP-2220A Only)

4 Status LED

5 Power LED

6 User-Configurable LEDs

7 DIP Switches

8 USB Port (cFP-2220 Only)

9 RJ-45 Ethernet Port 2 (cFP-2220 and

cFP-2220A Only)

10 Reset Button

11 Power Connector

12 Digital Input/Output Terminals (cFP-2220 and

cFP-2220A Only)

13 RS-485 Serial Port (cFP-2220 and cFP-2220A Only)

14 RS-232 Serial Port (cFP-2220 and cFP-2220A Only)

15 RS-232 Serial Port (cFP-2210, cFP-2220, and

cFP-2220A Only)

BottomBottom

Front

PRELIMINARY

cFP-2200/2210/2220/2220A 2 ni.com

This document describes how to mount the cFP-2200/2210/2220/2220A

controllers, how to connect the controllers to networks, and how to use

the features of the controllers. This document also contains specifications

for the controllers. In this document, the cFP-2200/2210/2220/2220A

controllers are referred to inclusively as the cFP-22xx.

Safety Guidelines

Operate the cFP-22xx only as described in these operating instructions.

Safety Guidelines for Hazardous Locations

The cFP-22xx is suitable for use in Class I, Division 2, Groups A, B, C, D,

T4 hazardous locations; Class 1, Zone 2, AEx nL IIC T4 and Ex nL IIC T4

hazardous locations; and nonhazardous locations only. Follow these

guidelines if you are installing the cFP-22xx in a potentially explosive

environment. Not following these guidelines may result in serious injury or

death.

Caution Do not disconnect the power supply wires and connectors from the controller

unless power has been switched off.

Caution Substitution of components may impair suitability for Class I, Division 2.

Caution For Zone 2 applications, install the Compact FieldPoint system in an enclosure

rated to at least IP 54 as defined by IEC 60529 and EN 60529.

Caution For Zone 2 applications, install a protection device across the external power

supply and the COM terminal. The device must prevent the external power supply voltage

from exceeding 42 V if there is a transient overvoltage condition.

Special Conditions for Hazardous Locations Use

in Europe

The cFP-2200, cFP-2210, and cFP-2220A have been evaluated as Ex nL

IIC T4 equipment under DEMKO Certificate No. 08 ATEX 0724339X.

Each controller is marked II 3G and is suitable for use in Zone 2

hazardous locations. If you are using the cFP-2200, cFP-2210, or

cFP-2220A in Gas Group IIC hazardous locations,youmustensure that the

ambient temperature is within the range –40 ≤Ta ≤70 °C, and you must use

the controller in an NI backplane that has been evaluated as Ex nL IIC T4

equipment. Because of the USB interface, the cFP-2220 is not marked with

the II 3G label and is not suitable for use in Zone 2 hazardous locations.

PRELIMINARY

©National Instruments Corporation 3 cFP-2200/2210/2220/2220A

Special Conditions for Marine Applications

Some products are Lloyd’s Register (LR) Type Approved for marine

applications. To verify Lloyd’s Register certification, visit ni.com/

certification and search for the LR certificate, or look for the Lloyd’s

What You Need to Install the cFP-22xx

❑cFP-22xx intelligent real-time controller

❑cFP-BP-4 or cFP-BP-8 Compact FieldPoint backplane

❑Compact FieldPoint I/O modules

❑Compact FieldPoint connector blocks and/or cables

❑Ethernet cable

❑Mounting hardware (DIN rail, panel-mount, or rack-mount accessory)

❑Two M4 or number 10 panhead screws (for panel mounting only)

❑Number 2 Phillips screwdriver

❑14 AWG (1.6 mm) wire with ring lug to fit #8 screw

❑11–30 VDC Power supply

❑PC running Windows

❑FieldPoint software 6.0.1 or later

❑LabVIEW Real-Time Module 8.5.1 or later

Mounting the Compact FieldPoint Backplane

You can mount the cFP-BP-xbackplane on a 35 mm DIN rail, on a panel,

or in a standard 19 in. rack. NI recommends DIN rail mounting for the

cFP-BP-4 only. Use panel mounting or rack mounting for the cFP-BP-8.

Use the panel mounting method for high shock and vibration applications.

Before using anymounting method,record the serial number from the back

of the backplane. You will be unable to read the serial number after you

have mounted the backplane.

Each set of mounting instructions in this document includes an instruction

to connect the protective earth (PE) ground terminal on the cFP-BP-x

backplane to the system safety ground. The backplane PE ground terminal

PRELIMINARY

cFP-2200/2210/2220/2220A 4 ni.com

has the following symbol stamped beside it: . Connect the backplane PE

ground terminal to safety groundusing 14 AWG (1.6 mm) wire with a ring

lug. Use the 5/16 in. panhead screw shipped with the backplane to secure

the ring lug to the backplane PE ground terminal.

To ensure maximum cooling efficiency, mount the Compact FieldPoint so

that the I/O module vents are at the top and bottom, as shown in the

following figure:

Figure 2. cFP-22xx Installed on cFP-BP-4 Mounted Upright

Caution Your installation must meet the following requirements for space and cabling

clearance:

• Allow at least 51 mm (2 in.) all around the backplane for air circulation.

• Allow 38 mm (1.5 in.) below and 51 mm (2 in.) above the controller.

PRELIMINARY

©National Instruments Corporation 5 cFP-2200/2210/2220/2220A

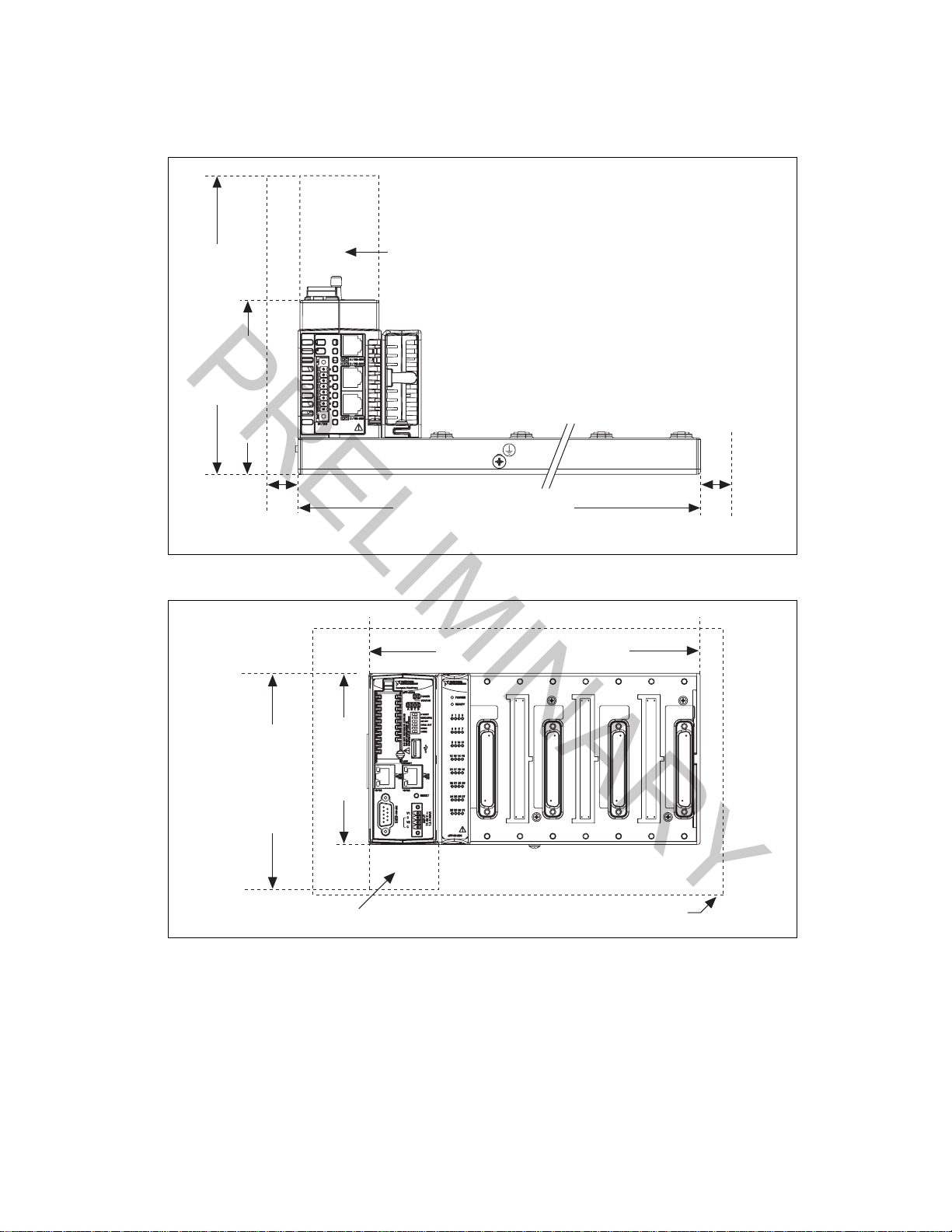

Figure 3. cFP-22xx Installed on cFP-BP-x, Bottom View with Dimensions

Figure 4. cFP-22xx Installed on cFP-BP-4, Front View with Dimensions

Cabling

Clearance

4 slots= 246 mm (9.68in.)

8slots= 441 mm (17.4 in.)

Coolin

Outline 51 mm (2 in.) Coolin

Outline 51 mm (2 in.)

Min. 182 mm (7.18in.)

106 mm (4.18in.)

Cabling Clearance Cooling Outline 51 mm (2 in.) All Around

4 slots= 246 mm (9.68in.)

8slots= 441 mm (17.4 in.)

127 mm

(5.00 in.)

Min. 165 mm

(6.50 in.)

PRELIMINARY

cFP-2200/2210/2220/2220A 6 ni.com

Figure 5. cFP-BP-8, Back View with Dimensions

Figure 6. cFP-BP-4, Back View with Dimensions

Caution Make sure that no I/O modules are in the backplane before mounting it.

104.78 mm

(4.1 in.)

63.50 mm

(2.5 in.)

22.23 mm

(0.9 in.)

33.15 mm

(1.3 in.)

129.54 mm

(5.1 in.)

311.40 mm

(12.3 in.)

387.60 mm

(15.3 in.)

407.80 mm

(16.1 in.)

127.00 mm

(5.0 in.)

440.94 mm

(17.4 in.)

104.74 mm

(4.1 in.)

63.46 mm

(2.5 in.)

127.00 mm

(5.0 in.)

22.19 mm

(0.9 in.)

34.04 mm

(1.3 in.)

84.84 mm

(3.3 in.)

161.04 mm

(6.3 in.)

211.84 mm

(8.3 in.)

245.87 mm

(9.6 in.)

PRELIMINARY

©National Instruments Corporation 7 cFP-2200/2210/2220/2220A

Mounting the Backplane on a DIN Rail

The DIN rail mounting kit is NI part number 778614-01. You need one kit

to mount the cFP-BP-4 on a standard 35 mm DIN rail. Complete the

following steps to mount the backplane on a DIN rail.

1. Fasten the DIN rail clip to the cFP-BP-4 using a number 2 Phillips

screwdriver and the 8-32 ×5/16 in. countersink screws shipped with

the mounting kit.

Figure 7. Installing the DIN Rail Clip on the cFP-BP-4

Caution Do not use screws longer than 5/16 in. to fasten the DIN rail clip to the backplane.

2. Insert one edge of the DIN rail into the deeper opening of the DIN rail

clip, as shown in Figure 8.

Figure 8. One Edge of DIN Rail Inserted in Clip

3. Press down firmly on the backplane to compress the spring until the

clip locks in place on the DIN rail.

1 DIN Rail Clip 2 DIN Rail Spring 3DINRail

NATIONAL

INSTRUMENTS

PRELIMINARY

cFP-2200/2210/2220/2220A 8 ni.com

4. Connect the PE ground terminal on the backplane to safety ground.

Caution Disconnect power and make sure that no I/O modules are in the backplane before

removing it from the DIN rail.

Mounting the Backplane on a Panel

The horizontal panel-mount kit has mounting holes on the sides of the

backplane and is NI part number 778616-01. The vertical panel-mount kit

has mounting holes on the top and bottom of the backplane and is NI part

number 778688-01. Complete the following steps to mount the system on

a flat surface.

1. Fasten the panel-mount plates to the back of the cFP-BP-xusing a

number 2 Phillips screwdriver and the 8-32 ×5/16 in. countersink

screws shipped with the kit. You must use these screws because they

are the correct depth and thread for the plates and backplane.

Figure 9. Installing the Horizontal Panel-Mount Kit on the cFP-BP-4

NATIONAL

INSTRUMENTS

PRELIMINARY

©National Instruments Corporation 9 cFP-2200/2210/2220/2220A

Figure 10. cFP-BP-4 with Horizontal Panel Mount Kit Installed,

Front View with Dimensions

Figure 11. cFP-BP-8 with Horizontal Panel-Mount Kit Installed,

Front View with Dimensions

Figure 12. Installing the Vertical Panel-Mount Kit on the cFP-BP-4

260 mm (10.25 in.)

102 mm

(4 in.)

102 mm

(4 in.)

457 mm (18 in.)

NATIONAL

INSTRUMENTS

PRELIMINARY

cFP-2200/2210/2220/2220A 10 ni.com

Figure 13. cFP-BP-4 with Vertical Panel-Mount Kit Installed,

Front View with Dimensions

Figure 14. cFP-BP-8 with Vertical Panel-Mount Kit Installed,

Front View with Dimensions

2. Bolt or screw the plates to a panel.

3. Connect the PE ground terminal on the cFP-BP-x to safety ground.

Caution Disconnect power and make sure that no I/O modules are in the backplane before

removing it from the panel.

178 mm (7 in.)

152 mm (6 in.)

246 mm (9.7 in.)

178 mm (7.0 in.)

34.0 mm (1.34 in.)

7.6 mm (0.30 in.)

17.8 mm (0.70 in.)

457 mm (18 in.)

374 mm (14.7 in.)

178 mm (7 in.)

152 mm (6 in.)

33.1 mm (1.31 in.)

7.6 mm

(0.30 in.)

17.8 mm

(0.70 in.)

PRELIMINARY

This manual suits for next models

Table of contents

Other National Instruments Controllers manuals

National Instruments

National Instruments cDAQ-9133 User manual

National Instruments

National Instruments RMC-8357 User manual

National Instruments

National Instruments PXI-8186 User manual

National Instruments

National Instruments cRIO-9064 User manual

National Instruments

National Instruments AT-GPIB/TNT User manual

National Instruments

National Instruments FlexRIO NI-7931R User manual

National Instruments

National Instruments PXI-8231 User manual

National Instruments

National Instruments CompactRIO cRIO-9002 User manual

National Instruments

National Instruments NI PXIe-8840 User manual

National Instruments

National Instruments NI cRIO-9065 User manual

National Instruments

National Instruments Two-Slot Embedded Controller NI PXI-8183 User manual

National Instruments

National Instruments 7340 User manual

National Instruments

National Instruments AT-GPIB/TNT User manual

National Instruments

National Instruments GPIB-VXI/C User manual

National Instruments

National Instruments IC-3173 User manual

National Instruments

National Instruments RMC-8354 User manual

National Instruments

National Instruments CMS-9068 Assembly Instructions

National Instruments

National Instruments PCI-GPIB User manual

National Instruments

National Instruments NI 7340 User manual

National Instruments

National Instruments 73 Series User manual

National Instruments

National Instruments cRIO-9039 User manual

National Instruments

National Instruments GPIB-232CT-A IBCL EPROM User manual

National Instruments

National Instruments NI cRIO-905x Series User manual

National Instruments

National Instruments sbRIO-9608 User manual

Popular Controllers manuals by other brands

Digiplex

Digiplex DGP-848 Programming guide

YASKAWA

YASKAWA SGM series user manual

Sinope

Sinope Calypso RM3500ZB installation guide

Isimet

Isimet DLA Series Style 2 Installation, Operations, Start-up and Maintenance Instructions

LSIS

LSIS sv-ip5a user manual

Rockwell Automation

Rockwell Automation 1769-L31 installation instructions

Airflow

Airflow Uno hab Installation and operating instructions

ABB

ABB ACS580-01 drives Hardware manual

Panasonic

Panasonic GM1 Series Reference manual

Emerson

Emerson SW93 owner's manual

AutoAqua

AutoAqua Smart ATO micro SATO-120P manual

Panasonic

Panasonic FP? Positioning Unit RTEX Technical manual

Samson

Samson Type 5824 Mounting and operating instructions

Alpha IP

Alpha IP MIOB 21001 manual

Siemens

Siemens OpenAir GMA 1 Series Mounting instructions

Surecom

Surecom SR-629 user manual

Fishman

Fishman TriplePlay installation guide

Regulus

Regulus SRS1 T Installation and operation manual

National Instruments cFP-22 Series User manual

Popular Controllers manuals by other brands
