Multitech MT5634ZPX-PCl User manual

Model MT5634ZPX-PCl

Internal Data/Fax/Voice Modem

Quick Start Guide

MultiModemZPX-PCI

82095520

This publication may not be reproduced, in whole or in part, without prior

Multi-Tech Systems, Inc. makes no representations or warranties with respect to

the contents hereof and specifically disclaims any implied warranties of

merchantability or fitness for any particular purpose. Furthermore, Multi-Tech

Systems, Inc. reserves the right to revise this publication and to make changes

from time to time in the content hereof without obligation of Multi-Tech Systems,

Inc. to notify any person or organization of such revisions or changes.

Record of Revisions

Revision Description

AManual Released

(3/26/99)

BManual updated to include installation instructions for

(3/31/00) Windows 98, Windows NT, WIndows 2000, Linux, SCO Open

Server and Multi-Tech’s Global Wizard

Trademarks of Multi-Tech Systems, Inc. are as follows: MultiModem,

MultiModemII, MultiModem, MultiModemZPX, Multi-Tech, and the Multi-Tech logo.

Pentium is a trademark of Intel Corporation.

Adobe Acrobat Reader is a trademark of Adobe Systems Incorporated.

AT&T is a trademark of American Telephone and Telegraph Co.

SCO OpenServer is a trademark of Santa Cruz Operation, Inc.

Windows , 95, 98, NT and 2000 are registered trademarks of Microsoft.

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, Minnesota 55112 U.S.A.

(763) 785-3500 or (800) 328-9717

U. S. FAX (763) 785-9874

Technical Support (800) 972-2439

Internet Address: http://www.multitech.com

iii

Contents

Introduction ............................................................................. 4

Product Description................................................................. 4

RelatedDocumentation........................................................... 6

Adobe Acrobat Reader ............................................................... 6

The MultiModemZPX-PCI User Guide ........................................ 6

Saving and Printing the User Guide ............................................ 6

Installation Overview ............................................................... 7

Safety Warnings...................................................................... 7

Unpacking Your Modem .......................................................... 8

What You’ll Need..................................................................... 8

Installing the Hardware............................................................ 9

Connecting Your Modem ......................................................... 9

Sound Card Considerations ...................................................11

Installing Software................................................................. 12

Windows 95 ............................................................................... 12

Windows 98 ............................................................................... 13

Windows NT .............................................................................. 15

Windows 2000 ........................................................................... 22

Linux .......................................................................................... 25

SCO OpenServer ...................................................................... 27

Initial Setup & Country Selection ........................................... 29

Limited Warranty ................................................................... 31

Technical Support.................................................................. 31

MT5634ZPX-PCI Quick Start Guide

Introduction

Congratulations

on your purchase of one of the finest internal

data/fax/voice modems available today - the MultiModemZPX™

from Multi-Tech Systems.

Product Description

One Modem, Worldwide Use. The MT5634ZPX-PCI is designed

for global applications with approvals in more than 22 countries.

This means one modem can ship around the world. The global

modem is ideal for businesses with global operations that want to

standardize on one modem and are looking to simplify the ordering

process. Go to www.multitech.com to see a complete list of all the

countries for which this modem has approvals.

The MultiModemZPX-PCI is an internal, half-length, fax modem

card that can be plugged into any PCI slot. Your MultiModemZPX-

PCI incorporates

V.90/K56flex

modem technology, which enables

Internet connections at data rates up to 56 Kbps over standard

telephone lines. V.90/K56flex technology is able to propel data

downstream from the Internet to your computer at speeds of up to

56 Kbps because data is digitally encoded instead of modulated.

Upstream transmission, mostly keystroke and mouse commands

from your computer to the central site, continues to flow at the

conventional data rate of 33.6 Kbps.

Note: Though this modem is capable of 56 Kbps

download performance, line impairments, public telephone

infrastructure, and other external technological factors

currently prevent maximum 56 Kbps connections.

Your MultiModemZPX-PCI offers interactive automatic dialing, as

well as command mode option configuration. You can store two

command line/telephone numbers, of up to 40 characters each, in

the modem’s nonvolatile memory. The modem pulse or tone dials

and recognizes dial tones and busy signals for reliable call-

progress detection. The modem can detect AT&T calling card

tones. It is FCC-Registered for connection to telephone networks

Introduction

without any DataAccess Arrangements (DAAs).

The MultiModemZPX-PCI is a full-featured internal data/fax/voice

modem designed for Pentium computers in Windows Plug and

PlayTM environments.

MT5634ZPX-PCI Quick Start Guide

Related Documentation

This MT5634ZPX-PCI Quick Start Guide provides information for a

qualified person to unpack, connect, load software, and configure

the MultiModemZPX-PCI for proper operation.

The MT5634ZPX-PCI System CD contains a detailed

MultiModemZPX-PCI User Guide inAdobe PDF and HTML format,

as well as translations of this Quick Start Guide in several

languages.

Adobe Acrobat Reader

To read or print theAdobe PDF file containing the user guide, you’ll

need to haveAcrobat Reader installed on your machine. Adobe

Acrobat Reader is free and can be installed from the System CD

or downloaded fromAdobe’s Web site at:

http://www.adobe.com/prodindex/acrobat/readstep.html.

The MultiModemZPX-PCI User Guide

The User Guide can be installed from the System CD-ROM or

downloaded from our Web site at: http://www.multitech.com. The

default installation folder for the PDF User Guide is:

C:\Program Files\Multi-Tech Systems, Inc\S0000056.pdf

Saving and Printing the User Guide

Once the User Guide is displayed on-screen (either in Reader or your

browser), you may save the .pdf or .html file to your system or print a

copy.

Hardware Installation

Installation Overview

Installing the MultiModemZPX-PCI consists of five steps:

1. Installing the modem in the computer.

2. Connecting the modem to the telephone line and,

optionally, to an external speaker and microphone.

3. Installing the modem’s drivers.

4. Configuring your modem for country-specific operation.

5. Configuring your communications software.

Safety Warnings

•Never install telephone wiring during a lighting storm.

•Never install telephone jacks in wet locations unless

the jack is specifically designed for wet locations.

•This product is to be used with UL and cUL listed

computers.

•Never touch uninsulated telephone wires or terminals

unless the telephone line has been disconnected at

the network interface.

•Use caution when installing or modifying telephone

lines.

•Avoid using a telephone (other than a cordless type)

during an electrical storm. There may be a remote

risk of electrical shock from lightning.

•Do not use the telephone to report a gas leak in the

vicinity of the leak.

•To reduce the risk of fire, use only No. 26 AWG or

larger Telecommunication line cord.

MT5634ZPX-PCI Quick Start Guide

Unpacking Your Modem

Your MultiModemZPX-PCI package should contain:

•One MultiModemZPX-PCI internal fax modem card.

•One telephone cable.

•One MultiModemZPX-PCI System CD-ROM, including

the MultiModemZPX-PCI User Guide inAdobe PDF

and HTML format.

•Communications software.

•This Quick Start Guide.

•One brochure with a warranty card.

If any one of these items is missing, please contact Multi-Tech

Systems or your dealer/distributor.

What You’ll Need

Before you start, make sure you have everything you need:

•The contents of your MultiModemZPX-PCI package

(as listed above).

•A100-MHz or faster Pentium PC. We recommend a

166-MHz or faster PC for video conferencing.

•Windows 95, Windows 98, Windows NT, Windows

2000, Linux (2.2.x kernal) or SCO OpenServer (5.0.x)

operating system installed.

•A CD-ROM drive.

•An empty PCI expansion slot.

•Tools to open your computer.

•The computer’s manual.

•A nearby telephone line jack.

•An external speaker or headphone (optional).

•An external microphone (optional).

Hardware Installation

Installing the Hardware

Installing the MultiModemZPX-PCI requires you to open your

computer. Please consult your computer manual in addition to the

following instructions:

1. Turn off the computer and unplug it. Failure to do so

may result in damage to both the MultiModemZPX-PCI

and the computer. Do not turn on the computer until the

instructions tell you to do so.

2. Remove the cover from the computer as instructed in

the computer manual.

3. Select an empty PCI expansion slot. Remove the

expansion slot cover and save the retaining screw.

4. Before handling the MT5634ZPX-PCI, discharge static

in your body by touching a metal piece of the computer

chassis. Carefully remove the MultiModemZPX-PCI

from its antistatic bag, handling it only by the mounting

bracket and edges. Do not touch the gold-plated

connectors along the bottom edge.

5. Place the MultiModemZPX-PCI directly above the

expansion slot and gently, but firmly, push it into the

connector until the card’s retaining bracket is flush

against the computer chassis.

6. Fasten the retaining bracket to the computer chassis

with the screw saved in step 3.

7. Replace the cover of the computer.

Connecting Your Modem

The MultiModemZPX-PCI communicates over public-switched

telephone network lines. Use the modular telephone cable

provided with the modem to connect the MultiModemZPX-PCI to

your telephone wall jack. If you don’t have a standard modular wall

jack near your computer, install one or have one installed for you

by your telephone company. In the U.S., installation kits and

MT5634ZPX-PCI Quick Start Guide

adapters are available wherever telephones are sold.

The MultiModemZPX-PCI offers a voice port which allows you to

connect your adapter to a microphone and speaker. The

microphone can be used for recording answering machine

messages or for speakerphone use. The speaker can be used for

playing back messages or as a speakerphone.

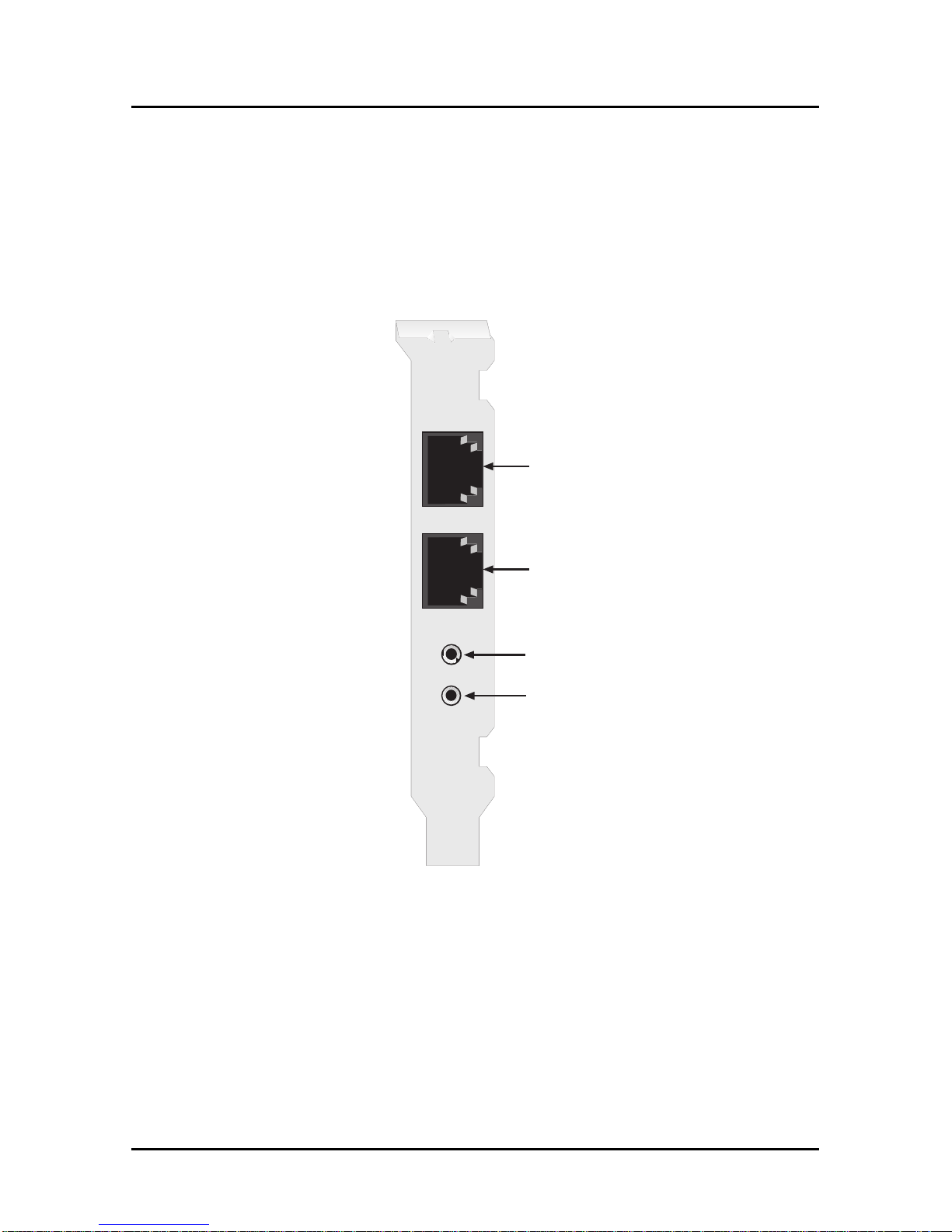

LINE OUT

MIC IN

LINE

PHONE

MT5634ZPX-PCI

1. Plug one end of the supplied modular telephone cable

into the LINE jack.

2. Plug the other end of the telephone cable into a

working wall jack.

3. You may connect a telephone to the modem’s PHONE

jack.

Table of contents

Other Multitech Modem manuals

Multitech

Multitech MT9234ZBAUSBCDC User manual

Multitech

Multitech MultiModem II MT5600BA-V.92 User manual

Multitech

Multitech MultiModem MT2834BLR User manual

Multitech

Multitech 5634 Series User manual

Multitech

Multitech MultiModem DID User manual

Multitech

Multitech MTD100U User manual

Multitech

Multitech MultiModem MTCBA-E-U User manual

Multitech

Multitech MultiModem MT5634ZPX-PCI-U-NV User manual

Multitech

Multitech MultiConnect Series 100 User manual

Multitech

Multitech Multimodem MTCBA-G-F1 User manual

Multitech

Multitech MultiMobile MT9234MU User manual

Multitech

Multitech MTCBA-E User manual

Multitech

Multitech MTC-LAT1 User manual

Multitech

Multitech MultiModem MT5600DSDV2 User manual

Multitech

Multitech MultiModem MT5634ZPX User manual

Multitech

Multitech MultiModem ZPX User manual

Multitech

Multitech MultiModem iCell MTCMR-E1 User manual

Multitech

Multitech MultiModem iCell User manual

Multitech

Multitech MultiModem MTCBA-G-UF1 User manual

Multitech

Multitech MMH956K Technical manual

Multitech

Multitech MultiModem MTCBA-E-GP User manual

Multitech

Multitech MultiConnect MTPCIE-H5 Instruction Manual

Multitech

Multitech Multimodem MTCBA-G-F1 User manual

Multitech

Multitech MTD-H5 User manual

Popular Modem manuals by other brands

Davicom

Davicom DM562AP Operation manual

EpiValley

EpiValley TATA indicom SXC-1080 user guide

Zte

Zte WiMAX user manual

Intelimax

Intelimax MA-2060 user manual

SMC Networks

SMC Networks D3CM1604V Administrator's manual

Telstra

Telstra Wi-Fi 4G Advanced Pro X user guide

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 user manual

Samsung

Samsung AceLink SAM-335A user guide

Enfora

Enfora Enabler-G Integration guide

iRZ

iRZ ATM2-232 user guide

Zhone

Zhone 6310 installation instructions

Paradyne

Paradyne Hotwire 7976 installation instructions

US Robotics

US Robotics 3453C datasheet

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... user manual

Zte

Zte MF823 user guide

Four-Faith

Four-Faith F1403 user manual

Sierra Wireless

Sierra Wireless AIRLINK MP595W user guide

Gemtek

Gemtek WiMAX WIXFBR-103 user manual
