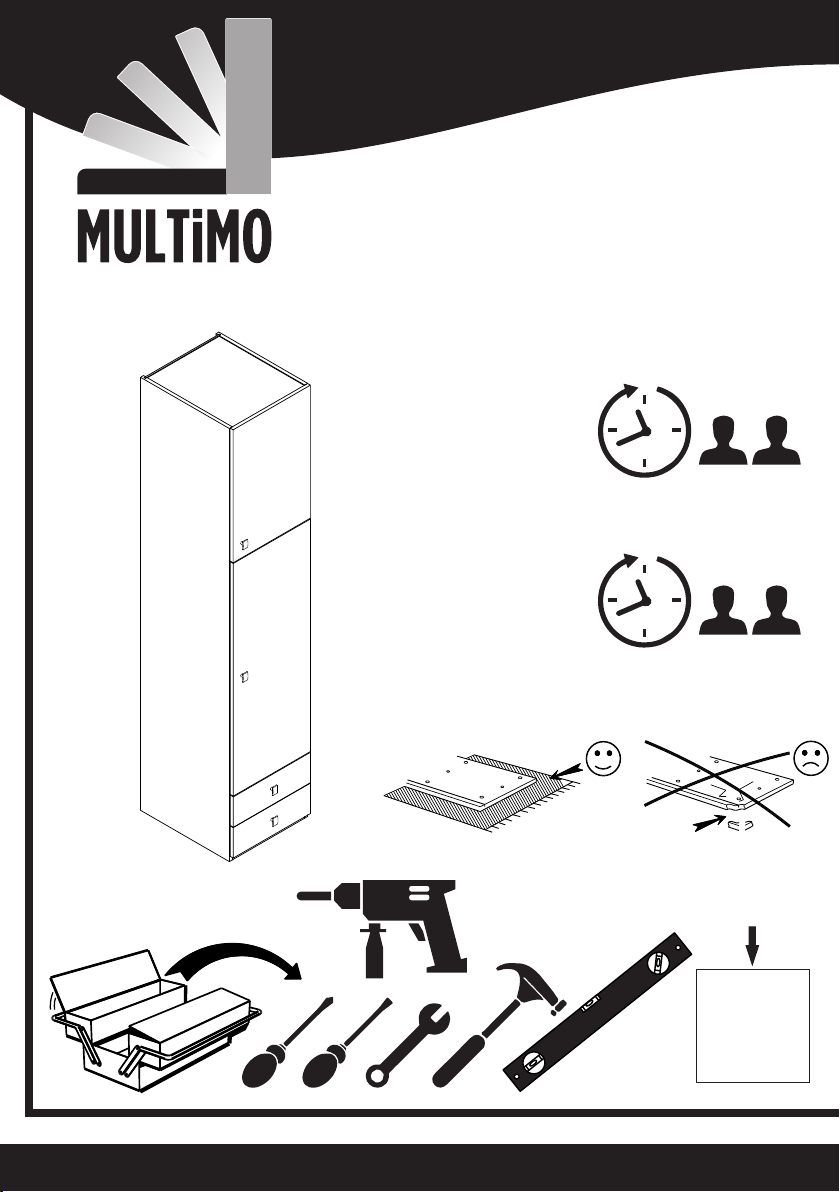

Multimo 107-SINGLE WARDROBE User manual

Assembly Instructions

107-SINGLE WARDROBE

45 min.

Technical Service

90 min.

End User

VIDEO

link

Page 1 Page 2

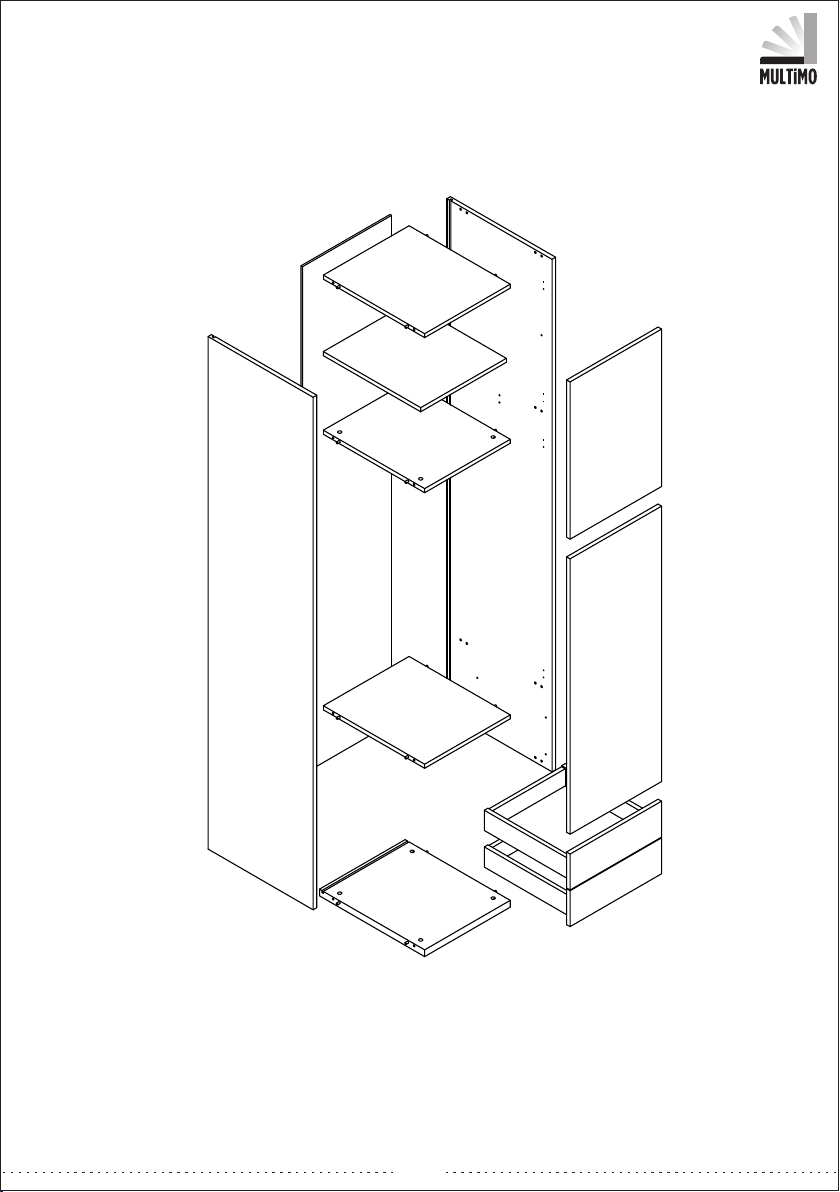

A-R

A-L

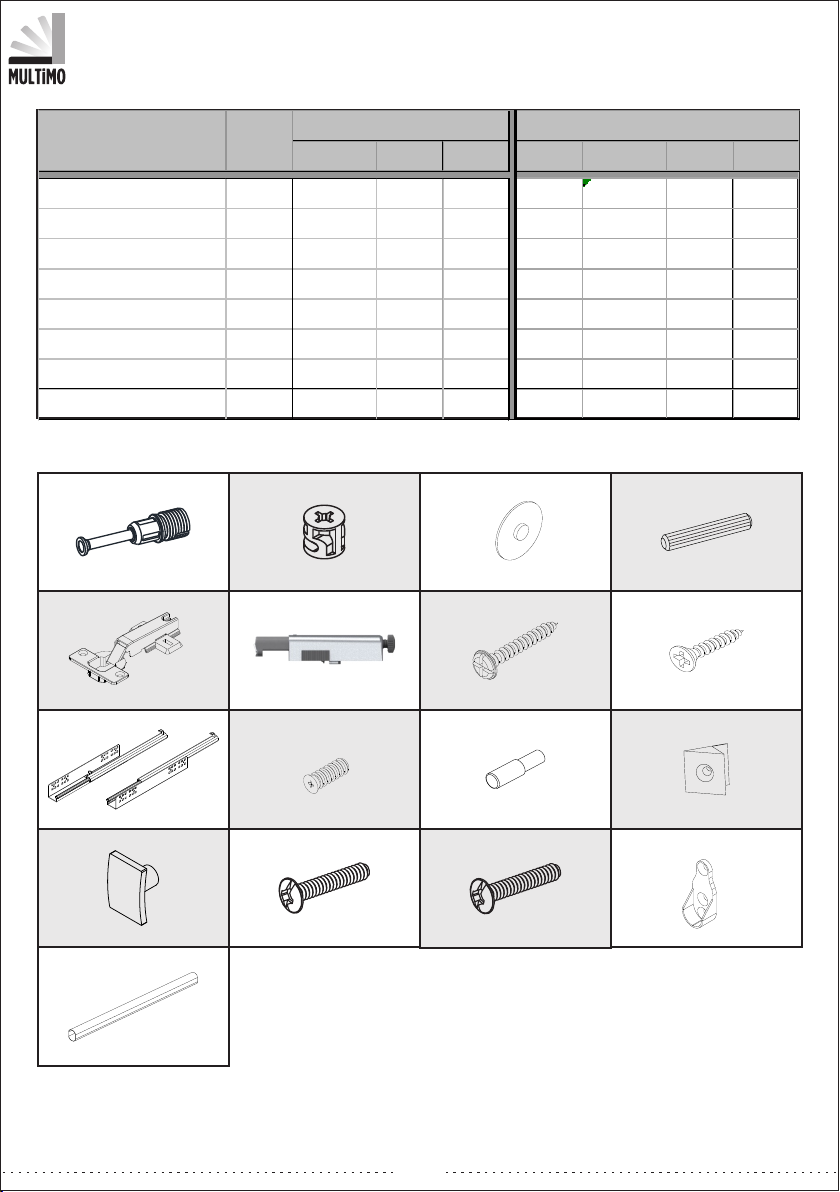

Accessories List

TS - 01

4 / piece

Piece T hickness Length Width Piece T hick H eight M ost

A0,71 81,89 21,26 2 18 2080 540

B1,18 17,32 21,22 1 30 440 539

C0,71 17,32 20,43 3 18 440 519

D0,71 17,32 19,69 1 18 440 500

E0,71 27,56 18,50 1 18 700 470

F0,71 40,35 18,50 1 18 1025 470

G6,30 18,50 16,46 2 160 470 418

H0,31 81,06 17,99 1 8 2059 457

Track Title

(inch)

(mm)

MNG - 01

16 / piece

PM - 01

4 / piece

VD - 03 ( 3,5x18 ) mm

20 / piece

MNX 02

16 / piece

TAP - 01

16 / piece

AVT - 01

4 / piece

VD - 02 (3,5x25) mm

12 / piece

KVL 01

16 / piece

ER - 01

8 / piece

TSY - 01

2 / piece

AF - 02

2 / piece

BO - 01

1 / piece

KP - 03

4 / piece

VKP - 01 (22) mm

2 / piece

VKP - 03 (40) mm

2 / piece

RYP - 02

2 / piece

Page 1 Page 2

A-R

A-L

Accessories List

TS - 01

4 / piece

Piece T hickness Length Width Piece T hick H eight M ost

A0,71 81,89 21,26 2 18 2080 540

B1,18 17,32 21,22 1 30 440 539

C0,71 17,32 20,43 3 18 440 519

D0,71 17,32 19,69 1 18 440 500

E0,71 27,56 18,50 1 18 700 470

F0,71 40,35 18,50 1 18 1025 470

G6,30 18,50 16,46 2 160 470 418

H0,31 81,06 17,99 1 8 2059 457

Track Title

(inch)

(mm)

MNG - 01

16 / piece

PM - 01

4 / piece

VD - 03 ( 3,5x18 ) mm

20 / piece

MNX 02

16 / piece

TAP - 01

16 / piece

AVT - 01

4 / piece

VD - 02 (3,5x25) mm

12 / piece

KVL 01

16 / piece

ER - 01

8 / piece

TSY - 01

2 / piece

AF - 02

2 / piece

BO - 01

1 / piece

KP - 03

4 / piece

VKP - 01 (22) mm

2 / piece

VKP - 03 (40) mm

2 / piece

RYP - 02

2 / piece

Page 3 Page 4

VIDEO

link

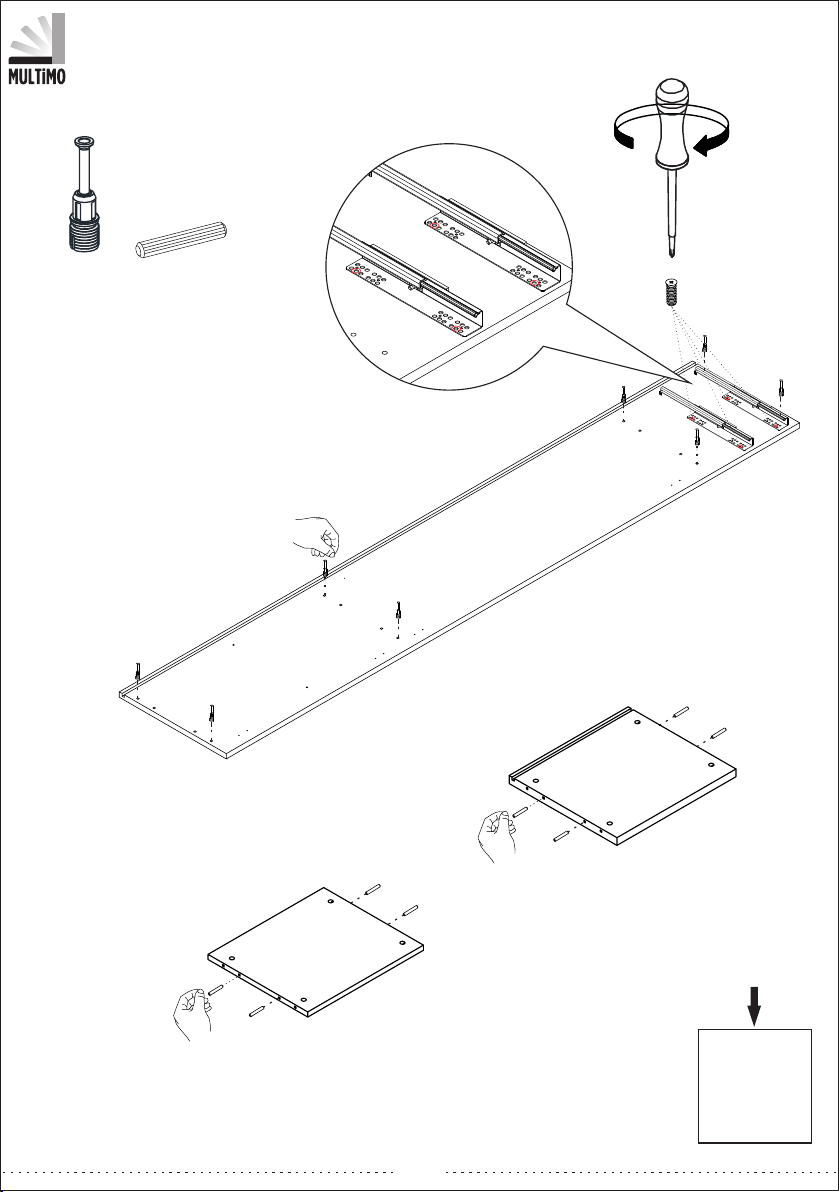

STEP 1

VIDEO

link

MNX - 02

KVL 01

MNX - 02 X 8

ER - 01 X 4

TRACK TITLE

A LEFT / A RIGHT

KVL - 01 X 4

A-L

STEP 2

RYP - 02 X 2

STEP 3

MNG - 01

210°

MNG - 01 x 8

VD - 03 X 8

TS - 01

Page 3 Page 4

VIDEO

link

STEP 1

VIDEO

link

MNX - 02

KVL 01

MNX - 02 X 8

ER - 01 X 4

TRACK TITLE

A LEFT / A RIGHT

KVL - 01 X 4

A-L

STEP 2

RYP - 02 X 2

STEP 3

MNG - 01

210°

MNG - 01 x 8

VD - 03 X 8

TS - 01

Page 5 Page 6

VIDEO

link

VIDEO

link

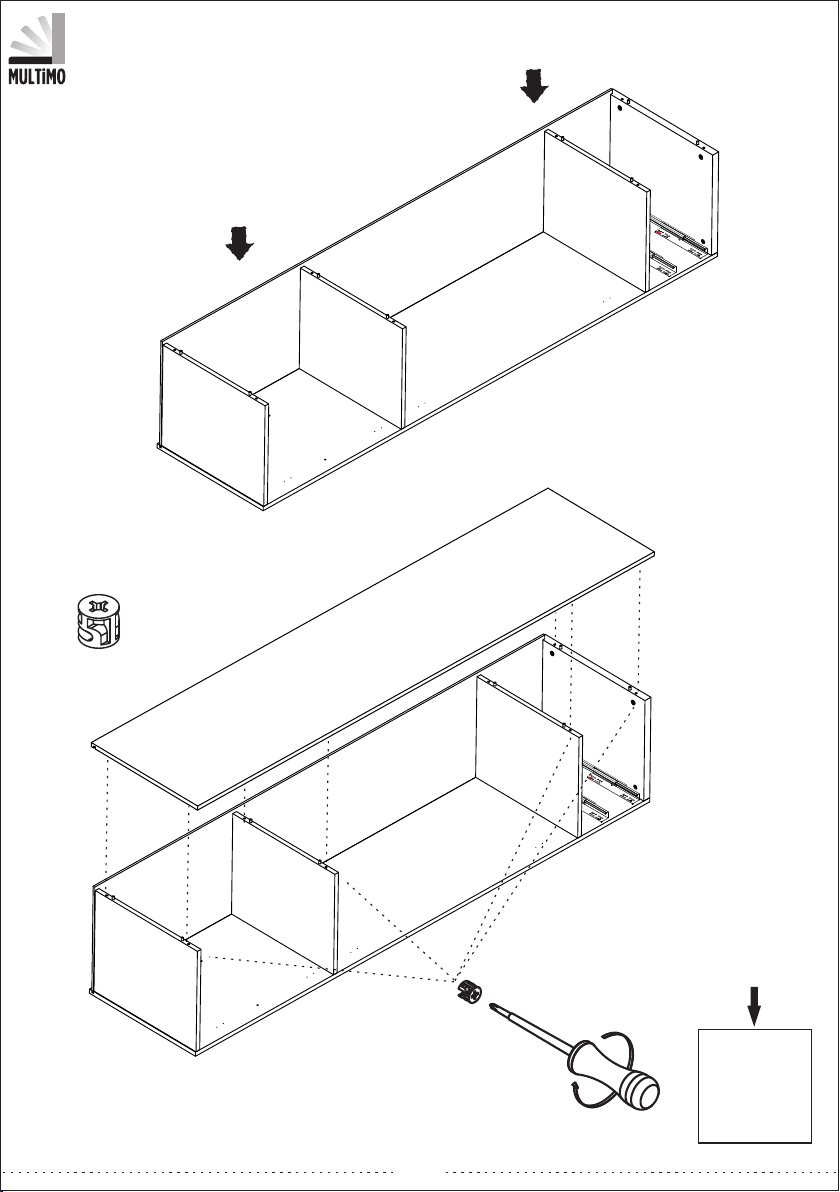

STEP 6

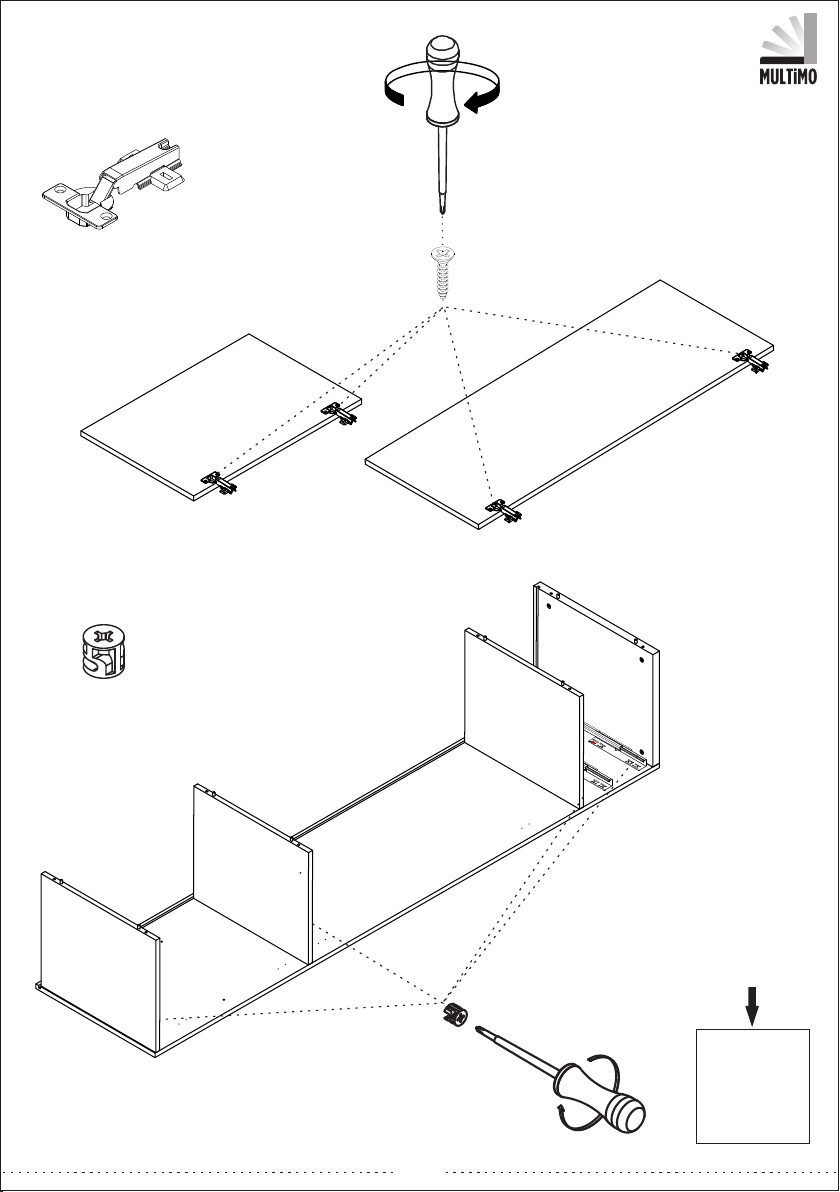

STEP 4

STEP 5

MNG - 01 A-R

210°

MNG - 01 x 8

VD - 02 x 6

VD - 02 x 4

AVT - 01 x 4

Page 5 Page 6

VIDEO

link

VIDEO

link

STEP 6

STEP 4

STEP 5

MNG - 01 A-R

210°

MNG - 01 x 8

VD - 02 x 6

VD - 02 x 4

AVT - 01 x 4

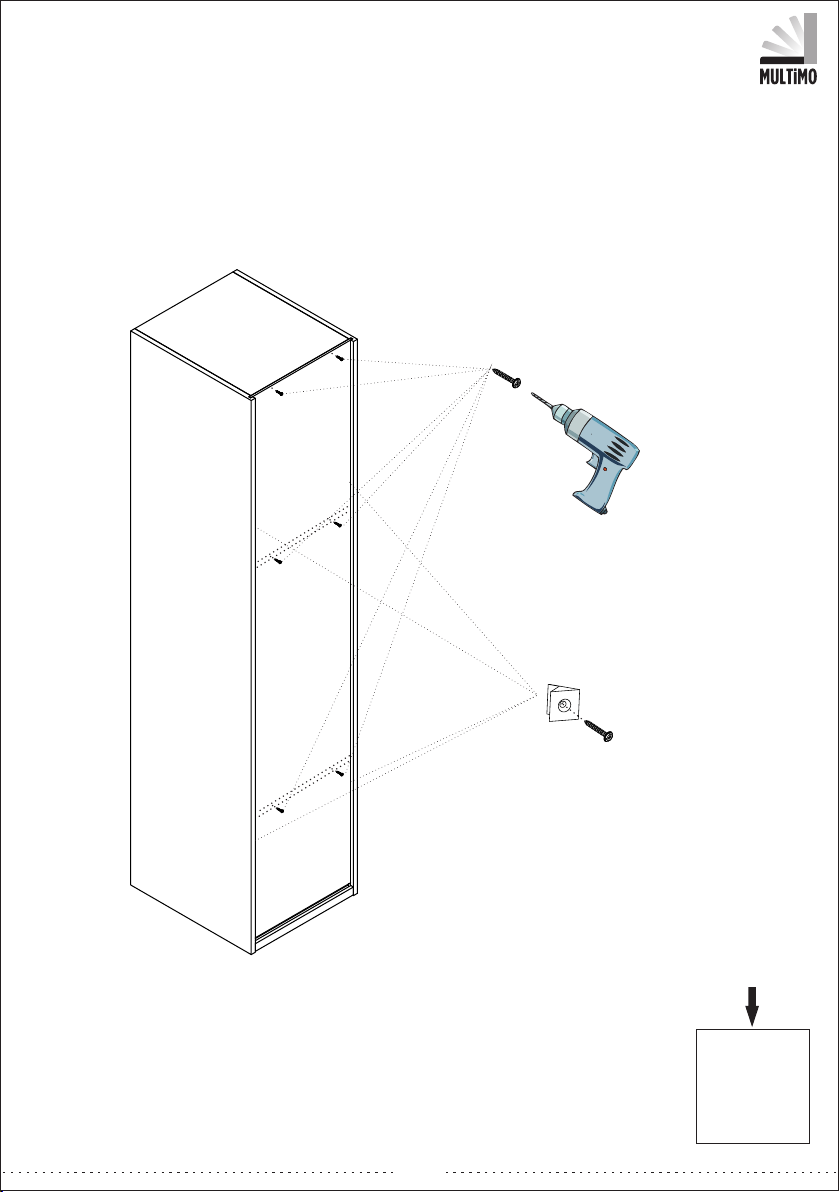

Page 7 Page 8

VIDEO

link

VIDEO

link

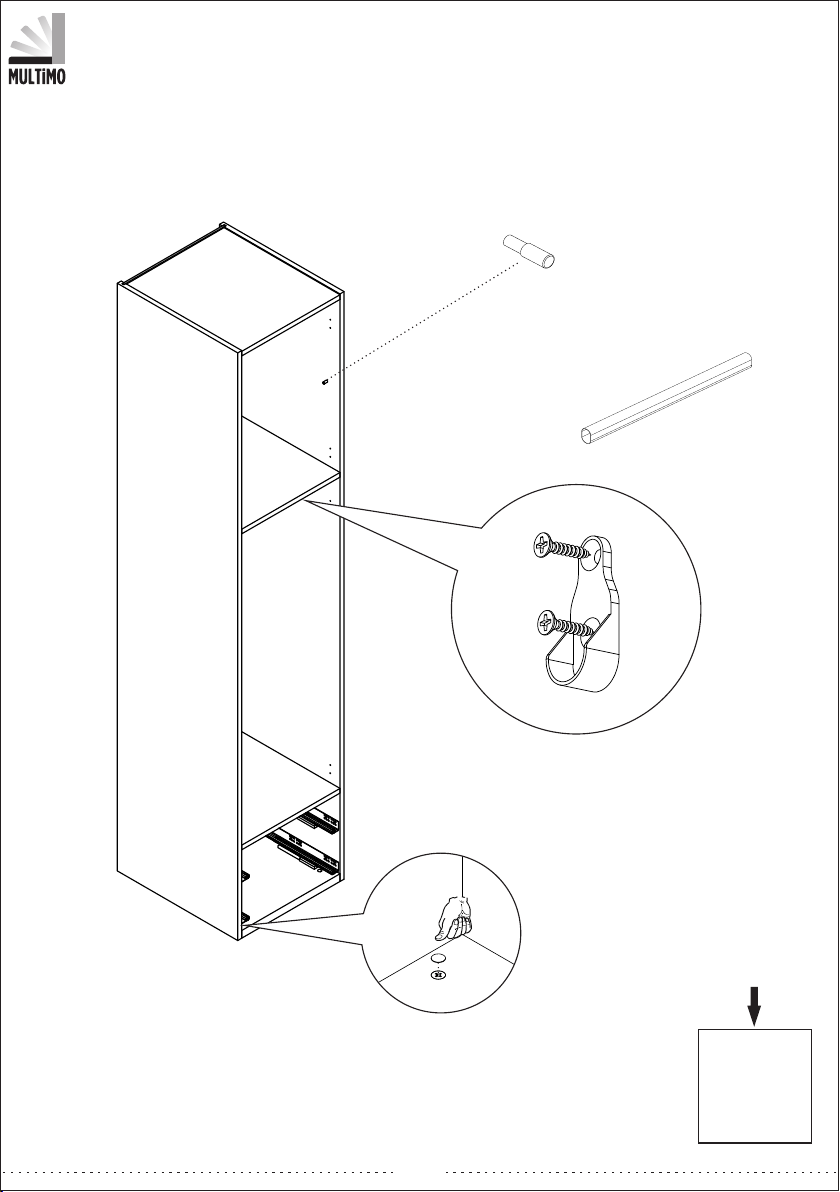

STEP 7

PM - 01 x 4

TAP - 01

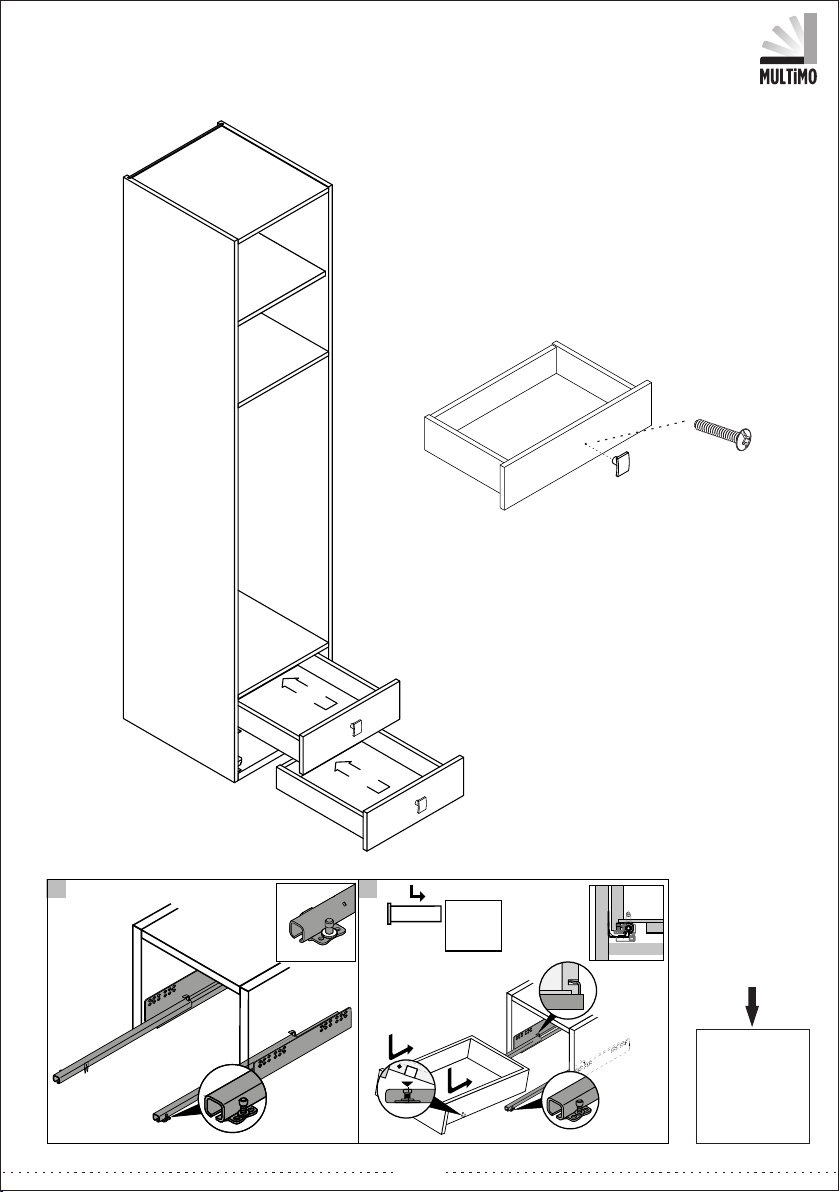

STEP 8

VKP - 03

1RR

KP - 03

G X 2

BO - 01

VD - 03

AF - 02

Page 7 Page 8

VIDEO

link

VIDEO

link

STEP 7

PM - 01 x 4

TAP - 01

STEP 8

VKP - 03

1RR

KP - 03

G X 2

BO - 01

VD - 03

AF - 02

Page 9 Page 10

VIDEO

link

TSY- 01 x 2

1- 2- 3-

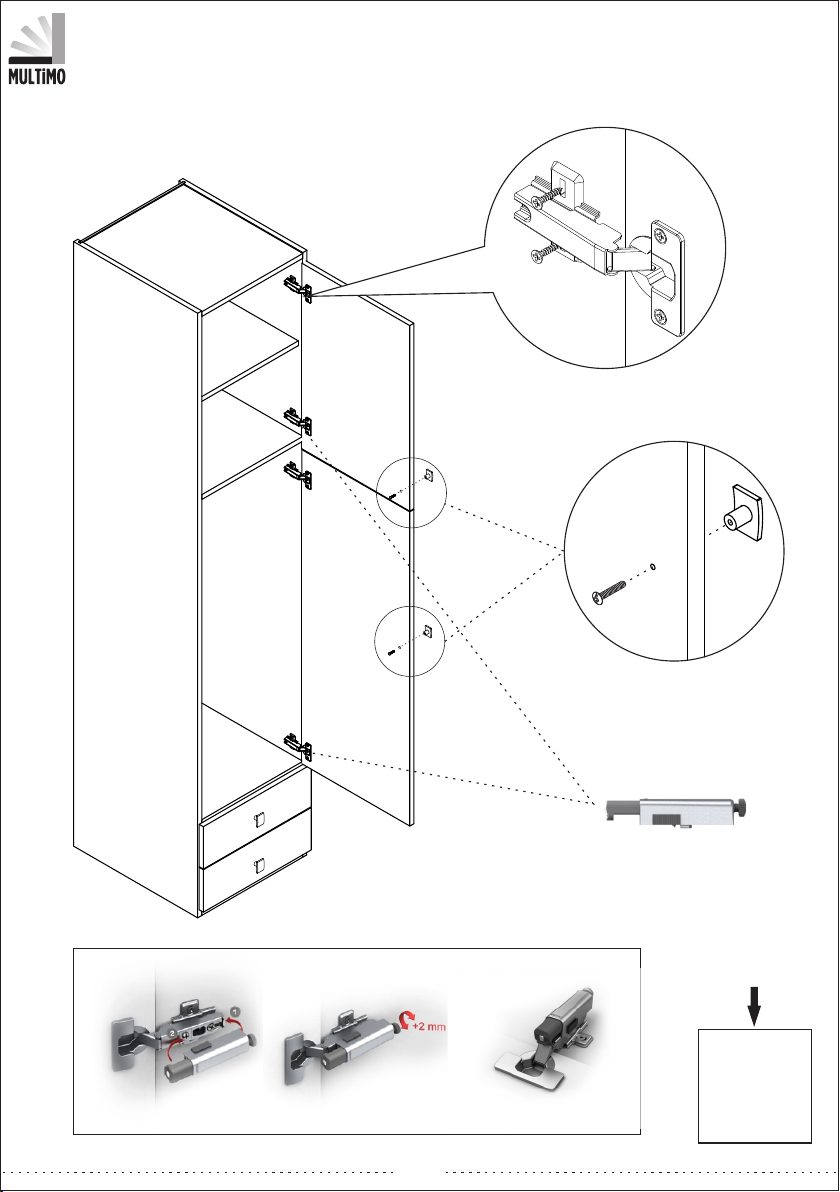

STEP 9

ATTENTION / HOW TO / READ ME / OWNER'S GUIDE

1. When mountng on a regular drywall, furnture must be fastened to wood or

metal studs. Sold walls made of brck, concrete or smlar strong materal are

also accaptable. Do not mount furnture to paper-mache or sheet rock lke

materal wthout properly aaxng to stud.

2. For safety and product longevty you must perodcally nspect the mountng

and mechancal connectons for ntegrty and tghtness. Confrm hardware

remans properly affxed and connectons snug.

3. Wall Bed mattress thckness may not exceed 8 nch. Take care to remove

pllows and excess blankets before closng. Dong so keeps mechansm free of

obstructon and unnecessary stress.

4. Do not lean or rest heavy objects on sde or top of furnture. Ths may cause

balance ssues and compromse the ntegrty of your mountng connectons.

5. Please use the furnture's beds, desks and shelvng as ntended. Not desgned

to be sat, stood, leaned, jumped (etc) on. Improper use may cause personal njury

and damage to property.

6. Wth seasonal humdty change you must nspect nteror and exteror of

furnture.

7. Sngle, Twn, Twn XL beds accommodate the weght of one person.

Improperly sleepng more than one person rsks njury to person and damage to

property.

8. Before any un-mountng or dsassembly please contact Multmo for techncal

support and nstructon. Falure to properly detach rsks njury to person and

damage to property.

9. For Bunk Beds:

a. Always use provded ladder when accessng top bunk.

b. Be slow, careful and aware of surroundngs when openng top bunk.

c. Do not horseplay. Beds are to be slept on only.

d. Some have legs that fully extend when open- be aware of where the leg s and

wll be.

VD - 03

TS - 01

KP - 03

VKP - 01
