Multimo A 750 User manual

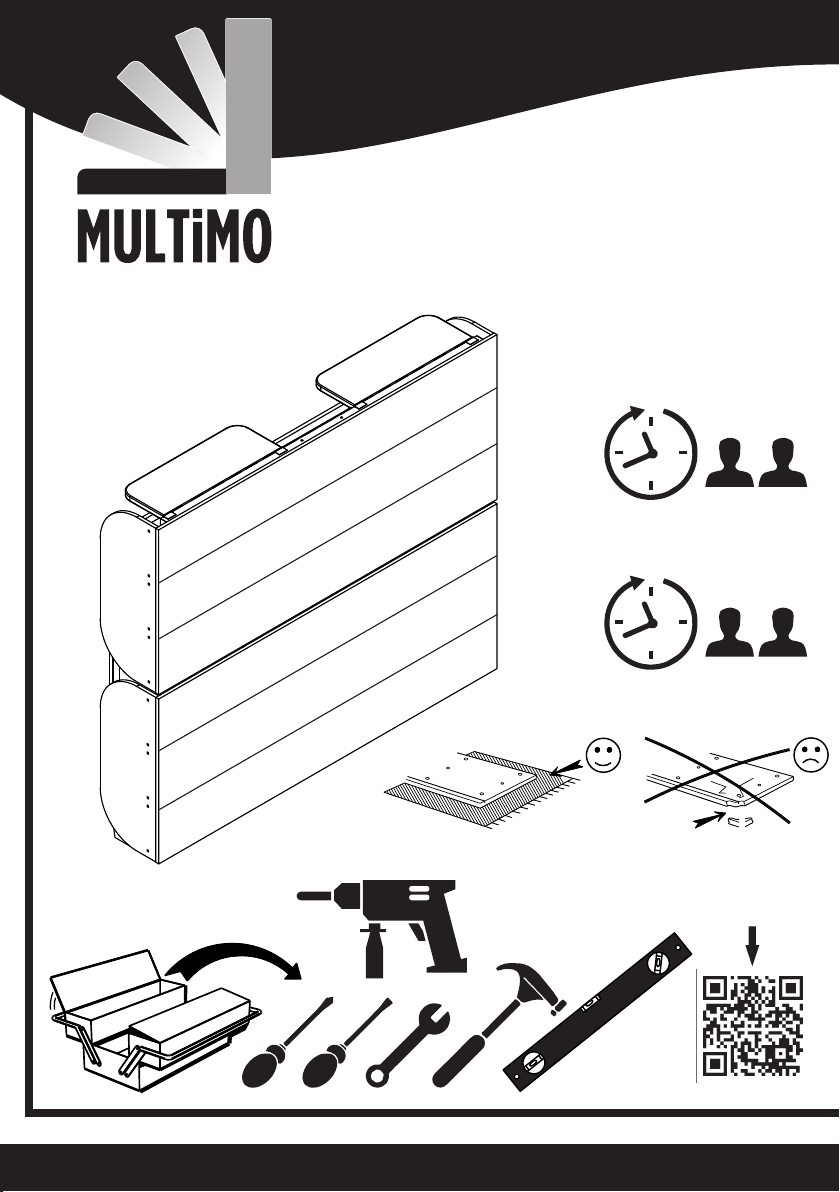

Assembly Instructions
A 750- SIMPLE BUNK
100min.
180min.
Technical Service
End User
+-
VIDEO
https://youtu.be/JQ78GnrNF6E
Page 1 Page 2

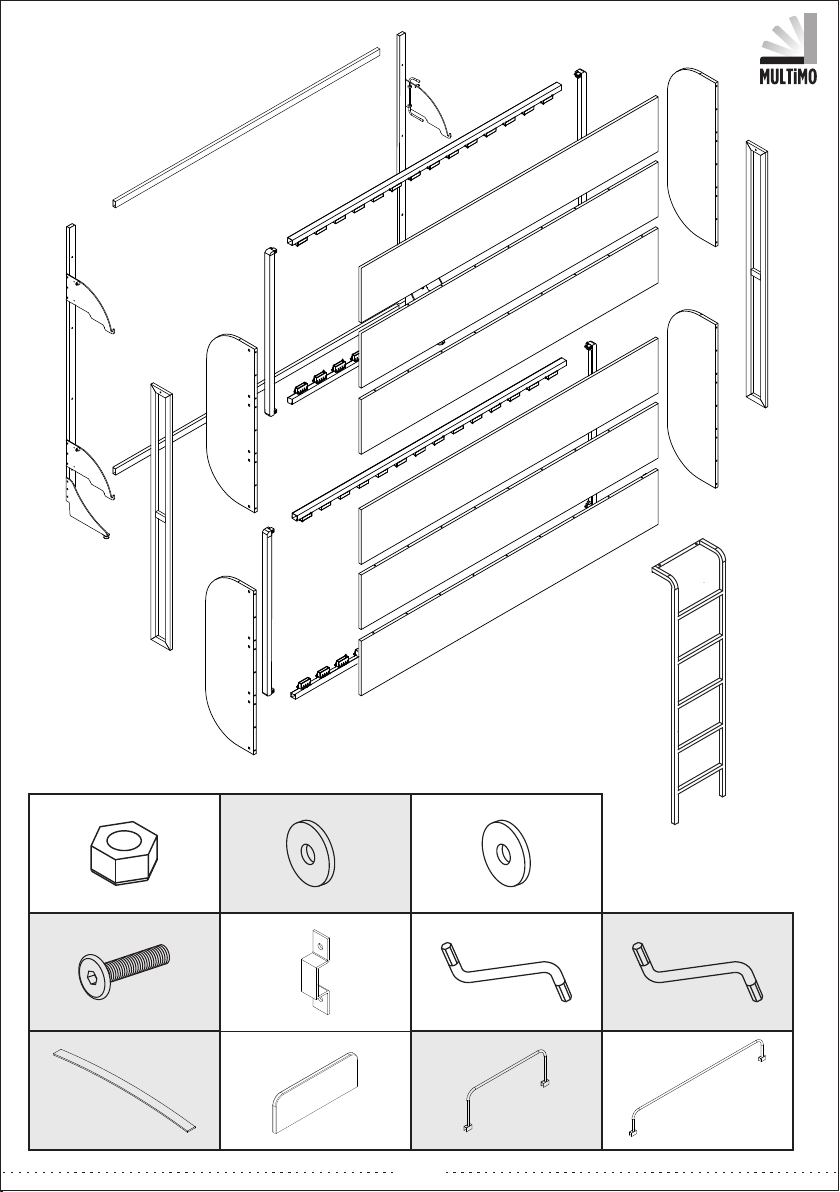

AMR 03 (300 N)
4 / piece
MRD 01
2 / piece
KLF -F (fabric cover) KOR -F
2 / piece
DD - 01 ( R10 )
20 / piece
TFC - 01(8x70) mm
20 / piece
SG - 01
8 / piece
TAP - 01
64 / piece
KVL 01
28 / piece
MNG - 01
64/ piece

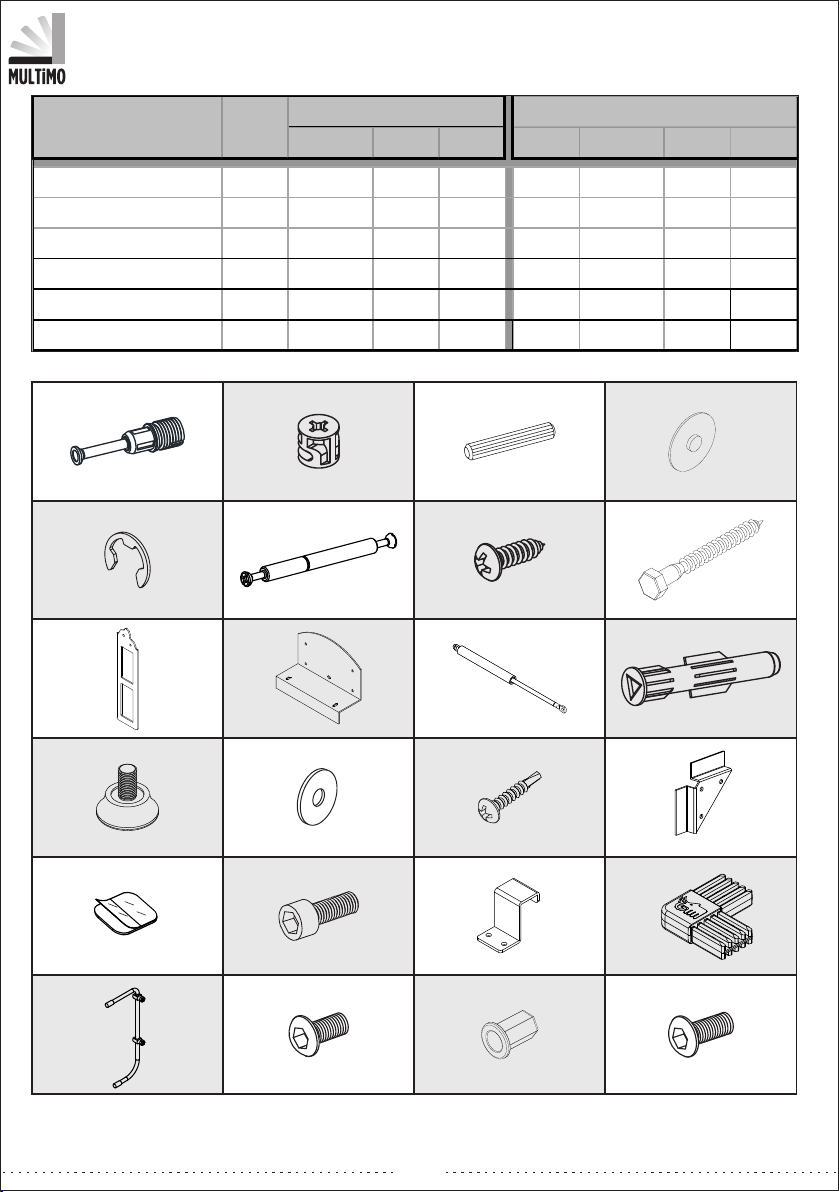

Accessories List
MNX 02
24/ piece
MNX - 03
20 / piece
PL - 04 (5x12x0,7) mm
16 / piece
SC-101
3 / piece
AL - 01 (4MM)
1 / piece
AL - 02 (5MM)
1 / piece
Track Title
(inch) (mm)
Piece T hickness Length Width Piece T hick Height Most
A40,71 40,08 13,58 418 1018 345
B20,71 84,17 13,39 2 18 2138 340
C20,71 84,17 13,39 2 18 2138 340
D20,71 84,17 13,39 2 18 2138 340
E-R / E-L 265,94 2 1675
F275,98 2 1930
KOR -B
2 / piece
BKA - 01
2 / piece
B
C
A
D
B
D
C
A
A
A
E-R
E-L
F
F
J
G-R
G-L
H
K
H
G-R
G-L
KCE - 01
8 / piece
YSB - 01 ( 3,9x16 ) mm
16 / piece
SYS-01
2 / piece
VTB - 02 (4,2x16) mm
72 / piece
2 / piece
SC-98
KBY- 02
4 / piece28 / piece
SC-110
IM - 02 (6x20) mm
8 / piece
CTM - 01 ( 6x10 ) mm
8 / piece
SKT 01
8 / piece 6 / piece
CTM - 04 ( 8x25 ) mm
LTA - 01
28 / piece
SC-79
2 / piece
SC-78
4 / piece
CT - 03 ( 6x50 ) mm
2 / piece
PL - 01 (6x19x1) mm
2 / piece
PL - 06 (6x30x2) mm
2 / piece
SN - 01 ( M6 )
2 / piece
M
M
Page 1 Page 2
AMR 03 (300 N)
4 / piece
MRD 01
2 / piece
KLF -F (fabric cover) KOR -F
2 / piece
DD - 01 ( R10 )
20 / piece
TFC - 01(8x70) mm
20 / piece
SG - 01
8 / piece
TAP - 01
64 / piece
KVL 01
28 / piece
MNG - 01
64/ piece
Accessories List
MNX 02
24/ piece
MNX - 03
20 / piece
PL - 04 (5x12x0,7) mm
16 / piece
SC-101
3 / piece
AL - 01 (4MM)
1 / piece
AL - 02 (5MM)
1 / piece
Track Title
(inch) (mm)
Piece T hickness Length Width Piece T hick Height Most
A40,71 40,08 13,58 418 1018 345
B20,71 84,17 13,39 2 18 2138 340
C20,71 84,17 13,39 2 18 2138 340
D20,71 84,17 13,39 2 18 2138 340
E-R / E-L 265,94 2 1675
F275,98 2 1930
KOR -B
2 / piece
BKA - 01
2 / piece
B
C
A
D
B
D
C
A
A
A
E-R
E-L
F
F
J
G-R
G-L
H
K
H
G-R
G-L
KCE - 01
8 / piece
YSB - 01 ( 3,9x16 ) mm
16 / piece
SYS-01
2 / piece
VTB - 02 (4,2x16) mm
72 / piece
2 / piece
SC-98
KBY- 02
4 / piece28 / piece
SC-110
IM - 02 (6x20) mm
8 / piece
CTM - 01 ( 6x10 ) mm
8 / piece
SKT 01
8 / piece 6 / piece
CTM - 04 ( 8x25 ) mm
LTA - 01
28 / piece
SC-79
2 / piece
SC-78
4 / piece
CT - 03 ( 6x50 ) mm
2 / piece
PL - 01 (6x19x1) mm
2 / piece
PL - 06 (6x30x2) mm
2 / piece
SN - 01 ( M6 )
2 / piece
M
M
Page 3 Page 4

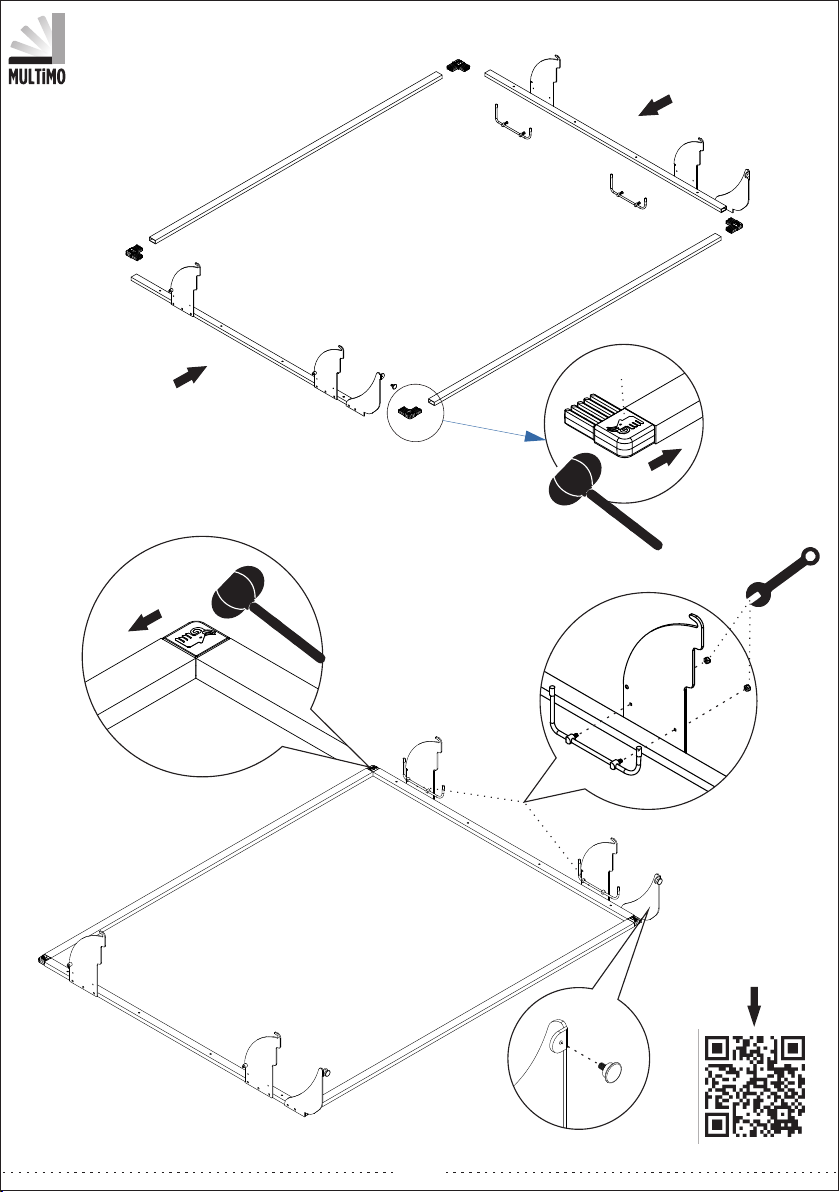

STEP 1
E-R
E-L
F
F
SYS - 01
SC - 98
BKA - 01
F
KBY - 02
E STEP 3
STEP 2
Ø 10 mm / 0,254 nch
DD - 01
TFC - 01
VIDEO
https://youtu.be/-FoNxbAcSe4
VIDEO
https://youtu.be/gWSn_aBcYXg
2010 mm
1730 mm

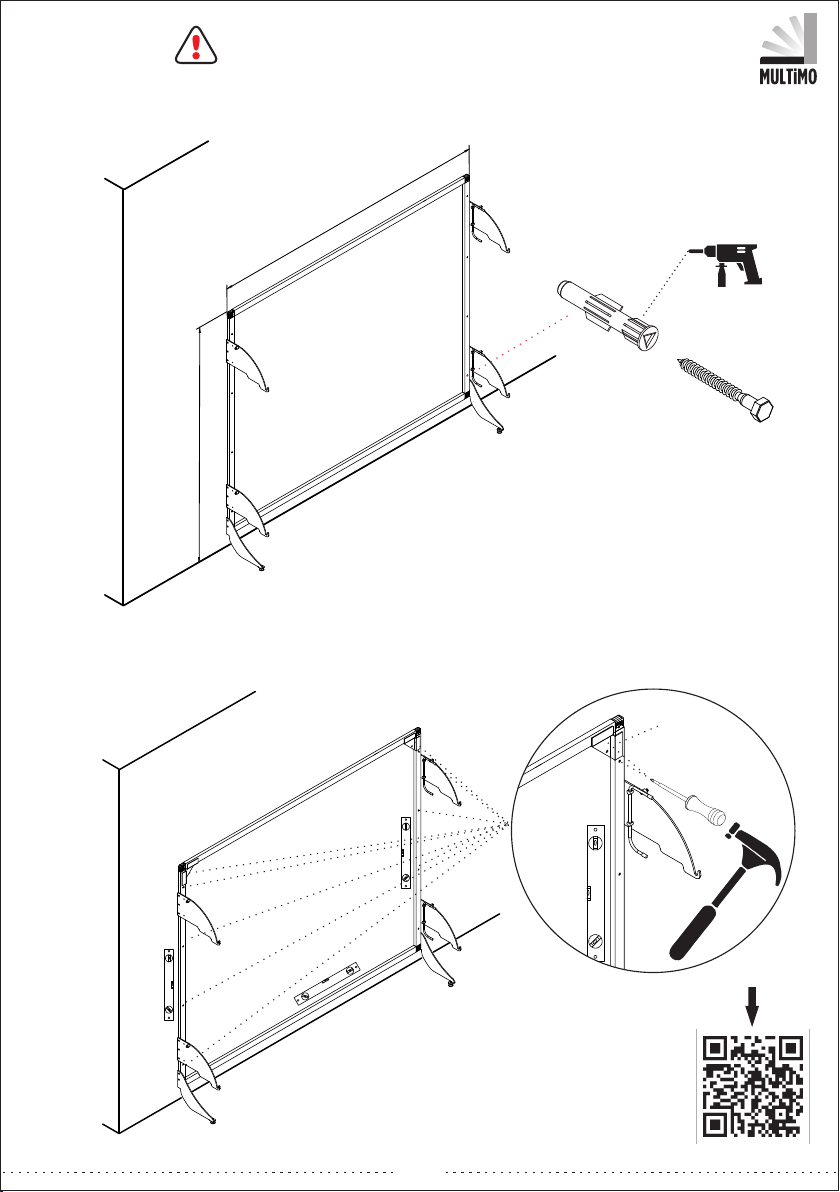

Use mounting frame as a drilling template.
Attach frame to the wall at one point only.(STEP-2)
Ensure frame is perfectly level.(STEP-2)

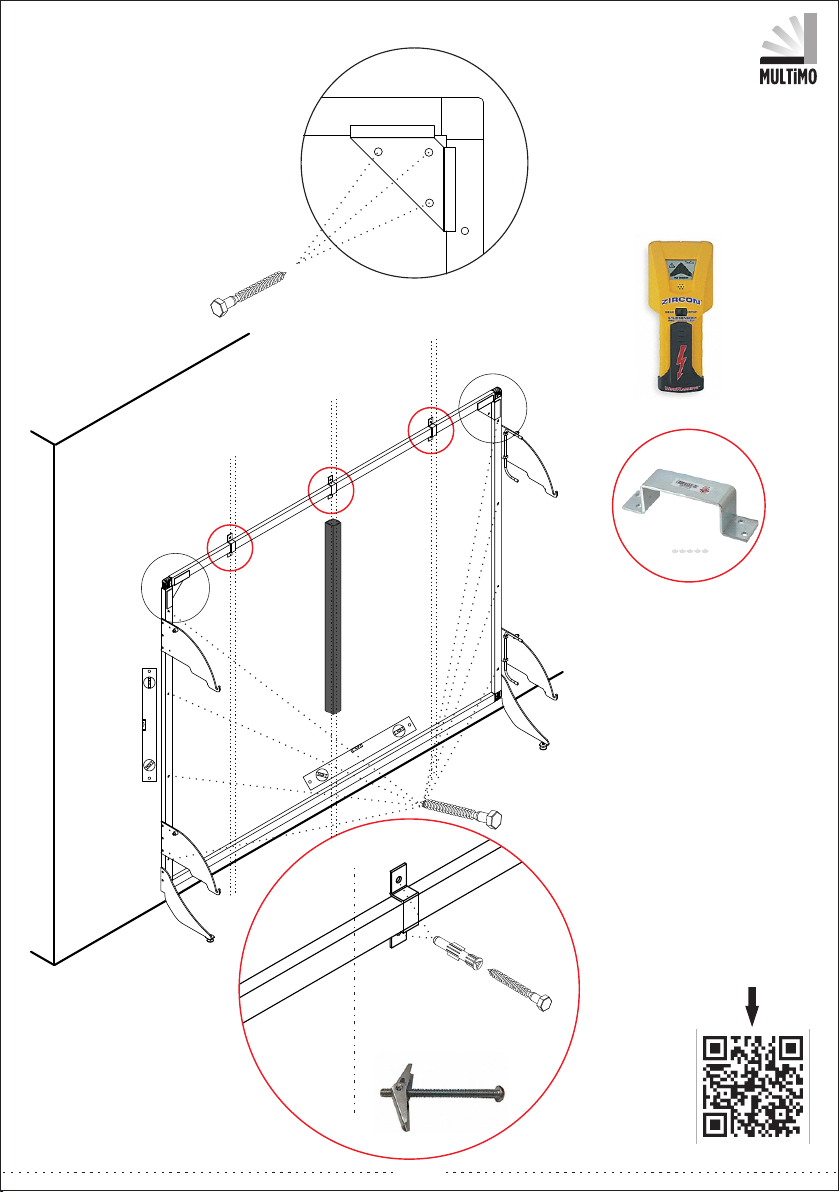

Mark drilling points through predrilled holes in the frame.(STEP-3)

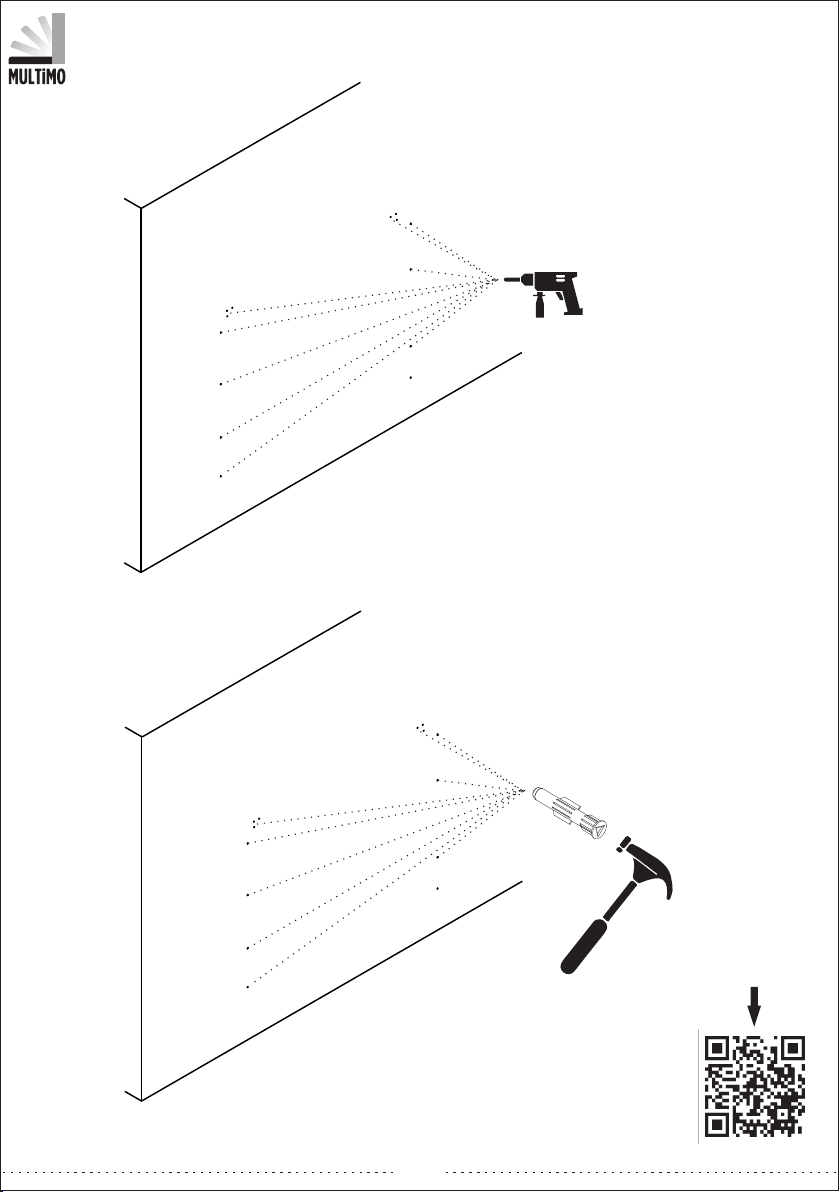

Remove frame from the wall and drill pilot holes in the wall.(STEP-4)
Attach frame to the wall using supplied hardware.(STEP-5-6)
ATTENTION!!!
Must be secured to the wall made of brick, concrete or similarly strong material.
Mounting to wooden or metal studs is also acceptable.
Do not mount directly to sheetrock or paper-mache type walls not supported by studs.
Page 3 Page 4
STEP 1
E-R
E-L
F
F
SYS - 01
SC - 98
BKA - 01
F
KBY - 02
E STEP 3
STEP 2
Ø 10 mm / 0,254 nch
DD - 01
TFC - 01
VIDEO
https://youtu.be/-FoNxbAcSe4
VIDEO
https://youtu.be/gWSn_aBcYXg
2010 mm
1730 mm
Use mounting frame as a drilling template.
Attach frame to the wall at one point only.(STEP-2)
Ensure frame is perfectly level.(STEP-2)
Mark drilling points through predrilled holes in the frame.(STEP-3)
Remove frame from the wall and drill pilot holes in the wall.(STEP-4)
Attach frame to the wall using supplied hardware.(STEP-5-6)
ATTENTION!!!
Must be secured to the wall made of brick, concrete or similarly strong material.
Mounting to wooden or metal studs is also acceptable.
Do not mount directly to sheetrock or paper-mache type walls not supported by studs.
Page 5 Page 6
STEP 4
Ø 10 mm / 0,254 nch
DD - 01 x 13
STEP 5
TFC - 01 X 3
A-
STEP 6
TFC - 01 X 8
A-
A-
B-
FİRST LOCATE THE STUDS BY USİNG ''STUD
FİNDER'' İN THE WALL AND DRİLL İT
SUPPLY DRYWALL FASTENERS APPROPPRİATE
TO YOUR WALL TYPE. WE RECOMMEND
USİNG STEEL TOGGLE BOLT ANCHOR THAT
SHOWN BELOW
TFC - 01 X 2
DD - 01 X 2
SC - 101
B-
SC - 101 X 3
SC - 98
VIDEO
https://youtu.be/5_5Et--VIhU
VIDEO
https://youtu.be/nIbO-OhFHsQ
Page 5 Page 6
STEP 4
Ø 10 mm / 0,254 nch
DD - 01 x 13
STEP 5
TFC - 01 X 3
A-
STEP 6
TFC - 01 X 8
A-
A-
B-
FİRST LOCATE THE STUDS BY USİNG ''STUD
FİNDER'' İN THE WALL AND DRİLL İT
SUPPLY DRYWALL FASTENERS APPROPPRİATE
TO YOUR WALL TYPE. WE RECOMMEND
USİNG STEEL TOGGLE BOLT ANCHOR THAT
SHOWN BELOW
TFC - 01 X 2
DD - 01 X 2
SC - 101
B-
SC - 101 X 3
SC - 98
VIDEO
https://youtu.be/5_5Et--VIhU
VIDEO
https://youtu.be/nIbO-OhFHsQ
Page 7 Page 8

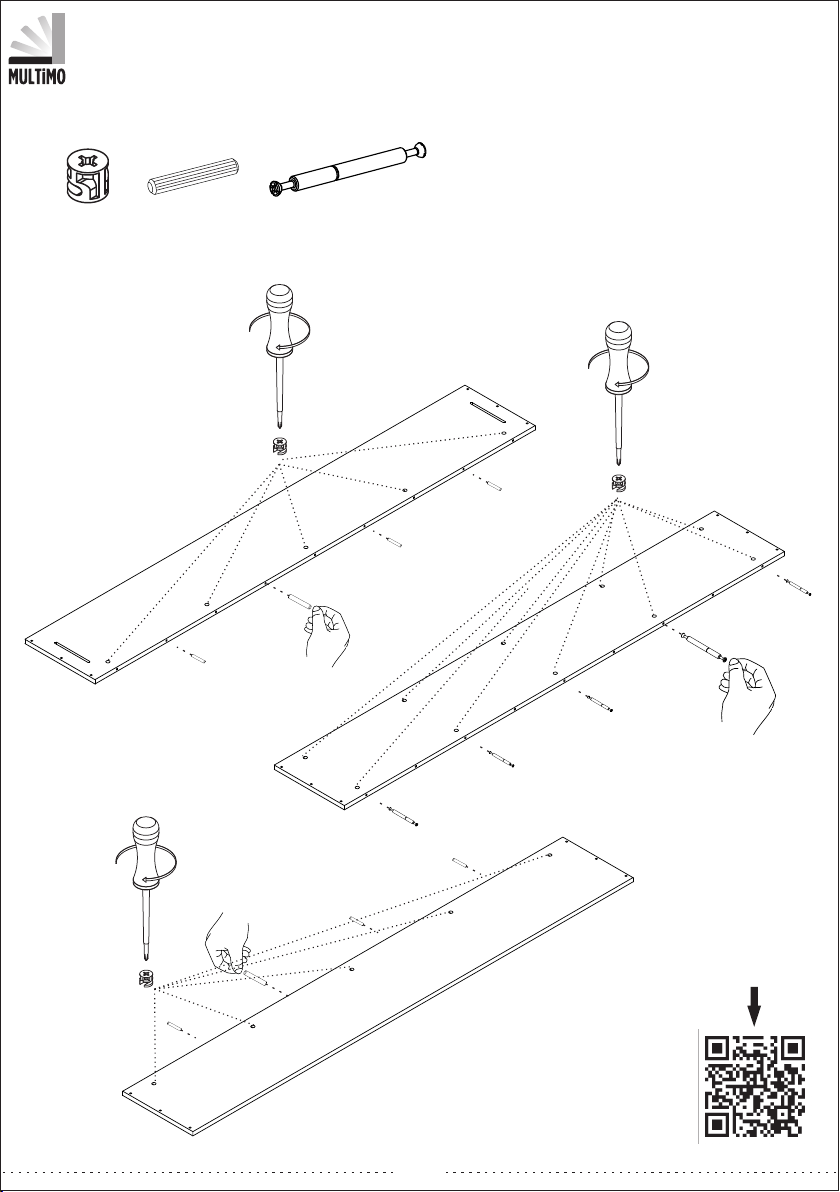

STEP 7
KVL 01
MNG - 01
MNG - 01 x 6
KVL - 01 x 3 A
MNG - 01 x 5
MNG - 01 x 10
MNG - 01 x 5 B
C
D
MNX - 03 x 10
KVL - 01 x 4
KVL - 01 x 4
MNX - 03
210°

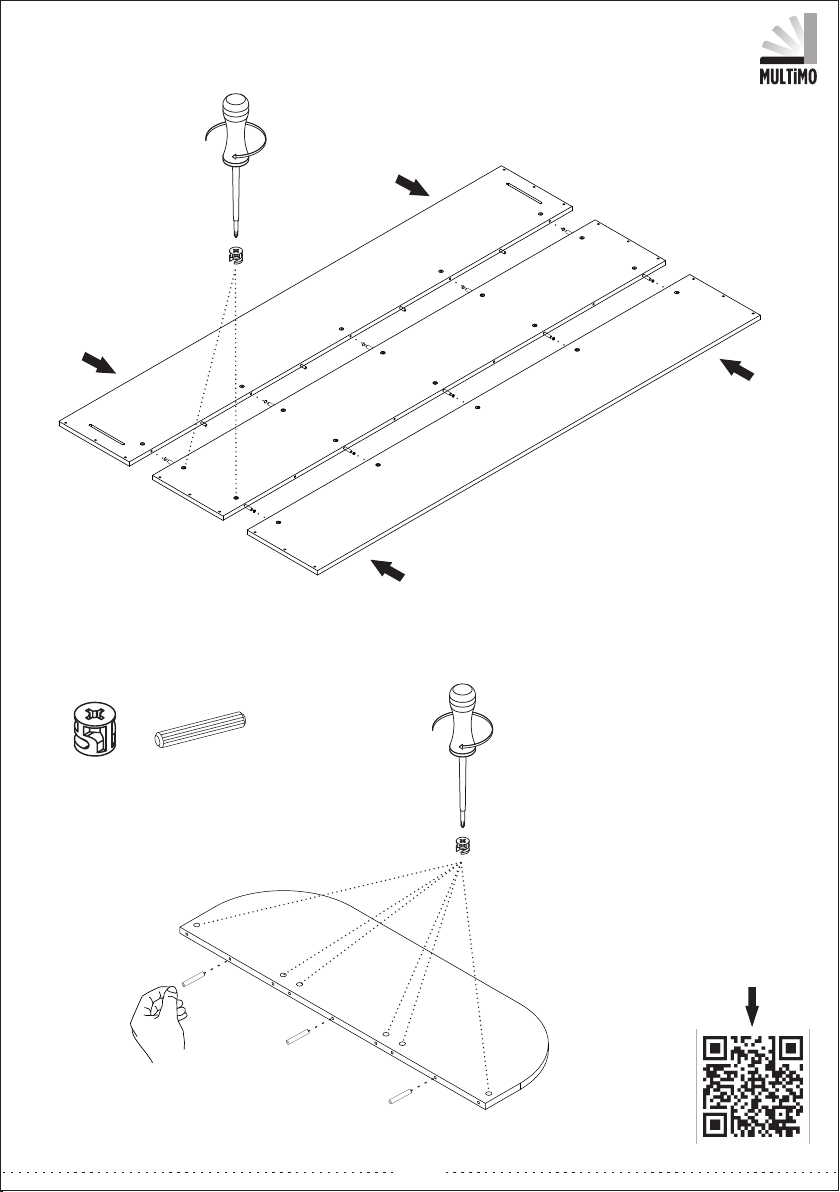

STEP 8
STEP 9
B
C
D
KVL 01
MNG - 01
210°
210°
210°
210°
VIDEO
https://youtu.be/OUh08ZqbuCw
VIDEO
https://youtu.be/3z3Yc4KAuuw
Page 7 Page 8
STEP 7
KVL 01
MNG - 01
MNG - 01 x 6
KVL - 01 x 3 A
MNG - 01 x 5
MNG - 01 x 10
MNG - 01 x 5 B
C
D
MNX - 03 x 10
KVL - 01 x 4
KVL - 01 x 4
MNX - 03
210°
STEP 8
STEP 9
B
C
D
KVL 01
MNG - 01
210°
210°
210°
210°
VIDEO
https://youtu.be/OUh08ZqbuCw
VIDEO
https://youtu.be/3z3Yc4KAuuw
Page 9 Page 10

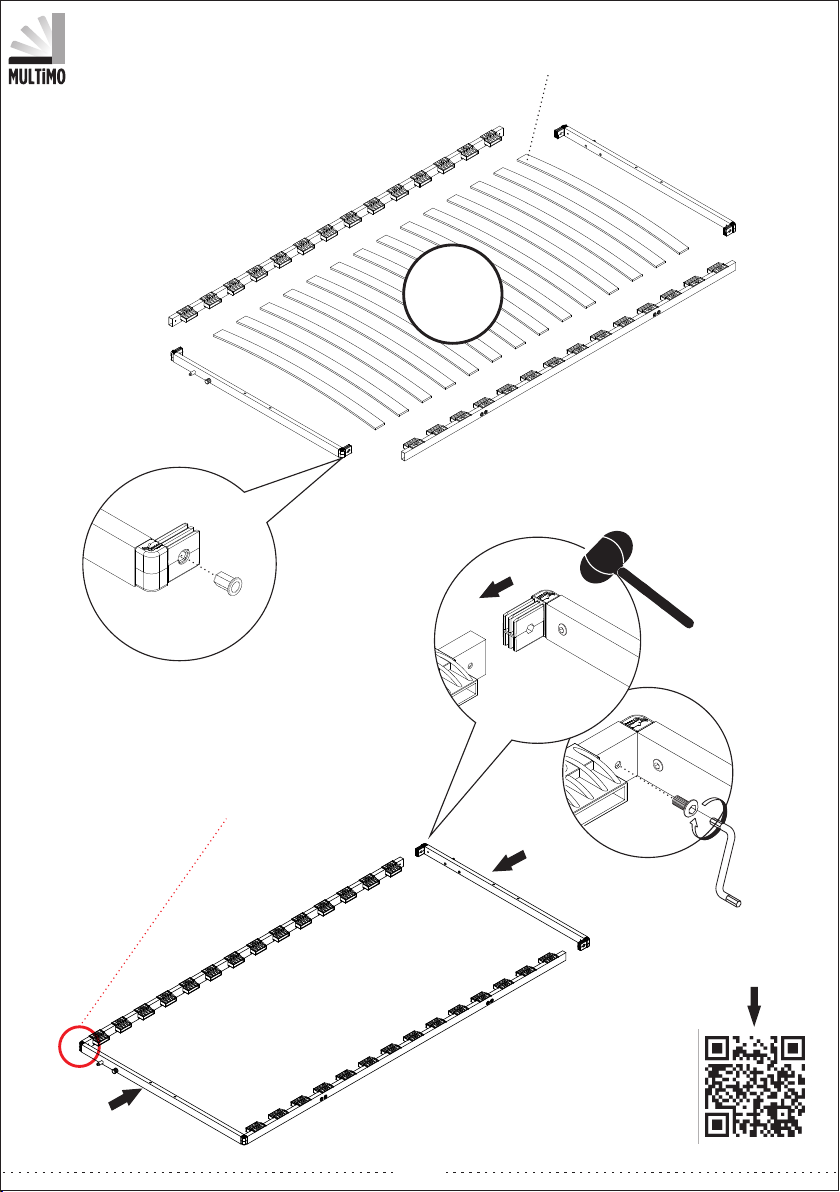

STEP 10
J
G-R
G-L
H
- K
LTA - 01 x 14
H
J - K
G-R
G-L
Install plastic corners and
metal joints without gaps
SKT - 01
CTM - 01
1-
-3
AL - 01
J - K
H
G-R
2-
STEP 11
B
C
D
69 mm 69 mm
J - K
SC-110 x 10
VTB - 02 x 20
SC-110 x 4
VTB - 02 x 8
Assemble the brackets over the
places shown over H,J,K proles
Assemble the brackets over the
places shown over G-L,G-R proles
VIDEO
https://youtu.be/aKnZw0RnzKw
VIDEO
https://youtu.be/RdZtPuBgHns
