Multimo 750-SIMPLE BUNK User manual

Assembly Instructions

750- SIMPLE BUNK

100min.

180min.

Technical Service

End User

VIDEO

link

Page 1 Page 2

AMR 03 (300 N)

4 / piece

MRD 01

1 / piece 2 / piece

KLF -F (fabric cover) KOR -F

2 / piece

DD - 01 ( R10 )

14 / piece

SG - 01

8 / piece

TAP - 01

64 / piece

KVL 01

28 / piece

MNG - 01

64/ piece

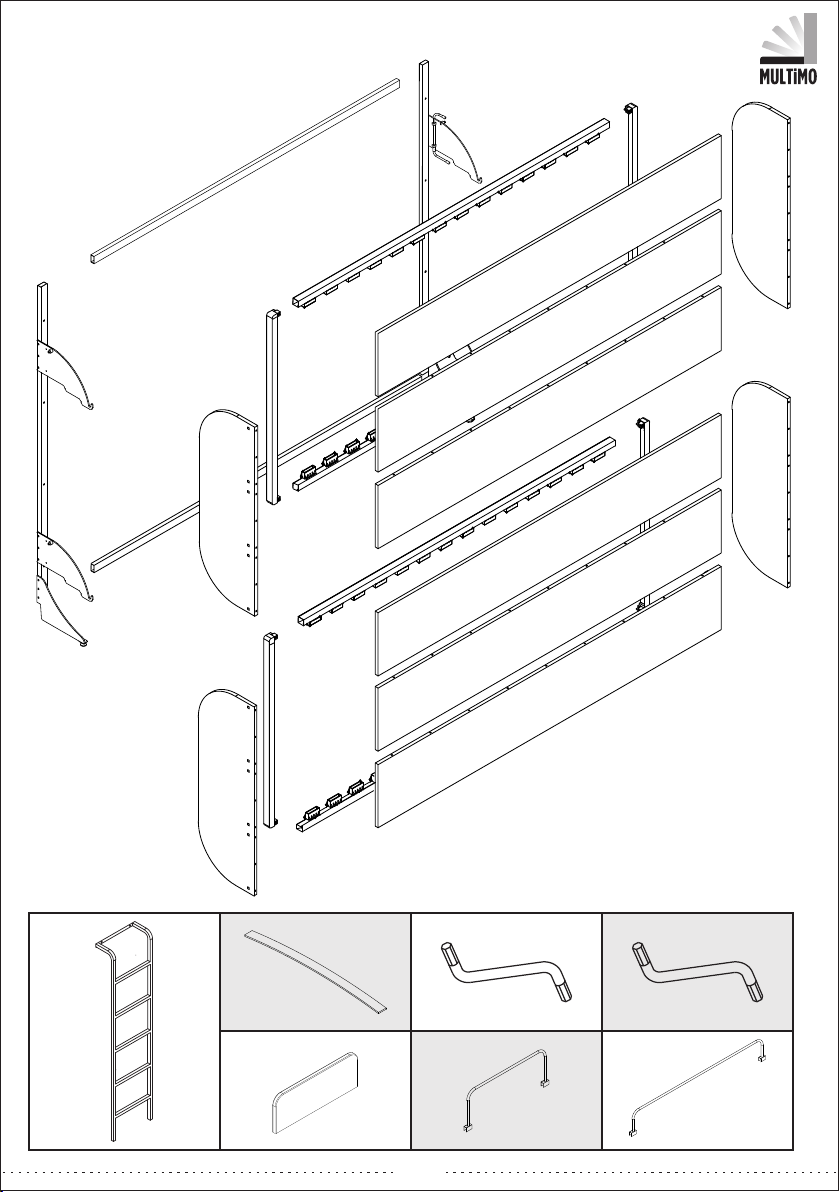

Accessories List

MNX 02

24/ piece

MNX - 03

20 / piece

PL - 04 (5x12x0,7) mm

16 / piece

SC-79

2 / piece

AL - 01 (4MM)

1 / piece

AL - 02 (5MM)

1 / piece

TFC - 01(8x70) mm

14 / piece

KOR -B

2 / piece

BKA - 01

2 / piece

E-R

E-L

G-R

G-L

G-R

G-L

KCE - 01

8 / piece

YSB - 01 ( 3,9x16 ) mm

16 / piece

SYS-01

2 / piece

VTB - 02 (4,2x16) mm

72 / piece

2 / piece

SC-98

KBY- 02

4 / piece28 / piece

SC-110

IM - 02 (6x20) mm

8 / piece

CTM - 01 ( 6x10 ) mm

8 / piece

SKT 01

8 / piece 6 / piece

CTM - 04 ( 8x25 ) mm

LTA - 01

28 / piece

SC-78

4 / piece

Track Title

(inch) (mm)

Piece T hickness Length Width Piece T hick Height Most

A40,71 36,14 13,58 418 918 345

B20,71 84,17 12,09 2 18 2138 307

C20,71 84,17 12,09 2 18 2138 307

D20,71 84,17 12,09 2 18 2138 307

E-R / E-L 265,94 2 1675

F275,98 2 1930

Page 1 Page 2

AMR 03 (300 N)

4 / piece

MRD 01

1 / piece 2 / piece

KLF -F (fabric cover) KOR -F

2 / piece

DD - 01 ( R10 )

14 / piece

SG - 01

8 / piece

TAP - 01

64 / piece

KVL 01

28 / piece

MNG - 01

64/ piece

Accessories List

MNX 02

24/ piece

MNX - 03

20 / piece

PL - 04 (5x12x0,7) mm

16 / piece

SC-79

2 / piece

AL - 01 (4MM)

1 / piece

AL - 02 (5MM)

1 / piece

TFC - 01(8x70) mm

14 / piece

KOR -B

2 / piece

BKA - 01

2 / piece

E-R

E-L

G-R

G-L

G-R

G-L

KCE - 01

8 / piece

YSB - 01 ( 3,9x16 ) mm

16 / piece

SYS-01

2 / piece

VTB - 02 (4,2x16) mm

72 / piece

2 / piece

SC-98

KBY- 02

4 / piece28 / piece

SC-110

IM - 02 (6x20) mm

8 / piece

CTM - 01 ( 6x10 ) mm

8 / piece

SKT 01

8 / piece 6 / piece

CTM - 04 ( 8x25 ) mm

LTA - 01

28 / piece

SC-78

4 / piece

Track Title

(inch) (mm)

Piece T hickness Length Width Piece T hick Height Most

A40,71 36,14 13,58 418 918 345

B20,71 84,17 12,09 2 18 2138 307

C20,71 84,17 12,09 2 18 2138 307

D20,71 84,17 12,09 2 18 2138 307

E-R / E-L 265,94 2 1675

F275,98 2 1930

Page 3 Page 4

STEP 1

E-R

E-L

SYS - 01

BKA - 01

KBY - 02

VIDEO

link

VIDEO

link

SC - 98

STEP 3

STEP 2

Ø 10 mm / 0,254 nch

DD - 01

TFC - 01

2010 mm

1730 mm

Use mounting frame as a drilling template.

Attach frame to the wall at one point only.(STEP-2)

Ensure frame is perfectly level.(STEP-2)

Mark drilling points through predrilled holes in the frame.(STEP-3)

Remove frame from the wall and drill pilot holes in the wall.(STEP-4)

Attach frame to the wall using supplied hardware.(STEP-5-6)

ATTENTION!!!

Must be secured to the wall made of brick, concrete or similarly strong material.

Mounting to wooden or metal studs is also acceptable.

Do not mount directly to sheetrock or paper-mache type walls not supported by studs.

Page 3 Page 4

STEP 1

E-R

E-L

SYS - 01

BKA - 01

KBY - 02

VIDEO

link

VIDEO

link

SC - 98

STEP 3

STEP 2

Ø 10 mm / 0,254 nch

DD - 01

TFC - 01

2010 mm

1730 mm

Use mounting frame as a drilling template.

Attach frame to the wall at one point only.(STEP-2)

Ensure frame is perfectly level.(STEP-2)

Mark drilling points through predrilled holes in the frame.(STEP-3)

Remove frame from the wall and drill pilot holes in the wall.(STEP-4)

Attach frame to the wall using supplied hardware.(STEP-5-6)

ATTENTION!!!

Must be secured to the wall made of brick, concrete or similarly strong material.

Mounting to wooden or metal studs is also acceptable.

Do not mount directly to sheetrock or paper-mache type walls not supported by studs.

Page 5 Page 6

STEP 4

Ø 10 mm / 0,254 nch

DD - 01 x 13

STEP 5

TFC - 01 X 3

A-

STEP 6

TFC - 01 X 8

A-

SC - 98

VIDEO

link

VIDEO

link

Page 5 Page 6

STEP 4

Ø 10 mm / 0,254 nch

DD - 01 x 13

STEP 5

TFC - 01 X 3

A-

STEP 6

TFC - 01 X 8

A-

SC - 98

VIDEO

link

VIDEO

link

Page 7 Page 8

STEP 7

KVL 01

MNG - 01

MNG - 01 x 6

KVL - 01 x 3 A

MNG - 01 x 5

MNG - 01 x 10

MNG - 01 x 5 B

MNX - 03 x 10

KVL - 01 x 4

MNX - 03

210°

STEP 8

STEP 9

KVL 01

MNG - 01

210°

VIDEO

link

VIDEO

link

Page 7 Page 8

STEP 7

KVL 01

MNG - 01

MNG - 01 x 6

KVL - 01 x 3 A

MNG - 01 x 5

MNG - 01 x 10

MNG - 01 x 5 B

MNX - 03 x 10

KVL - 01 x 4

MNX - 03

210°

STEP 8

STEP 9

KVL 01

MNG - 01

210°

VIDEO

link

VIDEO

link

Page 9 Page 10

STEP 10 STEP 11

G-R

G-L

- K

LTA - 01 x 14

J - K

G-R

G-L

Install plastic corners and

metal joints without gaps

SKT - 01

CTM - 01

69 mm 69 mm

J - K

-3

SC-110 x 10

VTB - 02 x 20

SC-110 x 4

VTB - 02 x 8

VIDEO

link

VIDEO

link

AL - 01

J - K

G-R

Assemble the brackets over the

places shown over H,J,K proles

Assemble the brackets over the

places shown over G-L,G-R proles
