MSI MS7667 User manual

Thank you for choosing the 7667 v2.2 Series (MS-7667)

Micro-ATX mainboard. The series mainboards are based

on Intel® P67 chipsets for optimal system e󰘲ciency.

Designed to 󰘰t the advanced Intel® LGA1155 processor,

the series deliver a high performance and professional

desktop platform solution.

Chapter 1

Getting Started

1-2

Getting Started

Mainboard Speci󰘰cations

Processor Support

Intel® Sandy Bridge processor in the LGA1155 package

Chipset

Intel® P67 chipset

Memory Support

4 DDR3 DIMMs support DDR3 2133(Over Clocking)/ 1600(Over Clocking)/ 1333/

1066 DRAM (32GB Max)

Supports Dual-Channel mode

LAN

Supports LAN 10/100/1000 by Realtek® RTL8111E

IEEE 1394

1 IEEE 1394 rear port by VIA® VT6315N

Audio

Chip integrated by Realtek® ALC892

Flexible 8-channel audio with jack sensing

Compliant with Azalia 1.0 Spec

SATA

4 SATA 3Gb/s ports (SATA3~6 by Intel® P67 PCH)

2 SATA 6Gb/s ports (SATA1~2 by Intel® P67 PCH)

2 eSATA ports (rear x 1, front x 1) by JMicron® JMB362

RAID

SATA1~6 support Intel® Matrix Storage Technology (AHCI/ RAID 0/ 1/ 5/ 10) by Intel®

P67 PCH

2 eSATA ports support RAID 0/ 1 & JBOD mode by JMicron® JMB362

USB 3.0

2 USB 3.0 ports by RENESAS uPD720200AF1-DAP-A

■

1-3

MS-7667

Chapter 1

Connectors/ Ports

Back panel

1 Coaxial S/PDIF-Out

1 Optical S/PDIF-Out

1 IEEE 1394 port

6 USB 2.0 ports

1 eSATA port

1 LAN port

6 󰘱exible audio ports

On-Board

2 USB 2.0 connector

2 USB 3.0 ports

1 Front Panel Audio connector

1 OC switch /LED connector

Slots

2 PCIE 2.0 x16 slots

2 PCIE 2.0 x1 slots

Form Factor

Micro-ATX (24.4 cm X 24.4 cm)

Mounting

8 mounting holes

■

1-4

Getting Started

(MS-7667) Micro-ATX Mainboard

Mainboard Layout

PASSWORD

USB2

SYSFAN1 SYSFAN2

CPU_FAN

USB1

JFP3

FRONT_PANEL

CLEAR_CMOS

SLOT1

DIMM1

DIMM3

DIMM2

DIMM4

SLOT2

SLOT3

SLOT4

ESATA

FRONT_AUDIO

BATT

LOCK

Top: LAN Jack

Bottom: USB2.0 ports

Line-Out

Line-In

Mic

T:CS-Out

M:RS-Out

B:SS-Out

Top: USB 2.0 ports

Bottom: eSATA port

Top:

Bottom:

1394 port

USB 2.0 ports

Top:

Coaxial S/PDIF

Buttom:

Optical S/PDIF

USB3_2 USB3_1

PWR1

PWR2

SATA1_2

SATA3_4

SATA5_6

This chapter provides you with the information about

hardware setup procedures. While performing the instal-

lation, be careful in holding the components and follow-

ing the installation procedures. For some components, if

you install in the wrong orientation, the components will

not work properly.

Use a grounded wrist strap before handling computer

components. Static electricity may damage the compo-

nents.

Chapter 2

Hardware Setup

2-2

Hardware Setup

MS-7667

Chapter 2

Hardware Setup

MS-7667

Chapter 2

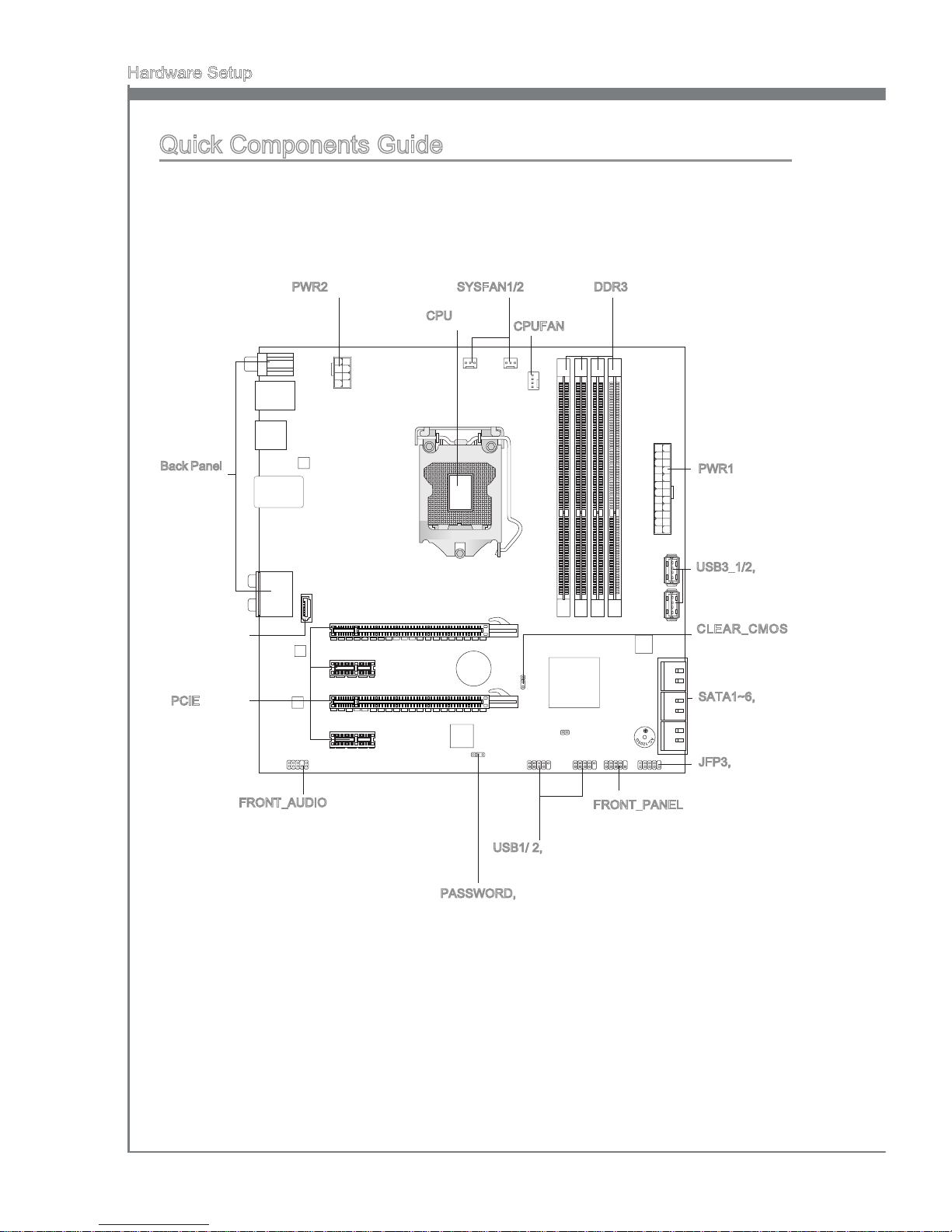

Quick Components Guide

Back Panel,

p.2-11

CPU, p.2-4 CPUFAN, p.2-14

DDR3, p.2-8PWR2, p.2-10

PWR1, p.2-10

CLEAR_CMOS,

p.2-17

SATA1~6, p.2-13

JFP3, p.2-16

FRONT_PANEL, p.2-14

USB3_1/2, p.2-15

FRONT_AUDIO, p.2-16

PCIE, p.2-18

SYSFAN1/2, p.2-14

PASSWORD, p.2-17

USB1/ 2, p.2-15

ESATA, p.2-13

Hardware Setup

MS-7667

Chapter 2

2-3

Hardware Setup

MS-7667

Chapter 2

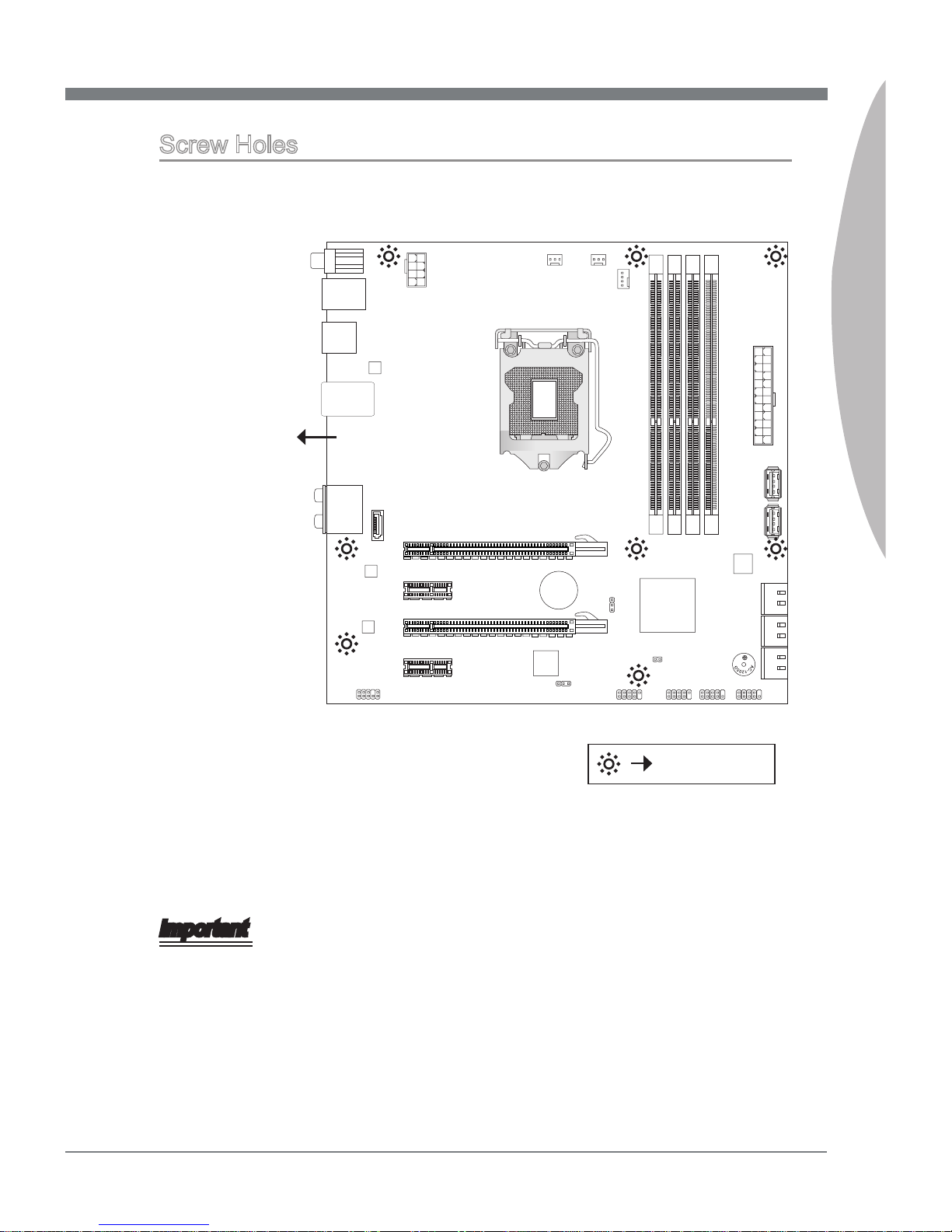

Screw Holes

When you install the mainboard, you have to place the mainboard into the chassis in the

correct direction. The locations of screws holes on the mainboard are shown as below.

Refer above picture to install stando󰘯s in the appropriate locations on chassis and then

screw through the mainboard screw holes into the stando󰘯s.

Important

To prevent damage to the mainboard, any contact between the mainboard circuit and

chassis or unnecessary stando󰘯s mounted on the chassis is prohibited.

Please make sure there are no metal components placed on the mainboard or within

the chassis that may cause short circuit of the mainboard.

•

Screw holes

The side has to

toward the rear,

the position for

the I/O shield of

the chassis.

2-4

Hardware Setup

MS-7667

Chapter 2

Hardware Setup

MS-7667

Chapter 2

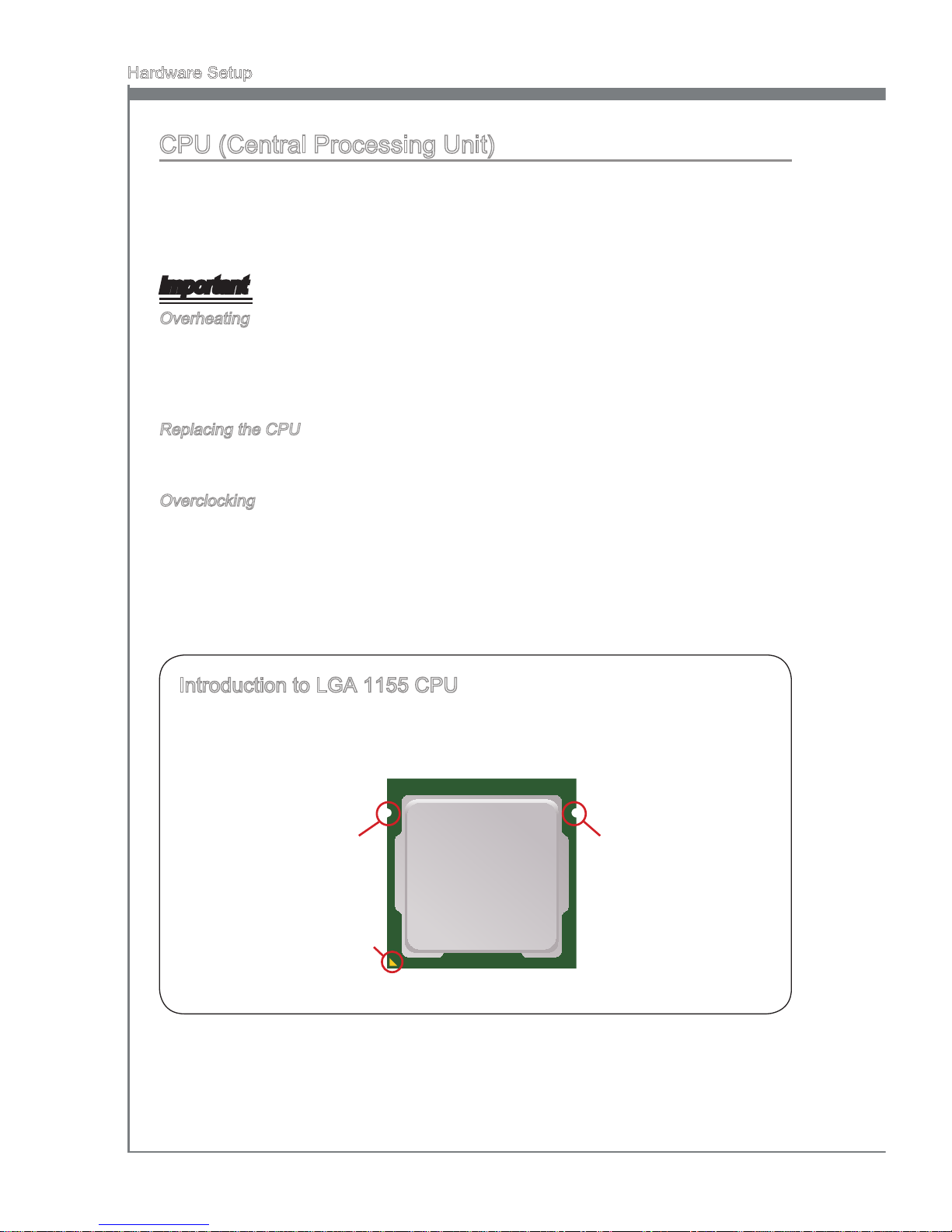

CPU (Central Processing Unit)

When you are installing the CPU, make sure to install the cooler to prevent overheating.

If you do not have the CPU cooler, consult your dealer before turning on the computer.

For the latest information about CPU, please visit http://www.msi.com/index.

php?func=cpuform2

Important

Overheating

Overheating will seriously damage the CPU and system. Always make sure the cooling

fan can work properly to protect the CPU from overheating. Make sure that you apply

an even layer of thermal paste (or thermal tape) between the CPU and the heatsink to

enhance heat dissipation.

Replacing the CPU

While replacing the CPU, always turn o󰘯 the ATX power supply or unplug the power

supply’s power cord from the grounded outlet 󰘰rst to ensure the safety of CPU.

Overclocking

This mainboard is designed to support overclocking. However, please make sure your

components are able to tolerate such abnormal setting, while doing overclocking. Any

attempt to operate beyond product speci󰘰cations is not recommended. We do not guar-

antee the damages or risks caused by inadequate operation or beyond product speci-

󰘰cations.

Introduction to LGA 1155 CPU

The surface of LGA 1155 CPU. Remember to apply some thermal paste on it for

better heat dispersion.

Alignment Key

Yellow triangle is the

Pin 1 indicator

Alignment Key

Hardware Setup

MS-7667

Chapter 2

2-5

Hardware Setup

MS-7667

Chapter 2

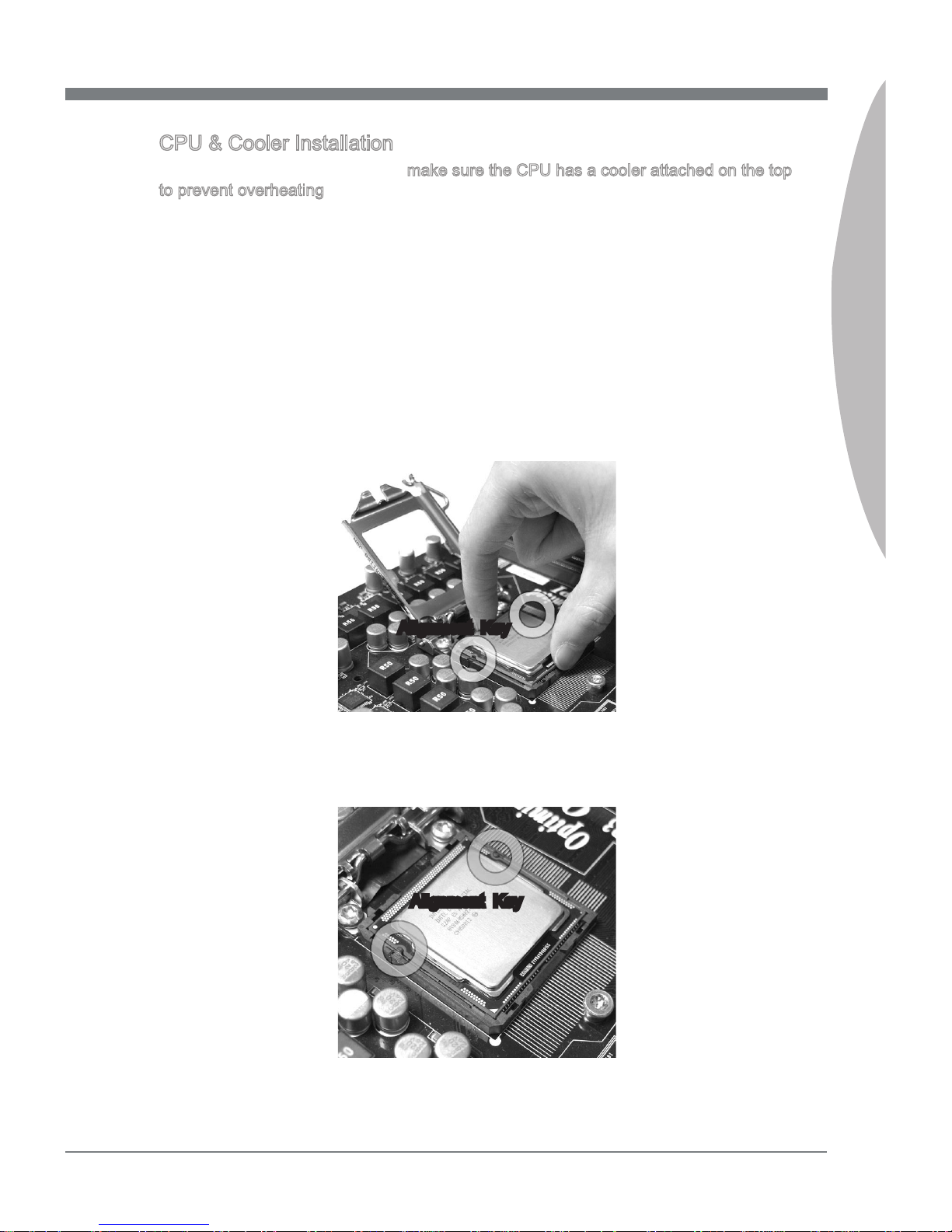

CPU & Cooler Installation

When you are installing the CPU, make sure the CPU has a cooler attached on the top

to prevent overheating. Meanwhile, do not forget to apply some thermal paste on CPU

before installing the heat sink/cooler fan for better heat dispersion.

Follow the steps below to install the CPU & cooler correctly. Wrong installation will

cause the damage of your CPU & mainboard.

The CPU socket has a plastic cap on it to protect the contact from damage. Before

you install CPU, always cover it to protect the socket pin. Romove the cap.

Open the load level.

Lift the load lever up to fully open position.

After con󰘰rming the CPU direction for correct mating, put down the CPU in the

socket housing frame. Be sure to grasp on the edge of the CPU base. Note that the

alignment keys are matched.

with pure vertical motion and rein-

stall.

Visually inspect if the CPU is seated well into the socket. If not, take out the CPU 5.

Alignment Key

2-6

Hardware Setup

MS-7667

Chapter 2

Hardware Setup

MS-7667

Chapter 2

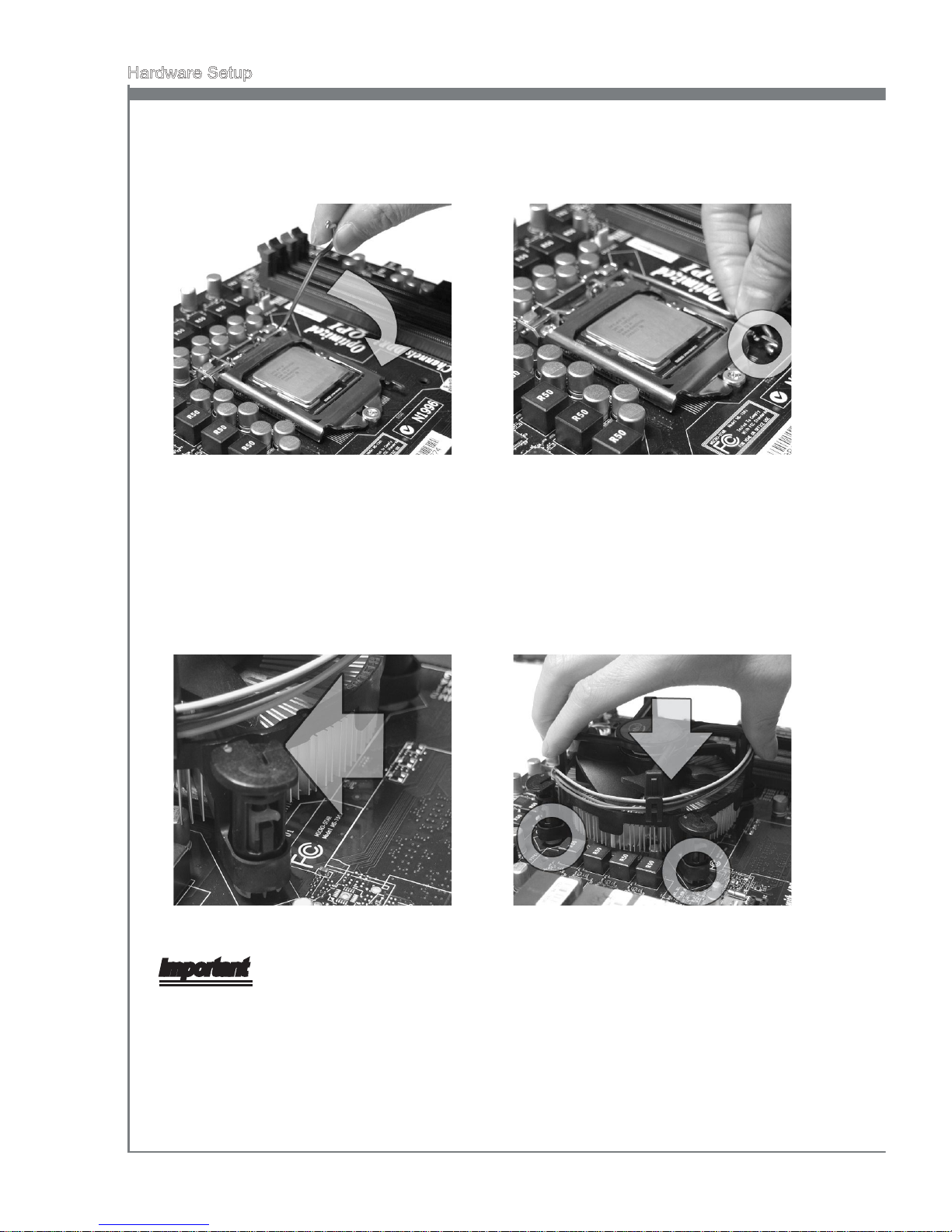

Engage the load lever while pressing

down lightly onto the load plate.

6. Secure the lever near the hook end

under the retention tab.

Make sure the four hooks are in por-

per position before you install the

cooler.

8. Align the holes on the mainboard with

the heatsink. Push down the cooler

until its four clips get wedged into the

holes of the mainboard.

Important

Con󰘰rm if your CPU cooler is 󰘰rmly installed before turning on your system.

Do not touch the CPU socket pins to avoid damaging.

•
