MSI ATX BX13 User manual

CHAPTER 1CHAPTER 1

CHAPTER 1 INTRODUCTIONINTRODUCTION

INTRODUCTIONINTRODUCTION

INTRODUCTION

1-1

The MICRO ATX BX13 mainboard is a high-performance personal computer

mainboard based on the Intel®Pentium®II processor. The Intel®Pentium®II

processor supports MMXTM (Multimedia Extension) technology.

The mainboard uses the highly integrated Intel®82443BX AGP chipset to

support the PCI/ISA and Green standards, and to provide the Host/AGP

bridge. The Intel®82371EB chipset integrates all system control functions

such as ACPI (Advanced Configuration and Power Interface). The ACPI

provides more Energy Saving Features for the OSPM(OS Direct Power

Management) function. The Intel®82371EB chipset also improves the IDE

transfer rate by supporting Ultra DMA/33 IDE that transfers data at the rate

of33MB/s.

The mainboard also supports the System Hardware Monitor Controller. Its

functions include: CPU /power supply/chassis fan revolution detect, CPU/

system voltage monitor, system temperature monitor, chassis intrusion

detect and TOP TECH II as an optional function.

Chapter 1

INTRODUCTION

CHAPTER 1CHAPTER 1

CHAPTER 1 INTRODUCTIONINTRODUCTION

INTRODUCTIONINTRODUCTION

INTRODUCTION

1-2

1.1 Mainboard Features

CPU

lSlot 1 for Intel®Pentium®II/CeleronTM processor.

lSupports233MHz,266MHz,300MHz,333MHz,350MHz,400MHz,

450MHz,andfaster.

Chipset

lIntel®82443BX/PIIX4Echipset.

FSB(FrontSideBus)

l66.6MHz, 100MHz and faster clocks are supported.

MainMemory

lSupports six memory banks using three 168-pin unbuffered DIMM.

lSupportsamaximum memorysizeof 384MB(8Mx8) or768MB(16M x4)

registered DIMM only.

lSupportsECC(1-bitErrorCodeCorrect)function.

lSupports 3.3v SDRAM DIMM.

Slots

lOne AGP slot.

- AGP specification compliant

- AGP66/133MHz3.3vdevicesupport

lFive 32-bit Master PCI Bus slots and two 16-bit ISA Bus slots (wherein

one slot is shared).

*See Chapter 2-27 for further details on PCI slots.

lSupports 3.3v/5v PCI bus Interface.

On-BoardIDE

lAn IDE controller on the Intel®PIIX4E PCI Chipset provides IDE HDD/

CD-ROM with PIO, Bus Master and Ultra DMA/33 operation modes.

lCan connect up to four IDE devices.

CHAPTER 1CHAPTER 1

CHAPTER 1 INTRODUCTIONINTRODUCTION

INTRODUCTIONINTRODUCTION

INTRODUCTION

1-3

On-BoardPeripherals

lOn-BoardPeripheralsinclude:

-1floppyportsupports2FDDwith360K,720K,1.2M,1.44Mand

2.88Mbytes.

-2serialport(COMA)+ (COMB)

- 1 parallel port supports SPP/EPP/ECP mode

- 2 USB ports

- 1 IrDA connector for SIR.

- 1 Audio port ( Line_Out, Line_In, and Mic_In Jack) and 1 MIDI/

GamePort

Audio (Optional)

lCreative®ES1373

-RunningonPCIBUS.

-64VoiceandAC3Capable

- Support Direct Sound and Direct Sound 3D

-AC97’Compliant

- Support SPDIFTM output

BIOS

lThe mainboard BIOS provides “Plug & Play” BIOS which detects the

peripheral devices and expansion cards of the board automatically.

lThe mainboard provides a Desktop Management Interface(DMI) function

which records your mainboard specifications.

lACPI(Advanced Configuration and Power Interface) feature.

Dimension

lATXFormFactor: 30cm(L)x19.2cm(W)x 4layersPCB

Mounting

l6 mounting holes.

CHAPTER 1CHAPTER 1

CHAPTER 1 INTRODUCTIONINTRODUCTION

INTRODUCTIONINTRODUCTION

INTRODUCTION

1-4

SystemHardwareMonitor

lCPU/Power Supply/Chassis Fan Revolution Detect

lCPU Fan Control detects the CPU temperature, then determine the FAN

SPEED,whichutilizesPCAlertprogram(thefanwillautomaticallystop

when the system enters suspend mode)

lSystem Voltage Detect

lAdded 5VSB and Battery Voltage Detect

lCPU Overheat Warning.

lDisplay Actual Current Voltage

lChassis Intrusion

OtherFeatures

lKeyboard Password Wake-Up

lLAN Wake-Up

lInternal/External Modem Wake-Up

CHAPTER 1CHAPTER 1

CHAPTER 1 INTRODUCTIONINTRODUCTION

INTRODUCTIONINTRODUCTION

INTRODUCTION

1-5

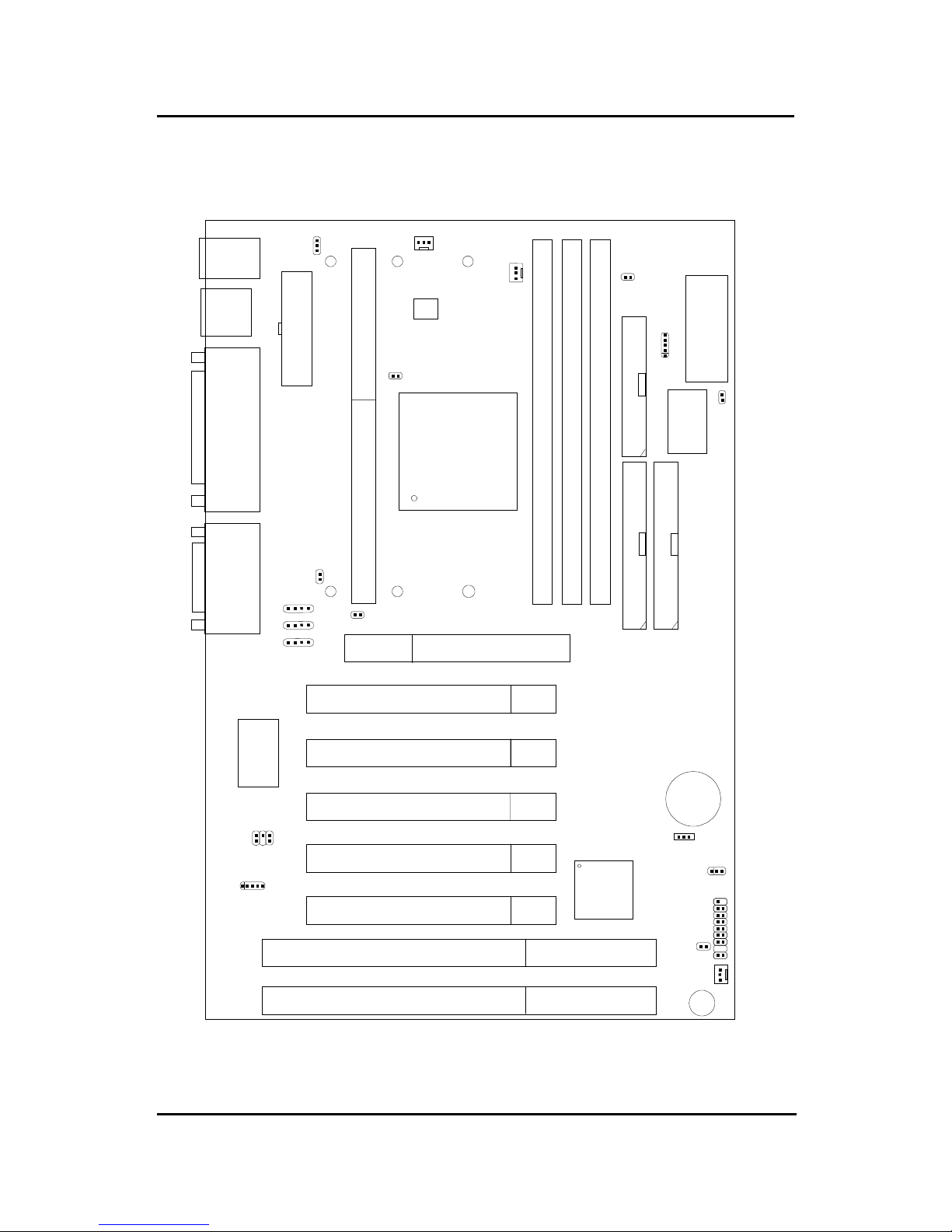

1.2 Mainboard Layout

MS-6163 ATX BX13 Mainboard

PCI SLOT 3

PCI SLOT 2

PCI SLOT 1

ISA SLOT 2

ATX

Power Supply

FW82443BX

SLOT 1

DIMM 2

Top: Mouse

Bottom:

Keyboard

Top:Port1

USB

DIMM 1

IDE2

Bottom:

Port2

IDE1

FDD

FW82371EB

JMDM1

JMDM1 JFP

JGS1

JBAT1

BIOS

JPHONE:MDM_IN

JAUX: AUX_IN

CPUFAN

JSOR1

JRMS1

PSFAN

BATT

Top: LPT

Bottom:

COM1/

COM2

Top: Midi/

GamePort

Bottom:

Line-Out

Line-In

Mic

JCD: CD_IN

SW2

JKBV

System

Hardware

Monitor

(optional)

AGP SLOT

JCASE

DIMM 3

PCI SLOT 4

PCI SLOT 5

ISA SLOT 1

JWOL1

SYSFAN

WINBOND

W83977EF-AW

SB_Link

JT3

Creative

ES1373

(Optional)

CHAPTER 2CHAPTER 2

CHAPTER 2 HARDHARD

HARDHARD

HARDWW

WARE INSTARE INST

ARE INSTARE INST

ARE INSTALLAALLA

ALLAALLA

ALLATIONTION

TIONTION

TION

2-1

Chapter 2

HARDWARE INSTALLATION

2.1 Central Processing Unit: CPU

This mainboard operates with Intel®Pentium®II/CeleronTM processor. The

mainboard uses a CPU Slot called Slot 1 for easy CPU installation. The CPU

should always have a Heat Sink and a cooling fan attached to prevent

overheating.

CHAPTER 2CHAPTER 2

CHAPTER 2 HARDHARD

HARDHARD

HARDWW

WARE INSTARE INST

ARE INSTARE INST

ARE INSTALLAALLA

ALLAALLA

ALLATIONTION

TIONTION

TION

2-2

2.1-1 CPU Installation Procedures

A. OEM Pentium®II Processor Installation Procedures

Different kinds of Pentium®II processor that is currently used: the OEM

version, the Boxed version, and CeleronTM. OEM Pentium®II Processor has

no Heat Sink, Fan and Heat Sink Support, the Boxed Pentium®II Processor

is provided with Heat Sink w/ fan and Heat Sink Support, while the

CeleronTM processor is a plain processor card without cover or heatsink.

Required Things:

Pentium®IIprocessor- Processor.

*RetentionMechanism(RM)-Plastic Guide that holds the S.E.C.Catridge

in the Slot 1 connector.

*RetentionMechanismAttachMount(RMAM)-Bolt/Bridgeassemblies

inserted up through the bottom of the

motherboard. RM secures to RMAM ( 2

RMAM required per RM ).

*Heat SinkSupportBase (HSSBASE) - Plastic support bar mounted to

the mainboard under the ATX heatsink.

(One leg is always bigger than the other one)

Processor

Lock

Retention

Mechanism

Pentium®II

Processor

Heat Sink

W/Fan

Notch Hole

Heat Sink

Support Base Heat Sink

Support Pin

Heat Sink

Support

Top Bar

CHAPTER 2CHAPTER 2

CHAPTER 2 HARDHARD

HARDHARD

HARDWW

WARE INSTARE INST

ARE INSTARE INST

ARE INSTALLAALLA

ALLAALLA

ALLATIONTION

TIONTION

TION

2-3

*HeatSink Support Pin(HSSPIN) - Plastic pins inserted through the

HSSBASE to secure it to the mainboard (2

required per Assembly).

*Heat SinkSupport Top Bar (HSSTOP) - Plastic bar that clips onto the

HSSBASE through the fins on the ATX

heatsink.

**Heat Sink w/ fan - Heat Sink that can be attached to thePentium®II

processorwithmetalclip.

Note:* Provided by MSI mainboard.

** Provided by Special request.

HSSPIN

HSSTOP

HSSBASE

RMAM

CHAPTER 2CHAPTER 2

CHAPTER 2 HARDHARD

HARDHARD

HARDWW

WARE INSTARE INST

ARE INSTARE INST

ARE INSTALLAALLA

ALLAALLA

ALLATIONTION

TIONTION

TION

2-4

SLOT1

Retention

Mechanism

êê

Key

êê

Retention

Mechanism

Attach Mount

Notch

Key

Step 1: Insert the Retention Mechanism Attach Mount at the bottom

of the mainboard.

Step 2: Install the Retention Mechanism.

Look for the key on Slot 1, and match it with the Notch Key on the

Retention Mechanism for proper direction. Then, attach the

Retention Mechanism to the Retention Mechanism Attach Mount.

Use a Screwdriver to secure the Retention Mechanism.

CHAPTER 2CHAPTER 2

CHAPTER 2 HARDHARD

HARDHARD

HARDWW

WARE INSTARE INST

ARE INSTARE INST

ARE INSTALLAALLA

ALLAALLA

ALLATIONTION

TIONTION

TION

2-5

Step 3: Install the Heat Sink Support Base.

Look for the Two holes across Slot 1, and match it with the Two legs

of the Heat Sink Support Base for the proper direction. Take note

that one hole/leg is bigger than the other. The Four top pins of the

Heat Sink Support Base should also be oriented towards Slot 1.

Push the Heat Sink Support Base onto the mainboard, until you hear

a click sound. Check for a perfect fit.

Step 4: Install the Heat Sink Support Pin.

Push the Heat Sink Support Pins onto the two holes of the Heat Sink

Support Base. Check for a perfect fit. These pins are used to secure

the Heat Sink Support Base.

Heat Sink

Support Base

Heat Sink

Support Pin

Leg

pins
