Miele TOUCHTRONIC T 8003 User instructions

NOTE: Drawing is not to scale.

SPECIFICATION SHEETS 08262011

Product Dimensions

Large Capacity Vented Dryer

Angled control

T8003 / T8005

23 1/2"

33 3/8" - 34 1/8"

22 1/2"

3 3/4" - 4 1/2"

21 1/2"

Notes

•All installations must be done in accordance with local codes

• See "Cut-out Dimensions" sheet for undercounter or built-in space requirements

E -

V-

208/240 Volt, 30 Amp 5 foot molded

plug power supply connects upper right

rear (NEMA 14-30 Configuration).

Venting location may be adjusted to

lower right or left side or lower left rear

(see separate sheet).

Location Codes

NOTE: Drawing is not to scale.

SPECIFICATION SHEETS 08262011

Product Dimensions

Large Capacity Condeser Dryer

Angled control

T8013C

23 1/2"

33 3/8" - 34 1/8"

22 1/2"

3 3/4" - 4 1/2"

21 1/2"

Notes

•All installations must be done in accordance with local codes

• See "Cut-out Dimensions" sheet for undercounter or built-in space requirements

E - 208/240 Volt, 30 Amp 5 foot molded

plug power supply connects upper right

rear (NEMA 14-30 Configuration).

Location Codes

NOTE: Drawing is not to scale.

SPECIFICATION SHEETS 08262011

Product Dimensions

Large Capacity Condenser Dryers

Flat Controls - Decor unit

T8019Ci

23 1/2"

33 3/8" - 34 1/8"

22 1/2"

5 7/8"

3 3/4" - 4 1/2"

1 1/2"

Notes

•All installations must be done in accordance with local codes

• See "Cut-out Dimensions" sheet for undercounter or built-in space requirements

E - 208/240 Volt, 30 Amp 5 foot molded

plug power supply connects upper right

rear (NEMA 14-30 Configuration).

Location Codes

NOTE: Drawing is not to scale.

SPECIFICATION SHEETS 08262011

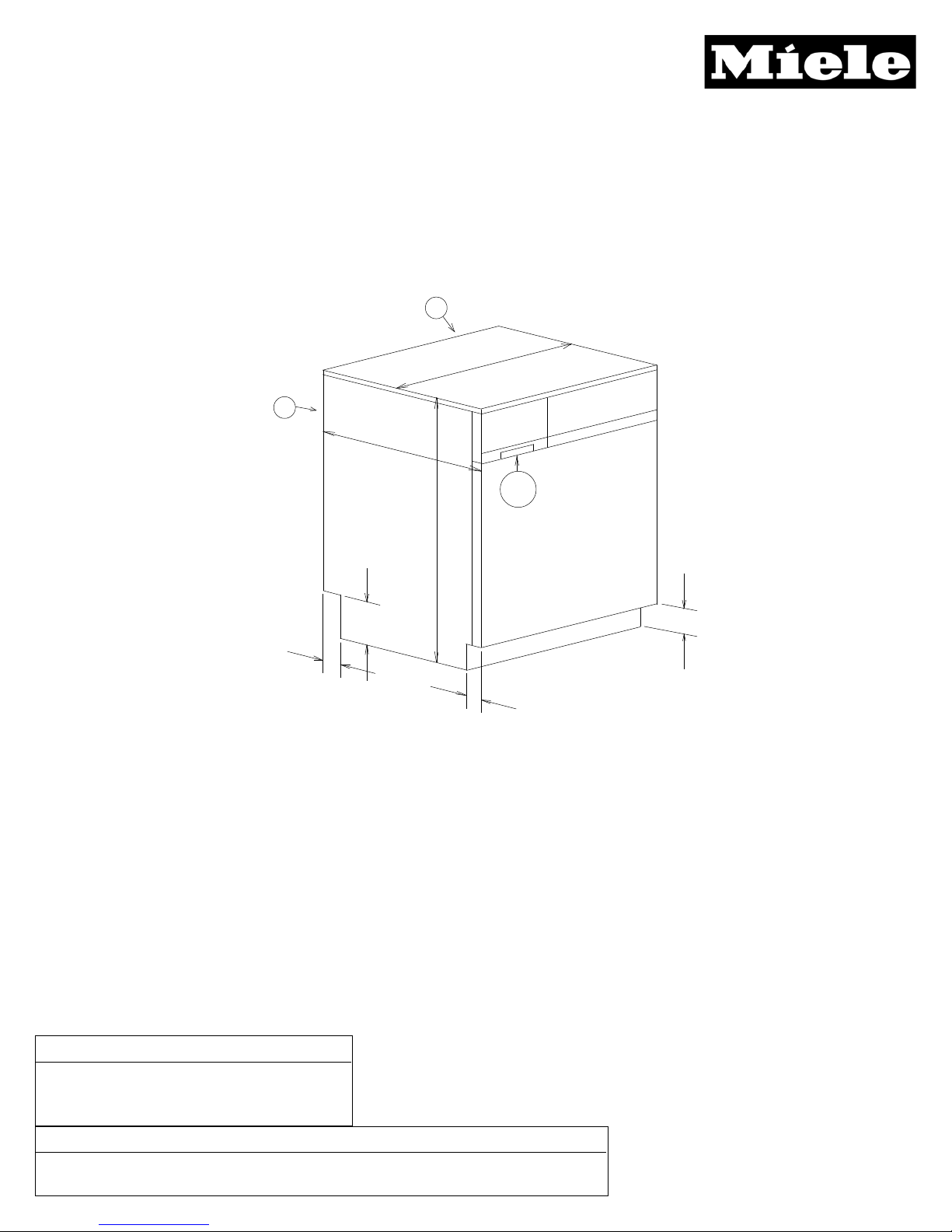

Cut-out Dimensions

Built-in Installations

Large Capacity Laundry Products

24"

See Notes

Water & Electrical

Connection

Location

32 3/8" - 35 1/4"

Location Codes

C - Cutout for Electric and Vent/Drain

pass-through. Adjust according to duct

or drain location.

• Needed depth will vary by model number:

T8003-T8013C: 24" minimum

T8019Ci 25" minimum

• Typically requires removal of unit's lid. Out of box unit height dimension without

lid is 32 5/16" - 32 11/16".

Notes

NOTE: Drawing is not to scale.

SPECIFICATION SHEETS 08262011

Product Dimensions

Laundry Stand

WTS410 - White Only

22"

11"

Notes

• For use with both large and super

capacity washers or tumble dryers.

• All installations must be done in

accordnace with local codes

23 3/8"

NOTE: Drawing is not to scale.

SPECIFICATION SHEETS 08262011

Product Dimensions

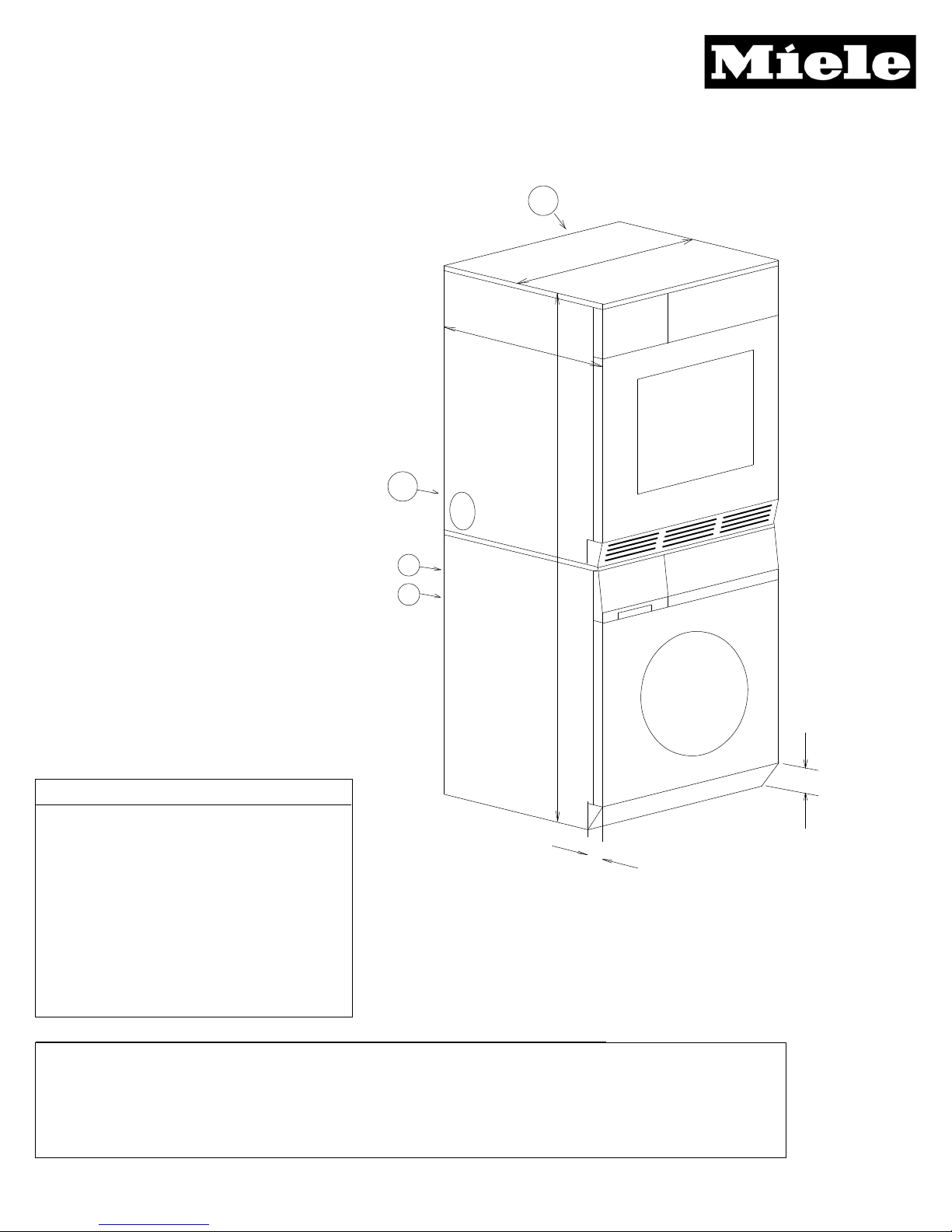

Stacked Washer & Dryer

Example Combination

W3033 + T8003

3 3/4" - 4 1/2"

23 1/2"

22 1/2"

66 3/8" - 67 1/8"

D -

E1 -

E2 -

W -

5 foot flexible drain hose connects

upper left rear.

120 Volt, 15 Amp 5 foot molded plug

power supply connects upper left rear

(NEMA 5-15 Configuration).

208/240 Volt, 30 Amp 5 foot molded

plug power supply connects upper

right rear (NEMA 14-30 Configuration).

5 foot separate flexible hot and cold

water intake hoses connect upper left

rear.

Location Codes

Notes

•All installations must be done in accordance with local codes

• See "Cut-out Dimensions" sheet for undercounter or built-in space requirements

• Remove transport struts in rear of machine before installation.

• WTV 407 Stacking kit for W3033, T8003, T8013C

• WTV 410 Stacking kit for W3039i / T8019Ci

• WTV 419 Stacking kit for W3035 / T8005

Panel Information

Integrated Laundry

T8019Ci Decor Unit

These units come equipped with a full size white front panel. These units are also designed to either accept a thin insert or

a custom front panel supplied by the custom cabinet maker.

Sizes are as follows:

Version 1 - Thin insert

Width: 23 1/4" for all machines

Thickness: up to 1/8"

Height: 25" in all cases

With this version, a thin white frame will be exposed after

installation

Version 2 - Custom Front Panel

Width: 23 3/8" for all machines

Thickness: up to 3/4"

Height: Up to 25"

With this version, the existing front panel is removed and

replaced by the new custom panel

Miele

Decor

Laundry unit

Hinge Notches

In certain installations, notches will be required to

accomodate the hinges in the front panel.

Miele

Decor

Laundry

Control

Panel

To center lines

16 3/4"

Notch Pattern

For this installation, drill the following

pattern in the appropriate locations.

Note: To insure access to customer servicable features,

a minimum 4" toe kick above finished floor (AFF)

is required.

3 7/8"

1 1/8"

7/8"

1/4" Ø

Drill all holes

to a 5/8" depth

1 3/8" Ø

NOTE: Drawing is not to scale.

SPECIFICATION SHEETS 08262011

Vent Locations

Vented dryers

T8003, T8005

Rear ViewLeft Side View Right Side View

4 3/4" 3 7/8" 4 3/4"

3 1/2" - 4 1/4"

Vent Locations

Vent Duct Calculations

Maximum Duct Lengths

4" diameter 65 feet

4 3/16" diameter 98 feet

4 3/4" diameter 140 feet

5" diameter 196 feet

Type of Bend or duct Effective Radius Subtract

Flexible duct 90° 4 - 12 inches 1 3/4 feet

Flexible duct 90° 12 - 20 inches 1 1/4 feet

Flexible duct 45° 4 - 20 inches 1 1/4 feet

Smooth duct 90° or 45° 4 - 8 inches 1 1/4 feet

Elbow 90° Sharp bend 8 1/4 feet

Concertina bend 8 inch 2 3/4 feet

Segmented bend 8 inch 2 feet

Louvered wall or window vent (#03780400) 12 1/2 feet

Wall vent kit with flap (#00087184) 5 feet

Window vent kit with flap (#00087185) 5 feet

Exhaust connection - left 20 feet

Exhaust connection - right 33 feet

Flat duct (#01221330) 59 feet

DO NOT use vinyl ducting

with Miele appliances.

Corresponding Dryer Height with NO lid: 32 1/8" - 32 7/8"

Corresponding Dryer Height with lid: 33 3/8" - 34 1/8"

Vent Locations

Stacked Washer & Dryer

Example Combination

Rear ViewLeft Side View Right Side View

Vent Locations

Corresponding Total Height with lid: 66 3/8" - 67 1/8"

4 3/4"

36 3/8" - 37 1/8"

Stacking KitStacking Kit

36 3/8" - 37 1/8"

3 7/8" 4 3/4"

Stacking Kit

36 3/8" - 37 1/8"
