Miele TOUCHTRONIC T 9820 User manual

Operating Instructions for the

T 9820 Gas Dryer

To prevent accidents

and machine damage

read these instructions

before

installation or use. M.-Nr. 07 268 170

en - US, CA

,WARNING

For your safety the information in this manual

must be followed to minimize the risk of fire or

explosion or to prevent property damage,

personal injury or death.

–Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any

other appliance.

–WHAT TO DO IF YOU SMELL GAS

ßDo not try to light any appliance.

ßDo not touch any electrical switch.

ßDo not use any phone in your building.

ßClear the room, building or area

of all occupants.

ßImmediately call your gas supplier from a

neighbor’s phone. Follow the gas supplier’s

instructions.

ßIf you cannot reach your gas supplier,

call the fire department.

–Installation and service must be performed by a

qualified installer, service agency or the gas

supplier.

(In Massachusetts a licensed plumber / gas fitter)

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

First use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Before loading the dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Fabric care labels .................................................10

Drying tips .......................................................10

Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

1. Sort the laundry .................................................11

2. Load the laundry ................................................11

3. Select a program ................................................13

4. Select an option .................................................14

5. Start the program................................................15

6. Program end - Unload the laundry ..................................16

Changing a running program ........................................16

To cancel a program ...............................................16

Adding/removing laundry during a drying program .......................16

Quick Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Program guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

General problems .................................................19

Fault indicators ...................................................21

After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

User Maintenance Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Dryer Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Cleaning the lint filter ...............................................26

Cleaning the exterior and the control panel .............................27

Changing the light bulb .............................................28

Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Contents

,WARNING - To reduce the risk of

fire, electric shock or injury to

persons when using your appliance

follow basic precautions, including

the following:

The T9820 gas dryer is only

approved for use in the USA

and Canada. It is not approved

for use in Mexico.

This dryer is intended for

residential use only!

~It is essential to read all instructions

before using the appliance.

~Do not allow children to play on or in

the appliance. Close supervision is

necessary when the appliance is used

near children.

~Always close the door after use to

prevent child or pet hazards.

~Before this appliance is removed for

service or discarded, remove the door

to the drying compartment.

~Do not reach into the dryer if the

drum is moving.

~Do not install or store the appliance

where it will be exposed to the weather.

~Do not lean on the door. The dryer

may tip over.

~Do not tamper

with the controls.

~Do not use fabric softeners or

products to eliminate static unless

recommended by the fabric

manufacturer.

~To prevent the risk of fire, the

following textiles must not be dried in

this dryer:

–items which have not been washed.

–items, such as work-wear, exposed

to grease, oils, or other deposits

(such as lotions or cosmetics) in your

dryer. If these items have not been

thoroughly cleaned there is a danger

that they may contribute to a

chemical reaction that could cause

the laundry to ignite when heated

even after being removed from the

dryer.

– items that have been previously

cleaned, washed, soaked or spotted

with gasoline, dry-cleaning solvents

or other flammable or explosive

substances. They may give off

vapors that could ignite or explode.

– items treated with flammable

cleaning agents or items containing

acetone, alcohol, petrol, stain

remover, wax or chemicals from

buffing, etc.

–items which have been splashed with

hair spray, nail polish remover, etc.

When washing heavily soiled items

ensure that sufficient detergent is

used with a high temperature. If in

doubt wash the item several times.

–items containing foam rubber or

similarly textured rubber-like

materials.

–items with padding or filling (e.g.

pillows or jackets) which have been

damaged. Loose filling could catch

fire.

IMPORTANT SAFETY INSTRUCTIONS

~Allow the dryer to complete each

stage of the program selected,

including the cooling down phase. This

will ensure that the items being

removed are not too hot to handle.

~Do not repair or replace any part of

the appliance or attempt any servicing

unless specifically recommended in

these Operating instructions. Repairs to

appliances should only be performed

by qualified personnel. Incorrectly

repaired machines may pose a

considerable risk to the user.

~Clean the lint filter before or after

each load.

~Keep the area around the air intake

(toe-kick) and adjacent surrounding

areas free from lint, dust and dirt.

~The interior of the machine and

exhaust duct should be cleaned

periodically by qualified personnel.

~Danger of suffocation or

toxication Adequate ventilation is

essential, especially when another

appliance which also uses the room air

(e.g. gas, oil or coal fired heater,

continuous flow or other water heater) is

installed in the same or an adjacent

room. Allow sufficient room ventilation

by unlockable ventilation openings in

the wall.

Check with your building inspector for a

riskless use to avoid a low pressure of

4 Pa or more.

~The dryer must only run if the moist

exhaust air is conducted outside by an

installed exhaust duct vent. Provide

sufficient venting in the room where the

dryer is installed, e.g. by opening a

window.

~This dryer must not be used without

an exhaust hose, lint filter or a

damaged lint filter.

~GROUNDING INSTRUCTIONS

This appliance must be grounded. In

the event of malfunction or breakdown,

grounding will reduce the risk of

electric shock by providing a path of

least resistance for electric current.

This appliance is equipped with a cord

having an equipment-grounding

conductor and a grounding plug. The

plug must be plugged into an

appropriate outlet that is properly

installed and grounded in accordance

with all local codes and ordinances.

~Do not install or use a dryer with

visible damage.

~Proper installation is the

responsibility of the installer.

~WARNING – Improper connection of

the equipment grounding conductor

can result in the risk of electric shock.

Contact a qualified electrician if you are

in doubt as to whether the appliance is

properly grounded.

~Do not modify the plug provided

with the appliance; if it will not fit the

outlet, have a proper outlet installed by

a qualified electrician.

IMPORTANT SAFETY INSTRUCTIONS

~Product failure due to improper

installation is not covered under the

Warranty.

~Gas dryers are not approved for

mobile home installation.

~Check regularly on the exhaust

parts (e.g. wall vent duct, louvered wall

vent, bends, etc.) if enough air gets

through. Lint can collect and block the

air flow. If an exhaust hose is already

installed, it should be checked before

connected to the dryer.

~Faulty components must only be

replaced with original Miele spare

parts.

~If the power cord is damaged it

must only be replaced by a Miele

Service technician with a genuine Miele

power cord.

Using accessories

~Only use genuine Miele

accessories. If unapproved parts are

used, guarantee, performance and

product liability claims may become

void.

KEEP THESE INSTRUCTIONS

FOR FUTURE REFERENCE

In case of change of ownership, this

manual should stay with the dryer.

IMPORTANT SAFETY INSTRUCTIONS

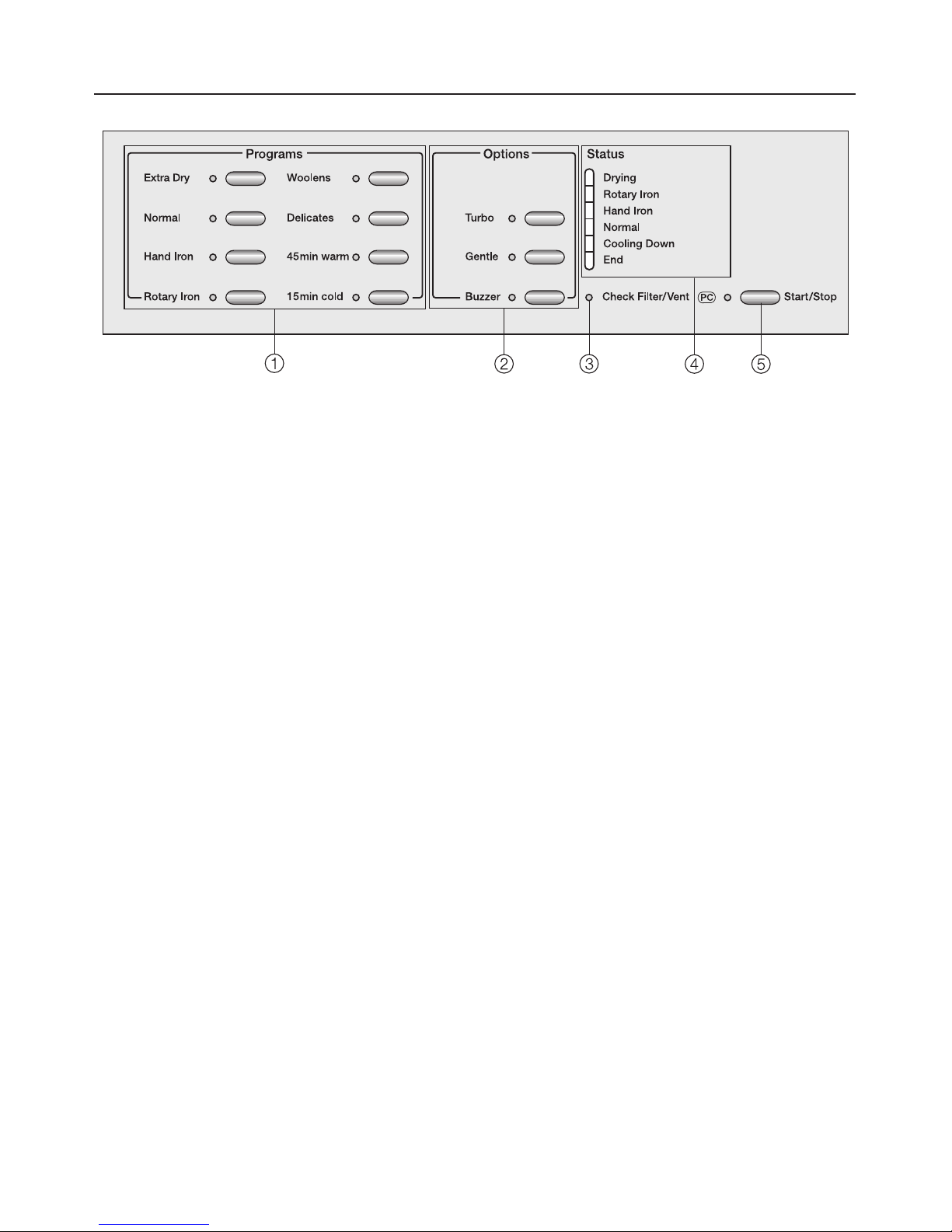

aProgram buttons

To select a drying program

bOptions buttons

Special features to enhance a drying

program

cCheck Filter/Vent indicator

Indicates to clean the filter or vent

dStatus indicator

Shows the current cycle of the drying

program

eStart/Stop button

Starts and stops a program, or if

pressed and held in cancels a

program.

Flashes during program selection

and lights continuously once the

program starts.

Control panel

Metal components of the dryer's gas

burner have a protective coating

which may give off a slight odor the

first time the appliance is turned on.

The smell will dissipate after a short

time and does not indicate a faulty

connection or appliance defect.

First use

Clean the drum interior before the

first use.

Fabric care labels

Before drying, check fabric care labels

for special drying instructions.

q= Drying with a normal temperature

r= Drying with a low temperature

s= Do not dry in a tumble dryer

Drying tips

– Observe the maximum loads, see the

"Program Guide".

Overloading the dryer will result in

poor drying results and wrinkling.

– Dry delicate fabrics with the fabric

care symbol rwith the "Gentle"

option.

–Do not dry dripping wet items in the

dryer. Spin the laundry after the wash

for at least 30 seconds.

–Open jackets to allow even drying.

–Wool and wool blends tend to felt

and shrink. Dry these items in the

"Woolens" program.

–The fine cotton fabric or down filled

items tends to shrink.

–Dry pure linen items only if it is

advised on the fabric care label. The

surface of the fabric otherwise tends

to become "rough".

–Knitted fabrics (e.g. T-Shirts and

underwear) tend to shrink when

washed and dried for the first time.

Do not over-dry these fabrics.

–Permanent press and delicate

fabrics tend to crease more the

bigger the load size.

For better drying results reduce the

load size or select the "Delicates"

program.

– Starched laundry can be dried in the

tumble dryer. However, the amount

of starch must be doubled during the

wash.

– Wash new, colored items before

drying for the first time and do not

dry with light-colored items. These

fabrics can "bleed" (also on plastic

parts of the dryer). Colored lint could

adhere to light-colored items.

Before loading the dryer

Other manuals for TOUCHTRONIC T 9820

This manual suits for next models

Table of contents

Other Miele Dryer manuals

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions

Frigidaire

Frigidaire CAQE7077KW0 use & care
