PIC32CM JH01 Curiosity Pro Evaluation Kit User Guide
Preface
The Microchip® PIC32CM JH01 Curiosity Pro evaluation kit is a hardware platform to evaluate the Microchip
PIC32CM JH01 microcontroller (MCU). Each evaluation kit is supported by the MPLAB® X Integrated Development
Environment (IDE) and MPLAB® Harmony v3, featuring application examples.
The Curiosity Pro evaluation kits include an on-board embedded debugger (EDBG) to program or debug the target
microcontroller. This enables an easy start to a project, and provides application examples that can be used in the
design of a custom application.
The Curiosity Pro evaluation kits provide easy access to the features of the microcontroller, and are integrated
with Arduino Uno, mikroBUS™, and extension headers to interface with Xplained Pro extension boards for a rapid
prototyping and expanded functionality. The figure below shows the PIC32CM JH01 Curiosity Pro evaluation kit.
Figure 1. PIC32CM JH01 Curiosity Pro Evaluation kit
JAM1
© 2022 Microchip Technology Inc.
and its subsidiaries
User Guide DS70005482B-page 1
Table of Contents
Preface........................................................................................................................................................... 1
1. Introduction............................................................................................................................................. 3
1.1. Features....................................................................................................................................... 3
1.2. Overview...................................................................................................................................... 4
2. Getting Started........................................................................................................................................ 7
3. Curiosity Pro............................................................................................................................................8
3.1. Embedded Debugger................................................................................................................... 8
4. Hardware User Guide............................................................................................................................. 9
4.1. Power Sources............................................................................................................................. 9
4.2. Headers and Connectors............................................................................................................11
4.3. Peripherals................................................................................................................................. 19
4.4. Kit Modifications......................................................................................................................... 23
4.5. Embedded Debugger Implementation........................................................................................29
5. Identifying Product ID and Revision...................................................................................................... 31
6. References............................................................................................................................................32
7. Revision History.................................................................................................................................... 33
The Microchip Website.................................................................................................................................34
Product Change Notification Service............................................................................................................34
Customer Support........................................................................................................................................ 34
Microchip Devices Code Protection Feature................................................................................................ 34
Legal Notice................................................................................................................................................. 35
Trademarks.................................................................................................................................................. 35
Quality Management System....................................................................................................................... 36
Worldwide Sales and Service.......................................................................................................................37
EV81X90A
© 2022 Microchip Technology Inc.
and its subsidiaries
User Guide DS70005482B-page 2
1. Introduction
1.1 Features
The following are key features of the PIC32CM JH01 Curiosity Pro evaluation kit.
• 100-pin TQFP PIC32CM5164 JH01 microcontroller
• Embedded Debugger
– micro-USB interface
– Auto-ID for daughter board identification in MPLAB X IDE
– One yellow status LED
– One green board power LED
– Symbolic debug of complex data types including scope information
– Programming and debugging of on-board PIC32CM JH01 through Serial Wire Debug (SWD)
– Data Gateway Interface: SPI, I2C, and four GPIOs
– Virtual COM port (CDC)
– Control of on-board power switch to protect connected extensions against high voltage
• Digital I/O
– Two mechanical buttons (user and reset button)
– One driven shield Touch button
– One yellow user LED
– Three extension headers compatible with a wide range of Xplained Pro extension kits
– Arduino uno connector
• Two selectable target voltages
– 3.3V
– 5.0V
• Voltage Level Shifters between target section and EDBG section
• 32.768 kHz crystal mounted
• 32 MHz crystal mounted
• Trust Anchor (TA100) Secure Element
• Two CAN transceivers with jumpers for connection to external device or loopback between the two CAN
interfaces
• LIN transceiver
– Wake-up button
– Host node pull-up jumper
– Alternate LIN power jumper
• DAC output connector
• Analog voltage reference connector with filtered power supply
– ADC/DAC VREF
• 5-pin Position Decoder (PDEC) connector
• Supported with application examples in MPLAB Harmony v3
EV81X90A
Introduction
© 2022 Microchip Technology Inc.
and its subsidiaries
User Guide DS70005482B-page 3
1.2 Overview
The PIC32CM JH01 Curiosity Pro evaluation kit is a hardware platform to evaluate the Microchip PIC32CM JH01
microcontroller, and the evaluation kit part number is EV81X90A.
The evaluation kit offers a set of features that enables the PIC32CM JH01 users to get started with the PIC32CM
JH01 peripherals, and to obtain an understanding of how to integrate the device in their own design. The following
figure illustrates the top and bottom view of the PIC32CM JH01 Curiosity Pro evaluation kit.

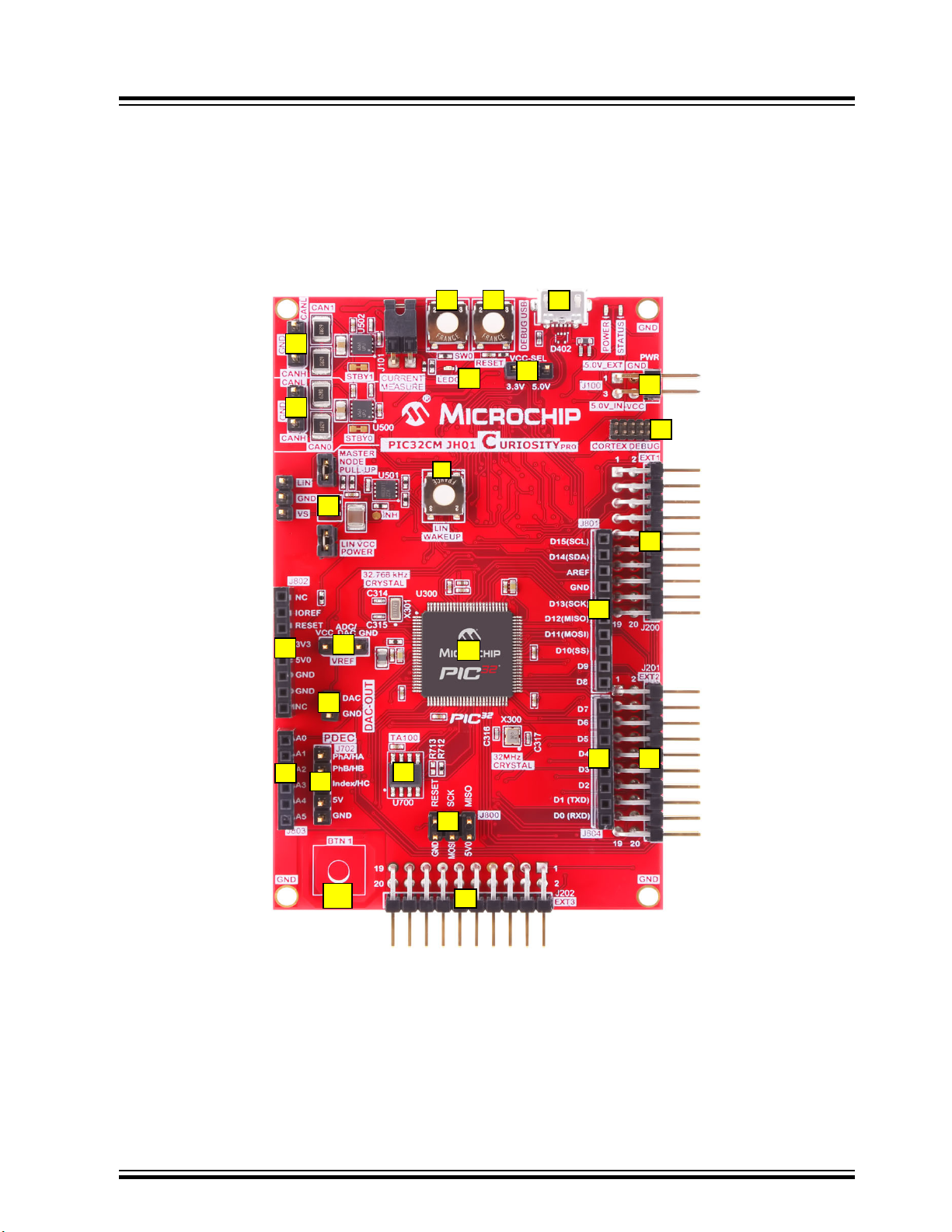

Figure 1-1. PIC32CM JH01 Curiosity Pro Evaluation Kit Layout (Top View)
1
2
6
7
8
9
10
11
11
11
12
12
12
12
12
13
14
3
15
16
17 18
14
54
DD-M2
EV81X90A
Introduction
© 2022 Microchip Technology Inc.
and its subsidiaries
User Guide DS70005482B-page 4
Figure 1-2. PIC32CM JH01 Curiosity Pro Evaluation Kit Layout (Bottom View)
19
20
DD-M8
EV81X90A
Introduction
© 2022 Microchip Technology Inc.
and its subsidiaries
User Guide DS70005482B-page 5
Table 1-1. PIC32CM JH01 Curiosity Pro Kit Features and Location
Number Item Description
1 PIC32CM JH01
2 EDBG USB power supply
3 3-pin VCC Selection header (3.3V or 5.0V)
4 Reset button
5 Programmable button
6 Power header for external power sources
7 Touch button
8 LIN Wakeup button
9 User LED (Yellow)
10 10-pin Cortex® debug header (SWD)
11 Extension headers
12 Arduino Uno header connectors
13 LIN header
14 CAN headers
15 3-pin ADC/DAC VREF header
16 2-pin DAC output header
17 PDEC header connectors
18 Trust Anchor 100 (TA100) secure element
19 Target Voltage power switch with slew rate control
20 Embedded Debugger (EDBG)
Table 1-2. PIC32CM JH01 Curiosity Pro Evaluation Kit Microchip Total System Solutions (TSS)
TSS Component Qty (Per Kit) Function
PIC32CM5164JH01100-I/PF 1 Target MCU
MIC5504-3.3YM5-TR 1 3.3V, 300 mA LDO
MIC5209-3.3YM 1 3.3V, 500 mA LDO
AT32UC3A4256HHB-C1UR 1 EDBG Debugger
ATA6561-GBQW 2 CAN Transceiver
ATA663211-GBQW 1 LIN Transceiver
TA100-Y240C2X01-00B-VAO 1 TA100 Authentication Chip
VXM8-9015-32M0000000 1 Primary 32 MHz crystal
VMK3-9001-32K7680000TR 1 Secondary 32.768 kHz crystal
EV81X90A
Introduction
© 2022 Microchip Technology Inc.
and its subsidiaries
User Guide DS70005482B-page 6
2. Getting Started
Follow these steps to explore the evaluation kit platform:
1. Download MPLAB® X IDE.
2. Launch MPLAB X IDE.
3. Connect the DEBUG USB port on the evaluation kit to the computer using a USB cable (Standard-A to
Micro-B or Micro-AB).
Note: When the evaluation kit is connected to the computer for the first time, the operating system will install
the software driver. The driver file supports both 32-bit and 64-bit versions of Microsoft Windows XP®, Windows
Vista®,Windows 7®, Windows 8®, Windows 10®, and Windows Server 2012®.
When the evaluation kit is powered, the green power LED will glow and MPLAB X IDE will auto-detect the specific
Curiosity Pro evaluation kit and extension boards that are connected to it. MPLAB X IDE will present relevant
information, such as data sheets and kit documentation.
The kit landing page in MPLAB X IDE also has an option to launch MPLAB Harmony v3 example applications for the
kit.
The PIC32CM JH01 device is programmed and debugged by the on-board Embedded Debugger (EDBG), hence no
external programmer or debugger tool is required.
Note: Users can connect external debugger tools using the Cortex-M Debug connector.
EV81X90A
Getting Started
© 2022 Microchip Technology Inc.
and its subsidiaries
User Guide DS70005482B-page 7
3. Curiosity Pro
The PIC32CM JH01 Curiosity Pro evaluation kit is a user-friendly rapid prototyping platform. It is supported with
MPLAB X IDE and MPLAB Harmony v3 software development framework that comes with demonstration codes,
middleware, PLIBs, and drivers.
The Curiosity Pro evaluation kits support a wide range of extension boards which are connected through a set
of standardized headers and connectors. Each extension board has an identification (ID) chip to uniquely identify
which boards are connected to the Curiosity Pro evaluation kit. When an extension board is connected, some
relevant information, such as board features, supported interfaces, serial number, links to documentation, is read and
displayed on the MPLAB X IDE window.
3.1 Embedded Debugger
The PIC32CM JH01 Curiosity Pro evaluation kit contains the Microchip Embedded Debugger (EDBG) for on-board
debugging. The EDBG is a composite USB device of the following three interfaces:
• Debugger
• Virtual COM Port
• Data Gateway Interface (DGI)
Together with MPLAB X IDE, the EDBG debugger interface programs and debugs the microcontroller. On the
Curiosity Pro evaluation kit, the SWD interface is connected between the EDBG and the microcontroller.
The Virtual COM Port is connected to a UART on the PIC32CM JH01 and provides an easy way to communicate with
the target application through terminal software. It offers variable baud rate, parity, and stop bit settings. The settings
on the PIC32CM JH01 must match the settings given in the terminal software.
Note: The virtual COM port in the EDBG requires the terminal software to set the data terminal ready (DTR) signal
to enable the UART pins connected to the PIC32CM JH01. If the DTR signal is not enabled, the UART pins on the
EDBG are kept in high-z (tristate) rendering the COM port unusable. The DTR signal is set automatically by some
terminal software, but it may have to be manually enabled in your terminal.
The DGI consists of several physical interfaces for communication with the Host computer. Communication over
the interfaces is bidirectional. It can be used to send events and values from the PIC32CM JH01. Traffic over the
interfaces can be timestamped by the EDBG for accurate tracing of events. time stamping imposes an overhead that
reduces maximal throughput. The MPLAB Data Visualizer is used to send and receive data through DGI.
The EDBG controls two LEDs: a power LED and a status LED. The following table provides how LEDs are controlled
in different operation modes.
Table 3-1. EDBG LED Control
Operation mode Power LED Status LED
Normal operation Power LED is lit when power is applied
to the kit.
Activity indicator, LED flashes when any
communication happens to the EDBG.
Bootloader mode (idle) The power LED and the status LED blink simultaneously.
Bootloader mode
(firmware upgrade) The power LED and the status LED blink in an alternating pattern.
For additional information on the EDBG, refer to the Microchip EDBG User Guide.
EV81X90A
Curiosity Pro
© 2022 Microchip Technology Inc.
and its subsidiaries
User Guide DS70005482B-page 8
4. Hardware User Guide
4.1 Power Sources
The PIC32CM JH01 Curiosity Pro evaluation kit can be powered by the following power sources:
• Embedded Debugger USB
• An external power
Table 4-1. Power Sources
Power input Voltage requirements Current requirements Connector
marking
External power 4.3V to 5.5V. Recommended maximum is 2A due to
the input protection maximum current
specification.
PWR
Embedded
debugger USB
4.4V to 5.25V (according to
USB spec.)
500 mA (according to USB spec.) DEBUG USB
The evaluation kit will automatically detect which power source is available, and choose which one to use according
to the following priority:
• External power
• Embedded Debugger USB
Note: External power is required when 500 mA from a USB connector is not enough to power the evaluation kit with
possible extension boards.
The EDBG controls an on-board power switch to the PIC32CM JH01, on-board peripherals, and extension
connectors. When the kit is powered up, the EDBG reads the ID chip information from all connected extension
boards and checks they are compatible with the voltage selected by the power selection jumper. If the selected
voltage is within the connected extensions ranges, the switch will open. If not, the EDBG power LED will blink rapidly
and the switch will stay closed resulting in no power provided to the PIC32CM JH01, on-board peripherals, and
connectors.
CAUTION
The evaluation kit can be powered by 5.0V. Care must be taken not to connect any extension board that
does not support this voltage, as it might results in permanent damage. Check the respective extension
kit's user guide to see which voltages are acceptable.
Remember: The EDBG only reads the ID information and controls the power switch when the kit is
powered up. This mechanism does not check hot plugging of extension boards.
EV81X90A
Hardware User Guide
© 2022 Microchip Technology Inc.
and its subsidiaries
User Guide DS70005482B-page 9
Figure 4-1. Power Supply Block Diagram
EDBGUSB
External 5V Input
AutoMUX
Regulator3.3V EDBG
PowerSelect
(Jumper)
PowerSwitch
Jumper
Peripherals PIC32CMJH01
VCC_P5V0 VCC_P3V3
VCC_TARGET VCC_MCU
On/off
Powersource
Powerswitch
Powerconverter
Powerconsumer
DD-M1
EV81X90A
Hardware User Guide
© 2022 Microchip Technology Inc.
and its subsidiaries
User Guide DS70005482B-page 10
Table of contents
Other Microchip Technology Motherboard manuals
Microchip Technology
Microchip Technology PAC1934 User manual
Microchip Technology
Microchip Technology Microsemi PolarFire User manual
Microchip Technology
Microchip Technology MCP1650 User manual
Microchip Technology
Microchip Technology MPLAB ICE User manual
Microchip Technology
Microchip Technology PICKIT 2 PROGRAMMER-TO-GO User manual
Microchip Technology
Microchip Technology EVB-UPD301A SRC User manual
Microchip Technology
Microchip Technology Power Debugger User manual
Microchip Technology
Microchip Technology MCP73855 User manual
Microchip Technology
Microchip Technology Microsemi PD70201EVB-25F-D-5 User manual
Microchip Technology
Microchip Technology PIC32MK User manual
Microchip Technology
Microchip Technology BM78 User manual
Microchip Technology
Microchip Technology Microsemi Silicon Sculptor 4 Technical manual
Microchip Technology
Microchip Technology PIC18F47Q10 Curiosity Nano Installation manual
Microchip Technology
Microchip Technology ATmega4809 Xplained Pro User manual
Microchip Technology
Microchip Technology ATF15 Series User manual
Microchip Technology
Microchip Technology PIC32 Family User manual
Microchip Technology
Microchip Technology MCP7382X User manual
Microchip Technology
Microchip Technology EVK-UTC2000 User manual
Microchip Technology
Microchip Technology PIC16F15376 Curiosity Nano Installation manual
Microchip Technology
Microchip Technology MCP251XFD CAN FD User manual
