Maytronics Swash CLX User manual
1
Contents
1. INTRODUCTION ....................................................................... 2
2. SPECIFICATIONS ...................................................................... 2
3. WARNINGS AND CAUTIONS ................................................... 2
3.1. Warnings............................................................................ 2
3.2. Cautions............................................................................. 2
4. POOL CLEANER PARTS ............................................................ 3
5. USING THE POOL CLEANER.................................................... 4
5.1. Setup.................................................................................. 4
5.2. Putting the Pool Cleaner into the pool.............................. 5
5.3. Removing the Pool Cleaner from the pool........................ 6
6. CLEANING THE FILTER BAG OR CARTRIDGES ....................... 7
6.1. Removing and cleaning the filter bag................................ 7
6.2. Replacing the filter bag ..................................................... 8
6.3. Cleaning the filter cartridges ............................................. 8
6.4. Cleaning the impeller ........................................................ 10
7. OFFSEASON STORAGE............................................................ 10
8. TROUBLESHOOTING................................................................ 11
EN
Robotic Pool Cleaner Swash CLX/TCX
User Instructions
2
Robotic Pool Swash CLX / TCX | User Instructions
Robotic Pool Cleaner
User Instructions
1. INTRODUCTION
Thank you for purchasing a Maytronics Robotic Pool Cleaner.
We are sure that your Maytronics Robotic Pool Cleaner will provide you with reliable, convenient and
cost effective pool cleaning. Its reliable filtration in all pool conditions, active brushing, and all-surface
climbing brush enhance maximum pool hygiene.
Robotic Pool Cleaners by Maytronics deliver advanced cleaning technology, long lasting performance
and easy maintenance. You and your family will be free to enjoy your swim with the full confidence
that it is completely clean.
2. SPECIFICATIONS
Motor protection: IP 68
Minimum depth: 0.80m/2.6ft
Maximum depth: 5m/16.4ft
3. WARNINGS AND CAUTIONS
3.1. Warnings
• Use the originally supplied power supply only
• Ensure the electrical outlet is protected by a ground fault interrupter (GFI) or an earth
leakage interrupter (ELI)
• Keep the power supply out of standing water
• Position the power supply at least 3m/10ft away from the edge of the pool
• Do not enter the pool while the Pool Cleaner is working
• Unplug the power supply before servicing
3.2. Cautions
When not in use store the Pool Cleaner on the Caddy in a shaded area.
Use the Pool Cleaner in the following water conditions only:
Chlorine Max 4 ppm
pH 7.0 - 7.8
Temperature 6°-34°C/43°-93°F
NaCl Maximum=5000 ppm
CAUTION
Robotic Pool Cleaner Swash CLX / TCX |User Instructions
3

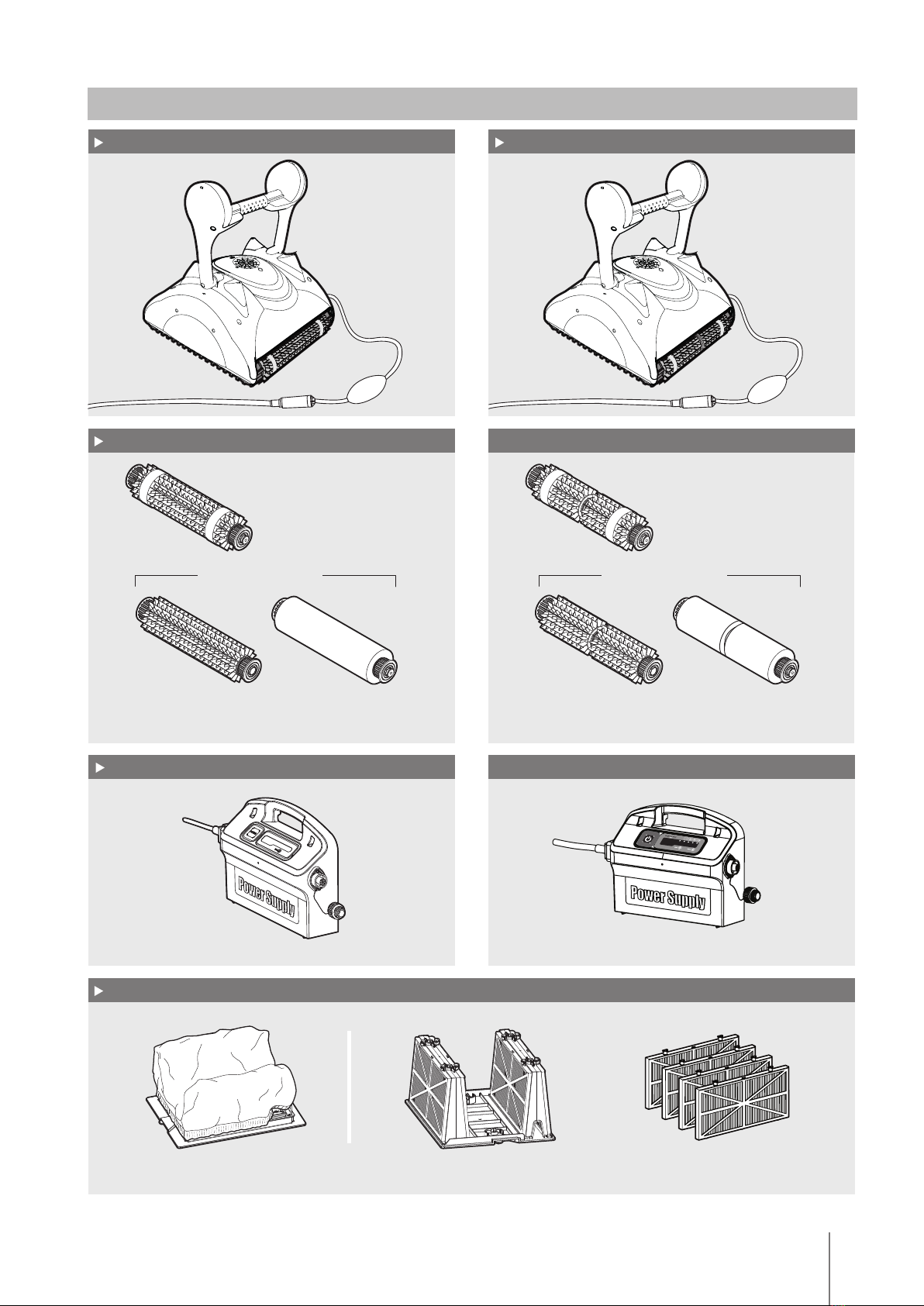

4. POOL CLEANER PARTS
Robotic Pool Cleaner Swash
Combined Brush
All surface climbing brush,
ideal for most pools surfaces
PVC Brush
For concrete, PVC,
fiberglass and liner
Wonder Brush
For smooth ceramics
PVC Brush
For concrete, PVC,
fiberglass and liner
Wonder Brush
For smooth ceramics
Optional Brushes Optional Brushes
Brushes
Power Supply unit
Robotic Pool Cleaner Swash
Filtration Options
Combined Brush
All surface climbing brush,
ideal for most pools surfaces
Frame Cartridges and 4 ultra-fine filters Spring clean-up filtersButtom lid and filter Bag
4
Robotic Pool Swash CLX / TCX | User Instructions
5. USING THE POOL CLEANER
The Pool Cleaner is very easy to use. Just follow the simple steps to get started, and your Pool Cleaner
is ready to go.

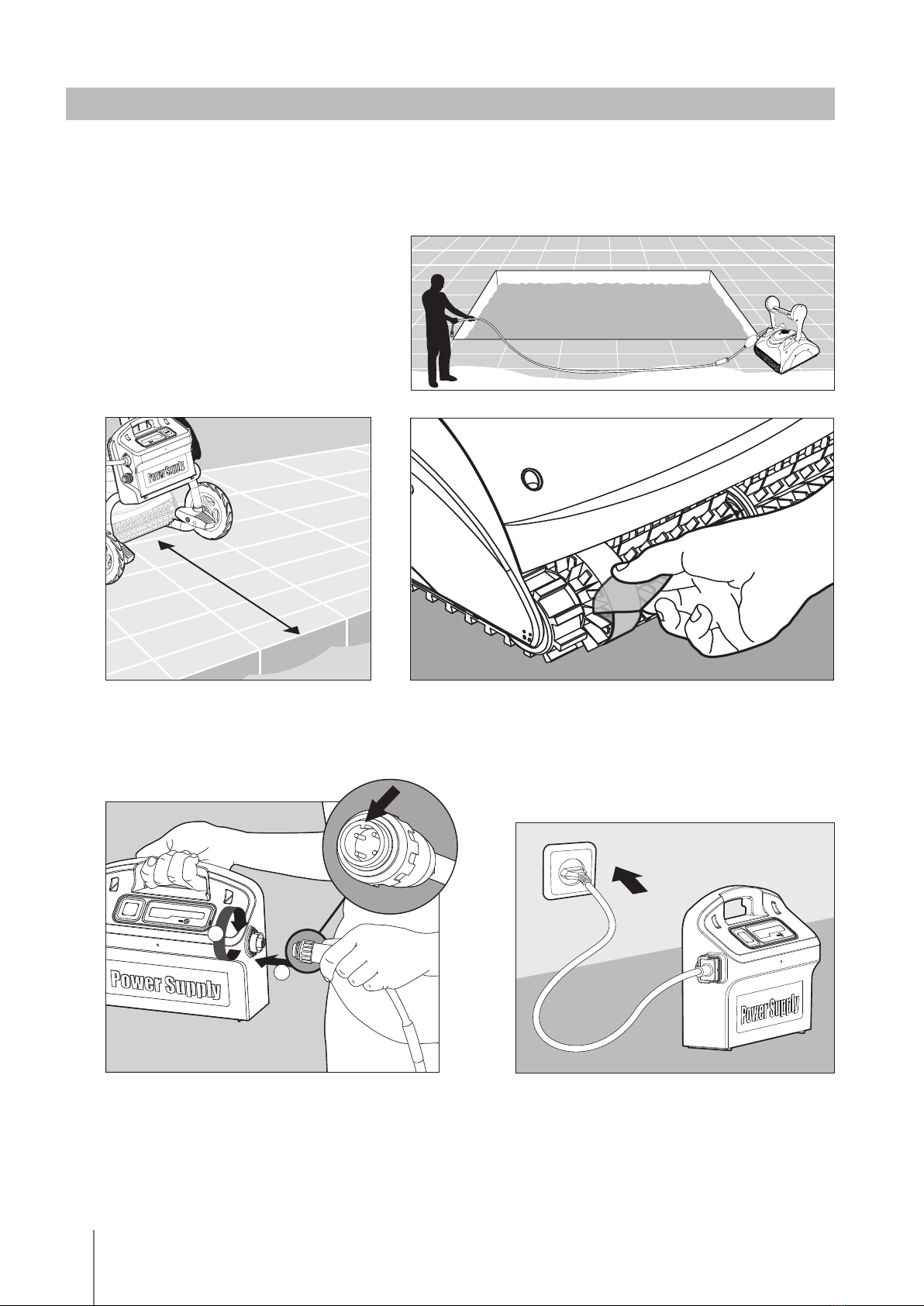

5.1. Setup
Before using the Pool Cleaner for the first time perform the following steps:
Some models arrive with plastic coverings on the brushes.
Remove them before use.
Position the power supply so that it
is approximately in the middle of the
long side of the pool at a distance of
3m/10ft.
1
2
Plug in the power supply and leave it in the
OFF position.
Unwind the cable and stretch it out
completely so that it has no kinks.
Attach the floating cable to the power supply
by inserting it with the notch on the connector (1)
lined up with the groove in the socket on the
power supply and turning clockwise (2).
3m/10ft
Robotic Pool Cleaner Swash CLX / TCX |User Instructions
5
5.2. Putting the Pool Cleaner into the pool
If your Pool Cleaner is equipped with brushes
that contain sponges, dip the brushes in the
water and squeeze them so that they will
absorb water the first time you use the
Pool Cleaner, or if the brushes have dried
out between uses.

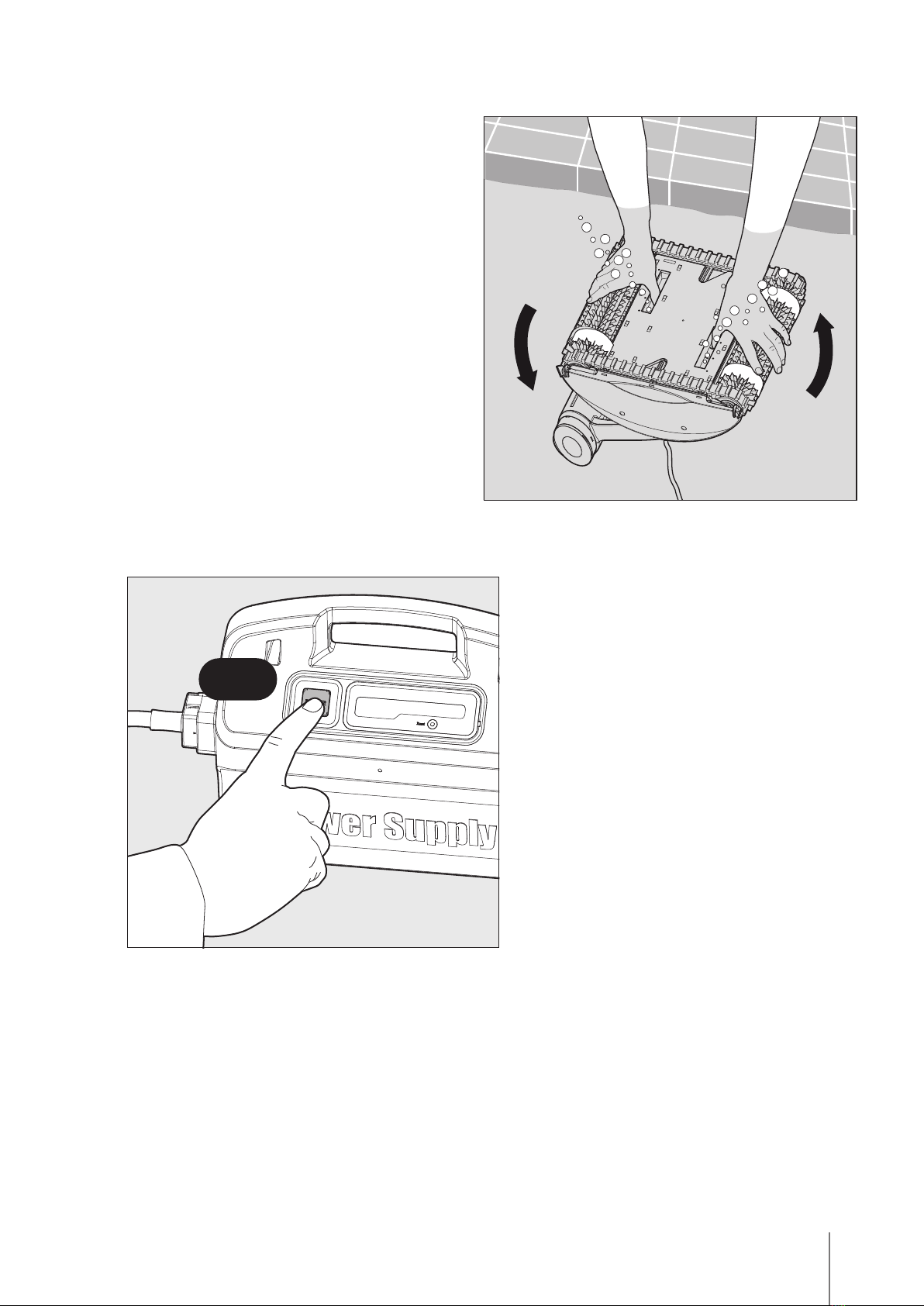

Holding the Pool Cleaner upside down in
the water, gently rock it back and forth with
your fingers holding the plastic doors on
the bottom lid open to release trapped air.
Continue until no more bubbles are released.
Release the Pool Cleaner and let it sink to the
floor of the pool.
Make sure that the floating cable is free of any
obstructions.
To avoid kinks in the floating cable, place
approximately enough cable in the water for
the Pool Cleaner to reach the farthest corner of
the pool.
Turn the power supply ON.
The Pool Cleaner will now operate until it has
reached the end of the cleaning cycle.
ON
6
Robotic Pool Swash CLX / TCX | User Instructions

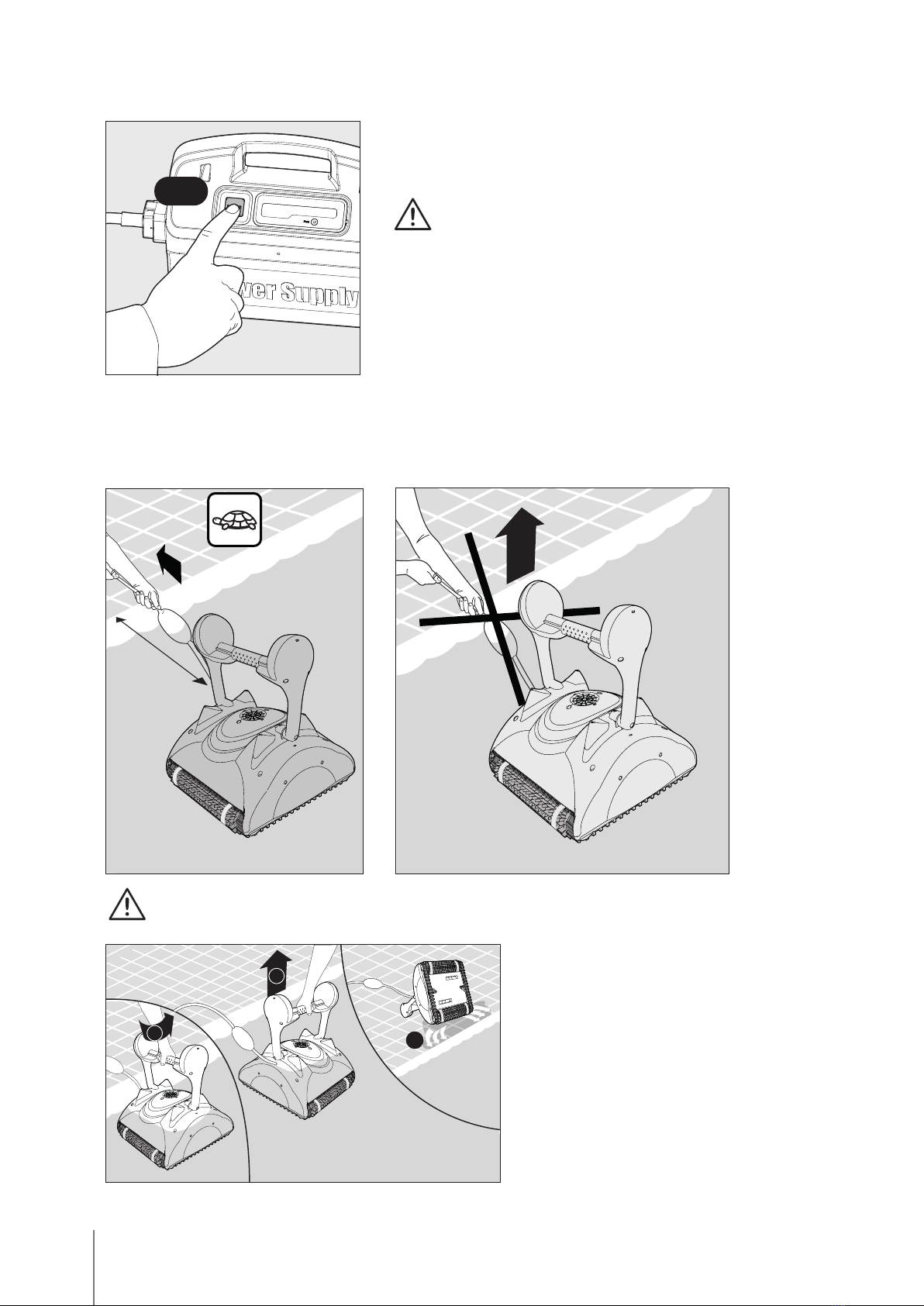

5.3. Removing the Pool Cleaner from the pool
CAUTION
Turn OFF and unplug the power supply.
Using the floating cable, bring the Pool Cleaner to the pool’s edge.
Using the handle, remove the Pool Cleaner from the pool.
CAUTION
DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.
Place the Pool Cleaner on the edge
of the pool and let the water drain out.
OFF
10cm/4in
C
B
A
Robotic Pool Cleaner Swash CLX / TCX |User Instructions
7

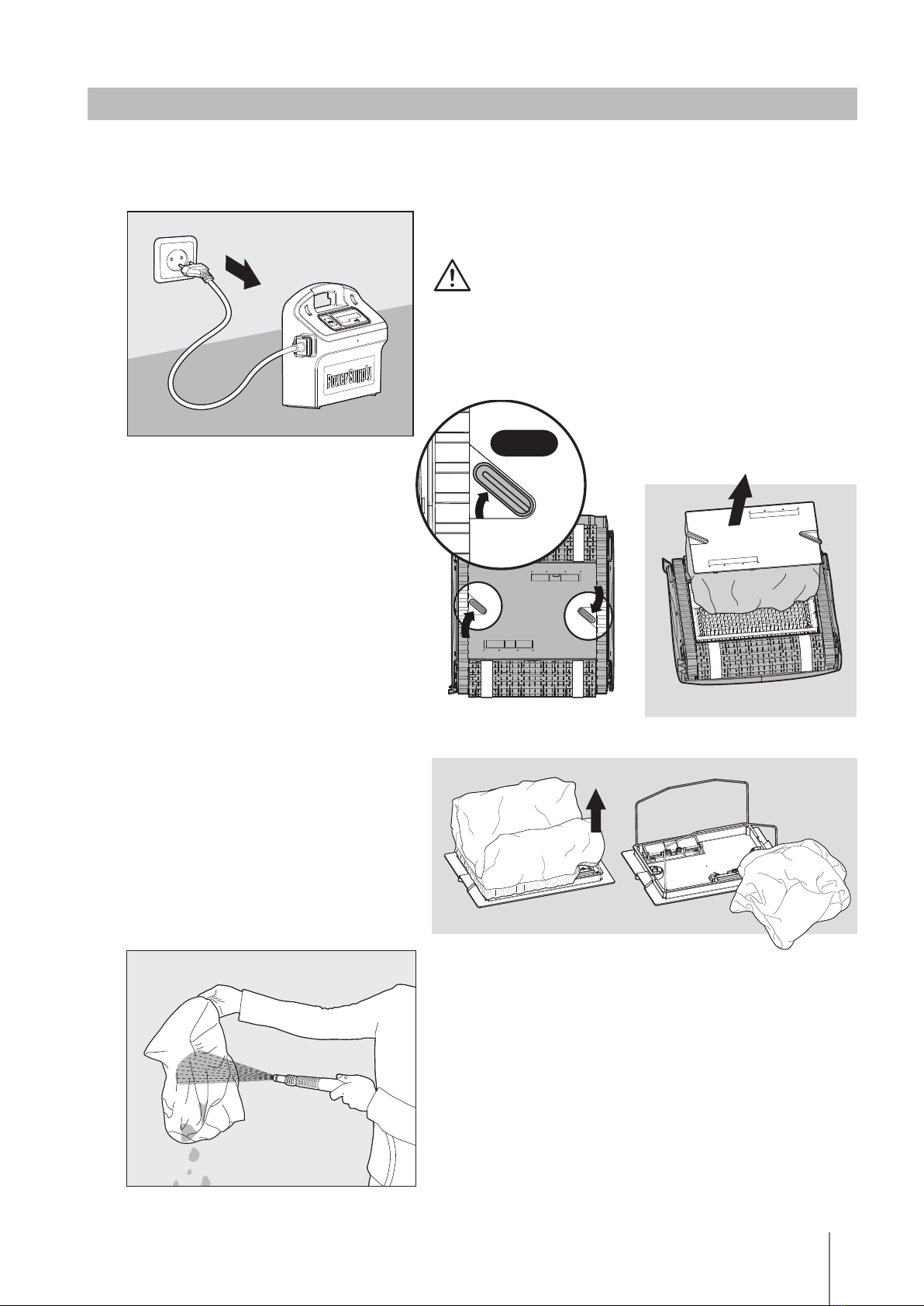

6. CLEANING THE FILTER BAG OR CARTRIDGES
Depending on the model, your Pool Cleaner may be equipped with a filter bag or cartridges.
It is recommended to clean the filter bag or cartridges after each cleaning cycle.
6.1. Removing and cleaning the filter bag
CAUTION
Unplug the power supply.
Turn the Pool Cleaner upside-down.
Open the bottom lid.
Remove the filter bag.
Clean the filter bag with a hose.
We recommend that you periodically wash the filter bag in
a washing machine using the gentle cycle program.
Periodically clean the brushes with a hose.
Click
8
Robotic Pool Swash CLX / TCX | User Instructions

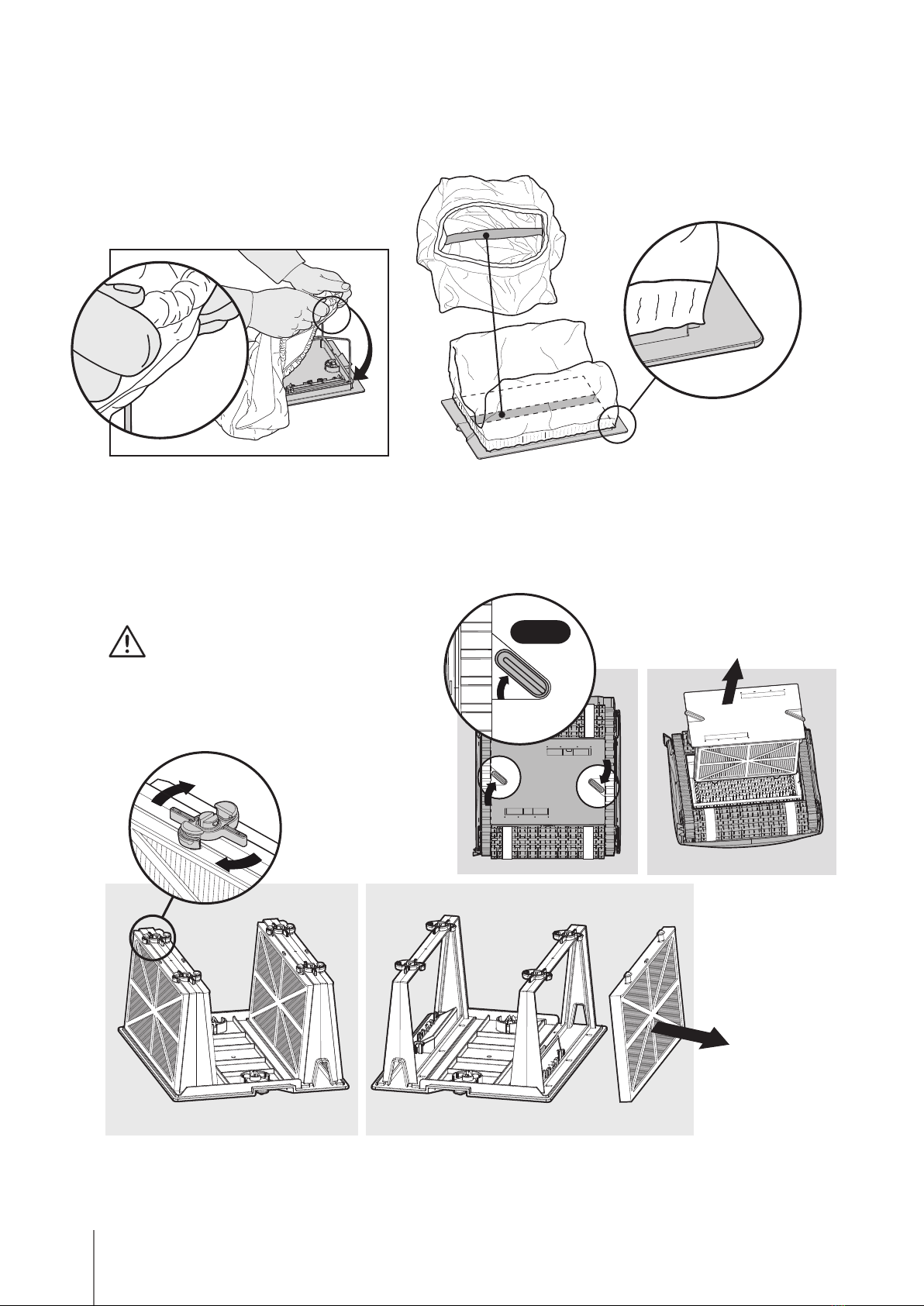

6.2. Replacing the filter bag
Put the filter bag over the frame so that the strap is in the middle of the shortest side.
Make sure that filter bag is positioned properly on the frame.
6.3. Cleaning the filter cartridges
Note: Don’t let the filter cartridges dry out before cleaning.
CAUTION
Unplug the power supply.
With the Pool Cleaner upside down
open the bottom lid and pull it out.
Open the clips and remove the filter.
Click
Robotic Pool Cleaner Swash CLX / TCX |User Instructions
9

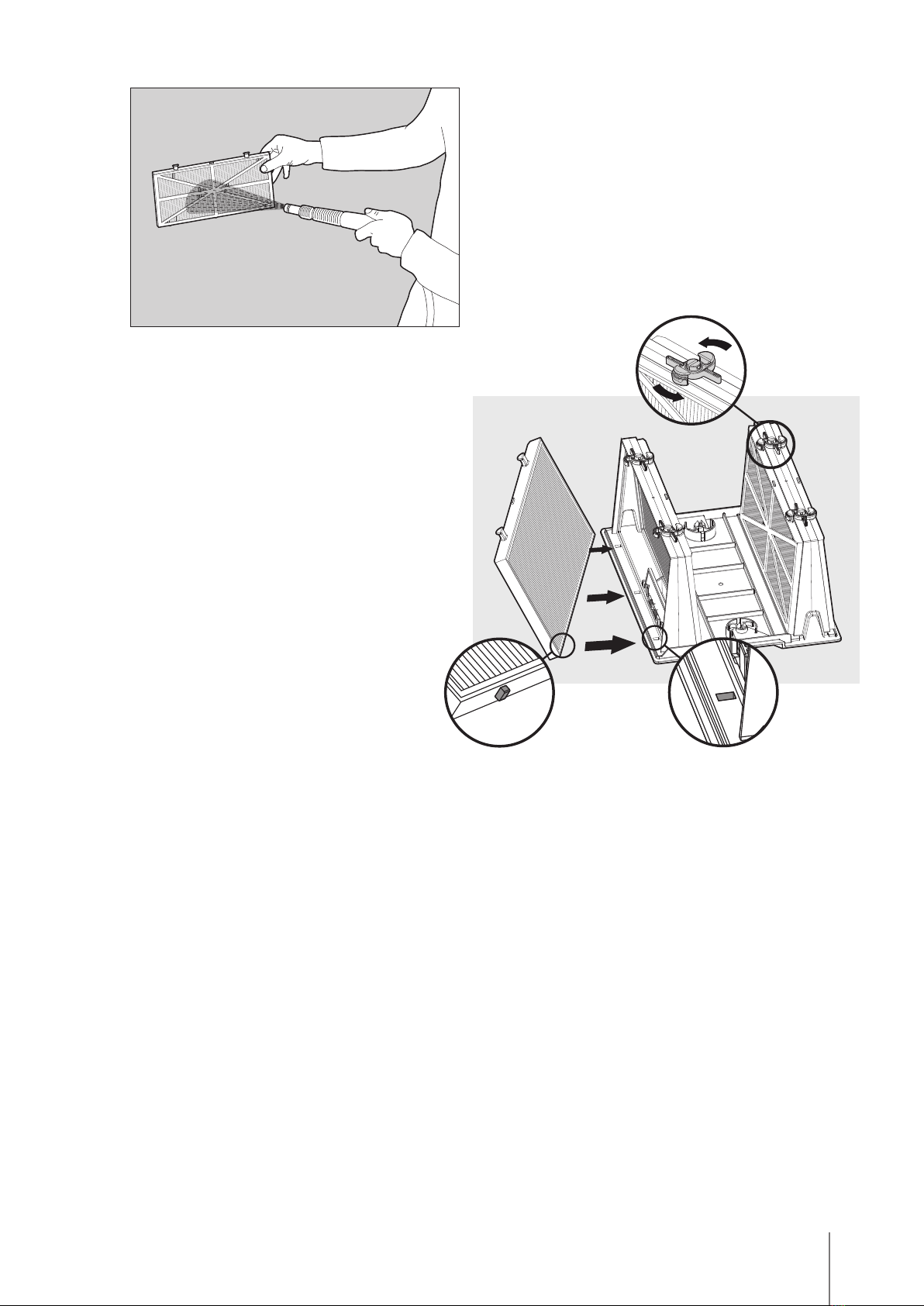

Clean the filters with a hose.
Insert the filters with the plastic
backing facing out.
Insert the cartridge unit.
10
Robotic Pool Swash CLX / TCX | User Instructions

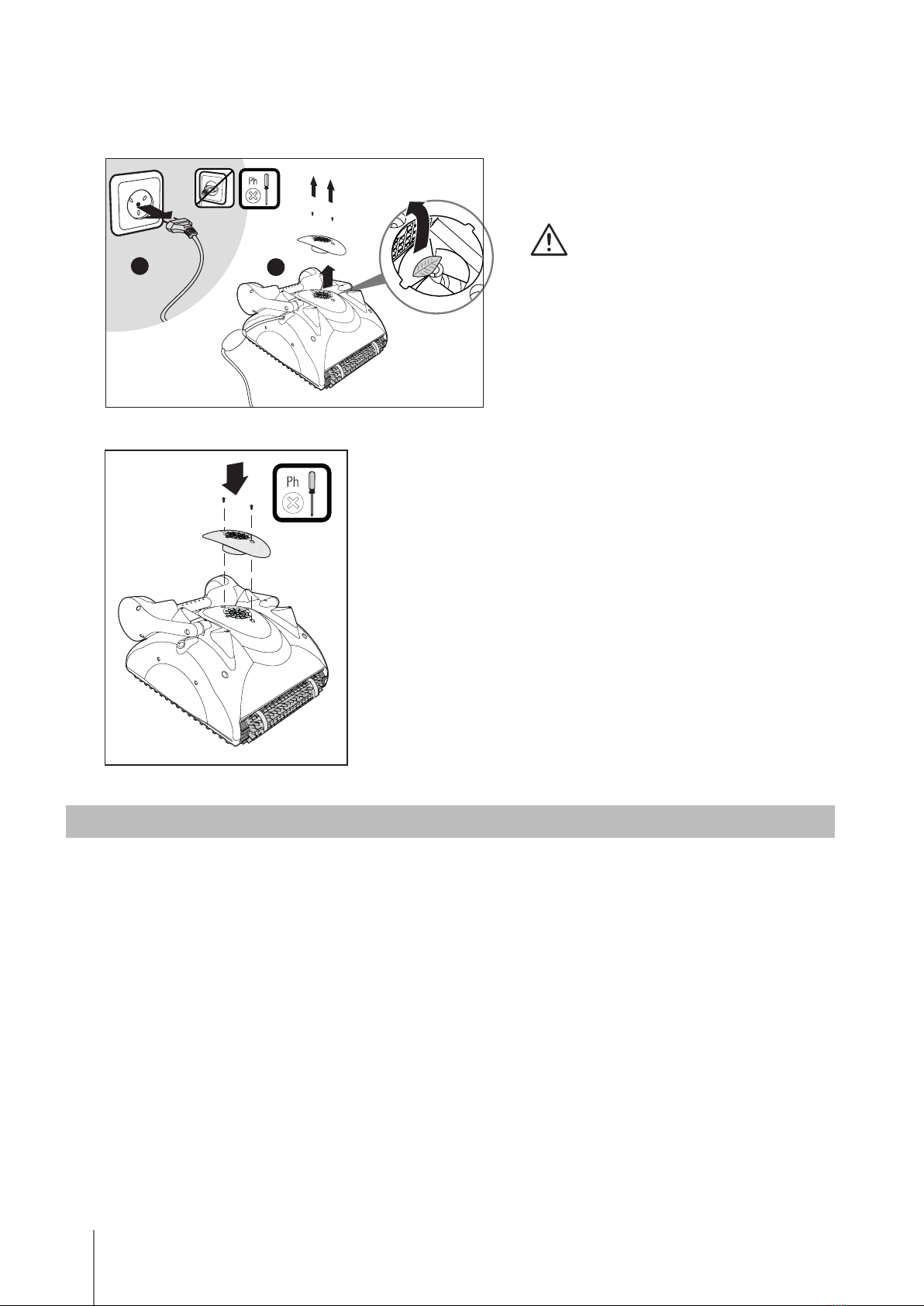

6.4. Cleaning the impeller
If you notice debris trapped in the impeller open the impeller and remove the debris.
CAUTION
Unplug the power supply.
Using a screwdriver, remove
the two screws on the impeller
cover and remove it.
Clear any debris that may
be in the impeller.
Replace the screws.
7. OFFSEASON STORAGE
If the Pool Cleaner will not be in use for an extended period, perform the following storage steps:
• Disconnect the Pool Cleaner from mains
• Make sure that no water is left in the Pool Cleaner
• Thoroughly clean the filter bag or cartridges and insert in place
• Roll up the cable so that it has no kinks and place on the Caddy
• Store the Pool Cleaner upright on the Caddy or simply upside down in a protected area
out of direct sun/rain/snow at a temperature of between 5°-45°C/41°-113°F
AB
AB
