Maytronics Dolphin POOL UP User manual

8151705

Robotic Pool Cleaner

POOL UP

Robotic Pool Cleaner POOL UP

Operating Instructions

POOL UP

Contents

1. INTRODUCTION .............................................................................2

2. SPECIFICATIONS ............................................................................2

3. WARNINGS AND CAUTIONS........................................................2

3.1. Warnings................................................................................2

3.2. Cautions.................................................................................2

4. POOL CLEANER PARTS..................................................................3

5. USING THE POOL CLEANER.........................................................4

5.1. Setup......................................................................................4

5.2. Putting the Pool Cleaner into the pool...............................4

5.3. Removing the Pool Cleaner from the pool.........................5

5.4. Maintenance..........................................................................6

5.4.1. Cleaning the ﬁltration system.....................................6

5.4.2. Cleaning the impeller..................................................8

5.5. Off-season storage ...............................................................9

Robotic Pool Cleaner POOL UP

| Operating Instructions

Operating Instructions

Robotic Pool Cleaner

POOL UP

Motor protection: IP 68

Minimum depth: 0.80m / 2.6ft

Maximum depth: 5m / 16.4ft

3. WARNINGS AND CAUTIONS

3.1. Warnings

• Use the originally supplied power supply only

• Ensure the electrical outlet is protected by a ground fault interrupter (GFI) or an earth

leakage interrupter (ELI)

• Keep the power supply out of standing water

• Position the power supply at least 3m / 10ft away from the edge of the pool

• Do not enter the pool while the pool cleaner is working

• Unplug the power supply before servicing

3.2. Cautions

Use the Pool Cleaner in the following water conditions only:

Chlorine Max 4 ppm

pH 7.0 - 7.8

Temperature 6 – 34°C / 43-93°F

NaCl Maximum = 5000 ppm

CAUTION

•Input-100-250ACVolts

•50-60Hertz

•180Watt

•Output-<30VDC

•IP54

Digital “Switch-Mode” Power Supply

Power Supply

Robotic Pool Cleaner POOL UP

| Operating Instructions

SPECIFICATIONS

performance and easy maintenance.

The Robotic Pool Cleaner by Maytronics deliver advanced cleaning technologys, long lasting

enhance maximum pool hygiene.

cost effective pool cleaning. Its reliable ﬁltration in all pool conditions and all-surface climbing brush

We are sure that your Maytronics Robotic Pool Cleaner will provide you with reliable, convenient and

Thank you for purchasing a Maytronics Pool Cleaner.

INTRODUCTION

Operating Instructions

Robotic Pool Cleaner POOL UP

Cartridge with net ﬁlters (x4) ultra-ﬁne ﬁlter (x4)

There are three types of optional brushes, each designed to provide optimal traction on different

pool surfaces. Only one type set is provided with your robot Pool Cleaner.

There are two options of ﬁltration system: ﬁlter bag or cartridge. Only one system type is provided with

your robot pool cleaner.

Bottom lid and ﬁlter Bag

Power Supply Unit

For concrete, PVC,

ﬁberglass and liner

Wonder (foam) Brush

For smooth ceramic tiles

PVC Brush Combined Brush

All surface climbing brush

ideal for most pool surfaces

Brushes

Filtration

4. POOL CLEANER PARTS

Robotic Pool Cleaner POOL UP

| Operating Instructions

GFI/ELI

40°C Max

104°F Max

5. USING THE POOL CLEANER

5.1. Set Up

5.2. Putting the Pool Cleaner into the pool

Shake the Pool Cleaner from side to side or

turn it upside down to release trapped air.

Let it sink to the pool ﬂoor.

If Wonder (foam) brush/ Wonder rings are dry,

soak them in water until soft

Position the power supply so

that it is approximately in the

middle of the long side

of the pool at a distance of

3m / 10ft.

Attach the ﬂoating cable to the

power supply by inserting it

with the notch on the

connector (1) lined up with

the groove in the socket on

the power supply and turning

clockwise (2).

Robotic Pool Cleaner POOL UP

| Operating Instructions

Turn the power supply ON.

OFF

5.3. Removing the Pool Cleaner from the pool

The Pool Cleaner will perform automatic shut-off at

the end of the cleaning cycle.

Turn OFF and unplug the power supply.

CAUTION

Using the ﬂoating cable, bring the

Pool Cleaner to the pool’s edge.

CAUTION

DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.

Robotic Pool Cleaner POOL UP

| Operating Instructions

5.4. Maintenance

Turn the Pool Cleaner upside-down.

Open the bottom lid.

Click

Remove the ﬁlter bag.

Clean the ﬁlter bag with a hose.

We recommend that you periodically wash the ﬁlter

bag in a washing machine using the gentle cycle

program.

Periodically clean the brushes with a hose.

Replacing the ﬁlter bag

Put the ﬁlter bag over the frame so that the strap

is in the middle of the shortest side.

Make sure that ﬁlter bag is positioned

properly on the frame.

5.4.1. Cleaning the ﬁltration

system:

Cleaning the ﬁlter bag

Unplug the power supply.

CAUTION

Robotic Pool Cleaner POOL UP

| Operating Instructions

Cleaning the cartridge ﬁlters

Note: Don’t let the cartridge ﬁlters dry out before cleaning.

CAUTION

Unplug the power supply.

With the pool cleaner upside down

open the bottom lid and pull it out.

Click

Clean the ﬁlters with a hose.

Open the clips and remove the ﬁlters.

Robotic Pool Cleaner POOL UP

| Operating Instructions

Insert the ﬁlters with the plastic backing

facing out.

Insert the cartridge unit.

If you notice debris trapped in the impeller open the impeller and remove the debris.

5.4.2. Cleaning the impeller

Unplug the power supply.

Robotic Pool Cleaner POOL UP

| Operating Instructions

Table of contents

Other Maytronics Swimming Pool Vacuum manuals

Maytronics

Maytronics Dolphin Nautilus CC User manual

Maytronics

Maytronics Dolphin Wave User manual

Maytronics

Maytronics BIO User manual

Maytronics

Maytronics 2x2 Gyro User manual

Maytronics

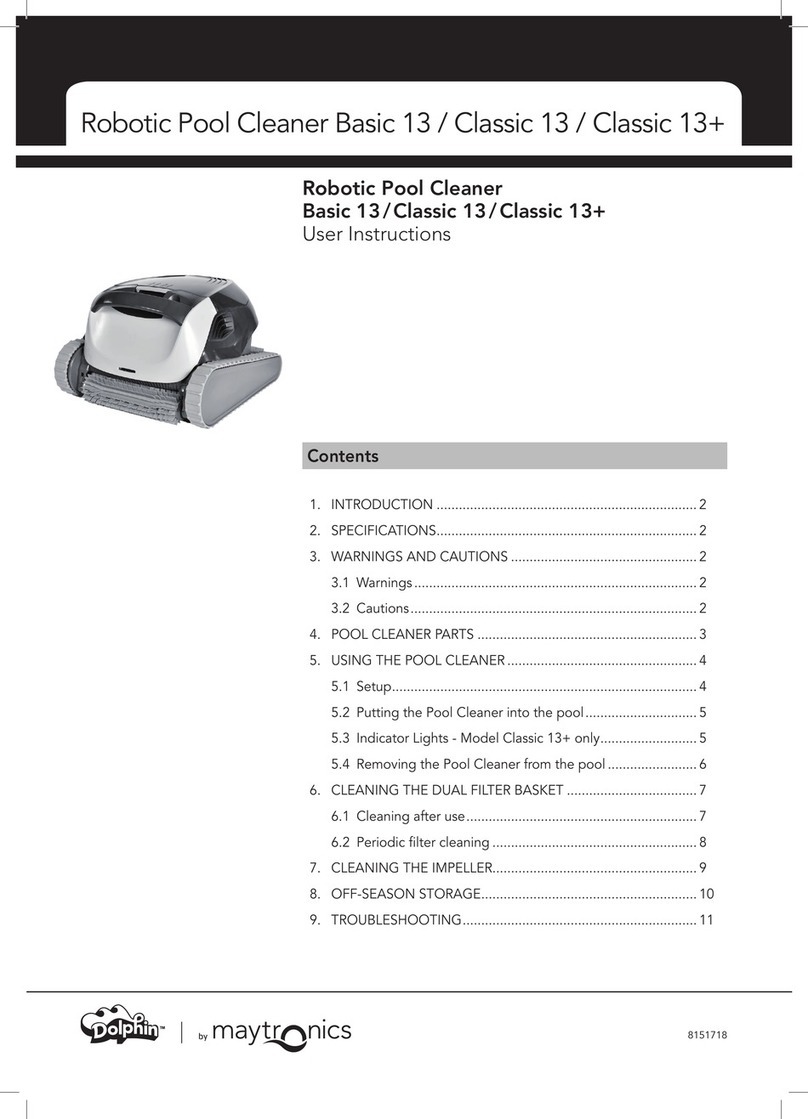

Maytronics Dolphin Basic 13 User manual
