Maytronics BASIC 1 User manual
8151705
Robotic Pool Cleaner BASIC 1
EN
FR
IT
ES
DE
PT
Operating Instructions
Robotic Pool Cleaner BASIC 1...................
Instructions d’opération
Robot Nettoyeur de piscine BASIC 1........
Instruzioni per l’uso
Pulitore per piscina robot BASIC 1.............
Instrucciones de manejo
Robot limpiador de piscina BASIC 1..........
Bedienungsanleitung
Robot Zwembadreiniger BASIC 1...............
Instruções de operação
Aspirador de piscina robótico BASIC 1......
p. 1-9
p. 10-18
p. 19-27
p. 28-36
s. 37-45
p. 46-54
by
by
BASIC 1
Robotic Pool Cleaner BASIC 1 | Operating Instructions 1
Contents
1. INTRODUCTION .............................................................................2
2. SPECIFICATIONS ............................................................................2
3. WARNINGS AND CAUTIONS........................................................2
3.1. Warnings................................................................................2
3.2. Cautions.................................................................................2
4. POOL CLEANER PARTS..................................................................3
5. USING THE POOL CLEANER.........................................................4
5.1. Setup......................................................................................4
5.2. Putting the Pool Cleaner into the pool...............................4
5.3. Removing the Pool Cleaner from the pool.........................5
5.4. Maintenance..........................................................................6
5.4.1. Cleaning the filtration system.....................................6
5.4.2. Cleaning the impeller..................................................8
5.5. Off-season storage ...............................................................9
Robotic Pool Cleaner BASIC 1
Operating Instructions
Robotic Pool Cleaner BASIC 1 | Operating Instructions
2
Robotic Pool Cleaner BASIC 1
Operating Instructions
1. INTRODUCTION
Thank you for purchasing a Maytronics Pool Cleaner.
We are sure that your Maytronics Robotic Pool Cleaner will provide you with reliable, convenient and
cost effective pool cleaning. Its reliable filtration in all pool conditions and all-surface climbing brush
enhance maximum pool hygiene.
The Robotic Pool Cleaner by Maytronics deliver advanced cleaning technologys, long lasting
performance and easy maintenance.
2. SPECIFICATIONS
Motor protection: IP 68
Minimum depth: 0.80m / 2.6ft
Maximum depth: 5m / 16.4ft
3. WARNINGS AND CAUTIONS
3.1. Warnings
• Use the originally supplied power supply only
• Ensure the electrical outlet is protected by a ground fault interrupter (GFI) or an earth
leakage interrupter (ELI)
• Keep the power supply out of standing water
• Position the power supply at least 3m / 10ft away from the edge of the pool
• Do not enter the pool while the pool cleaner is working
• Unplug the power supply before servicing
3.2. Cautions
Use the Pool Cleaner in the following water conditions only:
Chlorine Max 4 ppm
pH 7.0 - 7.8
Temperature 6 – 34°C / 43-93°F
NaCl Maximum = 5000 ppm
CAUTION
•Input-100-250ACVolts
•50-60Hertz
•180Watt
•Output-<30VDC
•IP54
Digital “Switch-Mode” Power Supply
Power Supply
Robotic Pool Cleaner BASIC 1 | Operating Instructions 3
Cartridge with net filters (x4) ultra-fine filter (x4)
There are three types of optional brushes, each designed to provide optimal traction on different
pool surfaces. Only one type set is provided with your robot Pool Cleaner.
There are two options of filtration system: filter bag or cartridge. Only one system type is provided with
your robot pool cleaner.
or
Bottom lid and filter Bag
Power Supply Unit
For concrete, PVC,
fiberglass and liner
Wonder (foam) Brush
For smooth ceramic tiles
PVC Brush Combined Brush
All surface climbing brush
ideal for most pool surfaces
Robotic Pool Cleaner BASIC 1
Brushes
Filtration
4. POOL CLEANER PARTS
4Robotic Pool Cleaner BASIC 1 | Operating Instructions
GFI/ELI
40°C Max
104°F Max
5. USING THE POOL CLEANER
5.1. Set Up
5.2. Putting the Pool Cleaner into the pool
Shake the Pool Cleaner from side to side or
turn it upside down to release trapped air.
Let it sink to the pool floor.
If Wonder (foam) brush/ Wonder rings are dry,
soak them in water until soft
.
Position the power supply so
that it is approximately in the
middle of the long side
of the pool at a distance of
3m / 10ft.
Attach the floating cable to the
power supply by inserting it
with the notch on the
connector (1) lined up with
the groove in the socket on
the power supply and turning
clockwise (2).
Robotic Pool Cleaner BASIC 1 | Operating Instructions 5
Turn the power supply ON.
ON
OFF
5.3. Removing the Pool Cleaner from the pool
The Pool Cleaner will perform automatic shut-off at
the end of the cleaning cycle.
Turn OFF and unplug the power supply.
CAUTION
Using the floating cable, bring the
Pool Cleaner to the pool’s edge.
CAUTION
DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.
6Robotic Pool Cleaner BASIC 1 | Operating Instructions
5.4. Maintenance
Turn the Pool Cleaner upside-down.
Open the bottom lid.
Click
Remove the filter bag.
Clean the filter bag with a hose.
We recommend that you periodically wash the filter
bag in a washing machine using the gentle cycle
program.
Periodically clean the brushes with a hose.
Replacing the filter bag
Put the filter bag over the frame so that the strap
is in the middle of the shortest side.
Make sure that filter bag is positioned
properly on the frame.
5.4.1. Cleaning the filtration
system:
Cleaning the filter bag
Unplug the power supply.
CAUTION
Robotic Pool Cleaner BASIC 1 | Operating Instructions 7
Cleaning the cartridge filters
Note: Don’t let the cartridge filters dry out before cleaning.
CAUTION
Unplug the power supply.
With the pool cleaner upside down
open the bottom lid and pull it out.
Click
Clean the filters with a hose.
Open the clips and remove the filters.
8Robotic Pool Cleaner BASIC 1 | Operating Instructions
Insert the filters with the plastic backing
facing out.
Insert the cartridge unit.
If you notice debris trapped in the impeller open the impeller and remove the debris.
5.4.2. Cleaning the impeller
Unplug the power supply.
A
B
A
B
Table of contents
Languages:
Other Maytronics Swimming Pool Vacuum manuals
Maytronics

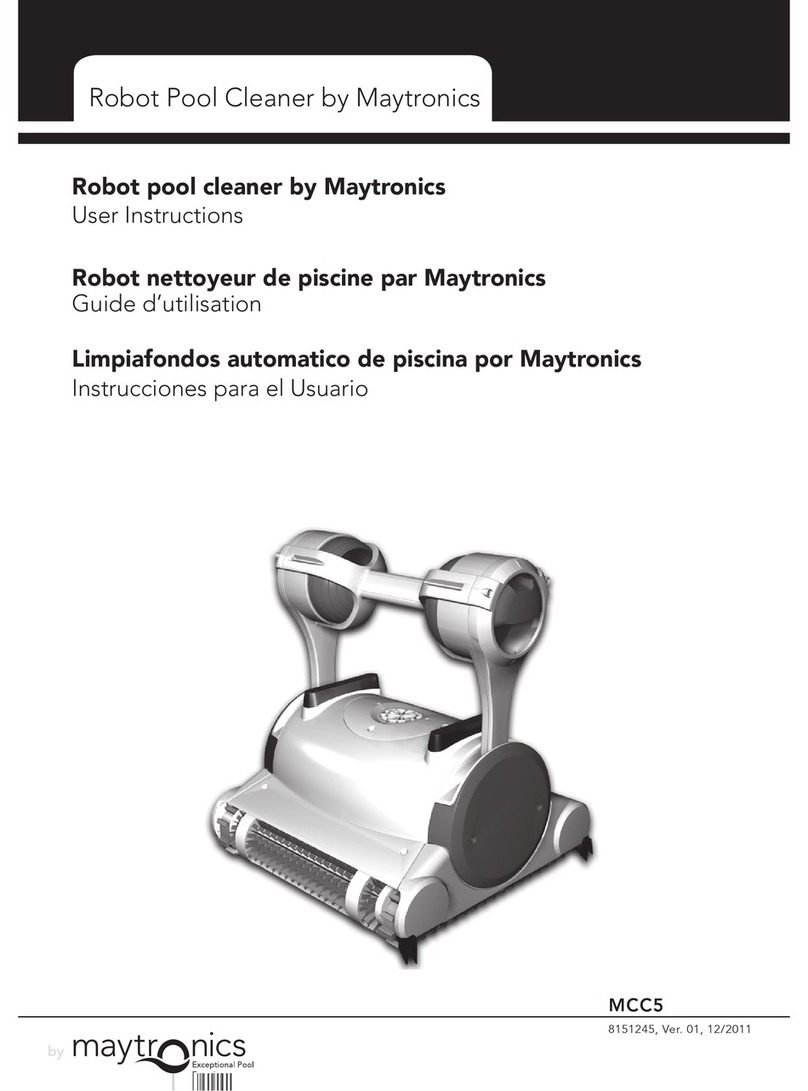

Maytronics MTC6 DELUXE 5 User manual
Maytronics
Maytronics Dolphin Nautilus User manual
Maytronics
Maytronics Dolphin Nautilus User manual
Maytronics
Maytronics Dolphin S100 User manual
Maytronics
Maytronics Dolphin WAVE 300 XL User manual
Maytronics
Maytronics CLASSIC 8D-UNI User manual
Maytronics
Maytronics Dolphin Classic 12+ User manual
Maytronics
Maytronics Dolphin Skagerrak20 User manual
Maytronics
Maytronics dolphin dx6 User manual
Maytronics
Maytronics Dolphin Wave User manual
Maytronics
Maytronics Dolphin CLASSIC 11 User manual
Maytronics
Maytronics Dolphin Bio Suction User manual
Maytronics
Maytronics MBC5-UNI User manual
Maytronics
Maytronics Dolphin Wave 75 User manual
Maytronics
Maytronics 2x2 Gyro User manual
Maytronics
Maytronics Dolphin CLASSIC 7+ User manual
Maytronics
Maytronics Dolphin Active Classic User manual
Maytronics
Maytronics Dolphin Nautilus CC User manual
Maytronics

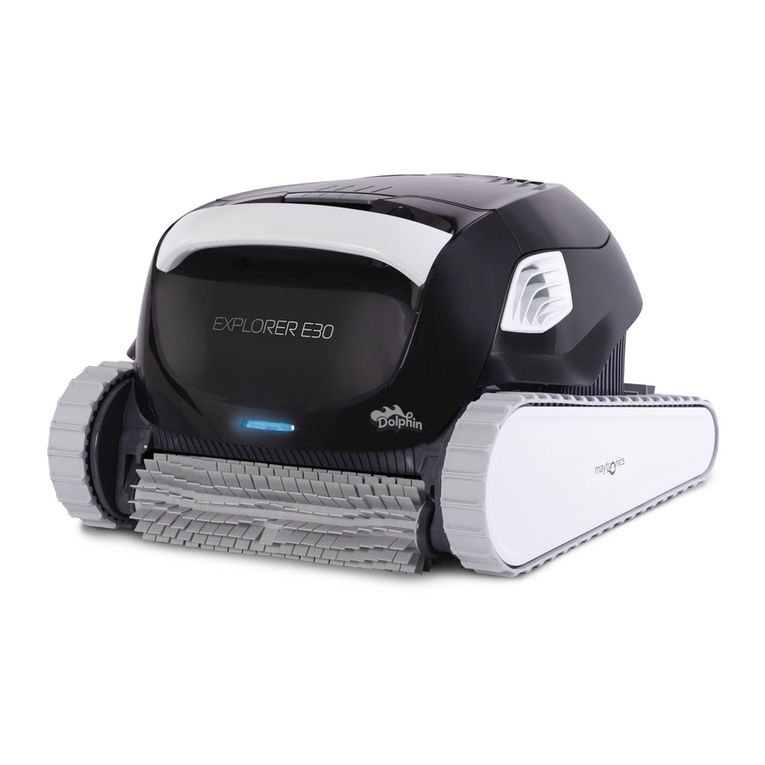

Maytronics Dolphin Explorer E30 User manual
