Maytag MGD5707TQ0 User manual

TOP AND CONSOLE PARTS

For Model: MGD5707TQ0

(White)

10−07 Litho in U.S.A.(drd) Part No. W10135996 Rev. B

29"GAS DRYER

TOP AND CONSOLE PARTS

For Model: MGD5707TQ0

(White)

W10135996

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10089177

Sheet,

Cycle Feature

W10088775

Use & Care Guide

W10124167

Wiring Diagram

W10124166

Wire, Jumper

(Buzzer On/Off)

3 694419 Buzzer, Mini

W10086730

Console & Shell

Assembly (Includes

Items 25 & 26)

5 8533971 Screw, 8−18 x 5/8

W10112576

Panel, Rear

Console

7 8530169 Switch,

Temperature

8 3398094 Switch,

Push−To−Start

9 8566184 Timer Assembly

60 HZ.

10 Screen, Lint

8565972 White

11 8536939 Clip, Spring

W10112582

Knob, Control (3)

W10112584

Knob, Timer

W10112599

Top

15 237446 Washer (Top/chute)

W10120796

Harness, Wiring

17 359625 Screw, 8−18 x 1/2

18 8565981 Bracket, Harness

19 337686 Screw, 8−18 x 3/4

20 688983 Screw, 8−18 x 5/8

21 693995 Screw, Hex

Washer Head

22 8558178 Control,

Electronic

23 3391885 Connector, Edge

24 3405156 Switch, Rotary

(Twist Mount)

25 8312709 Clip, Console

W10112589

Badge Assembly

W10118608

Seal, Harness

W10112267

Seal, Foam

Control Bracket

W10112586

Knob,

Push−To−Start

30 717252 Plug, 2−Way

31 3395683 Connector, Motor

32 3394427 Clip, Harness

33 3397269 Connector, Timer

34 3401144 Connector

(PTS Relay)

35 3403499 Connector,

2−Position

(Gas Valve)

36 3403498 Connector,

3−Position

(Gas Valve)

37 3347243 Connector,

6−Circuit

38 94614 Terminal, Female

39 3936144 Connector

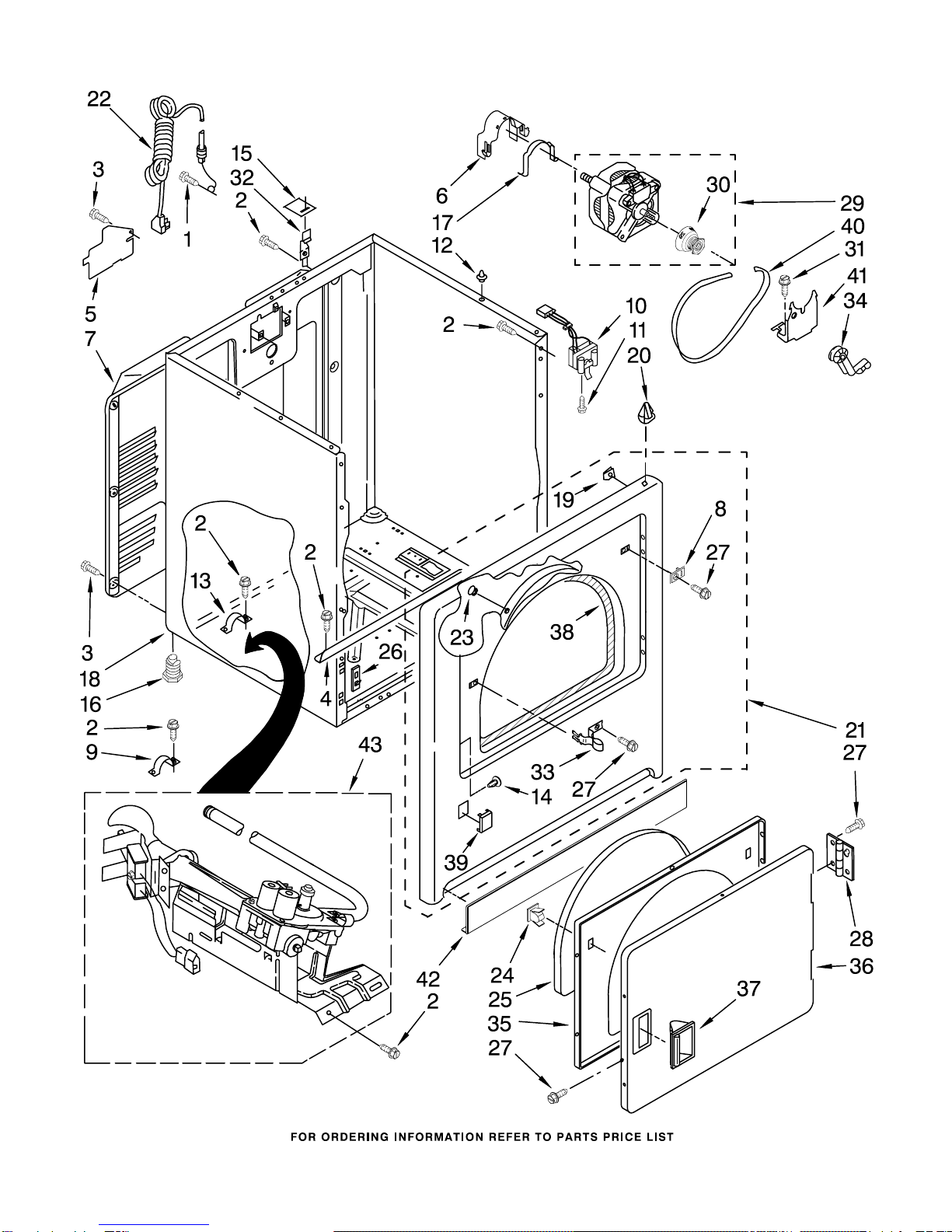

CABINET PARTS

For Model: MGD5707TQ0

(White)

W10135996

CABINET PARTS

For Model: MGD5707TQ0

(White)

W10135996

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 697776 Screw, 10−32 x 5/8

(External Ground)

2 343641 Screw, 10−16 x 1/2

3 693995 Screw, Hex Head

4 8541400 Bracket, Cabinet

5 3396795 Cover, Block

6 3404162 Clamp, Motor

(W/Shield)

7 3396805 Panel, Rear

8 3403630 Plug−Strike

9 3980175 Clamp−Elbow

10 3406107 Door Switch

Assembly

11 697773 Screw, 6−20 x 7/8

12 98669 Locator, Top

13 341029 Clamp−Pipe

14 3404413 Plug−Hole

15 18849 Pad, Top Hinge

16 3392100 Foot, Dryer

279810 Foot−Optional

(Extended Length)

(Package of 2)

(Not Included.)

17 660658 Clamp, Motor

18 Cabinet

(Includes Item 4)

8530603 White

19 98234 Clip, Ground (2)

20 18776 Lock, Front Top (2)

21 Panel Front

3403447 White

22 344020 Power Cord

23 685203 Clip, Felt Pad (2)

24 3389441 Catch, Door

Assembly

25 3405246 Seal, Door

26 3394083 Clip, Front Panel

27 342055 Screw, 8−18 x 1/2

W10112600

Hinge, Door (2)

29 8066206 Motor Assembly

60 HZ.

30 8066184 Pulley 60 Hz.

31 3400500 Bolt,

5/16−18 x 3/4

32 8066217 Hinge, Top (2)

33 3403431 Strike, Panel

34 691366 Idler & Pulley

Assembly

35 3402341 Door, Rear

36 Door, Front

3402335 White

37 Handle, Door

8565970 White

38 3406129 Seal & Bearing

Assembly

39 Plug, Front Panel

3394975 White

W10131364

Belt, Drive

41 348780 Base, Motor

W10112593

Toe Plate Assembly

43 8318272 Burner Assembly,

60 Hz.

(See Pages 7 &

8 For Further

Burner Breakdown)

BULKHEAD PARTS

For Model: MGD5707TQ0

(White)

W10135996

BULKHEAD PARTS

For Model: MGD5707TQ0

(White)

W10135996

Illus. Part

No. No. DESCRIPTION

1 348368 Lint Chute

Assembly

2 489463 Screw, 8−18 x 5/8

3 3388703 Washer−Support

4 347139 Seal, Lint

Chute

5 90767 Screw, 8−18 x 3/8

6 487909 Screw, 8−15 x 1/2

7 3392519 Thermal−Fuse (91C)

8 8066086 Drum Hole

Plug

9 8318268 Thermostat,

Internal−Bias

10 694089 Wheel, Blower

11 8577230 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 8530285 Box, Heater

15 3403140 Thermostat, 205 F

(96 C)

18 8066049 Funnel, Burner

W10136369

Socket Assembly

20 3406124 Bulb

21 696302 Shield, Exhaust

22 3977373 Bracket, Drum

Light

23 3406022 Bracket, Bulkhead

24 3390647 Screw, 8−18 x 1/2

25 3977394 Kit,

Thermal Cut−Off

(Includes Item 15)

26 3401707 Wire, Jumper

27 3976479 Pad, Sensor

28 690997 Ring, Tri

29 3399506 Shaft, L.H.

30 3399507 Shaft, R.H.

31 3397590 Roller, Support

32 348197 Washer, Support

33 3359452 Nut, 3/8−16

34 3403414 Bulkhead

35 338906 Sensor, Radiant

36 3402841 Lens, Drum Light

37 692526 Ring, Bearing

W10109200

Screw, 11−16 x 3/4

39 3406130 Seal, Rear Drum

40 695587 Drum Assembly

41 692490 Baffle, Drum (2)

42 3976434 Bracket, Support

43 90296 Clip

44 3403636 Baffle, Drum (1)

45 339956 Seal

BA−150

8318272 BURNER ASSEMBLY

USE WITH TYPE 1 − NATURAL

AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES

For Model: MGD5707TQ0

(White)

W10135996

Illus. Part

No. No. DESCRIPTION

BA−150

8318272 BURNER ASSEMBLY

USE WITH TYPE 1 − NATURAL

AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES

1 8318272 Burner Assembly

60 Hz.

(Type 1)

(White Rodgers)

2 688617 Tube, Burner

3 694298 Bracket, Ignitor

4 686590 Ignitor

5 3393909 Screw & Washer

(8−32 x 5/8)

6 343641 Screw, 10−16 x 1/2

7 693986 Base, Burner

8 3387057 Screw, 8−18 x 3/8

9 Orifice, Burner

234826 Type 1

229742 Type 4 (Butane)

234868 Type 4 (Propane)

10 8318277 Valve, 60 Hz.

(Includes Pipe &

Illus. #7)

11 694421 Screw,

8−32 x 1/2 (2)

12 694538 Bracket, Coil

13 694540 Coil, 60 Hz.

(2 Terminal)

(Main)

14 694539 Coil, 60 Hz.

(Split)

(3 Terminal)

(Pilot Position)

15 694424 Leak Limiter

16 694423 Screw, Regulator

Adjustment

17 694422 Spring, Regulator

20 239822 Plug, Pipe

25 341029 Clamp, Pipe

694572 Conversion Kit

(Type 1)

to Type (4) L.P.G.

Following Parts Not Illustrated

For Model: MGD5707TQ0

(White)

W10135996

OPTIONAL PARTS (NOT INCLUDED)

For Model: MGD5707TQ0

(White)

W10135996

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

279948 Kit,

Dryer Repair

346764 Kit, Hold−Down

(Gas Dryer Mobile

Home Installation)

3406839 Dry Rack

8522199 Kit, Dryer

Vent Testing

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)
