Lightspeed 975 User manual

Quick Start Guide

Remove microphone

from charger. Press

the mute button to

unmute, hold near

your mouth and

begin speaking.

Remove microphone

from charger and press

the mute button to

begin speaking.

USING THE FLEXMIKE CHARGE MICROPHONES NIGHTLY

USING THE SHAREMIKE

ALIGN WITH

COLLARBONE

TALK (BLUE)

MUTE (WHITE)

TALK (BLUE)

MUTE (WHITE)

POWER/MUTE BUTTON

ADJUST

VOLUME

POWER/MUTE

BUTTON

ADJUST

VOLUME

NORMAL OPERATION

CHARGING IN PROGRESS

CHARGING COMPLETE

POWER STATUS

LIGHT

Place the microphones into the cradle

charger. The power status light will glow red

when it is charging.

It takes about 5-6 hours to fully charge the

microphone battery.

When charging is complete,

the power status light will

glow green.

CONNECT

POWER TO

THE 975

Connect the power supply

to the 975 and plug the

cord into an AC outlet.

The 975 will power

on and the power

light will glow. Audio

Input

Audio

Output

Audio

Output

Tone

Level

Push

StatusPower

POWER LIGHT

Instructional Audio System

You can connect your 2nd (or 3rd) microphone to your computer’s USB

port to enable a wireless 2-way audio link.

SEND AUDIO FROM THE COMPUTER to the 975 to ensure all audio from

the computer (videos, video conferencing, audiobooks, music, etc) can

be played through the Lightspeed 975 system and speakers.

SEND AUDIO TO THE COMPUTER from the 975 to ensure the teacher’s

Flexmike and any student microphones are clearly picked up by a video

conferencing solution.

USING A WIRELESS AUDIO LINK

Connect the microphone

to your computer using a

USB-C cable. Open your

computer sound settings to

select FlexmikeAudio as the

microphone and speaker.

USB cable sold separately. Lightspeed oers

a USB-A to USB-C cable for sale (part #USBC)

Quick Start Guide

For complete operating instructions, go to www.lightspeed-tek.com/975-usermanual (or scan the 2D barcode). QSUS-

PAIRING MICROPHONES TO THE 975

Your system is shipped with microphones and base units pre-paired for quick and easy use.

If you ever need to pair new components, follow this pairing process:

IR TRANSMITTER

BACK FRONT

MIC 2

POWER

MIC 1

MIC 2

MIC 1

POWER

From a powered o state, point the IR

transmitter lens toward the base unit

(for Sharemike, the transmitter lens is

located on the back of the microphone).

POINT MICROPHONES AT TOPCAT

Press and hold the power button for

5 seconds until the Mic 1 and Mic 2 lights

start flashing, then release the button

and let the pairing process finish.

PRESS AND HOLD POWER BUTTON

The status light on the 975 will light

up indicating the pairing process is

complete. The Mic 1 or Mic 2 light on

the microphone will stay illuminated.

CONFIRM STATUS

FLEXMIKE

SHAREMIKE

Audio

Input

Audio

Output

Audio

Output

Tone

Level

Push

StatusPower

STATUS LIGHT

Other manuals for 975

Other Lightspeed Stereo System manuals

Lightspeed

Lightspeed Mobile PA User manual

Lightspeed

Lightspeed Redcat media User manual

Lightspeed

Lightspeed Redcat media User manual

Lightspeed

Lightspeed Redcat media User manual

Lightspeed

Lightspeed TOPCAT User manual

Lightspeed

Lightspeed Cascadia C25 User manual

Lightspeed

Lightspeed TOPCAT User manual

Lightspeed

Lightspeed Redcat Access LSRCA 1881 User manual

Lightspeed

Lightspeed CAT AV User manual

Lightspeed

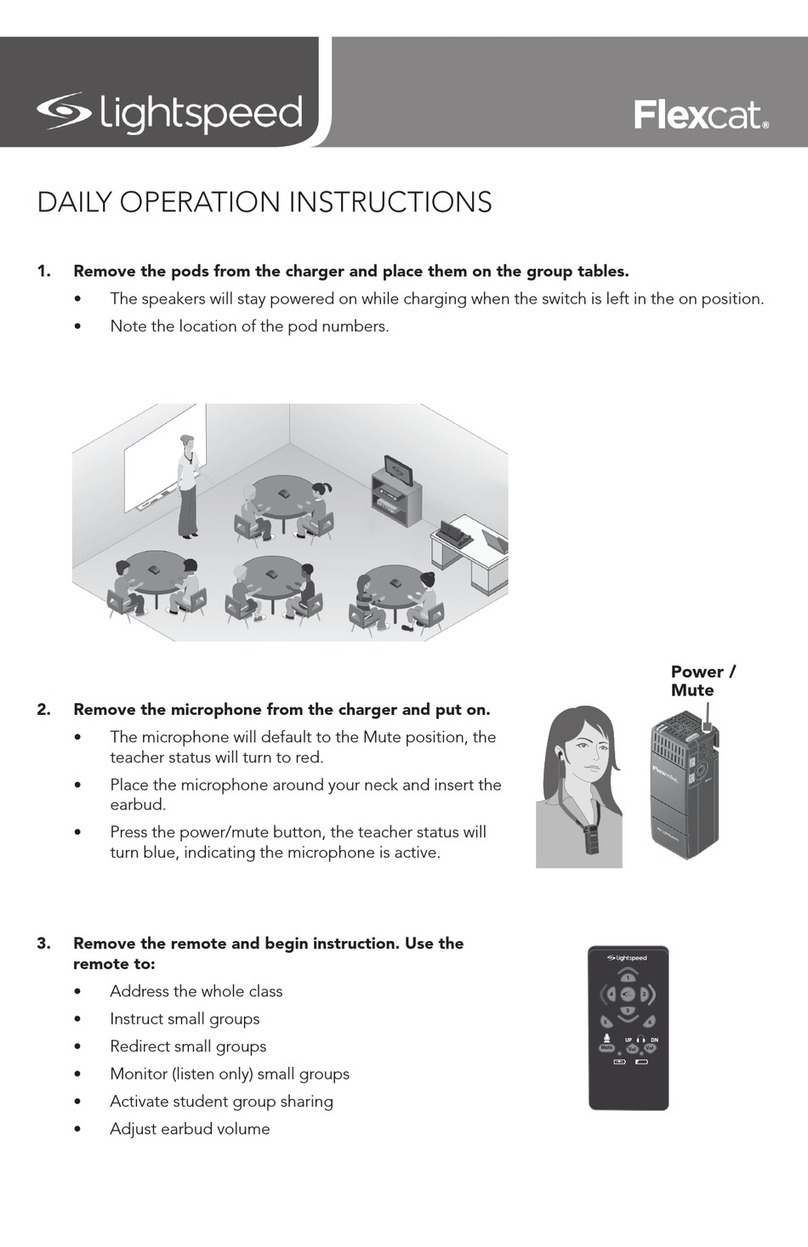

Lightspeed flexcat User manual
