Lightmybricks LEGO DARTH VADER User manual

LEGO® DARTH VADER

MEDITATION CHAMBER

#75296 LIGHT KIT

INSTALLATION GUIDE

LEGO DARTH VADER MEDITATION CHAMBER 75296 LIGHT KIT INSTALL GUIDE

INSTALLATION GUIDE 2

Light My Bricks

LEGO® DARTH VADER MEDITATION

CHAMBER #75296 LIGHT KIT

INSTALLATION GUIDE

Hi There!

We’re here to help you get started on the LEGO®

Darth Vader Meditation Chamber (75296) Light Kit.

This PDF details the instructions for the LED light kit only. If

you are wishing to purchase this product, please click here

to view the product page.

If you run into any issues, please refer to the troubleshoot-

ing section towards the end of this guide.

Have fun and enjoy!

LEGO DARTH VADER MEDITATION CHAMBER 75296 LIGHT KIT INSTALL GUIDE

PACKAGE CONTENTS 3

PACKAGE CONTENTS: LEGO PIECES:

8 x Red 30cm Bit Lights

3 x Cool White 15cm Bit Lights

1 x Light My Bricks Lightsaber - Red

1 x Red Flashing 30cm Bit Light

1 x 6 Port Expansion Board

1 x 12 Port Expansion Board

2 x Adhesive Squares

• 8 x Trans-Red 1x1 Plates

• 1 x Trans-Red 1x1 Round Plates

• 2 x Trans-Clear 2x2 Plate with Rounded Bottom (Boat Tile)

1 x 15cm Connecting Cable

1 x USB Power Cable

(Power Source not Included)

LEGO DARTH VADER MEDITATION CHAMBER 75296 LIGHT KIT INSTALL GUIDE

CONTENTS 4

Contents

Before You Begin 5

Instructions 9

Final Product 17

Troubleshooting 18

Contact 23

LEGO DARTH VADER MEDITATION CHAMBER 75296 LIGHT KIT INSTALL GUIDE

BEFORE YOU BEGIN 5

Before You Begin

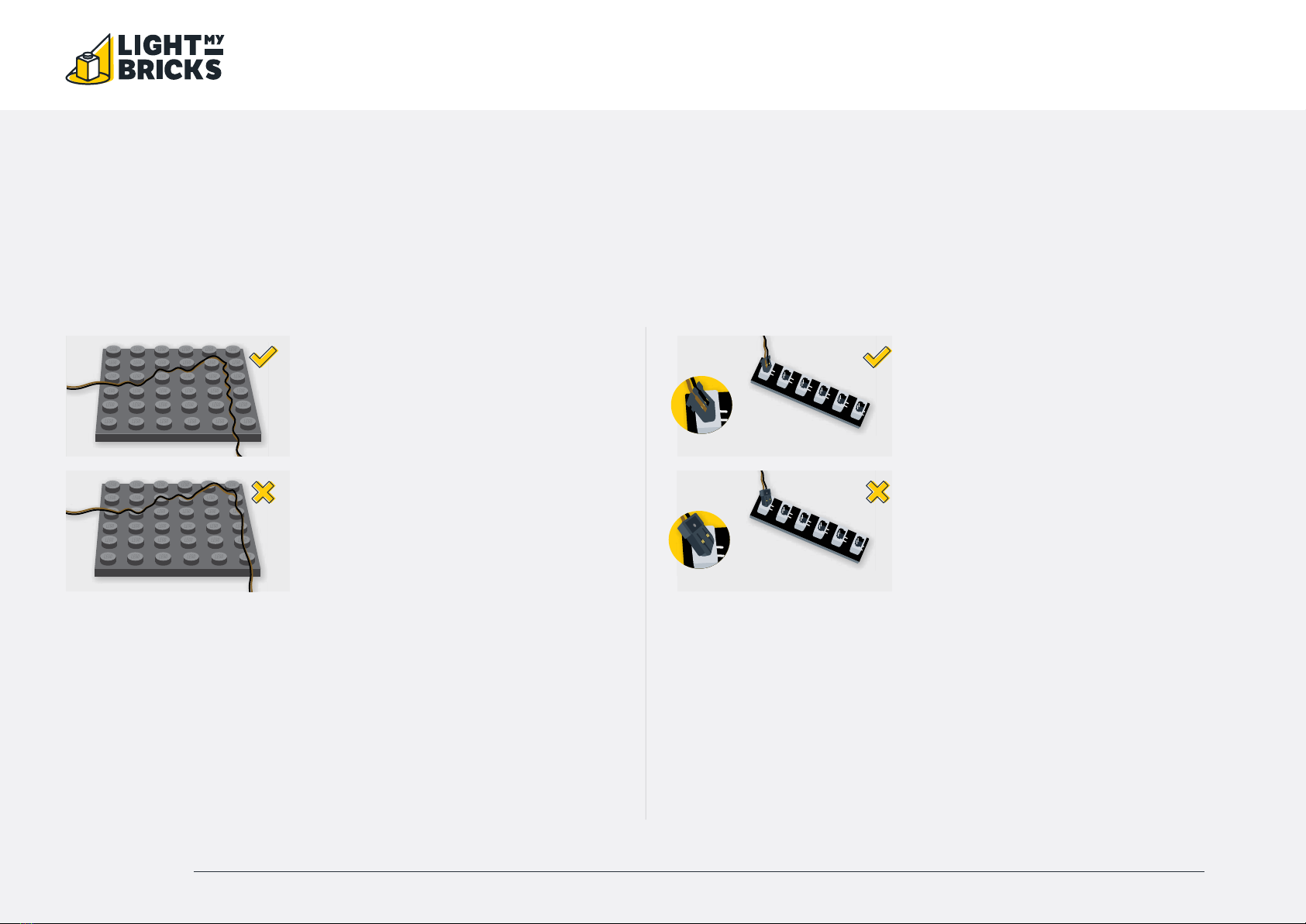

Laying cables in between

and underneath bricks

Cables can ﬁt in between and underneath

LEGO® bricks, plates, and tiles providing

they are laid correctly between the

LEGO® studs. Do NOT forcefully join

LEGO® together around cables; instead

ensure they are laying comfortably in

between each stud.

CAUTION: Forcing LEGO® to connect over

a cable can result in damaging the cable

and light.

Connecting Cable

Connectors To Expansion

Boards

Take extra care when inserting connectors

to ports of Expansion Boards. Connectors

can be inserted only one way. With the

expansion board facing up, look for the

soldered “=” symbol on the left side of the

port. The connector side with the wires

exposed should be facing toward the

soldered “=” symbol as you insert into the

port. If a plug won’t ﬁt easily into a port

connector, do not force it.

Incorrectly inserting the connector can

can result in bent pins inside the port or

possible overheating of the expansion

board when connected.

LEGO DARTH VADER MEDITATION CHAMBER 75296 LIGHT KIT INSTALL GUIDE

BEFORE YOU BEGIN 6

Before You Begin

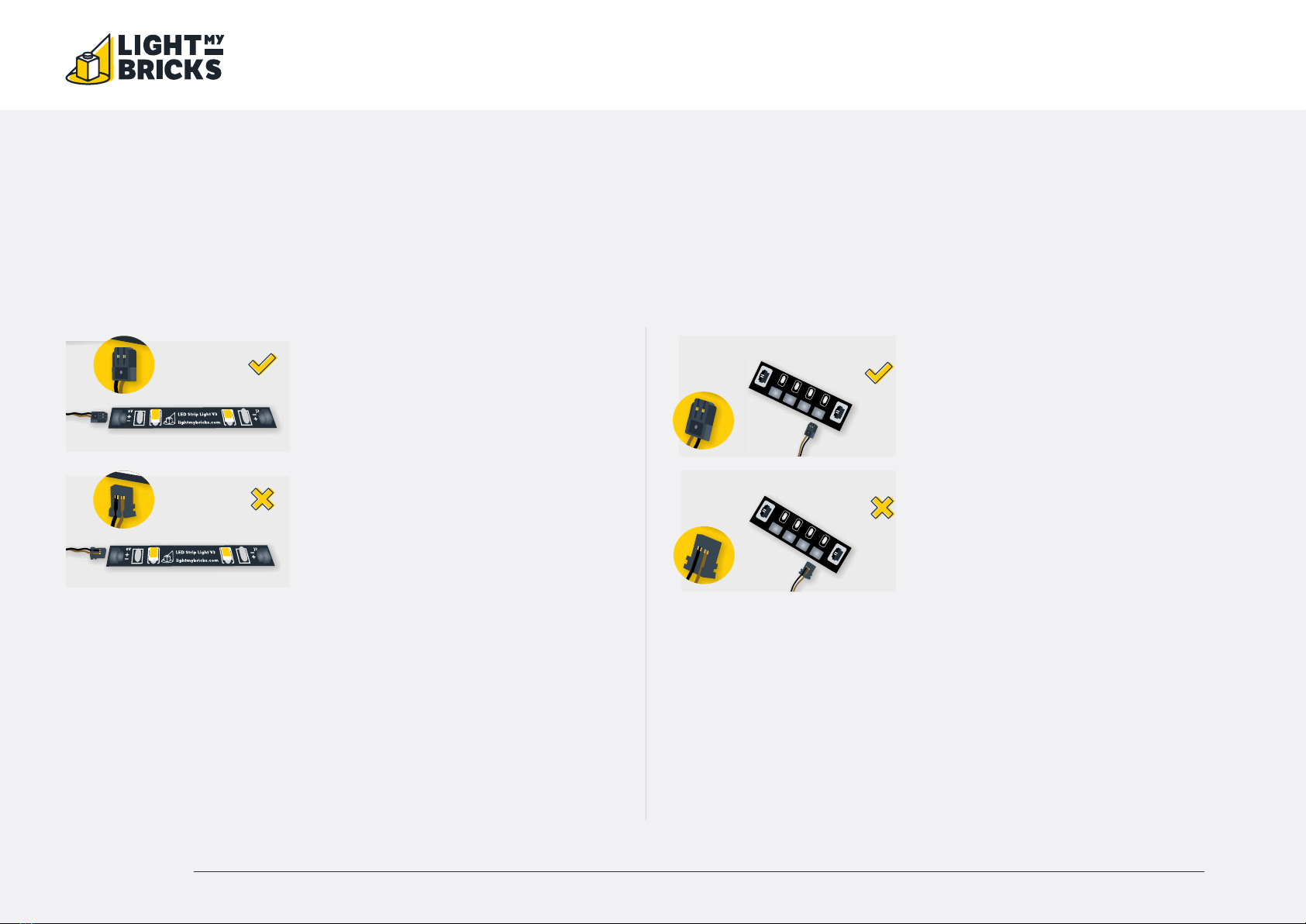

Connecting Cable

Connectors To Strip Lights

Take extra care when inserting connectors

to ports on the Strip Lights. Connectors

can be inserted only one way. With the

Strip Light facing up, ensure the side of

the connector with the wires exposed is

facing down. If a plug won’t ﬁt easily into

a port connector, don’t force it. Doing so

will damage the plug and the connector.

Connecting Micro Cable

Connectors To Micro

Expansion Board Ports

Take extra care when inserting the

micro connectors to micro ports of Micro

Expansion Boards. Connecting Micro Bit

Lights to Micro Expansion Boards is similar

to connecting lights and cables to Strip

Lights. With the expansion board facing

up, ensure the side of the connector with

the wires exposed is facing down. If a plug

won’t ﬁt easily into a port connector, do

not force it. Use your ﬁngernail to push the

plastic part of the connector to the micro

port.

LEGO DARTH VADER MEDITATION CHAMBER 75296 LIGHT KIT INSTALL GUIDE

BEFORE YOU BEGIN 7

Before You Begin

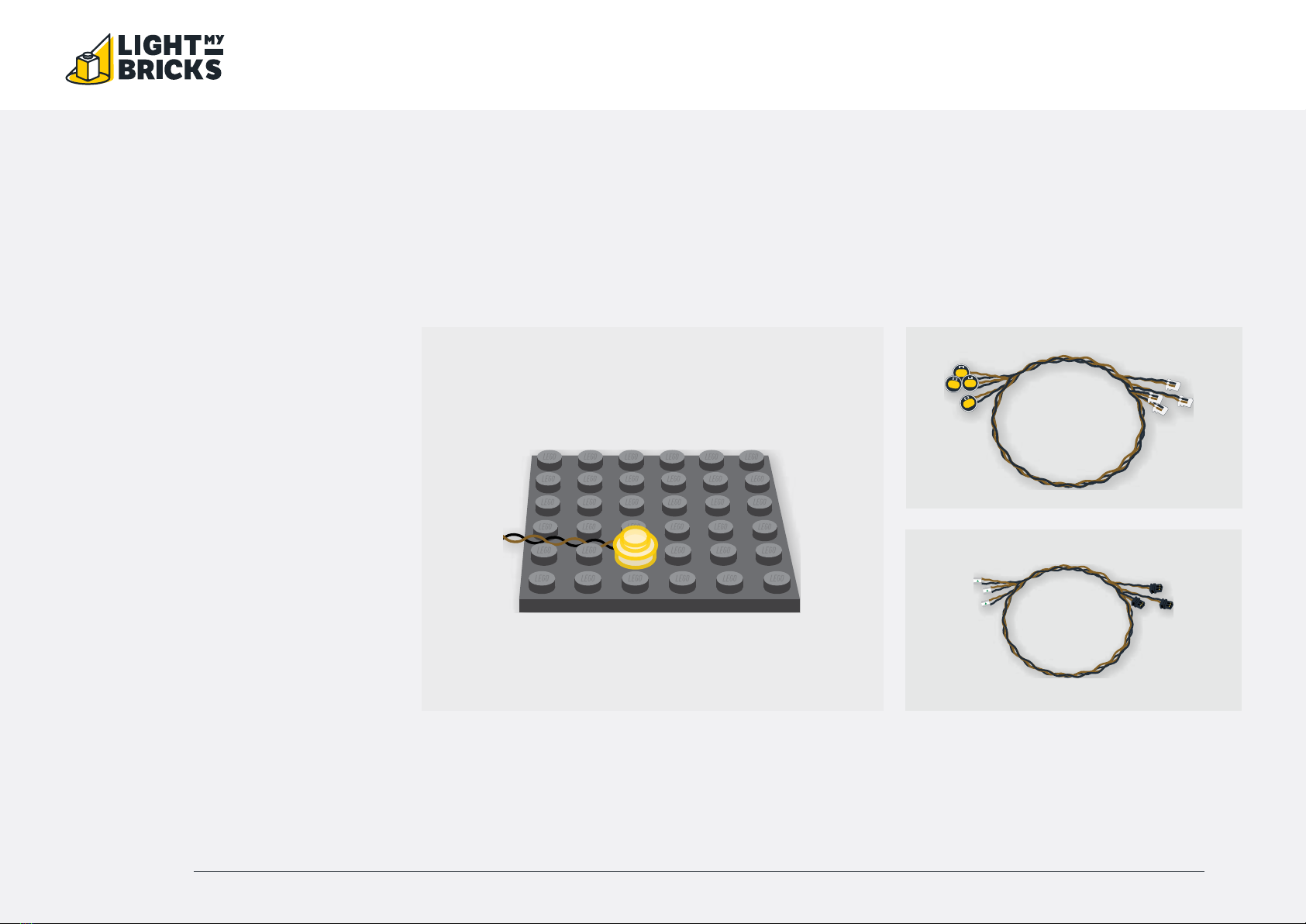

Installing Bit Lights Under

Lego® Bricks And Plates

When installing Bit Lights under LEGO®

pieces, ensure they are placed the correct

way up (Yellow LED component exposed).

You can either place them directly on top of

LEGO® studs or in between.

LEGO DARTH VADER MEDITATION CHAMBER 75296 LIGHT KIT INSTALL GUIDE

INSTRUCTIONS 8

INSTRUCTIONS

To ensure a smooth installation of

your light kit, please read and follow

each step carefully. If you run into

any issues, please refer to the online

troubleshooting guide.

LEGO DARTH VADER MEDITATION CHAMBER 75296 LIGHT KIT INSTALL GUIDE

INSTRUCTIONS 9

Legend DISCONNECT CONNECT /

RECONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON

LMB Lightsaber - Red

LEGO DARTH VADER MEDITATION CHAMBER 75296 LIGHT KIT INSTALL GUIDE

INSTRUCTIONS 10

Legend DISCONNECT CONNECT /

RECONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON

Connect to a

USB, Power Bank,

USB to AA BAttery

Pack or USB Wall

Adaptor (each sold

separately)

If you experience any issues with the lights not working and suspect an issue with a component, please try a dierent port on the expansion board to verify where the fault lies (with the light or

expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues in our troubleshooting section.

6-Port Expansion Board

USB Power Cable
