Lightmybricks LEGO 75304 User manual

LEGO® DARTH VADER HELMET

#75304 LIGHT KIT

INSTALLATION GUIDE

LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE

Light My Bricks

LEGO® DARTH VADER HELMET

#75304 LIGHT KIT

INSTALLATION GUIDE

Hi There!

We’re here to help you get started on the LEGO®

Darth Vader Helmet (75304) Light Kit.

This PDF details the instructions for the LED light & sound

kit only.

If you run into any issues, please refer to the

troubleshoot-ing section towards the end of this guide.

Have fun and enjoy!

INSTALLATION GUIDE

LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE

PACKAGE CONTENTS 3

PACKAGE CONTENTS: LEGO PIECES:

2 x Red 30cm Bit Lights

3 x Red 30cm Large Bit Lights

1 x Cool White 30cm Large Bit Light

1 x 8 Port Expansion Board

•2 x Black Round Plate 1x1 w Open Stud

•2 x Black Arm Skeleton, Bent w Clips (Horizontal Grip)

•4 x Black 1x1 Modiﬁed Plate Rounded with Handle

•2 x Black 1x6 Plate

1 x USB Power Cable

(Power Source not Included)

LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE

CONTENTS 4

Contents

Before You Begin 5

Instructions 9

Final Product 16

Troubleshooting 17

Contact 22

LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE

BEFORE YOU BEGIN 5

Before You Begin

Laying cables in between

and underneath bricks

Cables can ﬁt in between and underneath

LEGO® bricks, plates, and tiles providing

they are laid correctly between the

LEGO® studs. Do NOT forcefully join

LEGO® together around cables; instead

ensure they are laying comfortably in

between each stud.

CAUTION: Forcing LEGO® to connect over

a cable can result in damaging the cable

and light.

Connecting Cable

Connectors To Expansion

Boards

Take extra care when inserting connectors

to ports of Expansion Boards. Connectors

can be inserted only one way. With the

expansion board facing up, look for the

soldered “=” symbol on the left side of the

port. The connector side with the wires

exposed should be facing toward the

soldered “=” symbol as you insert into the

port. If a plug won’t ﬁt easily into a port

connector, do not force it.

Incorrectly inserting the connector can

can result in bent pins inside the port or

possible overheating of the expansion

board when connected.

LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE

BEFORE YOU BEGIN 6

Before You Begin

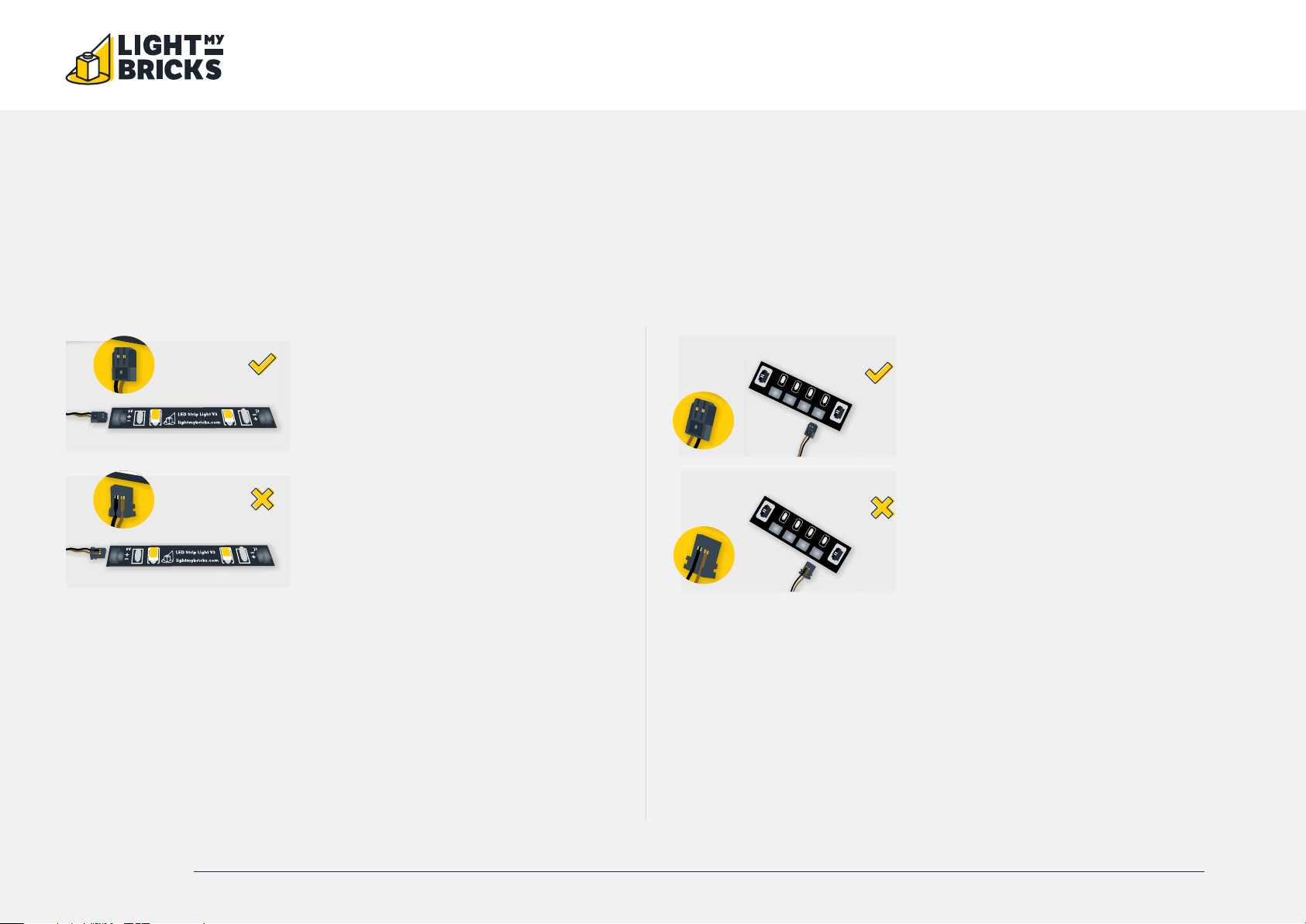

Connecting Cable

Connectors To Strip Lights

Take extra care when inserting connectors

to ports on the Strip Lights. Connectors

can be inserted only one way. With the

Strip Light facing up, ensure the side of

the connector with the wires exposed is

facing down. If a plug won’t ﬁt easily into

a port connector, don’t force it. Doing so

will damage the plug and the connector.

Connecting Micro Cable

Connectors To Micro

Expansion Board Ports

Take extra care when inserting the

micro connectors to micro ports of Micro

Expansion Boards. Connecting Micro Bit

Lights to Micro Expansion Boards is similar

to connecting lights and cables to Strip

Lights. With the expansion board facing

up, ensure the side of the connector with

the wires exposed is facing down. If a plug

won’t ﬁt easily into a port connector, do

not force it. Use your ﬁngernail to push the

plastic part of the connector to the micro

port.

LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE

BEFORE YOU BEGIN 7

Before You Begin

Installing Bit Lights Under

Lego® Bricks And Plates

When installing Bit Lights under LEGO®

pieces, ensure they are placed the correct

way up (Yellow LED component exposed).

You can either place them directly on top of

LEGO® studs or in between.

LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE

INSTRUCTIONS 8

INSTRUCTIONS

To ensure a smooth installation of

your light kit, please read and follow

each step carefully. If you run into

any issues, please refer to the online

troubleshooting guide.

LEGEND:DISCONNECT DIRECTIONAL

LEGENDE:TRENNEN DIRECTIONAL

LÉGENDE:DÉCONNECTER DIRECTIONNEL

LEGGENDA: SCOLLEGARE

CONNECT / RECONNECT

VERNINDEN / WIEDERVERBINDEN

CONNECTER / RECONNECTER

CONNETTI / RICONNETTI

TURN / FLIP

WENDEN / KIPPEN

TOUR / INCLINAISON

ROTARE / INCLINARE DIREZIONALE

TWIST / BRAID

DREHEN / VERDREHEN

TORSION / TRESSER

TWIST / TRECCIA

POWER ON / TEST

EINSCHALTEN / TESTEN

POWER ON / TEST

LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE

INSTRUCTIONS 9

Legend DISCONNECT CONNECT /

RECONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON

Black 1x1 Modiﬁed Plate

Rounded with handle

Black Arm Skeleton, Bent w

Clips (Horizontal Grip)

Black Round Plate 1x1 w

Open Stud

Red 30cm Large Bit Light

LEGO DARTH VADER HELMET 75304 LIGHT KIT INSTALL GUIDE

INSTRUCTIONS 10

Legend DISCONNECT CONNECT /

RECONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON

Black 1x6 Plate

Black Round Plate 1x1 w

Open Stud

Cool White 30cm Large Bit

Light

Black 1x1 Modiﬁed Plate

Rounded with handle

Black Arm Skeleton, Bent w

Clips (Horizontal Grip)
