Lexmark X203N series Operating manual
Contents
Maintaining the printer................................................................................3
Cleaning the exterior of the printer..........................................................................................................3
Cleaning the scanner glass........................................................................................................................4
Cleaning the ADF separator rollers............................................................................................................5
Storing supplies.........................................................................................................................................7
Checking the status of supplies from a network computer......................................................................7
Ordering supplies......................................................................................................................................8
Ordering toner cartridges ................................................................................................................................... 8
Ordering a photoconductor kit ........................................................................................................................... 8
Replacing supplies.....................................................................................................................................9
Replacing the toner cartridge ............................................................................................................................. 9
Replacing the photoconductor kit .................................................................................................................... 11
Moving the printer to another location..................................................................................................14
Shipping the printer................................................................................................................................15
Contents
2
Maintaining the printer
Periodically, certain tasks are required to maintain optimum print quality.
Cleaning the exterior of the printer
1Make sure that the printer is turned off and unplugged from the wall outlet.
CAUTION—SHOCK HAZARD: To avoid the risk of electric shock when cleaning the exterior of the printer,
unplug the power cord from the wall outlet and disconnect all cables to the printer before proceeding.
2Remove all paper from the printer.
3Dampen a clean, lint‑free cloth with water.
Warning—Potential Damage: Do not use household cleaners or detergents, as they may damage the finish of
the printer.
4Wipe only the outside of the printer.
Warning—Potential Damage: Using a damp cloth to clean the interior may cause damage to your printer.
5Make sure all areas of the printer are dry before beginning a new print job.
Maintaining the printer
3
Cleaning the scanner glass
If you encounter print quality problems, such as streaks on copied or scanned images, clean the areas shown.
1Slightly dampen a soft, lint-free cloth or paper towel with water.
2Open the scanner cover.
1White undersides of the scanner glass cover and the ADF cover
2Scanner glass and ADF glass
3ADF tabs
3Wipe the areas shown and let them dry.
Warning—Potential Damage: Do not fold or crease the ADF tabs. Doing so may cause jams.
4Close the scanner cover.
Maintaining the printer
4
Cleaning the ADF separator rollers
After you have copied over 5,000 pages using the ADF, or if streaks are appearing, clean the ADF separator rollers.

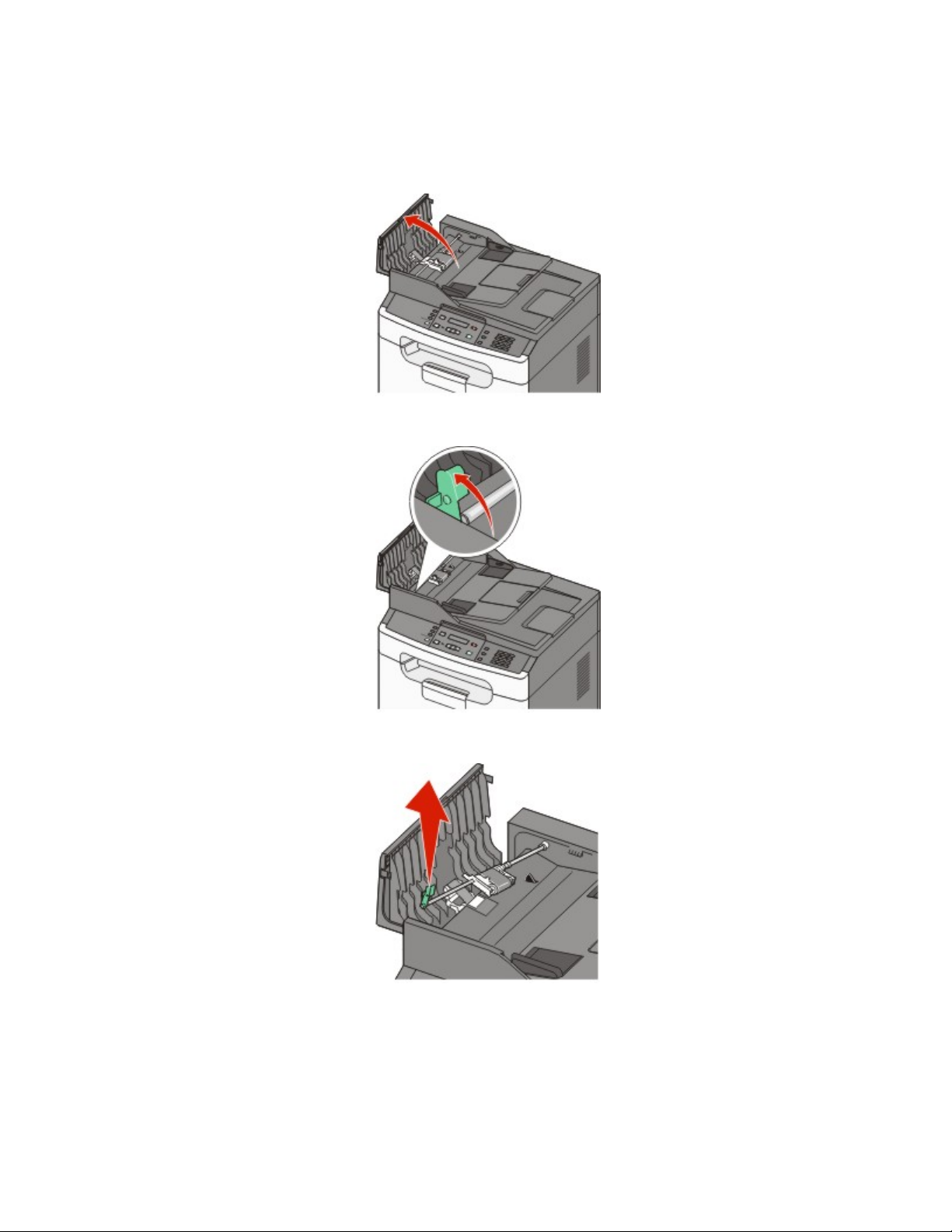

1Open the ADF cover.
2Unlock the separator roll.
3Remove the separator roll.
Maintaining the printer
5

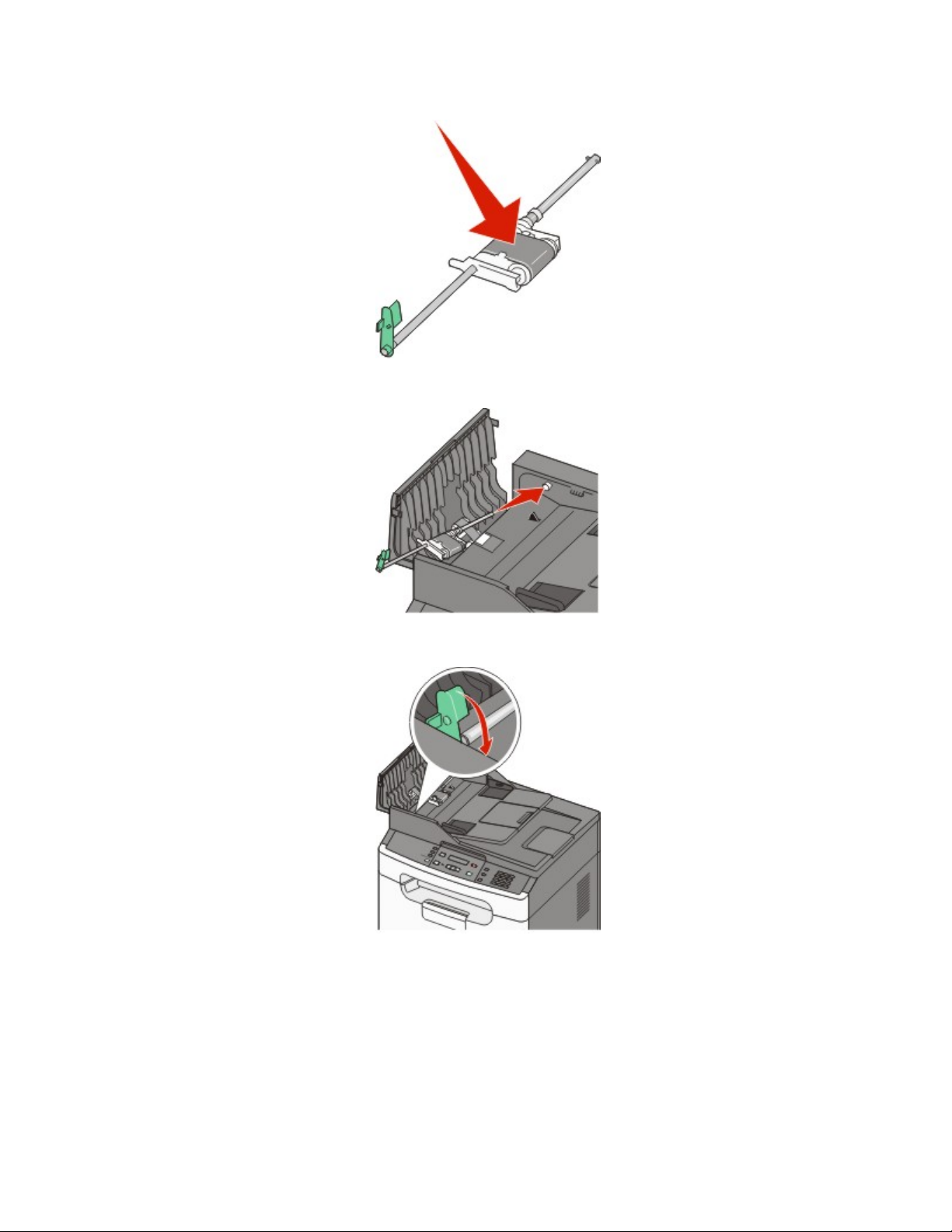

4Use a clean, lint-free cloth dampened with water to wipe the separator roller.
5Reinstall the separator roll.
6Lock the separator roll.
Maintaining the printer
6

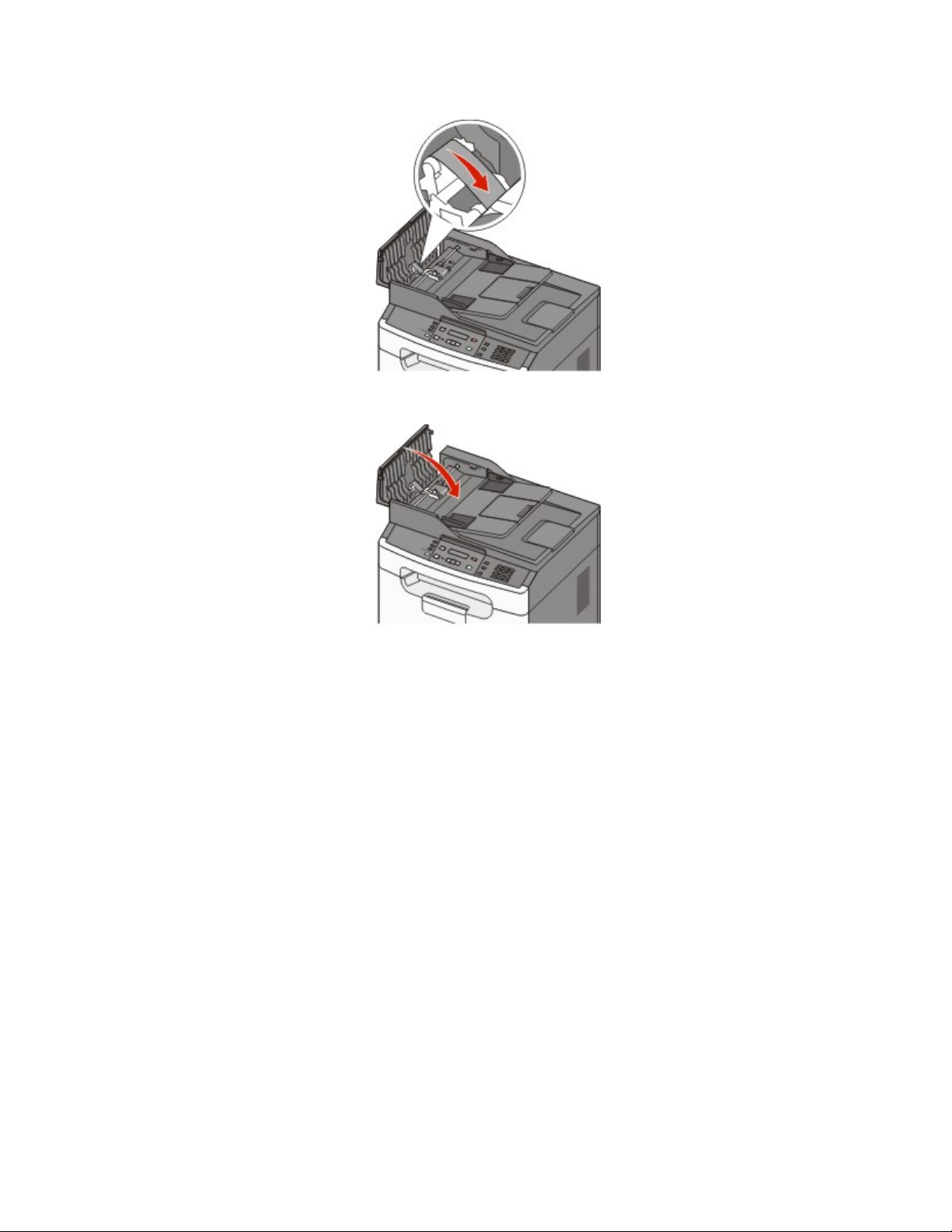

7Use a second clean, lint-free cloth dampened with water to wipe the other separator roller while gently rotating it.
8Close the ADF cover.
Storing supplies
Choose a cool, clean storage area for the printer supplies. Store supplies right side up in their original packing until you
are ready to use them.
Do not expose supplies to:
•Direct sunlight
•Temperatures above 35°C (95°F)
•High humidity above 80%
•Salty air
•Corrosive gases
•Heavy dust
Checking the status of supplies from a network computer
Note: The computer must be connected to the same network as the printer.
Maintaining the printer
7
1Type the printer IP address into the address field of your Web browser.
Note: If you do not know the IP address of the printer, print a network setup page and locate the IP address in
the TCP/IP section.
2Click Device Status. The Device Status page appears, displaying a summary of supply levels.
Ordering supplies
To order supplies in the U.S., contact Lexmark at 1-800-539-6275 for information about Lexmark authorized supplies
dealers in your area. In other countries or regions, visit the Lexmark Web Site at www.lexmark.com or contact the
place where you purchased the printer.
Warning—Potential Damage: Damage caused by the use of a supply or replacement item not produced by the
manufacturer of this printer is not covered under warranty. Degraded print quality may result from using supplies or
replacement items not produced by the manufacturer of this printer.
Note: All life estimates for printer supplies assume printing on letter‑ or A4‑size plain paper.
Ordering toner cartridges
When 88 Cartridge is Low appears or when the print becomes faded:
1Remove the toner cartridge.
2Firmly shake the cartridge side‑to‑side and front‑to‑back several times to redistribute toner.
3Reinsert the cartridge and continue printing.
Note: Repeat this procedure multiple times until the print remains faded, and then replace the cartridge.
Recommended toner cartridge part numbers
Part name Regular cartridge Lexmark Return Program Cartridge
Toner cartridge X340A21G X203A11G
Ordering a photoconductor kit
When 84 PC Kit Life Warning appears on the display, the photoconductor kit is near its end of life. Order a
photoconductor kit so that one is available when 84 Replace PC Kit appears.
You can also check the status of the photoconductor kit by printing a network setup page.
Maintaining the printer
8
Part name Part number
Photoconductor kit X203H22G
Replacing supplies
Replacing the toner cartridge
When 88 Cartridge is low appears, or when you experience faded print, remove the toner cartridge. Firmly
shake it side‑to‑side and front‑to‑back several times to redistribute the toner, and then reinsert it and continue printing.
When shaking the cartridge no longer improves the print quality, replace the toner cartridge.
Note: You can check to see approximately how much toner is left in your cartridge by printing a menu settings page.
To replace the toner cartridge:
1Open the front door by pressing the button on the left side of the printer and lowering the door.
Maintaining the printer
9

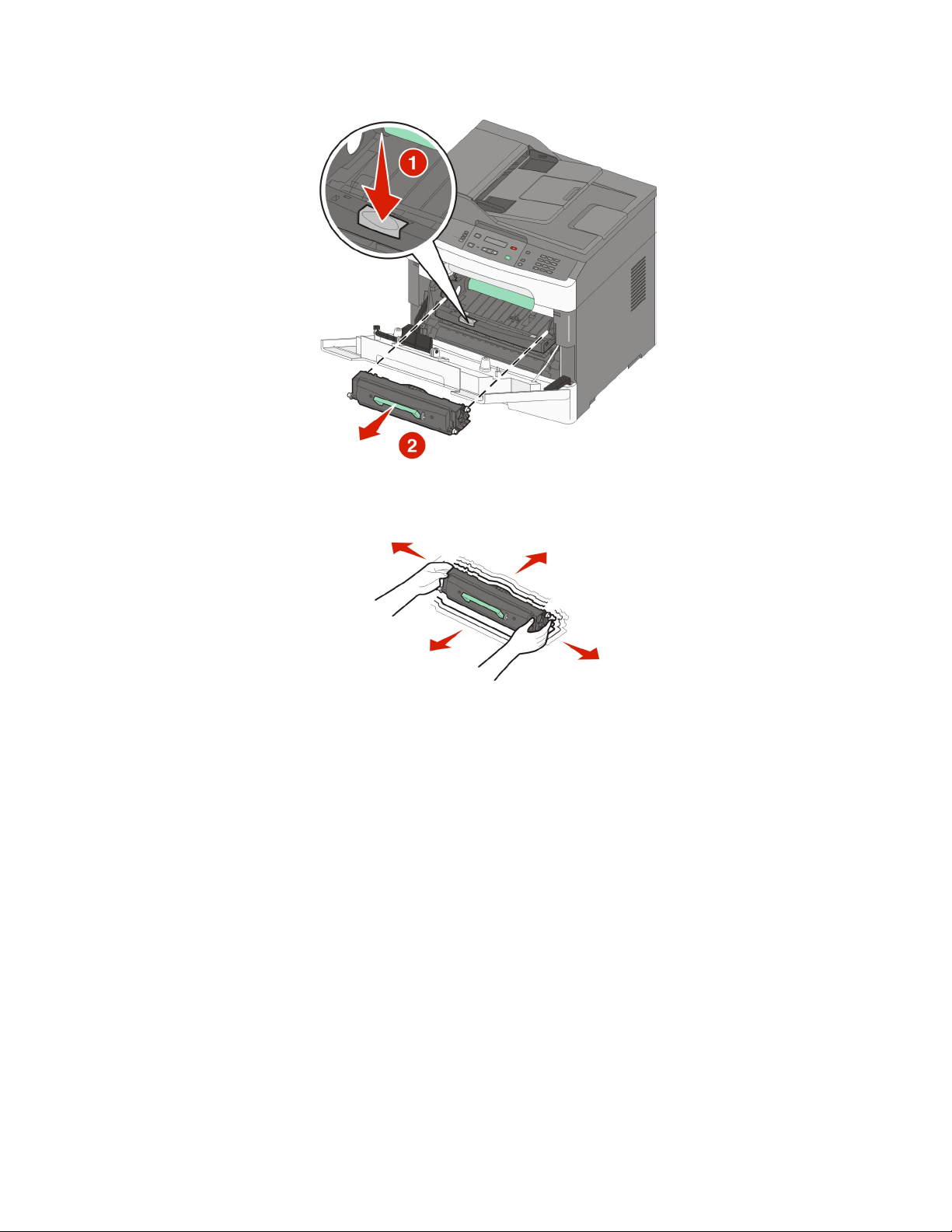

2Press the button on the base of the photoconductor kit, and then pull the toner cartridge out using the handle.
3Unpack the new toner cartridge.
4Shake the cartridge in all directions to distribute the toner.
Maintaining the printer
10
