Lexmark Optra Optra T User manual

1User’s Guide

User’s Guide

Use this document when you have questions about the Lexmark

Optra™ T printer or encounter a problem when using it. This docu-

ment contains information on loading print material, clearing jams,

and using your printer.

The online Administrator’s Guide on this CD is a complement to this

User’s Guide. If you are not accessing these documents directly

from the CD, the Administrator’s Guide may not be available to you.

See your administrator if you need the Administrator’s Guide.

Click the document name to open it:

Administrator’s Guide

Roadmap

Setup Guide

2000-Sheet Drawer User’s Guide

High-Capacity Output Stacker

Installation Instructions

Home

TIPS

•Use the Adobe Acrobat (3.x or higher) icons and

table of contents on your screen to navigate and

use this document.

•Click the blue text to link to another part of

this document or to another document.

•You can print all or specific pages of this

document.

2User’s Guide

Other sources of

information

Drivers, MarkVision and

Utilities CD

In addition to printer drivers and utilities, the Drivers, MarkVision and

Utilities CD includes information about Lexmark printers. After

launching the CD, click View Documentation and then click:

•Printer Commands to open the Technical Reference and get

details about printer languages and commands, interface

specifications, and memory management.

•Special Media to open the Card Stock & Label Guide and get

information about choosing the correct print material.

•MarkVision™Printer Utility to open documents providing

details about the MarkVision printer management software.

•MarkNet™Print Servers to open documents containing infor-

mation about configuring MarkNet print servers.

Lexmark Web site Access our site on the World Wide Web for updated printer drivers,

utilities, and documentation:

www.lexmark.com

3Trademarks

Trademarks

TrademarksTrademarks

Trademarks

Lexmark and Lexmark with diamond design, MarkNet, MarkVision, and Optra are

trademarks of Lexmark International, Inc., registered in the United States and/or

other countries.

Operation ReSource is a service mark of Lexmark International, Inc.

PCL®is a registered trademark of the Hewlett-Packard Company. PCL 6 is

Hewlett-Packard Company’s designation of a set of printer commands (language)

and functions included in its printer products. This printer is intended to be com-

patible with the PCL 6 language. This means the printer recognizes PCL 6 com-

mands used in various application programs, and that the printer emulates the

functions corresponding to the commands.

PostScript®is a registered trademark of Adobe Systems Incorporated. PostScript

3 is Adobe Systems’designation of a set of printer commands (language) and

functions included in its software products. This printer is intended to be compati-

ble with the PostScript 3 language. This means the printer recognizes PostScript

3 commands used in various application programs, and that the printer emulates

the functions corresponding to the commands.

Details relating to compatibility are included in the Technical Reference.

Other trademarks are the property of their respective owners.

4Meet the Printer

Meet the Printer

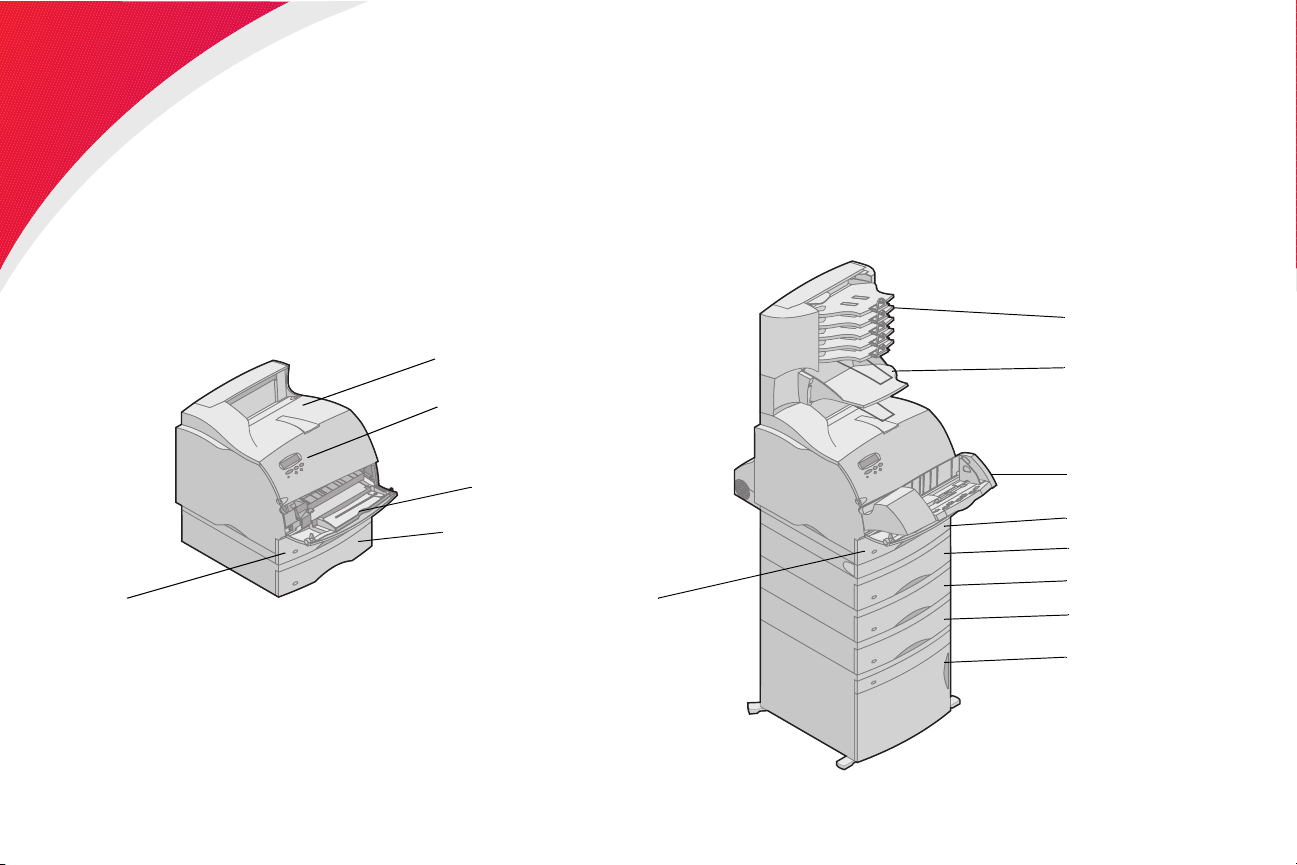

The following illustrations show typically and fully configured printers. If you have attached paper

handling options to your printer, it may look more like the fully configured model. For information on

other possible configurations, refer to the Setup Guide.

Tray 2

Standard output bin

Operator panel

Tray 1

(integrated tray)

Tray 5

(2000-sheet drawer)

5-Bin mailbox

Output expander

Envelope feeder

Tray 2

Tray 3

Duplex unit

Tray 4

Typically configured Fully configured

Multipurpose Feeder

Tray 1

(integrated tray)

5Using Printer Drivers

Using Printer Drivers

The printer drivers, installed on your computer from the Drivers,

MarkVision and Utilities CD that came with your printer, provide you

with powerful control of the printer features from almost any soft-

ware application. Some of the things you can control include:

•Choosing paper sources

•Changing page orientation

•Choosing different sizes and types of media

•Adjusting the quality of print jobs

•Resetting printer defaults

•Multipage printing

•Changing duplex settings

•Print and Hold functions

You can open the printer driver from most applications:

1Open the application File menu.

2Choose Print (or Printer) Setup.

3In the Printer Setup dialog box, click the Properties, Options,

or Setup button (depending on the application).

6Using the Operator Panel and Menus

Using the Operator Panel and Menus

This section contains information about using the operator panel,

changing printer settings, and understanding operator panel menus.

You can change most printer settings from your software application

or printer driver. Settings you change from the application or printer

driver apply only to the job you are preparing to send to the printer.

NOTE:Changes made to printer settings from a software application

override changes made from the printer operator panel.

If there is a setting you cannot change from your application, use the

printer operator panel or the remote operator panel available from

MarkVision. Changing a printer setting from the printer operator

panel or from MarkVision makes that setting the user default.

7Using the Operator Panel and Menus

Using the

operator panel

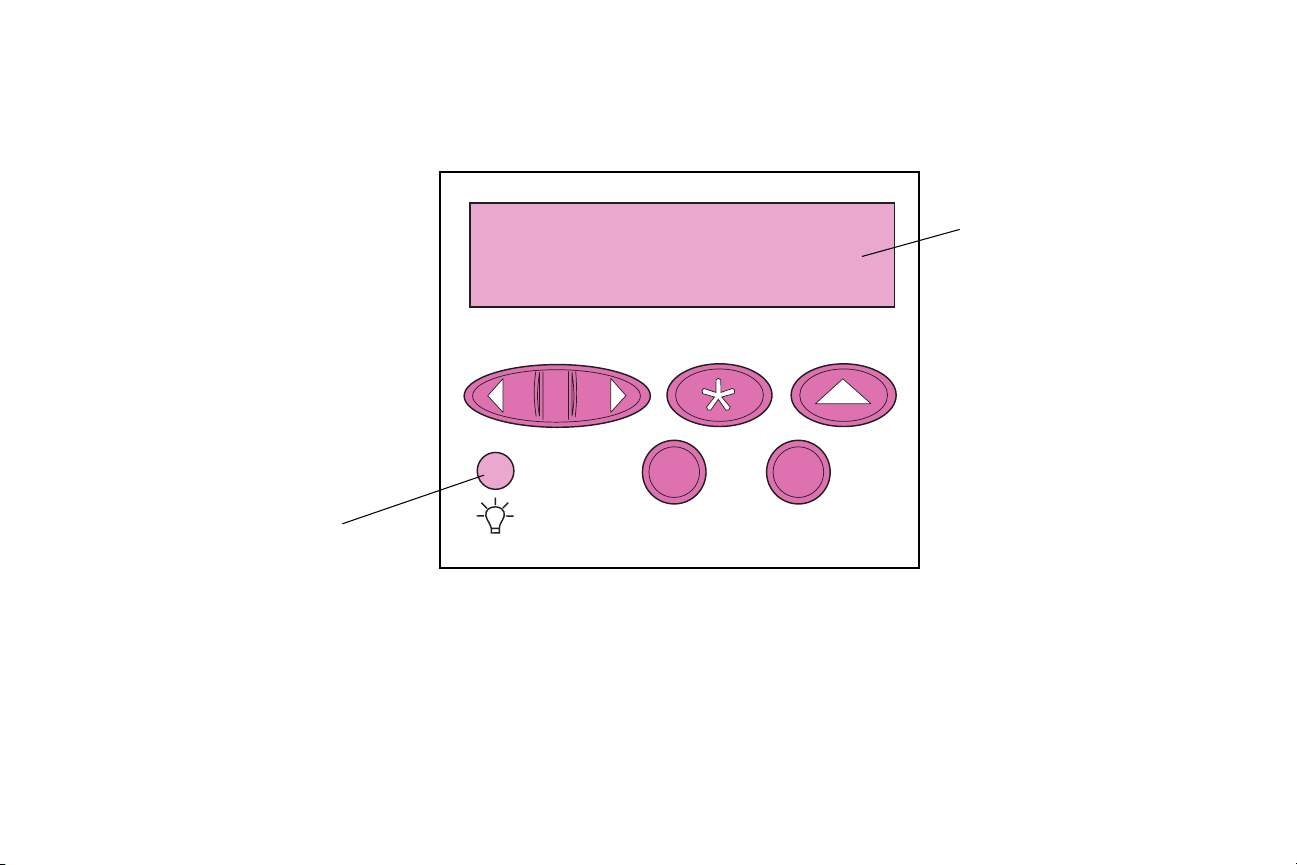

The printer operator panel, on the front left-side of your printer, has

a 2-line by 16-character liquid crystal display (LCD), five buttons,

and one indicator light.

Printer indicator light The printer indicator light gives information about the status of your

printer. If the light is:

•Off - the printer is off

•On - the printer is on, but idle

•Blinking - the printer is on and is busy

LCD

Light

1 Menu 2Select 3Return 4

Go 5Stop 6

8Using the Operator Panel and Menus

Operator panel buttons Use the five operator panel buttons to open a menu, scroll through a

list of values, change printer settings, and respond to printer mes-

sages.

You will find the numbers 1 through 6 beside the operator panel but-

tons; these numbers are used to enter PIN numbers for Print and

Hold jobs. For more information, see “Using the Print and Hold

Function”on page 106.

The following information describes the functions of each button.

NOTE:Buttons act upon the information that displays on the second

line of the operator panel.

Go Press the Go button to:

•Return to the Ready state if the printer is in an offline situation

(the Ready message does not display on the operator panel).

•Exit printer menus and return to the Ready state.

•Clear operator panel error messages.

If you’ve changed printer settings from the operator panel menus,

press Go before sending a job to print. The printer must display

Ready for jobs to print.

9Using the Operator Panel and Menus

<Menu> Each end of the button has a function. Press Menu> or <Menu:

•When Ready displays, to take the printer offline (out of the

Ready state) and enter the menus. Menu> takes you to the

first menu in the menus. <Menu takes you to the last menu in

the menus.

•When Busy displays, to take the printer to the JOB MENU.

•When the printer is offline:

–Press Menu> to go to the next item in the menus, or

–Press <Menu to go to the previous item in the menus.

•For menu items with numerical values, such as Copies, press

and hold Menu> to scroll forward, or <Menu to scroll backward.

Release the button when the number you want displays.

Select Press the Select button to:

•Select the menu displayed on the second line of the operator

panel. Depending on the type of menu, this action:

–Opens the menu and displays the first item in the menu.

–Opens the menu item and displays the default setting.

•Save the displayed menu item as the default setting. The

printer displays the Saved message and returns to the menu

item.

•Clear certain messages from the operator panel.

10Using the Operator Panel and Menus

Return Press the Return button to return to the previous menu level or

menu item.

Stop Press the Stop button at the Ready

, Busy

, or Waiting message to

temporarily stop all activity and take the printer offline. The operator

panel status message changes to Not Ready

Press Go to return the printer to the Ready

, Busy

, or Waiting state.
