Lexmark C748 User manual

Menu map

Menus list

Supplies Menu Paper Menu Reports Settings

Replace Supply

Cyan Cartridge

Magenta Cartridge

Yellow Cartridge

Black Cartridge

Cyan Photoconductor

Magenta Photoconductor

Yellow Photoconductor

Black Photoconductor

Waste Toner Bottle

Fuser

Transfer Module

Default Source

Paper Size/Type

Configure MP

Substitute Size

Paper Texture

Paper Weight

Paper Loading

Custom Types

Custom Names

Universal Setup

Menu Settings Page

Device Statistics

Network Setup Page

Network [x] Setup Page

Profiles List

Print Fonts

Print Directory

Asset Report

General Settings

Flash Drive Menu

Print Settings

Security Network/Ports Help

Miscellaneous Security Settings

Confidential Print

Disk Wiping1

Security Audit Log

Set Date and Time

Active NIC

Standard Network2

Standard USB

Parallel [x]

Serial [x]

SMTP Setup

Print All Guides

Color Quality

Print Quality

Printing Guide

Media Guide

Print Defects Guide

Menu Map

Information Guide

Connection Guide

Moving Guide

Supplies Guide

1This menu appears only when a printer hard disk is installed.

2Depending on the printer setup, this menu appears as Standard Network, Wireless Network, or Network [x].

Menu map

Page 1 of 4

Using the touch‑screen printer control panel

1234

67 5

ABC

DEF

GHI

JKL

MNO

PQR

STU

WXYZ

Use the To

1Display Show the printer status.

Allow printer setup and operation.

2Home button Return to the home screen.

3Keypad Enter numbers, letter, or symbols.

4Sleep button Enable Sleep mode.

The following are the statuses based on the indicator light and the Sleep button:

•Entering or waking from Sleep mode

–The indicator light is illuminated solid green.

–The sleep button is unilluminated.

•Operating in Sleep mode

–The indicator light is illuminated solid green.

–The sleep button is illuminated solid amber.

•Entering or waking from Hibernate mode

–The indicator light is illuminated solid green.

–The sleep button is illuminated blinking amber.

•Operating in Hibernate mode

–The indicator light is unilluminated.

–The sleep button is blinking amber for 0.1 of a second, then goes completely unilluminated for 1.9

seconds in pulsing pattern.

The following actions wake the printer from Sleep mode:

•Touching the screen or pressing any hard button

•Opening Tray 1 or loading paper in the multipurpose feeder

•Opening a door or cover

•Sending a print job from the computer

•Performing a power‑on reset with the main power switch

•Attaching a device to a USB port

5Stop/Cancel

button

Stop all printer activity.

Note: A list of options is displayed when Stopped appears on the display.

Menu map

Page 2 of 4

Use the To

6Indicator light Check the status of the printer.

•Off—The printer is off.

•Blinking green—The printer is warming up, processing data, or printing.

•Solid green—The printer is on, but idle.

•Blinking red—The printer requires operator intervention.

7USB port Connect a flash drive to the printer.

Understanding the home screen

When the printer is turned on, the display shows a basic screen, referred to as the home screen. Use the home screen buttons

and icons to initiate an action.

Note: Your home screen, icons, and the buttons may vary depending on your home screen customization settings,

administrative setup, and active embedded solutions.

2 3

5678

123.123.123.123

Touch To

1Change Language Change the primary language of the printer.

2Bookmarks Create, organize, and save a set of bookmarks (URLs) into a tree view of folders and file links.

Note: The tree view does not include bookmarks created within Forms and Favorites, and the ones

in the tree are not usable in Forms and Favorites.

3Held Jobs Display all current held jobs.

4USB or USB

Thumbdrive

View, select, or print photos and documents from a flash drive.

Note: This icon appears only when you return to the home screen while a memory card or flash

drive is connected to the printer.

5Menus Access printer menus.

Note: These menus are available only when the printer is in the Ready state.

6Status message bar •Show the current printer status such as Ready or Busy.

•Show printer conditions such as Fuser missing or Cartridge Low.

•Show intervention messages and the instructions on how to clear them.

Menu map

Page 3 of 4

Touch To

7Status/Supplies •Display a warning or error message whenever the printer requires intervention to continue

processing.

•Access the messages screen for more information on the message, and how to clear it.

8Tips View a context‑sensitive help information.

This may also appear on the home screen:

Touch To

Search Held Jobs Search current held jobs.

Features

Feature Description

Attendance message alert If an attendance message affects a function, then this icon appears and the red indicator

light blinks.

Warning If an error condition occurs, then this icon appears.

Printer IP address

Example: 123.123.123.123

The IP address of your network printer is located at the top left corner of the home screen

and appears as four sets of numbers separated by periods. You can use the IP address when

accessing the Embedded Web Server so you can view and remotely configure printer

settings even when you are not physically near the printer.

Menu map

Page 4 of 4

Other manuals for C748

Table of contents

Other Lexmark Printer manuals

Lexmark

Lexmark E 220 User manual

Lexmark

Lexmark E360dtn Manual

Lexmark

Lexmark MS810 Series Quick reference guide

Lexmark

Lexmark E 450dn Operating and safety instructions

Lexmark

Lexmark C920 SERIES User manual

Lexmark

Lexmark E350d - E B/W Laser Printer User manual

Lexmark

Lexmark E 462dtn User manual

Lexmark

Lexmark Z43 - Z43 Color InkJet Printer User manual

Lexmark

Lexmark 13P0200 - C 750fn Color Laser Printer Instruction Manual

Lexmark

Lexmark 20T3600 - T 620 B/W Laser Printer User manual

Lexmark

Lexmark 248X-200 series User manual

Lexmark

Lexmark C530 series, C532 series, C534 series User manual

Lexmark

Lexmark CS410 series Instruction Manual

Lexmark

Lexmark CS310 Series User manual

Lexmark

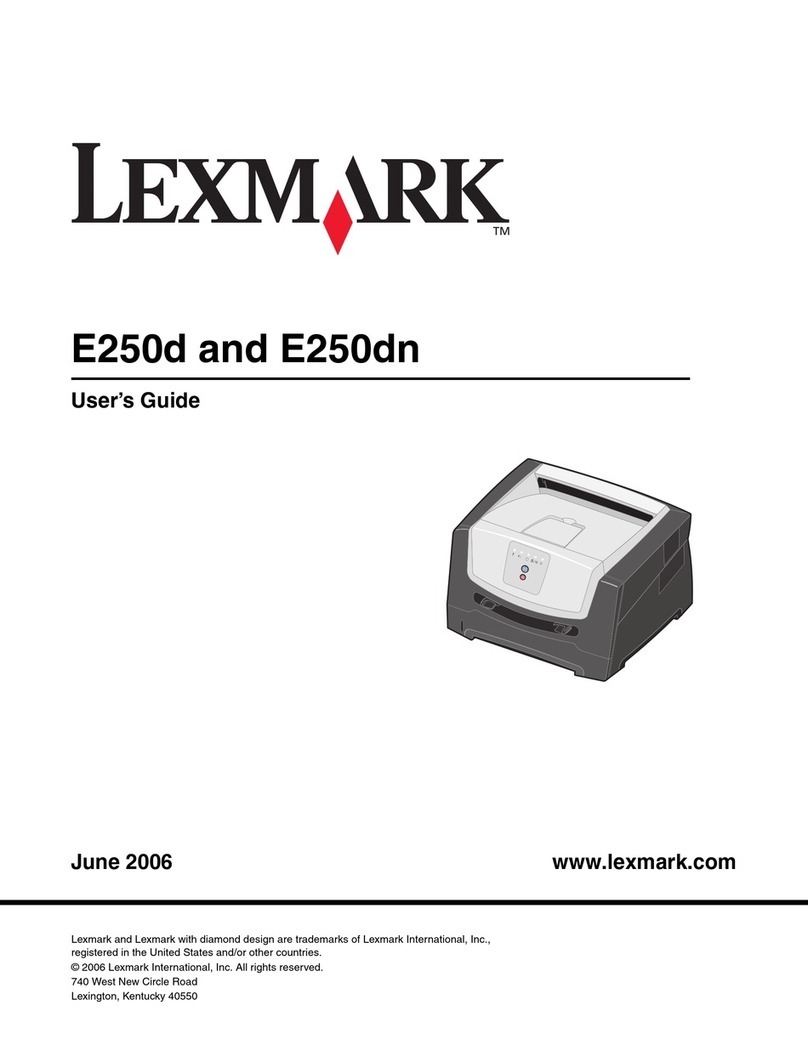

Lexmark 250dn - E B/W Laser Printer User manual
