Lenovo ThinkCentre M75s-1 User manual

Setup Guide

M75s-1

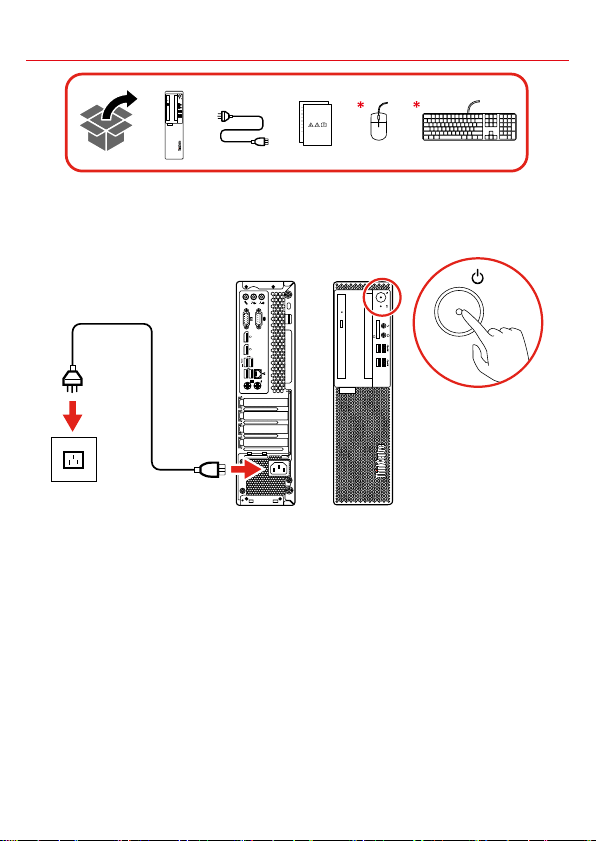

Initial Setup

*For selected models

Overview

*1. Optical drive eject button

*2. Optical drive activity indicator

3. Power button

4. Power indicator

*5. SD-card reader slot

6. Microphone connector

7. Headphone connector

8. USB 3.1 connectors Gen 2 (2)

9. USB 3.1 connectors Gen 1 (2)

10. ThinkCentre® LED

*11. Internal speaker

12. Audio line-in connector

13. Audio line-out connector

14. Microphone connector

15. Serial connector

16. VGA-out connector

17. DisplayPort® 1.2 out connectors

(2)

18. USB 3.1 connectors Gen 1 (2)

19. USB 2.0 connectors (2)

20.PS/2 keyboard connector

21. PS/2 mouse connector

22. PCI-Express card area

*23. Smart cable clip slots (2)

24. Security-lock slot

25. Padlock loop

26. Ethernet connector

27. Power cord connector

* For selected models

Read the statement on USB transfer rate in the User Guide. Refer to the Safety and

Warranty Guide for accessing the User Guide.

Additional information

European Union — compliance with the

Radio Equipment Directive

Hereby, Lenovo (Singapore) Pte. Ltd., declares that

the radio equipment type ThinkCentre M75s-1 is in

compliance with Directive 2014/53/EU.

The full text of the system EU declaration of

conformity and the EU wireless module

declarations are available at the following Internet

addresses:

•For desktop and all-in-one computers:

https://www.lenovo.com/eu-doc-desktops

•For workstations:

https://www.lenovo.com/eu-doc-workstations

This radio equipment operates with the following

frequency bands and maximum radio-frequency

power:

Technology

Frequency

band [MHz]

Maximum

transmit

power

WLAN

802.11b/g/n

2400 - 2483.5 < 20 dBm

WLAN

802.11a/n/ac

5150 - 5725 < 23 dBm

WLAN

802.11a/n/ac

5725 - 5875

< 13.98

dBm

Bluetooth

BR/EDR/LE

2400 - 2483.5 < 20 dBm

E-manual

Second Edition (October 2019)

©Copyright Lenovo 2019.

LIMITED AND RESTRICTED RIGHTS NOTICE: Ifdata or software is delivered pursuant to a

General Services Administration “GSA” contract, use, reproduction, ordisclosure issubject to

restrictions set forth inContract No. GS-35F-05925.

Reduce I Reuse I Recycle
